MS85R-HBQ (1976)

Toyota Crown

Production Apr 1976 - Feb 1978
Engine 4M
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7410-7611)ATM

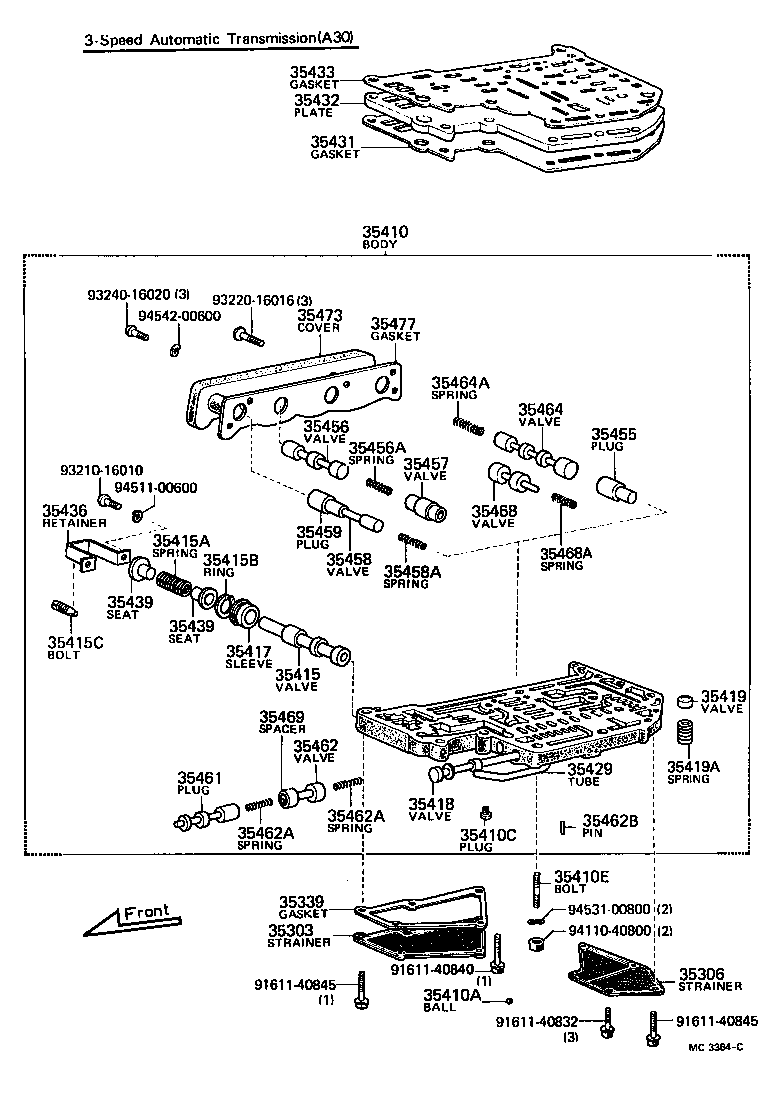

Click highlighted areas on diagram

diagram 35303 35306 35339 35410 35410A 35410C 35410E 35415 35415A 35415B 35415C 35417 35418 35419 35419A 35429 35431 35432 35433 35436 35439 35439 35455 35456 35456A 35457 35458 35458A 35459 35461 35462 35462A 35462A 35462B 35464 35464A 35468 35468A 35469 35473 35477 9161140832 9161140840 9161140845 9161140845 9321016010 9322016016 9324016020 9411040800 9451100600 9453100800 9454200600
Part # Description Qty Price
35303 - STRAINER SUB-ASSY, OIL
35303-30013

MS83,85,95..ATM

 1
35303-22020

MS83,85,95..ATM

 1
35306 - STRAINER SUB-ASSY, REAR OIL
35306-30011

MS83,85,95..ATM

 1
35339 - GASKET, OIL STRAINER
35339-30010

MS83,85,95..ATM

 1
35410 - BODY ASSY, TRANSMISSION VALVE
35410-30011

MS83,85,95..ATM

 1
35410A - BALL (FOR REVERSE SHIFT RESTRICT)
90360-06004

MS83,85,95..ATM

 1
35410C - PLUG (FOR TRANSMISSION VALVE BODY)
44681-36020

MS83,85,95..ATM

 2
35410E - BOLT, STUD (FOR TRANSMISSION VALVE BODY)
90116-08017

MS83,85,95..ATM

 2
35415 - VALVE, PRESSURE REGULATOR
35415-30011

MS83,85,95..ATM

 1
35415A - SPRING, COMPRESSION (FOR PRESSURE REGULATOR VALVE)
90501-16331

MS83,85,95..ATM

 1
35415B - RING, HOLE SNAP (FOR PRESSURE REGULATOR VALVE SET)
96151-01500

MS83,85,95..ATM

 1
35415C - BOLT, SET (FOR VALVE SPRING)
90113-08024

MS83,85,95..ATM

 1
35417 - SLEEVE, PRESSURE REGULATOR VALVE
35417-30010

MS83,85,95..ATM

 1
35418 - VALVE, MANUAL
35418-30011

MS83,85,95..ATM

 1
35419 - VALVE, CHECK, NO.1
35419-12010

MS83,85,95..ATM

 2
35419A - SPRING, COMPRESSION (FOR CHECK VALVE)
90501-05327

MS83,85,95..ATM

 2
35429 - TUBE, LINE PRESSURE
35429-30010

MS83,85,95..ATM

 1
35431 - GASKET,VALVE BODY
35434-30011

MS83,85,95..ATM

 1
35432 - PLATE, VALVE BODY, NO.1
35432-30012

MS83,85,95..ATM

 1
35433 - GASKET, VALVE BODY, NO.1
35433-30012

MS83,85,95..ATM

 1
35436 - RETAINER, PRESSURE REGULATOR SPRING
35436-30011

MS83,85,95..ATM

 1
35439 - SEAT, PRESSURE REGULATOR VALVE SPRING
35439-30010

MS83,85,95..ATM

 2
35439 - SEAT, PRESSURE REGULATOR VALVE SPRING
35439-30010

MS83,85,95..ATM

 2
35455 - PLUG, 1-2 SHIFT VALVE LOW
35455-30011

MS83,85,95..ATM

 1
35456 - VALVE, 2-3 SHIFT
35456-30010

MS83,85,95..ATM

 1
35456A - SPRING, COMPRESSION (FOR 2-3 SHIFT VALVE)
90501-08328

MS83,85,95..ATM

 1
35457 - VALVE, THROTTLE MODULATOR
35457-30010

MS83,85,95..ATM

 1
35458 - VALVE, THROTTLE RELAY
35458-30010

MS83,85,95..ATM

 1
35458A - SPRING, COMPRESSION (FOR THROTTLE RELAY VALVE)
90501-06325

MS83,85,95..ATM

 1
35459 - PLUG, THROTTLE RELAY
35459-30010

MS83,85,95..ATM

 1
35461 - PLUG, DOWN SHIFT
35461-30010

MS83,85,95..ATM

 1
35462 - VALVE, THROTTLE
35462-30010

MS83,85,95..ATM

 1
35462A - SPRING, COMPRESSION (FOR THROTTLE VALVE)
90501-10334

MS83,85,95..ATM

FOR REAR,H=17.5

 1
90501-12333

MS83,85,95..ATM

FOR FRONT,H=22.5

 1
35462A - SPRING, COMPRESSION (FOR THROTTLE VALVE)
90501-10334

MS83,85,95..ATM

FOR REAR,H=17.5

 1
90501-12333

MS83,85,95..ATM

FOR FRONT,H=22.5

 1
35462B - PIN, SLOTTED SPRING (FOR THROTTLE VALVE SET)
90254-03011

MS83,85,95..ATM

 1
35464 - VALVE, 1-2 SHIFT
35464-30011

MS83,85,95..ATM

 1
35464A - SPRING, COMPRESSION (FOR 1-2 SHIFT VALVE)
90501-06461

MS83,85,95..ATM

WD=0.6,H=16.52

 1
90501-05416

MS83,85,95..ATM

WD=0.5,H=18.60

 1
90501-06460

MS83,85,95..ATM

WD=0.6,H=18.25

 1
35468 - VALVE, ORIFICE CONTROL
35468-30010

MS83,85,95..ATM

 1
35468A - SPRING, COMPRESSION (FOR ORIFICE CONTROL VALVE SPRING)
90501-12332

MS83,85,95..ATM

 1
35469 - SPACER (FOR VALVE BODY DOWN SHIFT PLUG)
35469-30010

MS83,85,95..ATM

 1
35473 - COVER, TRANSMISSION VALVE BODY
35473-30011

MS83,85,95..ATM

 1
35477 - GASKET, VALVE BODY COVER
35477-30010

MS83,85,95..ATM

 1
Common parts
91611-40832
91611-40840
91611-40845
93210-16010
93220-16016
93240-16020
94110-40800
94511-00600
94531-00800
94542-00600
