MS85R-HBQ (1976)

Toyota Crown

Production Apr 1976 - Feb 1978
Engine 4M
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7410-7611)ATM

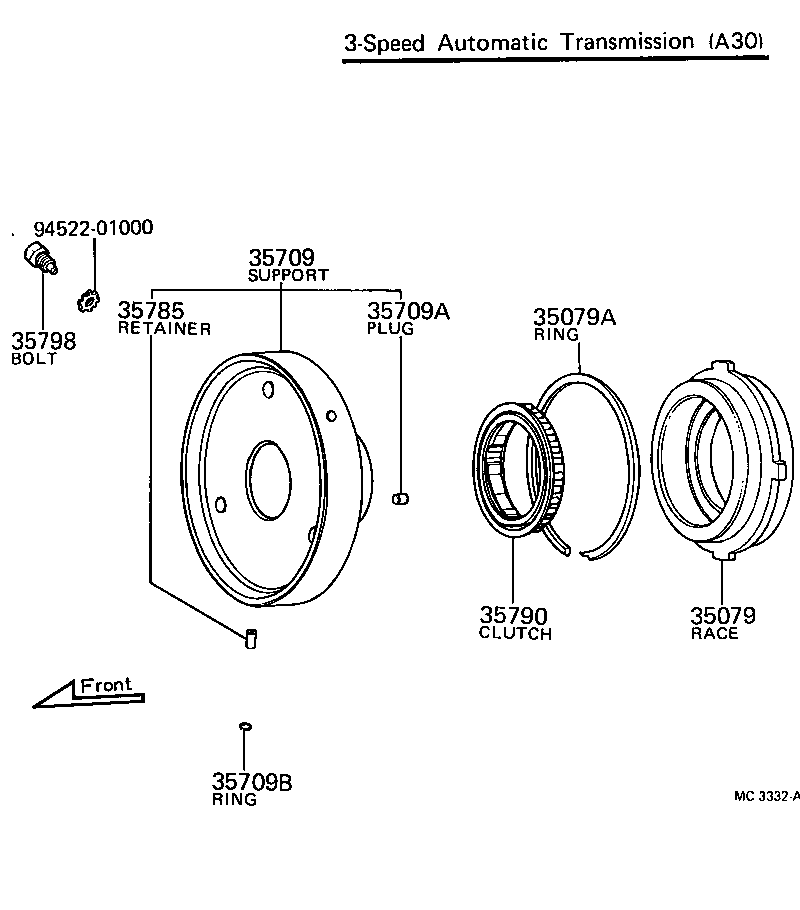

Click highlighted areas on diagram

diagram 35079 35079A 35709 35709A 35709B 35785 35790 35798 9452201000
Part # Description Qty Price
35079 - RACE SUB-ASSY, 1 WAY CLUTCH, OUTER
35079-40010

MS83,85,95..ATM

 1
35079A - RING, HOLE SNAP(FOR CLUTCH RACE SET)
90521-99099

MS83,85,95..ATM

 1
35709 - SUPPORT SUB-ASSY, CENTER
35709-30010

MS83,85,95..ATM

 1
35709A - PLUG, STRAIGHT (FOR CENTER SUPPORT)
90334-05001

MS83,85,95..ATM

 1
35709B - RING, O (FOR CENTER SUPPORT)
90301-04110

MS83,85,95..ATM

 1
35785 - RETAINER, CENTER SUPPORT RING
35785-30010

MS83,85,95..ATM

 1
35790 - CLUTCH ASSY, 1 WAY
35790-30010

MS83,85,95..ATM

 1
35798 - BOLT, CENTER SUPPORT, NO.1
35798-30010

MS83,85,95..ATM

 2
Common parts
94522-01000
