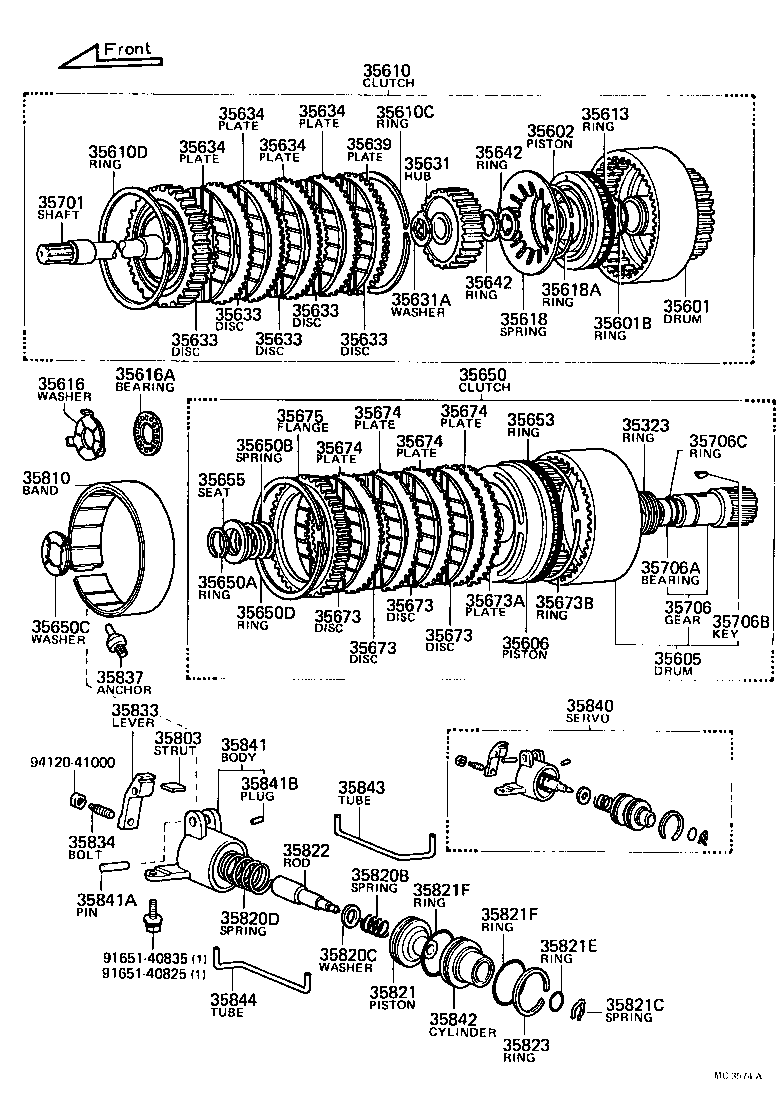

MS85R-HBQ (1976)
Toyota Crown
(7410-7611)ATM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35323 - RING (FOR OIL SEAL) | ||||
| 35323-31011 |
MS83,85,95..ATM |
3 | ||
| 35601 - DRUM SUB-ASSY, CLUTCH | ||||
| 35611-30011 |
MS83,85,95..ATM |
1 | ||
| 35601B - RING, O (FOR FRONT CLUTCH DRUM) | ||||
| 90301-30113 |
MS83,85,95..ATM |
1 | ||
| 35602 - PISTON SUB-ASSY, FRONT CLUTCH | ||||
| 35602-30030 |
MS83,85,95..ATM |
1 | ||
| 35605 - DRUM SUB-ASSY, REAR CLUTCH W/2ND SUN GEAR | ||||
| 35605-30011 |
MS83,85,95..ATM |
1 | ||
| 35606 - PISTON SUB-ASSY, REAR CLUTCH | ||||
| 35606-40010 |
MS83,85,95..ATM |
1 | ||
| 35610 - CLUTCH ASSY, FRONT MULTIPLE DISC | ||||
| 35610-22010 |
MS83,85,95..ATM |
1 | ||
| 35610-30040 |
MS83,85,95..ATM |
1 | ||
| 35610C - RING, SHAFT SNAP (FOR FRONT CLUTCH PISTON RETURN SPRING | ||||
| 90521-99098 |
MS83,85,95..ATM |
1 | ||
| 35610D - RING, HOLE SNAP (FOR FRONT MULTIPLE DISC CLUTCH) | ||||
| 90521-99106 |
MS83,85,95..ATM T=1.30-1.40 |
1 | ||
| 90521-99099 |
MS83,85,95..ATM T=1.15-1.25 |
1 | ||
| 35613 - RING, CLUTCH PISTON OIL SEAL, OUTER | ||||
| 35613-30010 |
MS83,85,95..ATM |
1 | ||
| 35616 - WASHER, CLUTCH DRUM THRUST | ||||
| 35616-30040 |
MS83,85,95..ATM T=1.0 |
1 | ||
| 35616-30031 |
MS83,85,95..ATM T=0.8 |
1 | ||
| 35616-30021 |
MS83,85,95..ATM T=1.2 |
1 | ||
| 35616A - BEARING, FRONT CLUTCH THRUST | ||||
| 90374-28006 |
MS83,85,95..ATM |
1 | ||
| 35618 - SPRING, FRONT CLUTCH PISTON RETURN | ||||
| 35618-30011 |
MS83,85,95..ATM |
1 | ||
| 35618A - RING, PISTON RETURN SPRING SET | ||||
| 90522-64015 |
MS83,85,95..ATM |
1 | ||
| 35631 - HUB, CLUTCH(FOR MULTIPLE DISC CLUTCH) | ||||
| 35631-30020 |
MS83,85,95..ATM |
1 | ||
| 35631A - WASHER(FOR TOYOGLIDE CLUTCH HUB THRUST) | ||||
| 90214-16027 |
MS83,85,95..ATM |
1 | ||
| 35633 - DISC, CLUTCH (FOR FRONT CLUTCH) | ||||
| 35633-40010 |
MS83,85,95..ATM |
5 | ||
| 35633 - DISC, CLUTCH (FOR FRONT CLUTCH) | ||||
| 35633-40010 |
MS83,85,95..ATM |
5 | ||
| 35633 - DISC, CLUTCH (FOR FRONT CLUTCH) | ||||
| 35633-40010 |
MS83,85,95..ATM |
5 | ||
| 35633 - DISC, CLUTCH (FOR FRONT CLUTCH) | ||||
| 35633-40010 |
MS83,85,95..ATM |
5 | ||
| 35633 - DISC, CLUTCH (FOR FRONT CLUTCH) | ||||
| 35633-40010 |
MS83,85,95..ATM |
5 | ||
| 35634 - PLATE, FRONT CLUTCH | ||||
| 35634-30050 |
MS83,85,95..ATM T=1.70-1.85 |
4 | ||
| 35634-30040 |
MS83,85,95..ATM T=1.30-1.45 |
4 | ||
| 35634-30020 |
MS83,85,95..ATM T=1.50-1.65 |
4 | ||
| 35634 - PLATE, FRONT CLUTCH | ||||
| 35634-30050 |
MS83,85,95..ATM T=1.70-1.85 |
4 | ||
| 35634-30040 |
MS83,85,95..ATM T=1.30-1.45 |
4 | ||
| 35634-30020 |
MS83,85,95..ATM T=1.50-1.65 |
4 | ||
| 35634 - PLATE, FRONT CLUTCH | ||||
| 35634-30050 |
MS83,85,95..ATM T=1.70-1.85 |
4 | ||
| 35634-30040 |
MS83,85,95..ATM T=1.30-1.45 |
4 | ||
| 35634-30020 |
MS83,85,95..ATM T=1.50-1.65 |
4 | ||
| 35634 - PLATE, FRONT CLUTCH | ||||
| 35634-30050 |
MS83,85,95..ATM T=1.70-1.85 |
4 | ||
| 35634-30040 |
MS83,85,95..ATM T=1.30-1.45 |
4 | ||
| 35634-30020 |
MS83,85,95..ATM T=1.50-1.65 |
4 | ||
| 35639 - PLATE, FRONT CLUTCH PRESSURE | ||||
| 35639-40010 |
MS83,85,95..ATM |
1 | ||
| 35642 - RING, CLUTCH HUB OIL SEAL | ||||
| 35642-30011 |
MS83,85,95..ATM |
2 | ||
| 35642 - RING, CLUTCH HUB OIL SEAL | ||||
| 35642-30011 |
MS83,85,95..ATM |
2 | ||
| 35650 - CLUTCH ASSY, REAR MULTIPLE DISC | ||||
| 35650-20010 |
MS83,85,95..ATM |
1 | ||
| 35650-40012 |
MS83,85,95..ATM |
1 | ||
| 35650A - RING, SHAFT SNAP (FOR REAR CLUTCH PISTON RETURN SPRING) | ||||
| 96152-00320 |
MS83,85,95..ATM |
1 | ||
| 35650B - SPRING, COMPRESSION (FOR REAR CLUTCH PISTON RETURN) | ||||
| 90501-55407 |
MS83,85,95..ATM |
1 | ||
| 35650C - WASHER, CLAW (FOR REAR MULTIPLE DISC CLUTCH) | ||||
| 90214-32022 |
MS83,85,95..ATM |
1 | ||
| 35650D - RING, HOLE SNAP (FOR REAR MULTIPLE DISC CLUTCH) | ||||
| 90521-99099 |
MS83,85,95..ATM |
1 | ||
| 35653 - RING, REAR CLUTCH OIL SEAL, OUTER | ||||
| 35653-30010 |
MS83,85,95..ATM |
1 | ||
| 35655 - SEAT, REAR CLUTCH PISTON RETURN SPRING | ||||
| 35655-30010 |
MS83,85,95..ATM |
1 | ||
| 35673 - DISC, REAR CLUTCH | ||||
| 35633-40010 |
MS83,85,95..ATM |
4 | ||
| 35673 - DISC, REAR CLUTCH | ||||
| 35633-40010 |
MS83,85,95..ATM |
4 | ||
| 35673 - DISC, REAR CLUTCH | ||||
| 35633-40010 |
MS83,85,95..ATM |
4 | ||
| 35673 - DISC, REAR CLUTCH | ||||
| 35633-40010 |
MS83,85,95..ATM |
4 | ||
| 35673A - PLATE, REAR CLUTCH CUSHION | ||||
| 35673-14010 |
MS83,85,95..ATM |
1 | ||
| 35673B - RING, REAR CLUTCH | ||||
| 90522-99036 |
MS83,85,95..ATM |
1 | ||
| 35674 - PLATE, REAR CLUTCH | ||||
| 35674-30010 |
MS83,85,95..ATM |
4 | ||
| 35674 - PLATE, REAR CLUTCH | ||||
| 35674-30010 |
MS83,85,95..ATM |
4 | ||
| 35674 - PLATE, REAR CLUTCH | ||||
| 35674-30010 |
MS83,85,95..ATM |
4 | ||
| 35674 - PLATE, REAR CLUTCH | ||||
| 35674-30010 |
MS83,85,95..ATM |
4 | ||
| 35675 - FLANGE, REAR CLUTCH | ||||
| 35675-30011 |
MS83,85,95..ATM |
1 | ||
| 35701 - SHAFT SUB-ASSY, INPUT | ||||
| 35701-30012 |
MS83,85,95..ATM |
1 | ||
| 35706 - GEAR SUB-ASSY, PLANETARY SUN | ||||
| 35706-30010 |
MS83,85,95..ATM |
1 | ||
| 35706A - BEARING, NEEDLE ROLLER (FOR 2ND SUN GEAR) | ||||
| 90364-20020 |
MS83,85,95..ATM |
1 | ||
| 35706B - KEY, WOODRUFF (FOR 2ND SUN GEAR) | ||||
| 90280-05008 |
MS83,85,95..ATM |
2 | ||
| 35706C - RING, O (FOR 2ND SUN GEAR) | ||||
| 90301-25107 |
MS83,85,95..ATM |
1 | ||
| 35803 - STRUT SUB-ASSY, LOW BRAKE BAND APPLY | ||||
| 35803-30020 |
MS83,85,95..ATM L=28 |
1 | ||
| 35803-30030 |
MS83,85,95..ATM L=29 |
1 | ||
| 35810 - BAND ASSY, TRANSMISSION BRAKE (FOR FRONT) | ||||
| 35801-40020 |
MS83,85,95..ATM |
1 | ||
| 35820B - SPRING, COMPRESSION (FOR LOW SERVO PISTON INNER) | ||||
| 90501-32335 |
MS83,85,95..ATM |
1 | ||
| 35820C - WASHER, PLATE (FOR LOW SERVO PISTON RETURN SPRING) | ||||
| 90201-12259 |
MS83,85,95..ATM |
1 | ||
| 35820D - SPRING, COMPRESSION (FOR LOW SERVO PISTON RETURN) | ||||
| 90501-26330 |
MS83,85,95..ATM |
1 | ||
| 35821 - PISTON, LOW SERVO | ||||
| 35821-30010 |
MS83,85,95..ATM |
1 | ||
| 35821C - SPRING, LOW SERVO PISTON SPRING LOCK RETAINER | ||||
| 90524-07007 |
MS83,85,95..ATM |
1 | ||
| 35821E - RING, O (FOR SERVO PISTON TO SERVO PISTON CYLINDER) | ||||
| 90301-24128 |
MS83,85,95..ATM |
1 | ||
| 35821F - RING, O (FOR SERVO PISTON TO SERVO BODY) | ||||
| 90301-48148 |
MS83,85,95..ATM |
2 | ||
| 35821F - RING, O (FOR SERVO PISTON TO SERVO BODY) | ||||
| 90301-48148 |
MS83,85,95..ATM |
2 | ||
| 35822 - ROD, LOW SERVO PISTON | ||||
| 35822-30010 |
MS83,85,95..ATM |
1 | ||
| 35823 - RING, SERVO PISTON | ||||
| 90521-58097 |
MS83,85,95..ATM |
1 | ||
| 35833 - LEVER, FRONT BRAKE BAND APPLY | ||||
| 35833-40011 |
MS83,85,95..ATM |
1 | ||
| 35834 - BOLT, FRONT BRAKE BAND APPLY | ||||
| 35834-30010 |
MS83,85,95..ATM |
1 | ||
| 35837 - ANCHOR, FRONT BRAKE BAND | ||||
| 35837-30012 |
MS83,85,95..ATM |
1 | ||
| 35840 - SERVO ASSY, FRONT | ||||
| 35840-40010 |
MS83,85,95..ATM |
1 | ||
| 35841 - BODY, FRONT SERVO | ||||
| 35084-40011 |
MS83,85,95..ATM |
1 | ||
| 35841A - PIN (FOR FRONT SERVO BODY) | ||||
| 90245-10043 |
MS83,85,95..ATM |
1 | ||
| 35841B - PLUG, STRAIGHT (FOR FRONT SERVO BODY) | ||||
| 90334-05013 |
MS83,85,95..ATM |
1 | ||
| 35842 - CYLINDER, FRONT SERVO PISTON | ||||
| 35842-30010 |
MS83,85,95..ATM |
1 | ||
| 35843 - TUBE, FRONT SERVO APPLY | ||||
| 35843-30010 |
MS83,85,95..ATM |
1 | ||
| 35844 - TUBE, FRONT SERVO RELEASE | ||||
| 35844-30010 |
MS83,85,95..ATM |
1 | ||
| Common parts | ||||
| 91651-40825 | ||||
| 91651-40835 | ||||
| 94120-41000 | ||||
