MS85R-HBQ (1976)

Toyota Crown

Production Apr 1976 - Feb 1978
Engine 4M
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7410-7908)ATM

Click highlighted areas on diagram

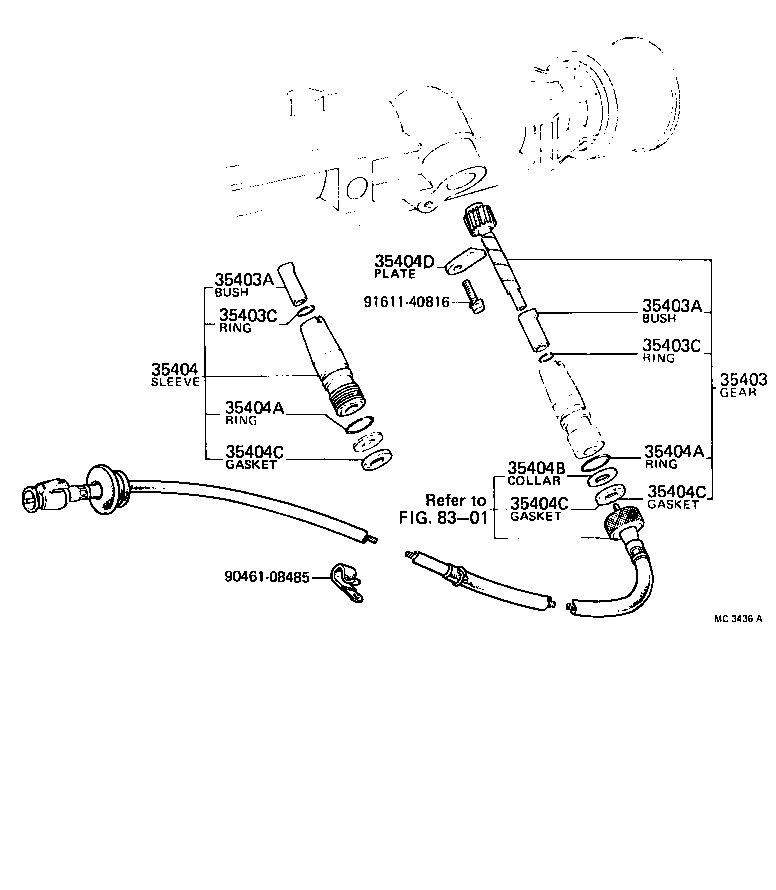

diagram 35403 35403A 35403A 35403C 35403C 35404 35404A 35404A 35404B 35404C 35404C 35404C 35404D 8301 9046108485 9161140816
Part # Description Qty Price
35403 - GEAR SUB-ASSY, SPEEDOMETER DRIVEN (ATM)
33403-29065

MS85,95..ATM;MS83..LHD..3FC..EUR;MS83..3FC..(ARL,GEN)

N=20

 1
35403A - BUSH (FOR ATM SPEEDOMETER SHAFT SLEEVE)
90386-09078

MS83,85,95..ATM

 1
35403A - BUSH (FOR ATM SPEEDOMETER SHAFT SLEEVE)
90386-09078

MS83,85,95..ATM

 1
35403C - RING, O (FOR AUTOMATIC TRANSMISSION SPEEDOMETER SHAFT)
90301-09017

MS83,85,95..ATM

 1
35403C - RING, O (FOR AUTOMATIC TRANSMISSION SPEEDOMETER SHAFT)
90301-09017

MS83,85,95..ATM

 1
35404 - SLEEVE SUB-ASSY, SPEEDOMETER SHAFT (ATM)
33404-39016

MS83,85,95..ATM

 1
35404A - RING, O (FOR ATM SPEEDOMETER SHAFT SLEEVE)
90301-18018

MS83,85,95..ATM

 1
35404A - RING, O (FOR ATM SPEEDOMETER SHAFT SLEEVE)
90301-18018

MS83,85,95..ATM

 1
35404B - COLLAR, SPEEDOMETER FLEXIBLE TUBE SHAFT GASKET (ATM)
90201-07069

MS83,85,95..ATM

 1
35404C - GASKET, SPEEDOMETER FLEXIBLE TUBE SHAFT (ATM)
90303-06017

MS83,85,95..ATM

 1
35404C - GASKET, SPEEDOMETER FLEXIBLE TUBE SHAFT (ATM)
90303-06017

MS83,85,95..ATM

 1
35404C - GASKET, SPEEDOMETER FLEXIBLE TUBE SHAFT (ATM)
90303-06017

MS83,85,95..ATM

 1
35404D - PLATE, SPEEDOMETER SLEEVE LOCK (ATM)
33485-30010

MS83,85,95..ATM

 1
Common parts
90461-08485
91611-40816
Linked diagrams
8301
