MS85R-HBQ (1976)

Toyota Crown

Production Apr 1976 - Feb 1978
Engine 4M
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7410-7611)ATM

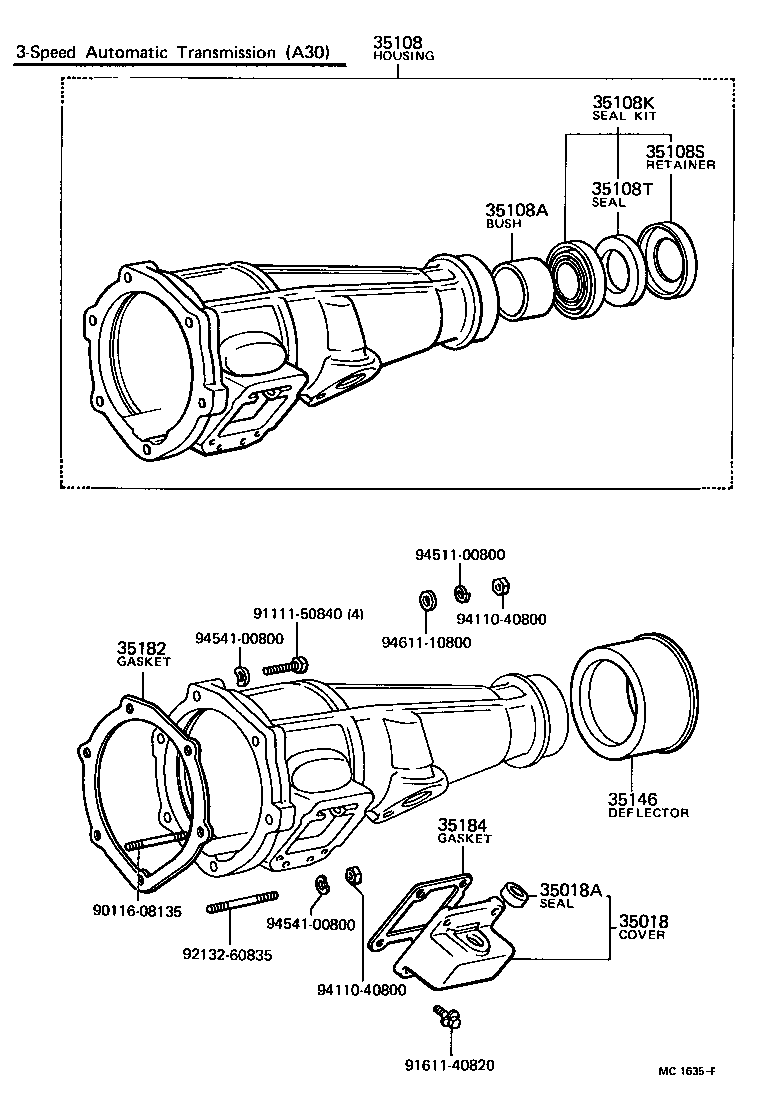

Click highlighted areas on diagram

diagram 35018 35018A 35108 35108A 35108K 35108S 35108T 35146 35182 35184 9011608135 9111150840 9161140820 9213260835 9411040800 9411040800 9451100800 9454100800 9454100800 9461110800
Part # Description Qty Price
35018 - COVER SUB-ASSY, EXTENSION HOUSING
35018-30011

MS83,85,95..ATM

 1
35018A - SEAL, OIL (FOR EXTENSION HOUSING COVER)
90311-10082

MS83,85,95..ATM

 1
35108 - HOUSING SUB-ASSY, EXTENSION (ATM)
35108-30050

MS83,85,95..ATM

 1
35108-30051

MS83,85,95..ATM

 1
35108A - BUSH, BIMETAL FORMED (FOR ATM EXTENSION HOUSING)
90999-73035

MS83,85,95..ATM

 1
35108K - SEAL KIT, OIL(FOR AUTOMATIC EXTENSION HOUSING)
04332-30020

MS83,85,95..ATM

 1
35108S - RETAINER, EXTENSION HOUSING DUST SEAL (ATM)
33145-30010

MS83,85,95..ATM

 1
35108T - SEAL, DUST (FOR AUTOMATIC TRANSMISSION EXTENSION HOUSIN
90303-38010

MS83,85,95..ATM

 1
35146 - DEFLECTOR, EXTENSION HOUSING DUST (ATM)
33146-30010

MS83,85,95..ATM

 1
35182 - GASKET, EXTENSION HOUSING (ATM)
35182-30021

MS83,85,95..ATM

 1
35184 - GASKET, EXTENSION HOUSING COVER
35184-30011

MS83,85,95..ATM

 1
Common parts
90116-08135
91111-50840
91611-40820
92132-60835
94110-40800
94511-00800
94541-00800
94611-10800
