MS85R-HBQ (1976)
Toyota Crown
Production
Apr 1976
-
Feb 1978
Engine
4M
Transmission
3FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(7410-7611)ATM

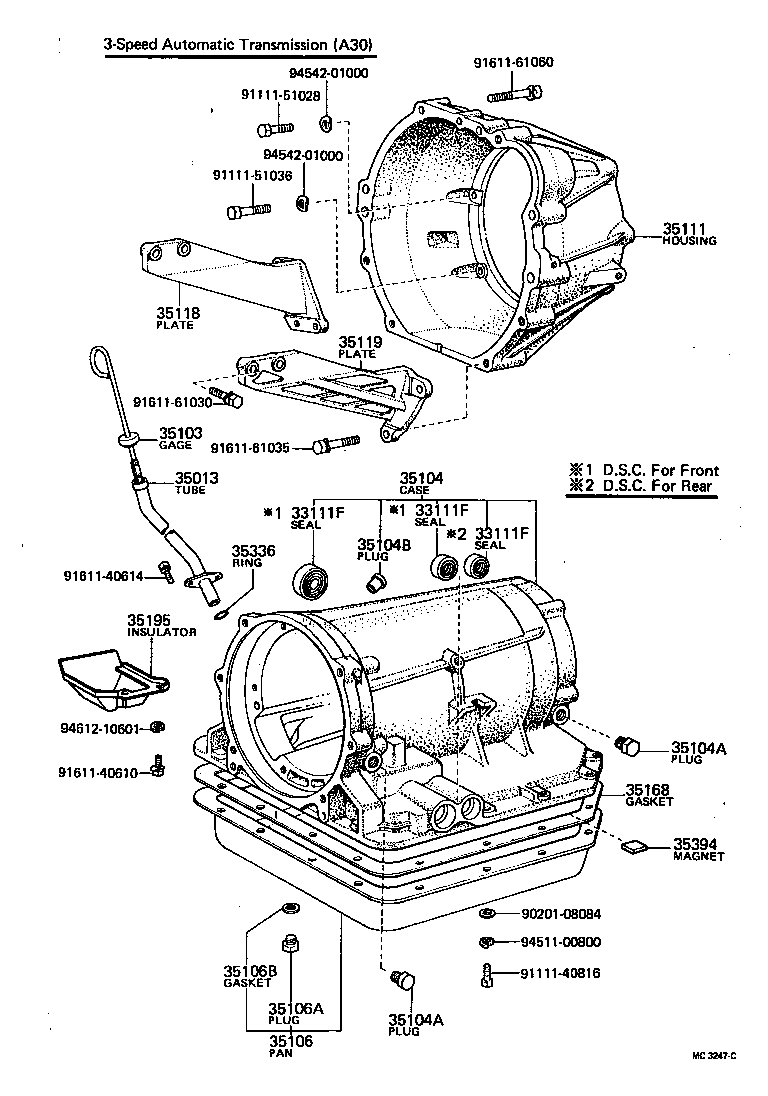

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33111F - SEAL, OIL(FOR TRANSMISSION CASE) | ||||
| 90311-08044 |
MS83,85,95..ATM FOR REAR |
1 | ||
| 90311-10082 |
MS83,85,95..ATM FOR FRONT |
2 | ||
| 33111F - SEAL, OIL(FOR TRANSMISSION CASE) | ||||
| 90311-08044 |
MS83,85,95..ATM FOR REAR |
1 | ||
| 90311-10082 |
MS83,85,95..ATM FOR FRONT |
2 | ||
| 33111F - SEAL, OIL(FOR TRANSMISSION CASE) | ||||
| 90311-08044 |
MS83,85,95..ATM FOR REAR |
1 | ||
| 90311-10082 |
MS83,85,95..ATM FOR FRONT |
2 | ||
| 35013 - TUBE SUB-ASSY, TRANSMISSION OIL FILLER | ||||
| 35013-22090 |
MS83,85,95..3FC |
1 | ||
| 35013-30031 |
MS83,85,95..ATM |
1 | ||
| 35103 - GAGE SUB-ASSY, TRANSMISSION OIL LEVEL | ||||
| 35103-22040 |
MS83,85,95..3FC;MS85..LHD..3HC..BTP;MS85..3HC..(DLX,ROY,SAL) |
1 | ||
| 35103-22040 |
MS83,85,95..ATM |
1 | ||
| 35103-30040 |
MS83,85,95..ATM |
1 | ||
| 35104 - CASE SUB-ASSY, AUTOMATIC TRANSMISSION | ||||
| 35104-30035 |
MS83,85,95..ATM |
1 | ||
| 35104A - PLUG, AUTOMATIC TRANSMISSION CASE | ||||
| 44681-36020 |
MS83,85,95..ATM |
3 | ||
| 35104A - PLUG, AUTOMATIC TRANSMISSION CASE | ||||
| 44681-36020 |
MS83,85,95..ATM |
3 | ||
| 35104B - PLUG, BREATHER, NO.1 (ATM) | ||||
| 90930-03001 |
MS83,85,95..ATM |
1 | ||
| 35106 - PAN SUB-ASSY, AUTOMATIC TRANSMISSION OIL | ||||
| 35106-14020 |
MS85..RHD..ATM |
1 | ||
| 35106-30020 |
MS83,85,95..ATM |
1 | ||
| 35106A - PLUG SUB-ASSY, DRAIN (ATM) | ||||
| 90341-18049 |
MS83,85,95..ATM |
1 | ||
| 35106B - GASKET, DRAIN PLUG (ATM) | ||||
| 12157-10010 |
MS83,85,95..ATM |
1 | ||
| 35111 - HOUSING, AUTOMATIC TRANSMISSION | ||||
| 35111-30070 |
MS83,85,95..ATM |
1 | ||
| 35118 - PLATE, STIFENER, RH (ATM) | ||||
| 33118-30031 |
MS83,85,95..ATM |
1 | ||
| 35119 - PLATE, STIFENER, LH (ATM) | ||||
| 33119-30031 |
MS83,85,95..ATM |
1 | ||
| 35168 - GASKET, AUTOMATIC TRANSMISSION OIL PAN | ||||
| 35168-30010 |
MS83,85,95..ATM |
1 | ||
| 35195 - INSULATOR, NEUTRAL SAFETY SWITCH HEAT | ||||
| 35195-30010 |
MS83,85,95..ATM |
1 | ||
| 35336 - RING, O (FOR TRANSMISSION OIL FILLER TUBE) | ||||
| 35336-31011 |
MS83,85,95..ATM |
1 | ||
| 35394 - MAGNET, OIL CLEANER (FOR TRANSMISSION) | ||||
| 35394-30011 |
MS83,85,95..ATM |
1 | ||
| Common parts | ||||
| 90201-08084 | ||||
| 91111-40816 | ||||
| 91111-51028 | ||||
| 91111-51036 | ||||
| 91611-40610 | ||||
| 91611-40614 | ||||
| 91611-61030 | ||||
| 91611-61035 | ||||
| 91611-61060 | ||||
| 94511-00800 | ||||
| 94542-01000 | ||||
| 94612-10601 | ||||
