MS85R-HBQ (1976)

Toyota Crown

Production Apr 1976 - Feb 1978
Engine 4M
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7410-7611)ATM

Click highlighted areas on diagram

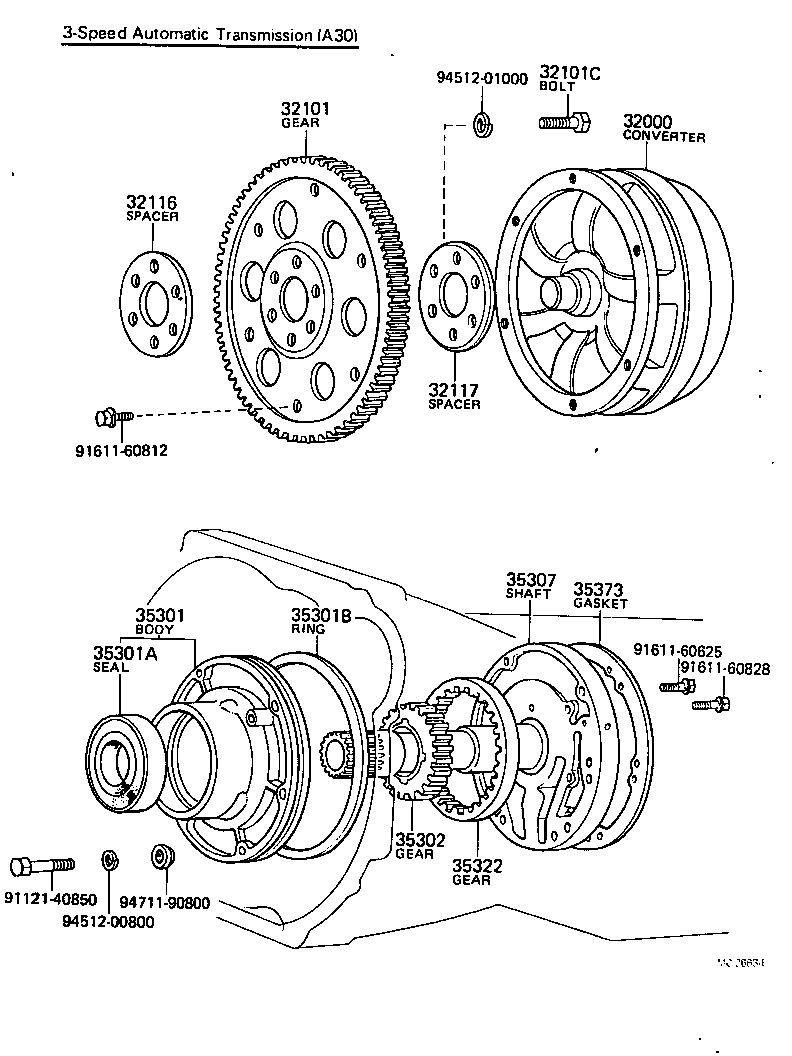

diagram 32000 32101 32101C 32116 32117 35301 35301A 35301B 35302 35307 35322 35373 9112140850 9161160625 9161160812 9161160828 9451200800 9451201000 9471190800
Part # Description Qty Price
32000 - CONVERTER ASSY, TORQUE
32000-30070

MS83,85,95..ATM

 1
32101 - GEAR SUB-ASSY, DRIVE PLATE & RING
32101-30040

MS83,85,95..ATM

 1
32101C - BOLT, HEXAGON(FOR DRIVE PLATE SETTING)
90101-10452

MS83,85,95..ATM

 6
32116 - SPACER, DRIVE PLATE, FRONT
32116-30010

MS83,85,95..ATM

 1
32117 - SPACER, DRIVE PLATE, REAR
32117-30010

MS83,85,95..ATM

 1
35301 - BODY SUB-ASSY, FRONT OIL PUMP
35301-30012

MS83,85,95..ATM

 1
35301A - SEAL, OIL (FOR FRONT OIL PUMP)
90311-45084

MS83,85,95..ATM

 1
35301B - RING, O (FOR FRONT OIL PUMP BODY)
90301-99108

MS83,85,95..ATM

 1
35302 - GEAR SUB-ASSY, FRONT OIL PUMP DRIVE
35302-30011

MS83,85,95..ATM

 1
35307 - SHAFT SUB-ASSY, STATOR
35307-35010

MS83,85,95..ATM

 1
35322 - GEAR, FRONT OIL PUMP DRIVEN
35322-30010

MS83,85,95..ATM

 1
35373 - GASKET, STATOR SHAFT
35373-30010

MS83,85,95..ATM

 1
Common parts
91121-40850
91611-60625
91611-60812
91611-60828
94512-00800
94512-01000
94711-90800
