MS85R-HBQ (1976)
Toyota Crown
Production
Apr 1976
-
Feb 1978
Engine
4M
Transmission
3FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(7410-7908)5R

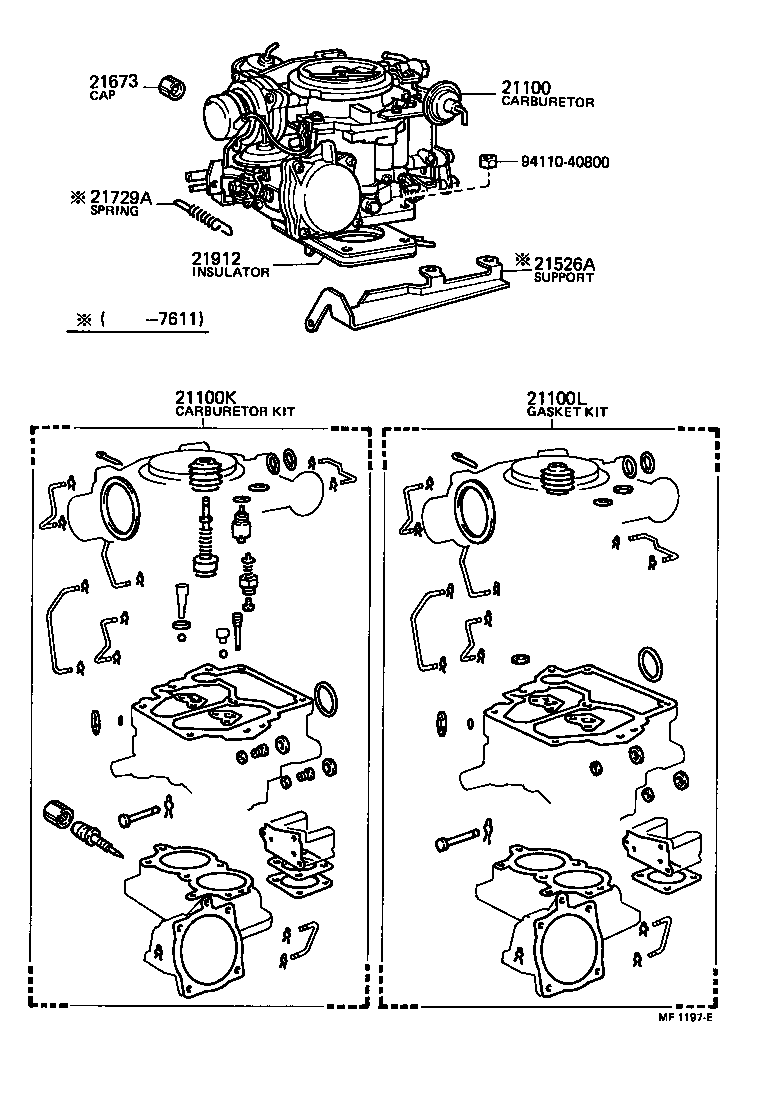

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 21100 - CARBURETOR ASSY | ||||
| 21100-45210 |
4M..MS83,85..ARL |
1 | ||
| 21100-45190 |
4M..MS83,85..ARL |
1 | ||
| 21100-45150 |
4M..MS8#,95..BTP,DLX,SAL,STD |
1 | ||
| 21100K - CARBURETOR KIT | ||||
| 04211-45012 |
4M..MS8#,95 |
1 | ||
| 04211-45051 |
4M..MS83,85..ARL |
1 | ||
| 21100L - GASKET KIT, CARBURETOR | ||||
| 04212-45011 |
4M..MS8#,95 |
1 | ||
| 04212-45021 |
4M..MS83,85..ARL |
1 | ||
| 21526A - SUPPORT, BACK SPRING | ||||
| 21926-41020 |
4M..MS8#,95 |
1 | ||
| 21673 - CAP, IDLE LIMIT | ||||
| 21673-36010 |
4M..MS8#,95 |
1 | ||
| 21673-24010 |
4M..MS83,85..ARL |
1 | ||
| 21912 - INSULATOR, CARBURETOR HEAT | ||||
| 21912-45010 |
4M..MS83,85..ARL |
1 | ||
| 21912-41010 |
4M..MS8#,95 |
1 | ||
| Common parts | ||||
| 90339-02008 | ||||
| 94110-40800 | ||||
(7604-7611)4M..MS83,85..ARL ; (7611-7908)4M
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 21100 - CARBURETOR ASSY | ||||
| 21100-45210 |
4M..MS83,85..ARL |
1 | ||
| 21100-45190 |
4M..MS83,85..ARL |
1 | ||
| 21100-45150 |
4M..MS8#,95..BTP,DLX,SAL,STD |
1 | ||
| 21100K - CARBURETOR KIT | ||||
| 04211-45012 |
4M..MS8#,95 |
1 | ||
| 04211-45051 |
4M..MS83,85..ARL |
1 | ||
| 21100L - GASKET KIT, CARBURETOR | ||||
| 04212-45011 |
4M..MS8#,95 |
1 | ||
| 04212-45021 |
4M..MS83,85..ARL |
1 | ||
| 21526A - SUPPORT, BACK SPRING | ||||
| 21926-41020 |
4M..MS8#,95 |
1 | ||
| 21673 - CAP, IDLE LIMIT | ||||
| 21673-36010 |
4M..MS8#,95 |
1 | ||
| 21673-24010 |
4M..MS83,85..ARL |
1 | ||
| 21912 - INSULATOR, CARBURETOR HEAT | ||||
| 21912-45010 |
4M..MS83,85..ARL |
1 | ||
| 21912-41010 |
4M..MS8#,95 |
1 | ||
| Common parts | ||||
| 94110-40800 | ||||
