MS85R-HBQ (1976)

Toyota Crown

Production Apr 1976 - Feb 1978
Engine 4M
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7410-7908)5R

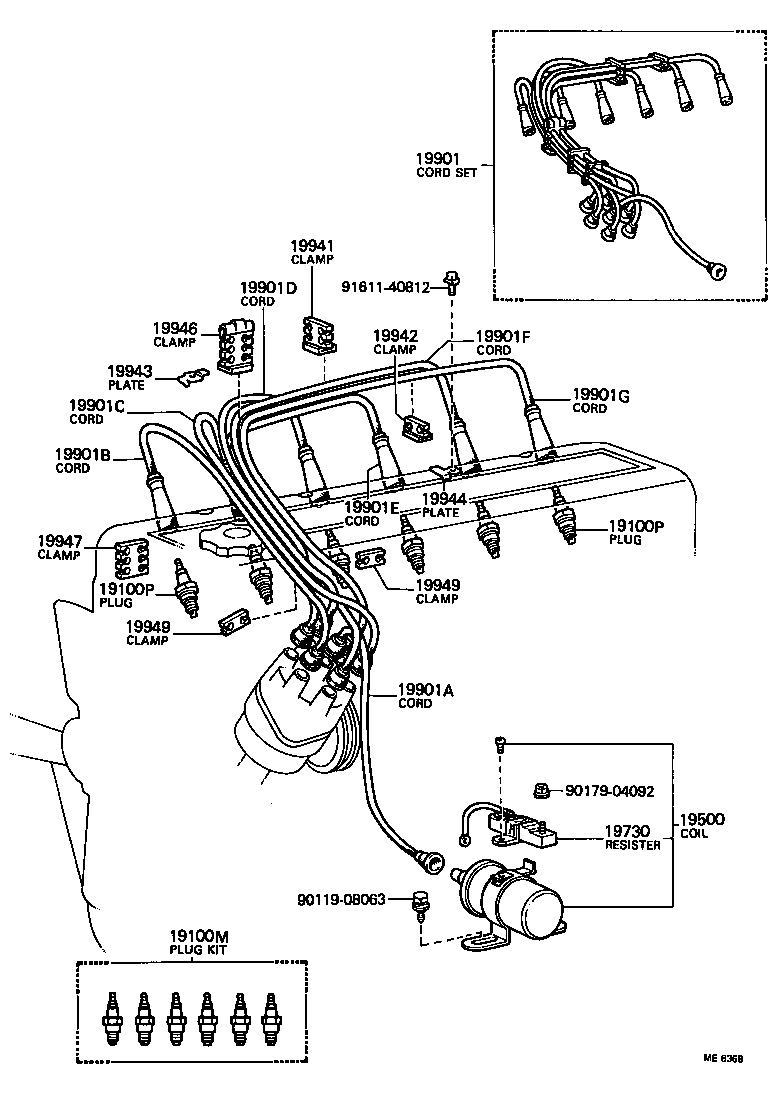

Click highlighted areas on diagram

diagram 19100M 19100P 19500 19500 19730 19901 19901A 19901B 19901C 19901D 19901E 19901R 9011908063 9017904092 9017904092 9165140816
Part # Description Qty Price
19100M - PLUG KIT, SPARK
04195-41010

4M..MS8#,95

W16EP

 1
19100P - PLUG, SPARK
90919-01027

4M..MS8#,95

W16EP OR W16EX-U,W16EP

 6
90919-01051

4M..MS83..3FC;4M..MS83..4F..GEN;4M..MS85,88..3FC,4F

W16EPR OR W16EXR-U,W16EPR,E.C.E.NO.10

 6
90919-01027

4M..MS8#,95..ARL,GEN

W16EP OR W16EX-U,W16EP

 6
19500 - COIL ASSY, IGNITION
90919-02049

4M..MS8#,95

 1
19500 - COIL ASSY, IGNITION
90919-02049

4M..MS8#,95

 1
19730 - RESISTOR, IGNITION COIL
90919-04004

4M..MS8#,95

 1
19901 - CORD SET, COIL & SPARK, W/RESISTIVE
90919-21064

4M..MS83,85..ARL

 1
90919-21091

4M..MS8#,95

 1
19901A - CORD, COIL RESISTIVE
99231-10340

4M..MS8#,95

 1
19901B - CORD, SPARK PLUG RESISTIVE, NO.1
99221-10590

4M..MS8#,95

 1
90919-12123

4M..MS83,85..ARL

 1
19901C - CORD, SPARK PLUG RESISTIVE, NO.2
90919-12124

4M..MS83,85..ARL

 1
99221-10670

4M..MS8#,95

 1
19901D - CORD, SPARK PLUG RESISTIVE, NO.3
90919-12125

4M..MS83,85..ARL

 1
99221-10720

4M..MS8#,95

 1
19901E - CORD, SPARK PLUG RESISTIVE, NO.4
99221-10810

4M..MS8#,95

 1
90919-12126

4M..MS83,85..ARL

 1
Common parts
90119-08063
90179-04092
91651-40816

(7604-7611)4M..MS83,85..ARL ; (7611-7908)4M

Click highlighted areas on diagram

diagram 19100M 19100P 19100P 19500 19730 19901 19901A 19901B 19901C 19901D 19901E 19901F 19901G 19941 19942 19943 19944 19946 19947 19949 19949 9011908063 9017904092 9161140812
Part # Description Qty Price
19100M - PLUG KIT, SPARK
04195-41010

4M..MS8#,95

W16EP

 1
19100P - PLUG, SPARK
90919-01027

4M..MS8#,95

W16EP OR W16EX-U,W16EP

 6
90919-01051

4M..MS83..3FC;4M..MS83..4F..GEN;4M..MS85,88..3FC,4F

W16EPR OR W16EXR-U,W16EPR,E.C.E.NO.10

 6
90919-01027

4M..MS8#,95..ARL,GEN

W16EP OR W16EX-U,W16EP

 6
19100P - PLUG, SPARK
90919-01027

4M..MS8#,95

W16EP OR W16EX-U,W16EP

 6
90919-01051

4M..MS83..3FC;4M..MS83..4F..GEN;4M..MS85,88..3FC,4F

W16EPR OR W16EXR-U,W16EPR,E.C.E.NO.10

 6
90919-01027

4M..MS8#,95..ARL,GEN

W16EP OR W16EX-U,W16EP

 6
19500 - COIL ASSY, IGNITION
90919-02049

4M..MS8#,95

 1
19730 - RESISTOR, IGNITION COIL
90919-04004

4M..MS8#,95

 1
19901 - CORD SET, COIL & SPARK, W/RESISTIVE
90919-21064

4M..MS83,85..ARL

 1
90919-21091

4M..MS8#,95

 1
19901A - CORD, COIL RESISTIVE
99231-10340

4M..MS8#,95

 1
19901B - CORD, SPARK PLUG RESISTIVE, NO.1
99221-10590

4M..MS8#,95

 1
90919-12123

4M..MS83,85..ARL

 1
19901C - CORD, SPARK PLUG RESISTIVE, NO.2
90919-12124

4M..MS83,85..ARL

 1
99221-10670

4M..MS8#,95

 1
19901D - CORD, SPARK PLUG RESISTIVE, NO.3
90919-12125

4M..MS83,85..ARL

 1
99221-10720

4M..MS8#,95

 1
19901E - CORD, SPARK PLUG RESISTIVE, NO.4
99221-10810

4M..MS8#,95

 1
90919-12126

4M..MS83,85..ARL

 1
19901F - CORD, SPARK PLUG RESISTIVE, NO.5
99221-10895

4M..MS8#,95

 1
90919-12127

4M..MS83,85..ARL

 1
19901G - CORD, SPARK PLUG RESISTIVE, NO.6
99221-10985

4M..MS8#,95

 1
90919-12128

4M..MS83,85..ARL

 1
19941 - CLAMP, RESISTIVE CORD, NO.1
90464-00068

4M..MS83,85..ARL

 1
90464-00001

4M..MS8#,95

 1
19942 - CLAMP, RESISTIVE CORD, NO.2
90464-00008

4M..MS8#,95

 2
90464-00069

4M..MS83,85..ARL

 1
19943 - PLATE, RESISTIVE CORD CLAMP SUPPORT NO.1
19943-45020

4M..MS8#,95

 1
19943-45020

4M..MS83,85..ARL

 1
19943-41020

4M..MS8#,95

 2
19944 - PLATE, RESISTIVE CORD CLAMP SUPPORT, NO.2
19944-45021

4M..MS83,85..ARL

 2
19944-41021

4M..MS8#,95

 1
19946 - CLAMP, RESISTIVE CORD, NO.3
90464-00070

4M..MS83,85..ARL

 1
19947 - CLAMP, RESISTIVE CORD, NO.4
90464-00071

4M..MS83,85..ARL

 1
Common parts
90119-08063
90179-04092
91611-40812
