MS85R-HBQ (1976)

Toyota Crown

Production Apr 1976 - Feb 1978
Engine 4M
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

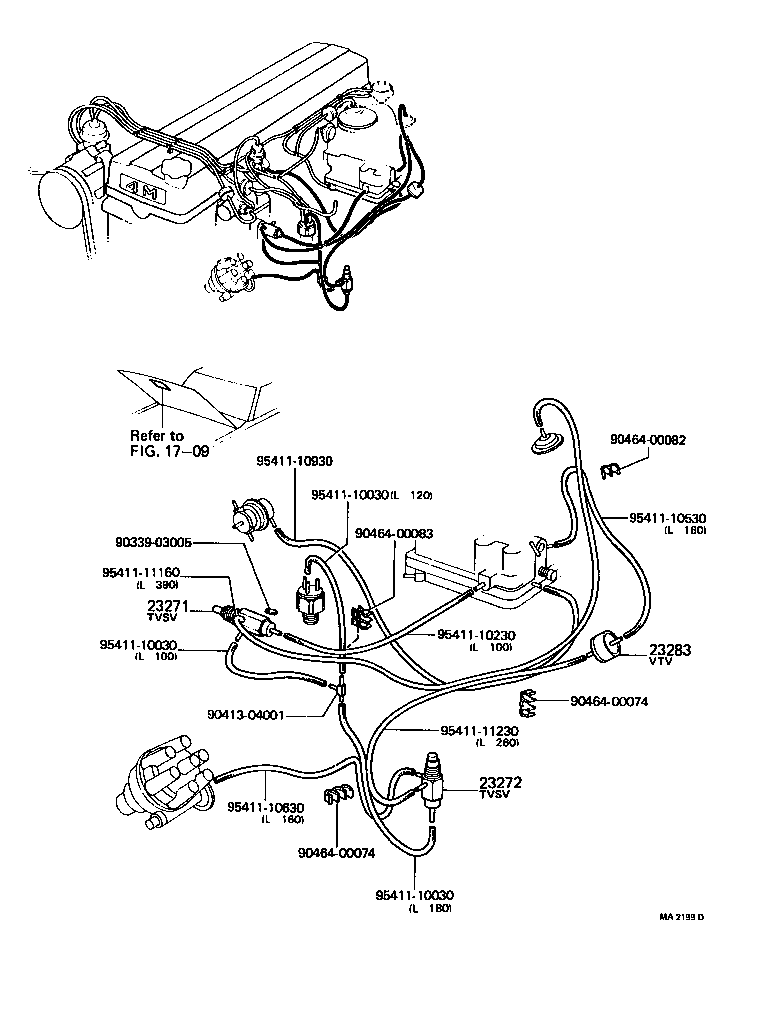

(7604-7611)4M..MS83,85..ARL

Click highlighted areas on diagram

diagram 1709 23271 23272 23283 9033903005 9041304001 9046400074 9046400074 9046400082 9046400083 9541110030 9541110030 9541110030 9541110230 9541110530 9541110630 9541110930 9541111160 9541111230
Part # Description Qty Price
23272 - VALVE, THERMOSTATIC VACUUM SWITCHING, NO.2
90925-02015

4M..MS83,85..ARL

 1
23283 - VALVE, VACUUM TRANSMITTING, NO.3
90925-01005

4M..MS83,85..ARL

 1
Common parts
90339-03005
90413-04001
90464-00074
90464-00082
90464-00083
95411-10030
95411-10230
95411-10530
95411-10630
95411-10930
95411-11160
95411-11230
Linked diagrams
1709

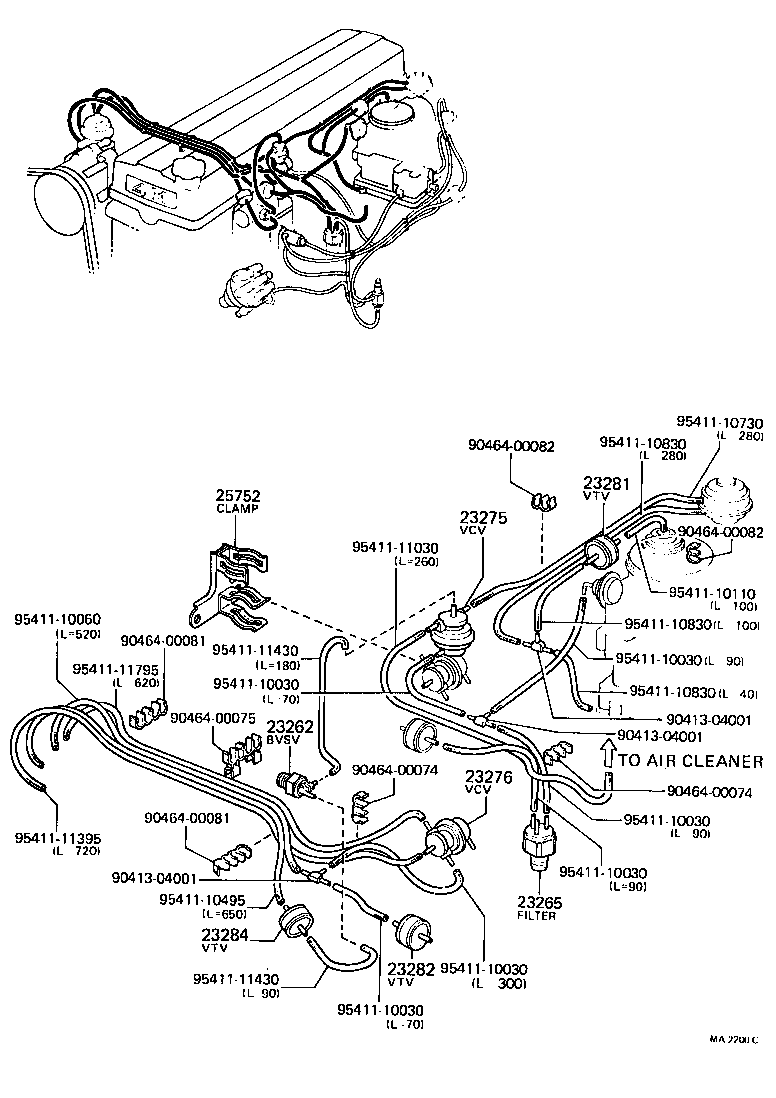

(7604-7611)4M..MS83,85..ARL

Click highlighted areas on diagram

diagram 23262 23265 23275 23276 23281 23282 23284 25752 9041304001 9041304001 9041304001 9046400074 9046400074 9046400075 9046400081 9046400081 9046400082 9046400082 9541110030 9541110030 9541110030 9541110030 9541110030 9541110030 9541110060 9541110110 9541110495 9541110730 9541110830 9541110830 9541110830 9541111030 9541111395 9541111430 9541111430 9541111795
Part # Description Qty Price
23262 - VALVE, BIMETAL VACUUM SWITCHING, NO.1
90925-05003

4M..MS83,85..ARL

 1
23265 - FILTER, GAS, NO.1
90917-11003

4M..MS83,85..ARL

 1
23275 - VALVE, VACUUM CONTROL, NO.1
90925-03031

4M..MS83,85..ARL

 1
23276 - VALVE, VACUUM CONTROL, NO.2
90925-03032

4M..MS83,85..ARL

 1
23281 - VALVE, VACUUM TRANSMITTING, NO.1
90925-01029

4M..MS83,85..ARL

 1
23282 - VALVE, VACUUM TRANSMITTING, NO.2
90925-01015

4M..MS83,85..ARL

 1
23284 - VALVE, VACUUM TRANSMITTING, NO.4
90925-01015

4M..MS83,85..ARL

 1
25752 - CLAMP, VACUUM CONTROL VALVE, NO.2
25752-45010

4M..MS83,85..ARL

 1
Common parts
90413-04001
90464-00074
90464-00075
90464-00081
90464-00082
95411-10030
95411-10060
95411-10110
95411-10495
95411-10730
95411-10830
95411-11030
95411-11395
95411-11430
95411-11795

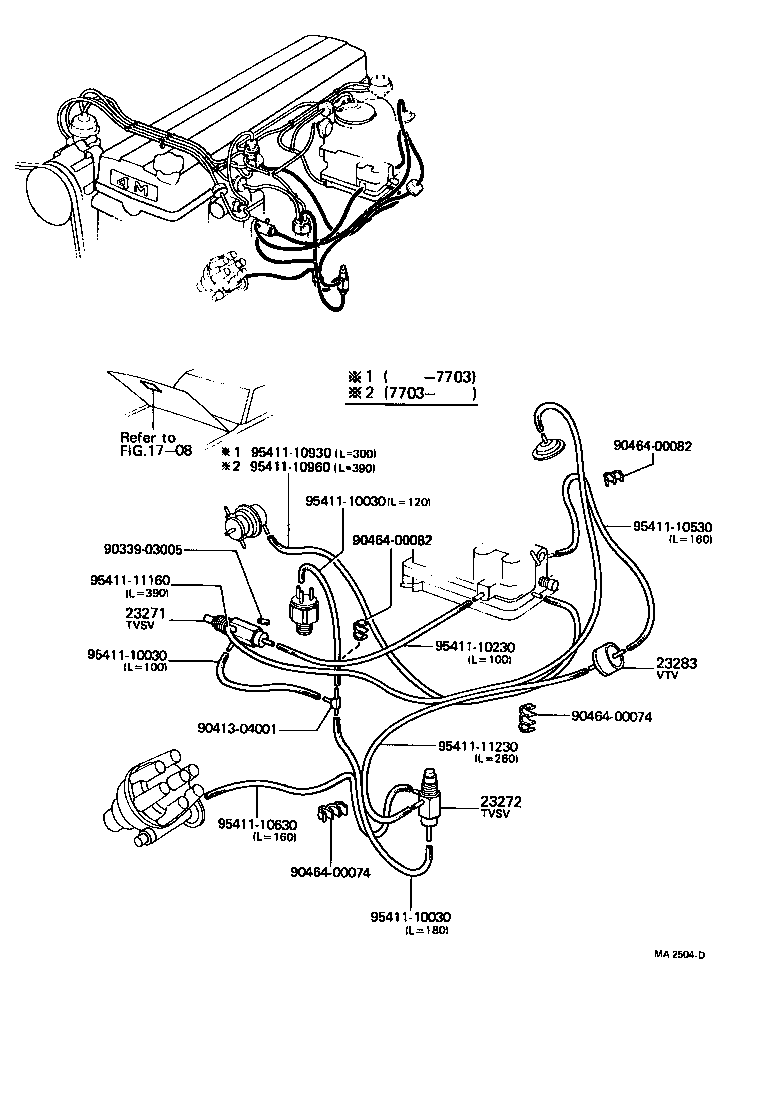

(7611-7802)4M..MS83,85..ARL

Click highlighted areas on diagram

diagram 1708 23271 23272 23283 9033903005 9041304001 9046400074 9046400074 9046400082 9046400082 9541110030 9541110030 9541110030 9541110230 9541110530 9541110630 9541110930 9541110960 9541111160 9541111230
Part # Description Qty Price
23272 - VALVE, THERMOSTATIC VACUUM SWITCHING, NO.2
90925-02015

4M..MS83,85..ARL

 1
23283 - VALVE, VACUUM TRANSMITTING, NO.3
90925-01005

4M..MS83,85..ARL

 1
Common parts
90339-03005
90413-04001
90464-00074
90464-00082
95411-10030
95411-10230
95411-10530
95411-10630
95411-10930
95411-10960
95411-11160
95411-11230
Linked diagrams
1708

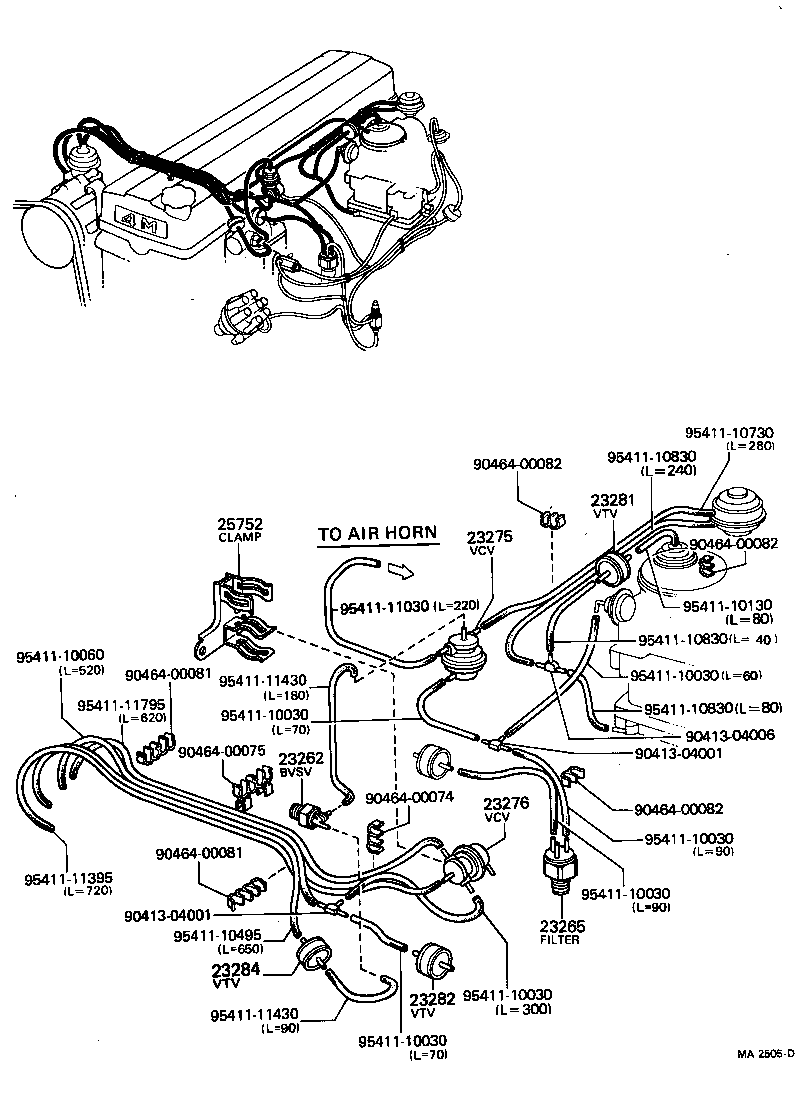

(7611-7802)4M..MS83,85..ARL

Click highlighted areas on diagram

diagram 23262 23265 23275 23276 23281 23282 23284 25752 9041304001 9041304001 9041304006 9046400074 9046400075 9046400081 9046400081 9046400082 9046400082 9046400082 9541110030 9541110030 9541110030 9541110030 9541110030 9541110030 9541110060 9541110130 9541110495 9541110730 9541110830 9541110830 9541110830 9541111030 9541111395 9541111430 9541111430 9541111795
Part # Description Qty Price
23262 - VALVE, BIMETAL VACUUM SWITCHING, NO.1
90925-05003

4M..MS83,85..ARL

 1
23265 - FILTER, GAS, NO.1
90917-11003

4M..MS83,85..ARL

 1
23275 - VALVE, VACUUM CONTROL, NO.1
90925-03031

4M..MS83,85..ARL

 1
23276 - VALVE, VACUUM CONTROL, NO.2
90925-03032

4M..MS83,85..ARL

 1
23281 - VALVE, VACUUM TRANSMITTING, NO.1
90925-01029

4M..MS83,85..ARL

 1
23282 - VALVE, VACUUM TRANSMITTING, NO.2
90925-01015

4M..MS83,85..ARL

 1
23284 - VALVE, VACUUM TRANSMITTING, NO.4
90925-01015

4M..MS83,85..ARL

 1
25752 - CLAMP, VACUUM CONTROL VALVE, NO.2
25752-45010

4M..MS83,85..ARL

 1
Common parts
90413-04001
90413-04006
90464-00074
90464-00075
90464-00081
90464-00082
95411-10030
95411-10060
95411-10130
95411-10495
95411-10730
95411-10830
95411-11030
95411-11395
95411-11430
95411-11795
