MS85R-HBQ (1976)
Toyota Crown
(7604-7609)4M..MS83,85..ARL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-41212 |
4M..MS8#,95..BTP,DLX,SAL,STD W/HOT AIR INTAKE |
1 | ||
| 17700-41143 |
4M..MS8#,95..RHD L/HOT AIR INTAKE |
1 | ||
| 17700-45100 |
4M..MS83,85..ARL |
1 | ||
| 17700-41143 |
4M..MS85,88,95..RHD;4M..MS83..RHD..4F..GEN;4M..MS83..RHD..(3FC,3H) L/HOT AIR INTAKE |
1 | ||
| 17700-45150 |
4M..MS83,85..ARL |
1 | ||
| 17700-45160 |
4M..MS83,85..ARL |
1 | ||
| 17700-45161 |
4M..MS83,85..ARL |
1 | ||
| 17700A - NUT, WING(FOR AIR CLEANER) | ||||
| 90175-06026 |
4M..MS8#,95 |
1 | ||
| 94271-00600 |
4M..MS8#,95 |
1 | ||
| 17700B - WASHER, SEAL(FOR AIR CLEANER) | ||||
| 90210-06023 |
4M..MS8#,95 |
1 | ||
| 90210-09026 |
4M..MS8#,95 |
1 | ||
| 17700F - BOLT, STUD(FOR AIR CLEANER SETTING) | ||||
| 90116-06147 |
4M..MS85,88,95..RHD;4M..MS83..RHD..4F..GEN;4M..MS83..RHD..(3FC,3H) W/HOT AIR INTAKE,L=70,S=13&30 |
1 | ||
| 90116-06148 |
4M..MS8#,95..RHD L/HOT AIR INTAKE,L=60,S=13&30 |
1 | ||
| 90116-06148 |
4M..MS85,88,95..RHD;4M..MS83..RHD..4F..GEN;4M..MS83..RHD..(3FC,3H) L/HOT AIR INTAKE,L=60,S=13&30 |
1 | ||
| 90116-06222 |
4M..MS83,85..ARL L=80,S=12&28 |
1 | ||
| 90116-06147 |
4M..MS8#,95..RHD..(BTP,DLX,SAL,STD) W/HOT AIR INTAKE,L=70,S=13&30 |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-41090 |
4M..MS83,85..ARL |
1 | ||
| 17705-41021 |
4M..MS85,88,95..RHD;4M..MS83..RHD..4F..GEN;4M..MS83..RHD..(3FC,3H) L/HOT AIR INTAKE |
1 | ||
| 17705-45020 |
4M..MS83,85..ARL |
1 | ||
| 17705-41021 |
4M..MS8#,95..RHD L/HOT AIR INTAKE |
1 | ||
| 17705-41090 |
4M..MS8#,95 |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-41050 |
4M..MS8#,95 |
1 | ||
| 17841 - GASKET, FILTER ELEMENT | ||||
| 17841-41040 |
4M..MS8#,95 |
2 | ||
| 17841 - GASKET, FILTER ELEMENT | ||||
| 17841-41040 |
4M..MS8#,95 |
2 | ||
| 17845 - GASKET, AIR CLEANER CAP | ||||
| 17845-41050 |
4M..MS8#,95..RHD L/HOT AIR INTAKE |
1 | ||
| 17845-41040 |
4M..MS85,88,95..RHD;4M..MS83..RHD..4F..GEN;4M..MS83..RHD..(3FC,3H) W/HOT AIR INTAKE |
1 | ||
| 17845-41040 |
4M..MS8#,95..RHD..(BTP,DLX,SAL,STD) W/HOT AIR INTAKE |
1 | ||
| 17845-41040 |
4M..MS83,85..ARL |
1 | ||
| 17845-41050 |
4M..MS85,88,95..RHD;4M..MS83..RHD..4F..GEN;4M..MS83..RHD..(3FC,3H) L/HOT AIR INTAKE |
1 | ||
| 17848 - GASKET, AIR CLEANER TO CARBURETOR | ||||
| 90430-72114 |
4M..MS8#,95 |
1 | ||
| 21071C - VALVE SUB-ASSY, THERMOSTATIC(FOR AIR CLEANER) | ||||
| 17728-41010 |
4M..MS8#,95 W/HOT AIR INTAKE |
1 | ||
| 21071-45020 |
4M..MS83,85..ARL |
1 | ||
| Common parts | ||||
| 90116-08057 | ||||
| 90179-08123 | ||||
| Linked diagrams | ||||

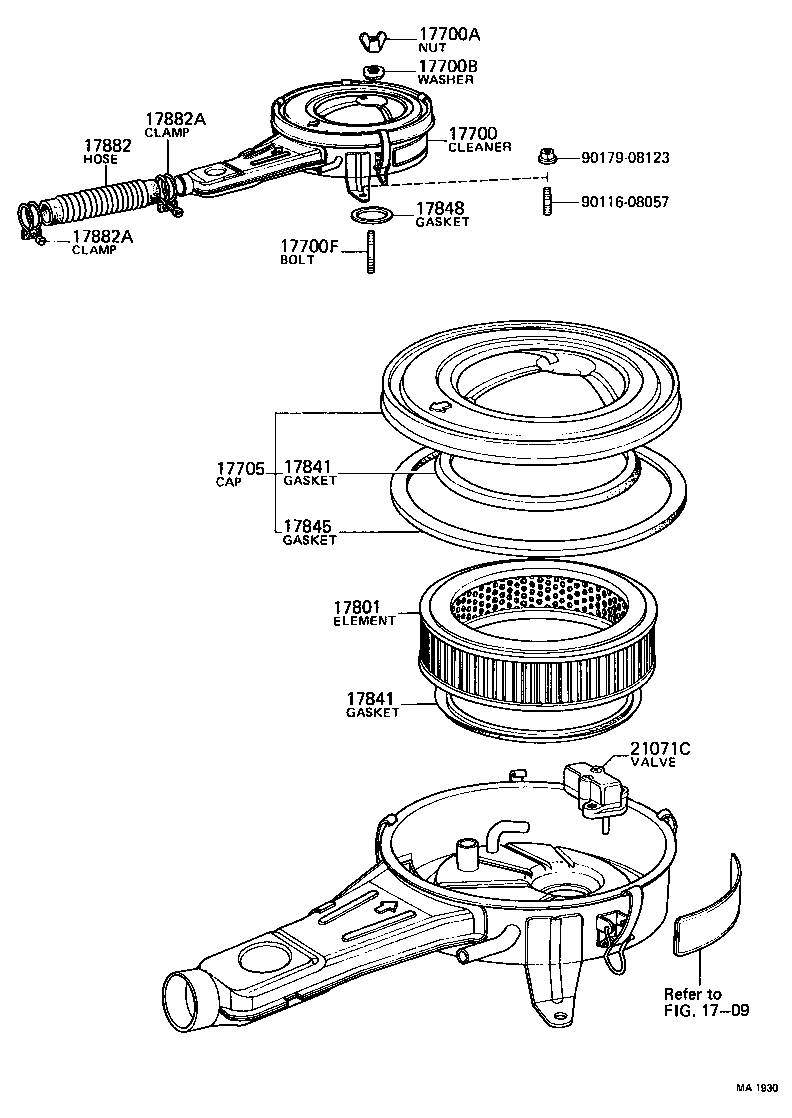

| 1709 | ||||
(7609-7611)4M..MS83,85..ARL ; (7611-7908)4M
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-41212 |
4M..MS8#,95..BTP,DLX,SAL,STD W/HOT AIR INTAKE |
1 | ||
| 17700-41143 |
4M..MS8#,95..RHD L/HOT AIR INTAKE |
1 | ||
| 17700-45100 |
4M..MS83,85..ARL |
1 | ||
| 17700-41143 |
4M..MS85,88,95..RHD;4M..MS83..RHD..4F..GEN;4M..MS83..RHD..(3FC,3H) L/HOT AIR INTAKE |
1 | ||
| 17700-45150 |
4M..MS83,85..ARL |
1 | ||
| 17700-45160 |
4M..MS83,85..ARL |
1 | ||
| 17700-45161 |
4M..MS83,85..ARL |
1 | ||
| 17700A - NUT, WING(FOR AIR CLEANER) | ||||
| 90175-06026 |
4M..MS8#,95 |
1 | ||
| 94271-00600 |
4M..MS8#,95 |
1 | ||
| 17700A - NUT, WING(FOR AIR CLEANER) | ||||
| 90175-06026 |
4M..MS8#,95 |
1 | ||
| 94271-00600 |
4M..MS8#,95 |
1 | ||
| 17700B - WASHER, SEAL(FOR AIR CLEANER) | ||||
| 90210-06023 |
4M..MS8#,95 |
1 | ||
| 90210-09026 |
4M..MS8#,95 |
1 | ||
| 17700F - BOLT, STUD(FOR AIR CLEANER SETTING) | ||||
| 90116-06147 |
4M..MS85,88,95..RHD;4M..MS83..RHD..4F..GEN;4M..MS83..RHD..(3FC,3H) W/HOT AIR INTAKE,L=70,S=13&30 |
1 | ||
| 90116-06148 |
4M..MS8#,95..RHD L/HOT AIR INTAKE,L=60,S=13&30 |
1 | ||
| 90116-06148 |
4M..MS85,88,95..RHD;4M..MS83..RHD..4F..GEN;4M..MS83..RHD..(3FC,3H) L/HOT AIR INTAKE,L=60,S=13&30 |
1 | ||
| 90116-06222 |
4M..MS83,85..ARL L=80,S=12&28 |
1 | ||
| 90116-06147 |
4M..MS8#,95..RHD..(BTP,DLX,SAL,STD) W/HOT AIR INTAKE,L=70,S=13&30 |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-41090 |
4M..MS83,85..ARL |
1 | ||
| 17705-41021 |
4M..MS85,88,95..RHD;4M..MS83..RHD..4F..GEN;4M..MS83..RHD..(3FC,3H) L/HOT AIR INTAKE |
1 | ||
| 17705-45020 |
4M..MS83,85..ARL |
1 | ||
| 17705-41021 |
4M..MS8#,95..RHD L/HOT AIR INTAKE |
1 | ||
| 17705-41090 |
4M..MS8#,95 |
1 | ||
| 17706 - INLET SUB-ASSY, AIR CLEANER, NO.2 | ||||
| 17895-42010 |
4M..MS8#,95..BTP,DLX,SAL,STD W/HOT AIR INTAKE |
1 | ||
| 17895-42010 |
4M..MS8#,95..BTP,DLX,SAL,STD W/HOT AIR INTAKE |
1 | ||
| 17895-45020 |
4M..MS8#,95 W/HOT AIR INTAKE |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-41050 |
4M..MS8#,95 |
1 | ||
| 17841 - GASKET, FILTER ELEMENT | ||||
| 17841-41040 |
4M..MS8#,95 |
2 | ||
| 17841 - GASKET, FILTER ELEMENT | ||||
| 17841-41040 |
4M..MS8#,95 |
2 | ||
| 17845 - GASKET, AIR CLEANER CAP | ||||
| 17845-41050 |
4M..MS8#,95..RHD L/HOT AIR INTAKE |
1 | ||
| 17845-41040 |
4M..MS85,88,95..RHD;4M..MS83..RHD..4F..GEN;4M..MS83..RHD..(3FC,3H) W/HOT AIR INTAKE |
1 | ||
| 17845-41040 |
4M..MS8#,95..RHD..(BTP,DLX,SAL,STD) W/HOT AIR INTAKE |
1 | ||
| 17845-41040 |
4M..MS83,85..ARL |
1 | ||
| 17845-41050 |
4M..MS85,88,95..RHD;4M..MS83..RHD..4F..GEN;4M..MS83..RHD..(3FC,3H) L/HOT AIR INTAKE |
1 | ||
| 17848 - GASKET, AIR CLEANER TO CARBURETOR | ||||
| 90430-72114 |
4M..MS8#,95 |
1 | ||
| 17848 - GASKET, AIR CLEANER TO CARBURETOR | ||||
| 90430-72114 |
4M..MS8#,95 |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-42010 |
4M..MS8#,95..BTP,DLX,SAL,STD W/HOT AIR INTAKE |
1 | ||
| 17881-26010 |
4M..MS83,85..ARL W/HOT AIR INTAKE |
1 | ||
| 21071C - VALVE SUB-ASSY, THERMOSTATIC(FOR AIR CLEANER) | ||||
| 17728-41010 |
4M..MS8#,95 W/HOT AIR INTAKE |
1 | ||
| 21071-45020 |
4M..MS83,85..ARL |
1 | ||
| 21071C - VALVE SUB-ASSY, THERMOSTATIC(FOR AIR CLEANER) | ||||
| 17728-41010 |
4M..MS8#,95 W/HOT AIR INTAKE |
1 | ||
| 21071-45020 |
4M..MS83,85..ARL |
1 | ||
| 21071C - VALVE SUB-ASSY, THERMOSTATIC(FOR AIR CLEANER) | ||||
| 17728-41010 |
4M..MS8#,95 W/HOT AIR INTAKE |
1 | ||
| 21071-45020 |
4M..MS83,85..ARL |
1 | ||
| Common parts | ||||
| 90116-08037 | ||||
| 90116-08068 | ||||
| 90116-10001 | ||||
| 90116-10005 | ||||
| 90170-10199 | ||||
| 90179-08012 | ||||
| 90179-08123 | ||||
| 90201-08084 | ||||
| 90201-10001 | ||||
| 90445-11031 | ||||
| 93315-15016 | ||||
| 94531-01000 | ||||
| 95411-19960 | ||||
| Linked diagrams | ||||
| 1709 | ||||
(7410-7908)5R
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-41212 |
4M..MS8#,95..BTP,DLX,SAL,STD W/HOT AIR INTAKE |
1 | ||
| 17700-41143 |
4M..MS8#,95..RHD L/HOT AIR INTAKE |
1 | ||
| 17700-45100 |
4M..MS83,85..ARL |
1 | ||
| 17700-41143 |
4M..MS85,88,95..RHD;4M..MS83..RHD..4F..GEN;4M..MS83..RHD..(3FC,3H) L/HOT AIR INTAKE |
1 | ||
| 17700-45150 |
4M..MS83,85..ARL |
1 | ||
| 17700-45160 |
4M..MS83,85..ARL |
1 | ||
| 17700-45161 |
4M..MS83,85..ARL |
1 | ||
| 17700A - NUT, WING(FOR AIR CLEANER) | ||||
| 90175-06026 |
4M..MS8#,95 |
1 | ||
| 94271-00600 |
4M..MS8#,95 |
1 | ||
| 17700A - NUT, WING(FOR AIR CLEANER) | ||||
| 90175-06026 |
4M..MS8#,95 |
1 | ||
| 94271-00600 |
4M..MS8#,95 |
1 | ||
| 17700B - WASHER, SEAL(FOR AIR CLEANER) | ||||
| 90210-06023 |
4M..MS8#,95 |
1 | ||
| 90210-09026 |
4M..MS8#,95 |
1 | ||
| 17700F - BOLT, STUD(FOR AIR CLEANER SETTING) | ||||
| 90116-06147 |
4M..MS85,88,95..RHD;4M..MS83..RHD..4F..GEN;4M..MS83..RHD..(3FC,3H) W/HOT AIR INTAKE,L=70,S=13&30 |
1 | ||
| 90116-06148 |
4M..MS8#,95..RHD L/HOT AIR INTAKE,L=60,S=13&30 |
1 | ||
| 90116-06148 |
4M..MS85,88,95..RHD;4M..MS83..RHD..4F..GEN;4M..MS83..RHD..(3FC,3H) L/HOT AIR INTAKE,L=60,S=13&30 |
1 | ||
| 90116-06222 |
4M..MS83,85..ARL L=80,S=12&28 |
1 | ||
| 90116-06147 |
4M..MS8#,95..RHD..(BTP,DLX,SAL,STD) W/HOT AIR INTAKE,L=70,S=13&30 |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-41090 |
4M..MS83,85..ARL |
1 | ||
| 17705-41021 |
4M..MS85,88,95..RHD;4M..MS83..RHD..4F..GEN;4M..MS83..RHD..(3FC,3H) L/HOT AIR INTAKE |
1 | ||
| 17705-45020 |
4M..MS83,85..ARL |
1 | ||
| 17705-41021 |
4M..MS8#,95..RHD L/HOT AIR INTAKE |
1 | ||
| 17705-41090 |
4M..MS8#,95 |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-41050 |
4M..MS8#,95 |
1 | ||
| 17841 - GASKET, FILTER ELEMENT | ||||
| 17841-41040 |
4M..MS8#,95 |
2 | ||
| 17841 - GASKET, FILTER ELEMENT | ||||
| 17841-41040 |
4M..MS8#,95 |
2 | ||
| 17845 - GASKET, AIR CLEANER CAP | ||||
| 17845-41050 |
4M..MS8#,95..RHD L/HOT AIR INTAKE |
1 | ||
| 17845-41040 |
4M..MS85,88,95..RHD;4M..MS83..RHD..4F..GEN;4M..MS83..RHD..(3FC,3H) W/HOT AIR INTAKE |
1 | ||
| 17845-41040 |
4M..MS8#,95..RHD..(BTP,DLX,SAL,STD) W/HOT AIR INTAKE |
1 | ||
| 17845-41040 |
4M..MS83,85..ARL |
1 | ||
| 17845-41050 |
4M..MS85,88,95..RHD;4M..MS83..RHD..4F..GEN;4M..MS83..RHD..(3FC,3H) L/HOT AIR INTAKE |
1 | ||
| 17848 - GASKET, AIR CLEANER TO CARBURETOR | ||||
| 90430-72114 |
4M..MS8#,95 |
1 | ||
| Common parts | ||||
| 90119-08051 | ||||
| 91651-40814 | ||||
| 91651-40816 | ||||
| Linked diagrams | ||||
| 1709 | ||||
