Toyota Crown MS85 EXHAUST PIPE - JDM Part Detective

MS85R-HBQ (1976)

Toyota Crown

Production Apr 1976 - Feb 1978

Engine 4M

Transmission 3FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

(7410-7611)5R

Click highlighted areas on diagram

Part #	Description	Period	Qty
17410 - PIPE ASSY, EXHAUST, FRONT
17410-41120	4M..MS8#,95	10/1974 - 04/1976	1
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90170-10114	4M..MS8#,95	10/1974 - 04/1976	3
90179-10118	4M..MS83,85..ARL	04/1976 - 11/1976	3
17410B - GASKET, EXHAUST PIPE
17451-41020	4M..MS8#,95	10/1974 - 04/1976	1
90917-06013	4M..MS83,85..ARL	04/1976 - 11/1976	1
17410C - BRACKET, EXHAUST PIPE FRONT (FOR FRONT)
17571-45020	4M..MS83,85..ARL	04/1976 - 11/1976	1
17571-41050	4M..MS8#,95	10/1974 - 04/1976	1
17410H - BRACKET, EXHAUST PIPE FRONT (FOR CENTER)
17572-41010	4M..MS8#,95	10/1974 - 04/1976	2
17410T - BOLT OR RING, EXHAUST PIPE FRONT (FOR CENTER)
90301-34172	4M..MS8#,95	10/1974 - 04/1976	2
17410V - BRACKET, EXHAUST PIPE FRONT (FOR REAR)
17562-41060	4M,5R..MS83,85,95,RS80	10/1974 - 04/1976	1
17420X - GASKET, EXHAUST PIPE, CENTER
90917-06004	4M..MS8#,95	10/1974 - 04/1976	1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-41140	4M..MS85,95	10/1974 - 04/1976	1
17430-45080	4M..MS85..ARL	04/1976 - 11/1976	1
17430-45190	4M..MS85..ARL	11/1976 - 02/1978	1
17430A - BRACKET, EXHAUST TAIL PIPE(FOR FRONT)
17574-41010	4M,5R..MS85,95,RS80	10/1974 - 08/1979	1
17430B - CUSHION, EXHAUST TAIL PIPE(FOR FRONT)
17591-45010	4M,5R..MS85,95,RS80	10/1974 - 08/1979	1
17430E - CLAMP NO.2, EXHAUST TAIL PIPE(FOR FRONT)
90461-23204	4M,5R..MS85,95,RS80	10/1974 - 04/1976	1
17564 - SUPPORT,EXHAUST PIPE, NO.4
17564-41010	4M,5R..MS85,95,RS80	10/1974 - 04/1976	1
17565 - SUPPORT, EXHAUST PIPE, NO.5
17565-41010	4M,5R..MS85,95,RS80	10/1974 - 08/1979	1
Common parts
90179-08146
91611-40816
91611-40828
91616-40818
91651-40820
91651-40850
91656-40820
94110-40800

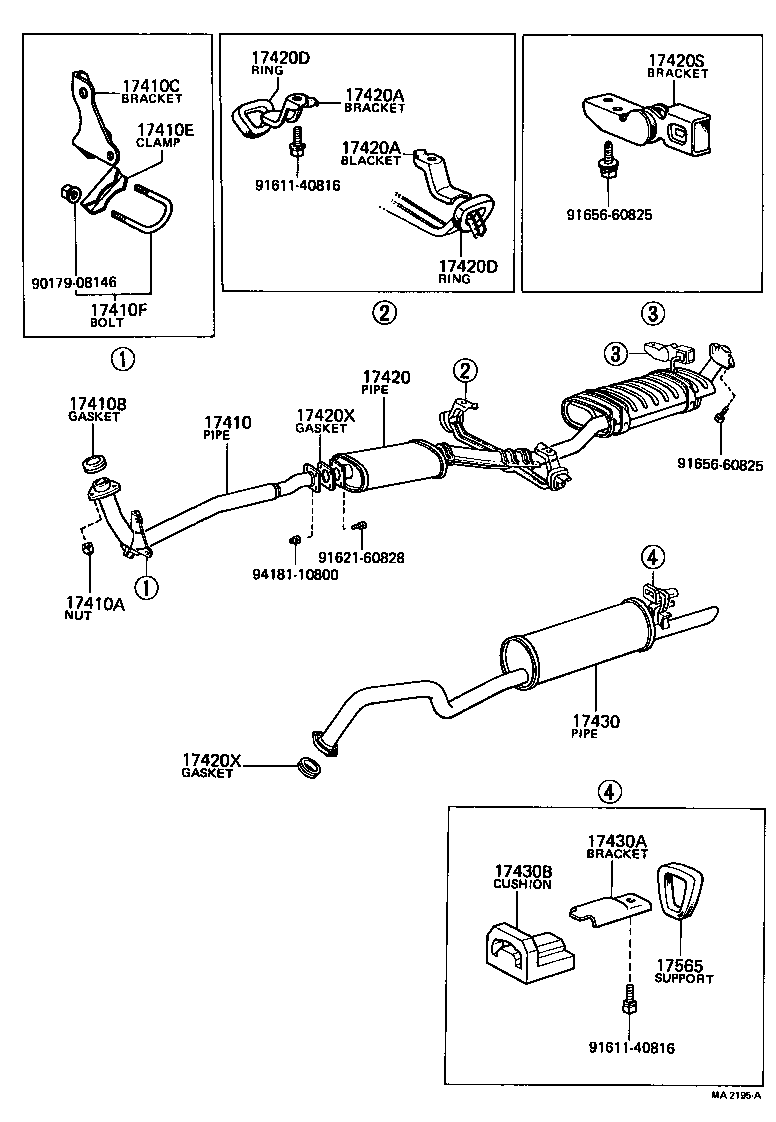

(7604-7611)4M..MS85..ARL

Click highlighted areas on diagram

Part #	Description	Period	Qty
17410 - PIPE ASSY, EXHAUST, FRONT
17410-41120	4M..MS8#,95	10/1974 - 04/1976	1
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90170-10114	4M..MS8#,95	10/1974 - 04/1976	3
90179-10118	4M..MS83,85..ARL	04/1976 - 11/1976	3
17410B - GASKET, EXHAUST PIPE
17451-41020	4M..MS8#,95	10/1974 - 04/1976	1
90917-06013	4M..MS83,85..ARL	04/1976 - 11/1976	1
17410C - BRACKET, EXHAUST PIPE FRONT (FOR FRONT)
17571-45020	4M..MS83,85..ARL	04/1976 - 11/1976	1
17571-41050	4M..MS8#,95	10/1974 - 04/1976	1
17410E - CLAMP NO.1, EXHAUST PIPE FRONT (FOR FRONT)
90917-04022	4M..MS83,85..ARL	04/1976 - 11/1976	1
17410F - BOLT OR RING, EXHAUST PIPE FRONT (FOR FRONT)
90118-08132	4M..MS83,85..ARL	04/1976 - 11/1976	1
17420 - PIPE ASSY, EXHAUST, CENTER
17420-45080	4M..MS83,85..ARL	04/1976 - 11/1976	1
17420S - BRACKET, EXHAUST PIPE CENTER, REAR
17562-45040	4M..MS83,85..ARL	04/1976 - 11/1976	1
17420X - GASKET, EXHAUST PIPE, CENTER
90917-06004	4M..MS8#,95	10/1974 - 04/1976	1
17420X - GASKET, EXHAUST PIPE, CENTER
90917-06004	4M..MS8#,95	10/1974 - 04/1976	1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-41140	4M..MS85,95	10/1974 - 04/1976	1
17430-45080	4M..MS85..ARL	04/1976 - 11/1976	1
17430-45190	4M..MS85..ARL	11/1976 - 02/1978	1
17430A - BRACKET, EXHAUST TAIL PIPE(FOR FRONT)
17574-41010	4M,5R..MS85,95,RS80	10/1974 - 08/1979	1
17430B - CUSHION, EXHAUST TAIL PIPE(FOR FRONT)
17591-45010	4M,5R..MS85,95,RS80	10/1974 - 08/1979	1
17565 - SUPPORT, EXHAUST PIPE, NO.5
17565-41010	4M,5R..MS85,95,RS80	10/1974 - 08/1979	1
Common parts
90179-08146
91611-40816
91621-60828
91656-60825
94181-10800

MS85R-HBQ (1976)

(7410-7611)5R

(7604-7611)4M..MS85..ARL
