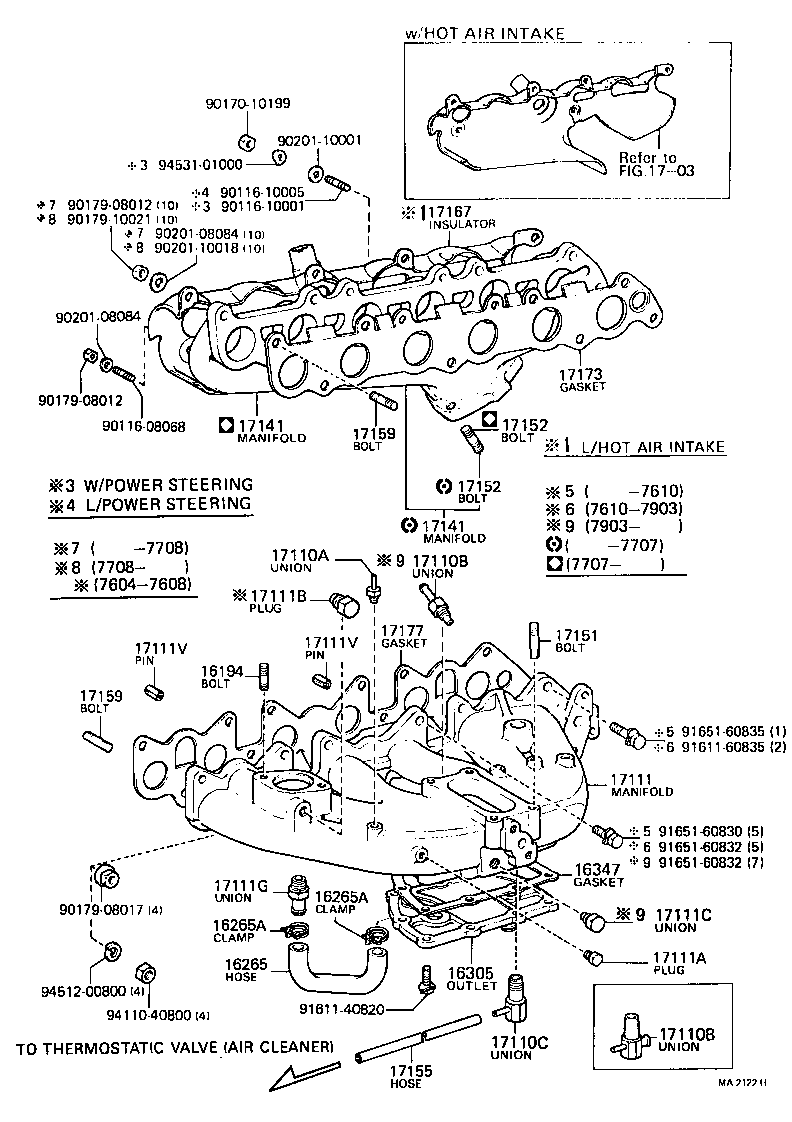

MS85R-HBQ (1976)
Toyota Crown
(7604-7611)4M..MS83,85..ARL ; (7611-7908)4M
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16194 - BOLT, STUD(FOR WATER OUTLET SETTING) | ||||
| 90116-08025 |
4M..MS8#,95 L=34,S=16&11 |
2 | ||
| 16265 - HOSE, INTAKE MANIFOLD WATER | ||||
| 16261-45030 |
4M..MS83,85..ARL |
1 | ||
| 16265A - CLAMP OR CLIP, HOSE(FOR INTAKE MANIFOLD WATER) | ||||
| 96112-10220 |
4M..MS83,85..ARL |
2 | ||
| 16265A - CLAMP OR CLIP, HOSE(FOR INTAKE MANIFOLD WATER) | ||||
| 96112-10220 |
4M..MS83,85..ARL |
2 | ||
| 16305 - OUTLET SUB-ASSY, WATER BY-PASS | ||||
| 16305-41010 |
4M..MS8#,95 |
1 | ||
| 16347 - GASKET, WATER BY-PASS | ||||
| 16347-45020 |
4M..MS83,85..ARL |
1 | ||
| 16347-41010 |
4M..MS8#,95 |
1 | ||
| 17110B - UNION(FOR VENTILATION HOSE TO MANIFOLD) | ||||
| 90404-52002 |
4M..MS8#,95 |
1 | ||
| 90404-10136 |
4M..MS8#,95 |
1 | ||
| 90404-10003 |
4M..MS83,85..ARL |
1 | ||
| 17110B - UNION(FOR VENTILATION HOSE TO MANIFOLD) | ||||
| 90404-52002 |
4M..MS8#,95 |
1 | ||
| 90404-10136 |
4M..MS8#,95 |
1 | ||
| 90404-10003 |
4M..MS83,85..ARL |
1 | ||
| 17111 - MANIFOLD, INTAKE | ||||
| 17111-45032 |
4M..MS83,85..ARL |
1 | ||
| 17111-45031 |
4M..MS83,85..ARL |
1 | ||
| 17111-45030 |
4M..MS83,85..ARL |
1 | ||
| 17101-42012 |
4M..MS8#,95 |
1 | ||
| 17111A - PLUG, NO.1 | ||||
| 90345-54021 |
4M..MS8#,95 L/HEATER |
1 | ||
| 90345-51005 |
4M..MS83,85..ARL |
1 | ||
| 17111B - PLUG, NO.2 | ||||
| 90345-51005 |
4M..MS8#,95 |
1 | ||
| 90341-16037 |
4M..MS83,85..ARL |
1 | ||
| 17111C - PLUG, NO.3 | ||||
| 90344-54012 |
4M..MS8#,95 |
2 | ||
| 17111G - UNION(FOR INTAKE MANIFOLD WATER) | ||||
| 90404-53001 |
4M..MS83,85..ARL |
1 | ||
| 17111V - PIN, STRAIGHT(FOR INTAKE MANIFOLD SETTING) | ||||
| 90254-08001 |
4M..MS83,85..ARL |
2 | ||
| 17111V - PIN, STRAIGHT(FOR INTAKE MANIFOLD SETTING) | ||||
| 90254-08001 |
4M..MS83,85..ARL |
2 | ||
| 17141 - MANIFOLD, EXHAUST | ||||
| 17141-45030 |
4M..MS8#,95 |
1 | ||
| 17104-45030 |
4M..MS83,85..ARL |
1 | ||
| 17104-45030 |
4M..MS8#,95 |
1 | ||
| 17105-41040 |
4M..MS8#,95 |
1 | ||
| 17141 - MANIFOLD, EXHAUST | ||||
| 17141-45030 |
4M..MS8#,95 |
1 | ||
| 17104-45030 |
4M..MS83,85..ARL |
1 | ||
| 17104-45030 |
4M..MS8#,95 |
1 | ||
| 17105-41040 |
4M..MS8#,95 |
1 | ||
| 17151 - BOLT, STUD(FOR MANIFOLD TO CARBURETOR) | ||||
| 90116-08017 |
4M..MS8#,95 L=41,S=10&20 |
4 | ||
| 92112-40828 |
4M..MS83,85..ARL L=38,S=10&16 |
4 | ||
| 17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE) | ||||
| 90116-10001 |
4M..MS83,85..ARL L=36,S=15&15 |
3 | ||
| 90116-10042 |
4M..MS8#,95 L=37,S=20&13 |
3 | ||
| 17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE) | ||||
| 90116-10001 |
4M..MS83,85..ARL L=36,S=15&15 |
3 | ||
| 90116-10042 |
4M..MS8#,95 L=37,S=20&13 |
3 | ||
| 17155 - HOSE(FOR MANIFOLD) | ||||
| 90445-10523 |
4M..MS8#,95 |
1 | ||
| 95411-19960 |
4M..MS83,85..ARL H,L=330 |
1 | ||
| 90445-11015 |
4M..MS8#,95 L/HOT AIR INTAKE |
1 | ||
| 17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD) | ||||
| 90116-08020 |
4M..MS83,85..ARL INTAKE,L=44,S=12&18 |
4 | ||
| 90116-08031 |
4M..MS83,85..ARL EXHAUST,LOWER,L=43,S=15&15 |
4 | ||
| 90116-08255 |
4M..MS8#,95 EXHAUST,L=49,S=15&21 |
3 | ||
| 90116-10112 |
4M..MS8#,95 INTAKE,L=48,S=20&12.5 |
9 | ||
| 90116-08255 |
4M..MS83,85..ARL EXHAUST,UPPER,L=49,S=15&21 |
6 | ||
| 90116-08031 |
4M..MS8#,95 EXHAUST,LOWER,L=43,S=15&15 |
4 | ||
| 90116-08113 |
4M..MS8#,95 EXHAUST,L=45,S=14.5&14.5 |
6 | ||
| 90116-08255 |
4M..MS8#,95 EXHAUST,UPPER,L=49,S=15&21 |
6 | ||
| 17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD) | ||||
| 90116-08020 |
4M..MS83,85..ARL INTAKE,L=44,S=12&18 |
4 | ||
| 90116-08031 |
4M..MS83,85..ARL EXHAUST,LOWER,L=43,S=15&15 |
4 | ||
| 90116-08255 |
4M..MS8#,95 EXHAUST,L=49,S=15&21 |
3 | ||
| 90116-10112 |
4M..MS8#,95 INTAKE,L=48,S=20&12.5 |
9 | ||
| 90116-08255 |
4M..MS83,85..ARL EXHAUST,UPPER,L=49,S=15&21 |
6 | ||
| 90116-08031 |
4M..MS8#,95 EXHAUST,LOWER,L=43,S=15&15 |
4 | ||
| 90116-08113 |
4M..MS8#,95 EXHAUST,L=45,S=14.5&14.5 |
6 | ||
| 90116-08255 |
4M..MS8#,95 EXHAUST,UPPER,L=49,S=15&21 |
6 | ||
| 17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1 | ||||
| 17895-45020 |
4M..MS83,85..ARL |
1 | ||
| 17173 - GASKET, EXHAUST MANIFOLD TO HEAD | ||||
| 17173-41010 |
4M..MS8#,95 |
3 | ||
| 17173-45020 |
4M..MS83,85..ARL |
1 | ||
| 17173-45020 |
4M..MS8#,95 |
1 | ||
| 17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1 | ||||
| 17177-45020 |
4M..MS83,85..ARL |
1 | ||
| 17177-41010 |
4M..MS8#,95 |
2 | ||
| Common parts | ||||
| 90116-08068 | ||||
| 90116-10001 | ||||
| 90116-10005 | ||||
| 90170-10199 | ||||
| 90179-08012 | ||||
| 90179-08017 | ||||
| 90179-10021 | ||||
| 90201-08084 | ||||
| 90201-10001 | ||||
| 90201-10018 | ||||
| 91611-40820 | ||||
| 91611-60835 | ||||
| 91651-60830 | ||||
| 91651-60832 | ||||
| 91651-60835 | ||||
| 94110-40800 | ||||
| 94512-00800 | ||||
| 94531-01000 | ||||
| Linked diagrams | ||||
| 1703 | ||||
