MS85R-HBQ (1976)
Toyota Crown
(7410-7908)5R
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11802 - BEARING SET, CAMSHAFT | ||||
| 11803-41010 |
4M..MS8#,95 U/S 0.05 |
1 | ||
| 11802-41010 |
4M..MS8#,95 STD |
1 | ||
| 11805-41010 |
4M..MS8#,95 U/S 0.25 |
1 | ||
| 11806-41010 |
4M..MS8#,95 U/S 0.50 |
1 | ||
| 13511 - CAMSHAFT | ||||
| 13501-45011 |
4M..MS8#,95 |
1 | ||
| 13501-45020 |
4M..MS83,85..ARL |
1 | ||
| 13511 - CAMSHAFT | ||||
| 13501-45011 |
4M..MS8#,95 |
1 | ||
| 13501-45020 |
4M..MS83,85..ARL |
1 | ||
| 13523 - GEAR OR SPROCKET, CAMSHAFT TIMING | ||||
| 13523-41011 |
4M..MS8#,95 N=40 |
1 | ||
| 13711 - VALVE, INTAKE | ||||
| 13711-45020 |
4M..MS83,85..ARL |
6 | ||
| 13711-41012 |
4M..MS8#,95 |
6 | ||
| 13711A - SEAL OR RING, O(FOR VALVE STEM OIL) | ||||
| 90913-02022 |
4M..MS8#,95 FOR INTAKE |
6 | ||
| 90913-02015 |
4M..MS8#,95 FOR EXHAUST |
6 | ||
| 13711A - SEAL OR RING, O(FOR VALVE STEM OIL) | ||||
| 90913-02022 |
4M..MS8#,95 FOR INTAKE |
6 | ||
| 90913-02015 |
4M..MS8#,95 FOR EXHAUST |
6 | ||
| 13711A - SEAL OR RING, O(FOR VALVE STEM OIL) | ||||
| 90913-02022 |
4M..MS8#,95 FOR INTAKE |
6 | ||
| 90913-02015 |
4M..MS8#,95 FOR EXHAUST |
6 | ||
| 13711B - SPRING, COMPRESSION(FOR INNER) | ||||
| 90501-29635 |
4M..MS8#,95 WD=2.9,CW=8.6 |
12 | ||
| 90501-26001 |
4M..MS83,85..ARL WD=2.6,CW=7.75 |
12 | ||
| 13711B - SPRING, COMPRESSION(FOR INNER) | ||||
| 90501-29635 |
4M..MS8#,95 WD=2.9,CW=8.6 |
12 | ||
| 90501-26001 |
4M..MS83,85..ARL WD=2.6,CW=7.75 |
12 | ||
| 13711B - SPRING, COMPRESSION(FOR INNER) | ||||
| 90501-29635 |
4M..MS8#,95 WD=2.9,CW=8.6 |
12 | ||
| 90501-26001 |
4M..MS83,85..ARL WD=2.6,CW=7.75 |
12 | ||
| 13711D - WASHER, PLATE(FOR VALVE SPRING SEAT) | ||||
| 90201-14310 |
4M..MS8#,95 |
12 | ||
| 13711D - WASHER, PLATE(FOR VALVE SPRING SEAT) | ||||
| 90201-14310 |
4M..MS8#,95 |
12 | ||
| 13711D - WASHER, PLATE(FOR VALVE SPRING SEAT) | ||||
| 90201-14310 |
4M..MS8#,95 |
12 | ||
| 13715 - VALVE, EXHAUST | ||||
| 13715-45020 |
4M..MS83,85..ARL |
6 | ||
| 13715-41011 |
4M..MS8#,95 |
6 | ||
| 13741 - RETAINER, VALVE SPRING | ||||
| 13741-41010 |
4M..MS8#,95 |
12 | ||
| 13741 - RETAINER, VALVE SPRING | ||||
| 13741-41010 |
4M..MS8#,95 |
12 | ||
| 13741 - RETAINER, VALVE SPRING | ||||
| 13741-41010 |
4M..MS8#,95 |
12 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90913-03005 |
4M..MS8#,95 |
24 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90913-03005 |
4M..MS8#,95 |
24 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90913-03005 |
4M..MS8#,95 |
24 | ||
| 13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1 | ||||
| 13801-45010 |
4M..MS83,85..ARL |
12 | ||
| 13801-41030 |
4M..MS8#,95 |
6 | ||
| 13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1 | ||||
| 13801-45010 |
4M..MS83,85..ARL |
12 | ||
| 13801-41030 |
4M..MS8#,95 |
6 | ||
| 13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1 | ||||
| 13801-45010 |
4M..MS83,85..ARL |
12 | ||
| 13801-41030 |
4M..MS8#,95 |
6 | ||
| 13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1 | ||||
| 13801-45010 |
4M..MS83,85..ARL |
12 | ||
| 13801-41030 |
4M..MS8#,95 |
6 | ||
| 13801B - NUT, HEXAGON(FOR VALVE ADJUSTING) | ||||
| 90170-08094 |
4M..MS8#,95 |
12 | ||
| 13801C - SCREW, VALVE ADJUSTING | ||||
| 90913-05008 |
4M..MS8#,95 |
12 | ||
| 13801D - SPRING, COMPRESSION(FOR ROCKER ARM) | ||||
| 90501-16163 |
4M..MS8#,95 WD=1.6,CW=7.5 |
12 | ||
| 90501-14013 |
4M..MS83,85..ARL WD=1.4,CW=9 |
12 | ||
| 13801D - SPRING, COMPRESSION(FOR ROCKER ARM) | ||||
| 90501-16163 |
4M..MS8#,95 WD=1.6,CW=7.5 |
12 | ||
| 90501-14013 |
4M..MS83,85..ARL WD=1.4,CW=9 |
12 | ||
| 13801D - SPRING, COMPRESSION(FOR ROCKER ARM) | ||||
| 90501-16163 |
4M..MS8#,95 WD=1.6,CW=7.5 |
12 | ||
| 90501-14013 |
4M..MS83,85..ARL WD=1.4,CW=9 |
12 | ||
| 13802 - ARM SUB-ASSY, VALVE ROCKER, NO.2 | ||||
| 13802-41030 |
4M..MS8#,95 |
6 | ||
| 13802 - ARM SUB-ASSY, VALVE ROCKER, NO.2 | ||||
| 13802-41030 |
4M..MS8#,95 |
6 | ||
| 13802 - ARM SUB-ASSY, VALVE ROCKER, NO.2 | ||||
| 13802-41030 |
4M..MS8#,95 |
6 | ||
| 13802 - ARM SUB-ASSY, VALVE ROCKER, NO.2 | ||||
| 13802-41030 |
4M..MS8#,95 |
6 | ||
| 13901 - SHAFT SUB-ASSY, VALVE ROCKER, NO.1 | ||||
| 13901-45010 |
4M..MS83,85..ARL |
1 | ||
| 13901-41011 |
4M..MS8#,95 |
1 | ||
| 13901C - SPRING, RETAINER(FOR VALVE ROCKER SHAFT) | ||||
| 90524-15008 |
4M..MS8#,95 |
2 | ||
| 13901C - SPRING, RETAINER(FOR VALVE ROCKER SHAFT) | ||||
| 90524-15008 |
4M..MS8#,95 |
2 | ||
| 13951 - SUPPORT, VALVE ROCKER, NO.1 | ||||
| 13951-45010 |
4M..MS83,85..ARL |
1 | ||
| 13951-45010 |
4M..MS8#,95 |
1 | ||
| 13951-41011 |
4M..MS8#,95 |
1 | ||
| 13951A - BOLT(FOR ROCKER SUPPORT SET) | ||||
| 91511-61070 |
4M..MS8#,95 |
7 | ||
| 13951B - SCREW OR BOLT(FOR VALVE ROCKER SHAFT LOCK) | ||||
| 90149-60001 |
4M..MS8#,95 |
2 | ||
| 13951C - BOLT, STUD(FOR ROCKER SUPPORT) | ||||
| 90116-10119 |
4M..MS8#,95 L=68,S=14&14 |
7 | ||
| 13952 - SUPPORT, VALVE ROCKER, NO.2 | ||||
| 13952-45010 |
4M..MS83,85..ARL |
2 | ||
| 13952-41011 |
4M..MS8#,95 |
5 | ||
| 13952 - SUPPORT, VALVE ROCKER, NO.2 | ||||
| 13952-45010 |
4M..MS83,85..ARL |
2 | ||
| 13952-41011 |
4M..MS8#,95 |
5 | ||
| 13952 - SUPPORT, VALVE ROCKER, NO.2 | ||||
| 13952-45010 |
4M..MS83,85..ARL |
2 | ||
| 13952-41011 |
4M..MS8#,95 |
5 | ||
| Common parts | ||||
| 90119-08028 | ||||
| 91611-61028 | ||||
| 94110-40800 | ||||
| 94512-00600 | ||||
| 94611-10800 | ||||
(7604-7611)4M..MS83,85..ARL ; (7611-7908)4M
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 13511 - CAMSHAFT | ||||
| 13501-45011 |
4M..MS8#,95 |
1 | ||
| 13501-45020 |
4M..MS83,85..ARL |
1 | ||
| 13511A - PIN, STRAIGHT(FOR CAMSHAFT KNOCK) | ||||
| 90249-08042 |
4M..MS8#,95 L=23,OD=8,L=23,OD=8 |
1 | ||
| 13523 - GEAR OR SPROCKET, CAMSHAFT TIMING | ||||
| 13523-41011 |
4M..MS8#,95 N=40 |
1 | ||
| 13576 - BOLT, CAMSHAFT TIMING GEAR | ||||
| 13576-41011 |
4M..MS85,95 16-1.5PX43-29 |
1 | ||
| 13577 - PLATE, LOCK | ||||
| 13577-41010 |
4M..MS8#,95 |
1 | ||
| 13579 - WASHER, CAMSHAFT TIMING GEAR BOLT | ||||
| 90201-16328 |
4M..MS8#,95 |
1 | ||
| 13711 - VALVE, INTAKE | ||||
| 13711-45020 |
4M..MS83,85..ARL |
6 | ||
| 13711-41012 |
4M..MS8#,95 |
6 | ||
| 13711A - SEAL OR RING, O(FOR VALVE STEM OIL) | ||||
| 90913-02022 |
4M..MS8#,95 FOR INTAKE |
6 | ||
| 90913-02015 |
4M..MS8#,95 FOR EXHAUST |
6 | ||
| 13711A - SEAL OR RING, O(FOR VALVE STEM OIL) | ||||
| 90913-02022 |
4M..MS8#,95 FOR INTAKE |
6 | ||
| 90913-02015 |
4M..MS8#,95 FOR EXHAUST |
6 | ||
| 13711B - SPRING, COMPRESSION(FOR INNER) | ||||
| 90501-29635 |
4M..MS8#,95 WD=2.9,CW=8.6 |
12 | ||
| 90501-26001 |
4M..MS83,85..ARL WD=2.6,CW=7.75 |
12 | ||
| 13711B - SPRING, COMPRESSION(FOR INNER) | ||||
| 90501-29635 |
4M..MS8#,95 WD=2.9,CW=8.6 |
12 | ||
| 90501-26001 |
4M..MS83,85..ARL WD=2.6,CW=7.75 |
12 | ||
| 13711C - SPRING, COMPRESSION(FOR OUTER) | ||||
| 90501-47636 |
4M..MS85,95 WD=4.7,CW=6.2 |
12 | ||
| 90501-45002 |
4M..MS83,85..ARL WD=4.5,CW=6.2 |
12 | ||
| 13711C - SPRING, COMPRESSION(FOR OUTER) | ||||
| 90501-47636 |
4M..MS85,95 WD=4.7,CW=6.2 |
12 | ||
| 90501-45002 |
4M..MS83,85..ARL WD=4.5,CW=6.2 |
12 | ||
| 13711D - WASHER, PLATE(FOR VALVE SPRING SEAT) | ||||
| 90201-14310 |
4M..MS8#,95 |
12 | ||
| 13711D - WASHER, PLATE(FOR VALVE SPRING SEAT) | ||||
| 90201-14310 |
4M..MS8#,95 |
12 | ||
| 13715 - VALVE, EXHAUST | ||||
| 13715-45020 |
4M..MS83,85..ARL |
6 | ||
| 13715-41011 |
4M..MS8#,95 |
6 | ||
| 13741 - RETAINER, VALVE SPRING | ||||
| 13741-41010 |
4M..MS8#,95 |
12 | ||
| 13741 - RETAINER, VALVE SPRING | ||||
| 13741-41010 |
4M..MS8#,95 |
12 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90913-03005 |
4M..MS8#,95 |
24 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90913-03005 |
4M..MS8#,95 |
24 | ||
| 13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1 | ||||
| 13801-45010 |
4M..MS83,85..ARL |
12 | ||
| 13801-41030 |
4M..MS8#,95 |
6 | ||
| 13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1 | ||||
| 13801-45010 |
4M..MS83,85..ARL |
12 | ||
| 13801-41030 |
4M..MS8#,95 |
6 | ||
| 13801A - BUSH, BIMETAL FORMED(FOR ROCKER ARM) | ||||
| 90999-73068 |
4M..MS8#,95 |
12 | ||
| 90999-73076 |
4M..MS83,85..ARL |
12 | ||
| 13801A - BUSH, BIMETAL FORMED(FOR ROCKER ARM) | ||||
| 90999-73068 |
4M..MS8#,95 |
12 | ||
| 90999-73076 |
4M..MS83,85..ARL |
12 | ||
| 13801B - NUT, HEXAGON(FOR VALVE ADJUSTING) | ||||
| 90170-08094 |
4M..MS8#,95 |
12 | ||
| 13801B - NUT, HEXAGON(FOR VALVE ADJUSTING) | ||||
| 90170-08094 |
4M..MS8#,95 |
12 | ||
| 13801C - SCREW, VALVE ADJUSTING | ||||
| 90913-05008 |
4M..MS8#,95 |
12 | ||
| 13801C - SCREW, VALVE ADJUSTING | ||||
| 90913-05008 |
4M..MS8#,95 |
12 | ||
| 13801D - SPRING, COMPRESSION(FOR ROCKER ARM) | ||||
| 90501-16163 |
4M..MS8#,95 WD=1.6,CW=7.5 |
12 | ||
| 90501-14013 |
4M..MS83,85..ARL WD=1.4,CW=9 |
12 | ||
| 13801D - SPRING, COMPRESSION(FOR ROCKER ARM) | ||||
| 90501-16163 |
4M..MS8#,95 WD=1.6,CW=7.5 |
12 | ||
| 90501-14013 |
4M..MS83,85..ARL WD=1.4,CW=9 |
12 | ||
| 13901 - SHAFT SUB-ASSY, VALVE ROCKER, NO.1 | ||||
| 13901-45010 |
4M..MS83,85..ARL |
1 | ||
| 13901-41011 |
4M..MS8#,95 |
1 | ||
| 13901C - SPRING, RETAINER(FOR VALVE ROCKER SHAFT) | ||||
| 90524-15008 |
4M..MS8#,95 |
2 | ||
| 13902 - SHAFT SUB-ASSY, VALVE ROCKER, NO.2 | ||||
| 13902-41011 |
4M..MS8#,95 |
1 | ||
| 13902-45010 |
4M..MS83,85..ARL |
1 | ||
| 13902-45010 |
4M..MS8#,95 |
1 | ||
| 13951 - SUPPORT, VALVE ROCKER, NO.1 | ||||
| 13951-45010 |
4M..MS83,85..ARL |
1 | ||
| 13951-45010 |
4M..MS8#,95 |
1 | ||
| 13951-41011 |
4M..MS8#,95 |
1 | ||
| 13951B - SCREW OR BOLT(FOR VALVE ROCKER SHAFT LOCK) | ||||
| 90149-60001 |
4M..MS8#,95 |
2 | ||
| 13952 - SUPPORT, VALVE ROCKER, NO.2 | ||||
| 13952-45010 |
4M..MS83,85..ARL |
2 | ||
| 13952-41011 |
4M..MS8#,95 |
5 | ||
| 13953 - SUPPORT, VALVE ROCKER, NO.3 | ||||
| 13953-41012 |
4M..MS8#,95 |
1 | ||
| 13953-45010 |
4M..MS8#,95 |
3 | ||
| 13953-45010 |
4M..MS83,85..ARL |
3 | ||
| 13954 - SUPPORT, VALVE ROCKER, NO.4 | ||||
| 13954-45010 |
4M..MS8#,95 |
1 | ||
| 13954-45010 |
4M..MS83,85..ARL |
1 | ||

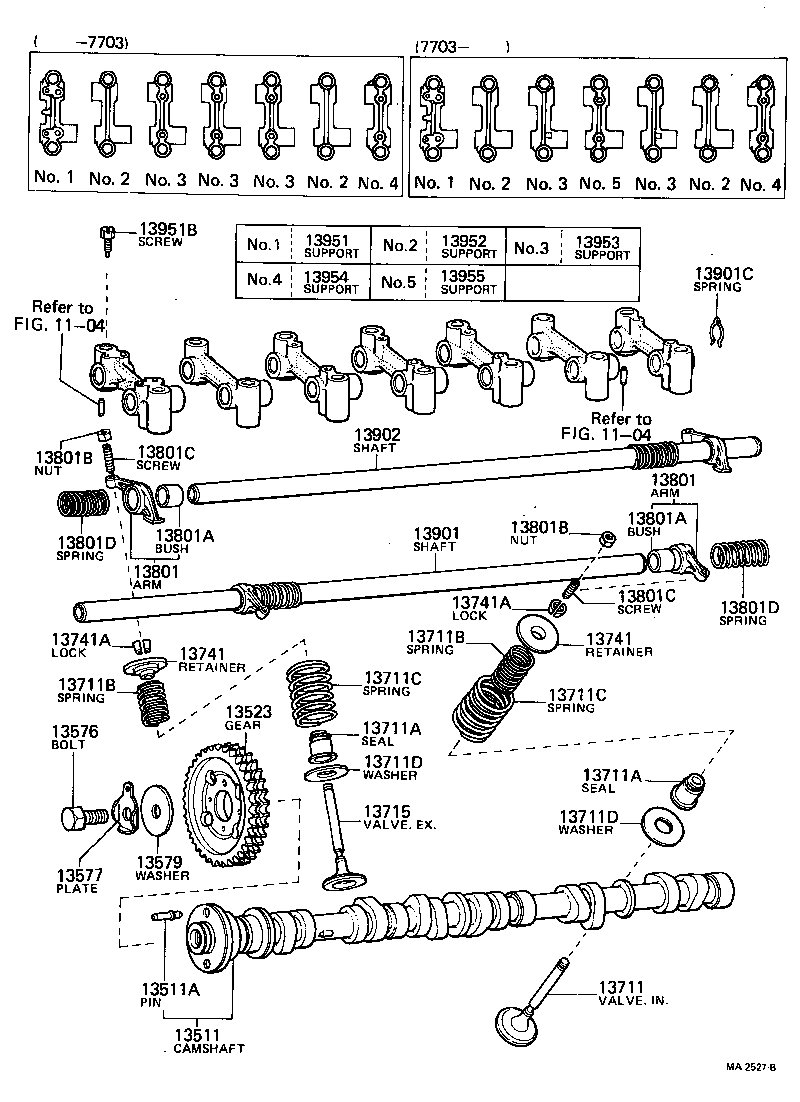

| Linked diagrams | ||||
| 1104 | ||||
