MS85R-HBQ (1976)

Toyota Crown

Production Apr 1976 - Feb 1978
Engine 4M
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7604-7611)4M..MS83,85..ARL ; (7611-7802)4M

Click highlighted areas on diagram

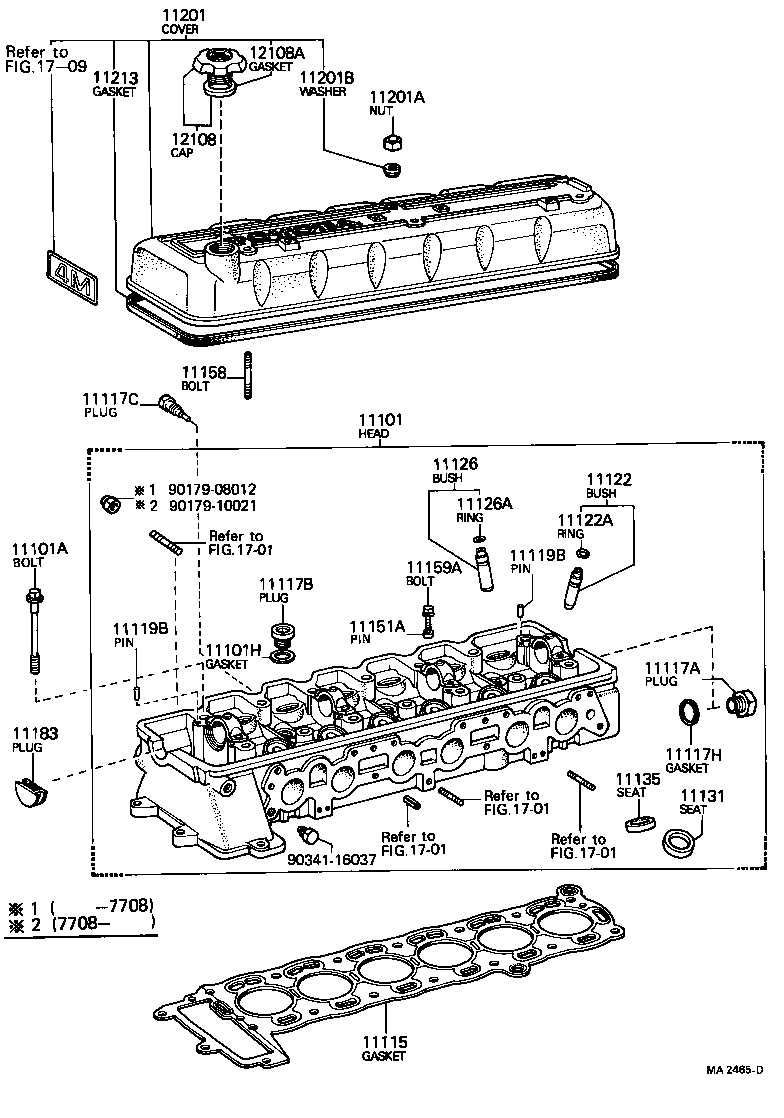

diagram 11101 11101A 11101H 11115 11117A 11117B 11117C 11117H 11119B 11119B 11122 11122A 11126 11126A 11131 11135 11151A 11158 11159A 11183 11201 11201A 11201B 11213 12108 12108A 1701 1701 1701 1701 1709 9017908012 9017910021 9034116037
Part # Description Qty Price
11101 - HEAD SUB-ASSY, CYLINDER
11101-49205

4M..MS8#,95..ARL,GEN

 1
11101-49206

4M..MS8#,95..ARL,GEN

 1
11101-49205

4M..MS83,85..ARL

 1
11101-49127

4M..MS8#,95

 1
11101A - BOLT(FOR CYLINDER HEAD SET)
90910-02041

4M..MS8#,95

12-1.25PX124-23

 14
90910-02058

4M..MS83,85..ARL

12-1.25PX166.5-21

 14
11101H - GASKET(FOR CYLINDER HEAD SCREW PLUG)
90430-33133

4M..MS8#,95

 3
11115 - GASKET, CYLINDER HEAD
11115-45020

4M..MS8#,95

 1
11115-45030

4M..MS83,85..ARL

 1
11117A - PLUG, W/HEAD TAPER SCREW, NO.1
90341-36001

4M..MS83,85..ARL

 1
90341-32031

4M..MS8#,95

 1
11117B - PLUG, W/HEAD TAPER SCREW, NO.2
90341-32028

4M..MS8#,95

 3
90341-32070

4M..MS83,85..ARL

 3
11117H - GASKET(FOR WATER HOLE)
90430-36001

4M..MS83,85..ARL

 1
11122 - BUSH, INTAKE VALVE GUIDE
11123-41020

4M..MS8#,95

O/S 0.05,O/S 0.05

 6
11122-41020

4M..MS8#,95

STD,STD

 6
11122A - RING, SHAFT SNAP (FOR VALVE GUIDE BUSH)
90520-12049

4M..MS8#,95

 6
11126 - BUSH, EXHAUST VALVE GUIDE
11126-45020

4M..MS83,85..ARL

STD,STD

 6
11127-41021

4M..MS8#,95

O/S 0.05

 6
11126-41021

4M..MS8#,95

STD

 6
11127-45020

4M..MS83,85..ARL

O/S 0.05,0/S 0.05

 6
11126A - RING, SHAFT SNAP(FOR VALVE GUIDE BUSH)
90520-12049

4M..MS8#,95

 6
11131 - SEAT, INTAKE VALVE
11132-41010

4M..MS8#,95

O/S 0.03

 6
11131-41021

4M..MS8#,95

STD

 6
11131-45010

4M..MS83,85..ARL

STD,STD

 6
11132-45010

4M..MS83,85..ARL

O/S 0.03,0/S 0.03

 6
11135 - SEAT, EXHAUST VALVE
11136-45010

4M..MS83,85..ARL

O/S 0.03,0/S 0.03

 6
11135-41021

4M..MS8#,95

STD

 6
11136-41010

4M..MS8#,95

O/S 0.03

 6
11135-45010

4M..MS83,85..ARL

STD,STD

 6
11151A - PIN, RING(FOR CAMSHAFT BEARING CAP SETTING)
90253-11021

4M..MS83,85..ARL

L=8,OD=11

 8
11158 - BOLT, STUD(FOR HEAD TO CYLINDER HEAD COVER)
90116-06115

4M..MS8#,95

L=28,S=10&10

 9
90116-08003

4M..MS83,85..ARL

L=51,L=51,S=14&8.5

 6
11159A - BOLT(FOR HEAD TO CAMSHAFT BEARING CAP)
91611-40825

4M..MS83,85..ARL

 8
91611-40825

4M..MS8#,95

 8
11183 - PLUG, SEMICIRCULAR
11183-41010

4M..MS8#,95

 2
11183-45010

4M..MS83,85..ARL

 2
11201 - COVER SUB-ASSY, CYLINDER HEAD
11211-49046

4M..MS8#,95

 1
11211-49056

4M..MS83,85..ARL

 1
11211-49056

4M..MS8#,95

 1
11201A - NUT, CAP(FOR CYLINDER HEAD COVER)
90176-08007

4M..MS83,85..ARL

 6
90176-08007

4M..MS8#,95

 6
11201B - WASHER, SEAL(FOR CYLINDER HEAD COVER)
90210-08002

4M..MS83,85..ARL

 6
90210-08002

4M..MS8#,95

 6
11213 - GASKET, CYLINDER HEAD COVER
11213-45020

4M..MS83,85..ARL

 1
11213-41010

4M..MS8#,95

 1
11213-45020

4M..MS8#,95

 1
12108 - CAP SUB-ASSY, OIL FILLER
12181-12903

4M..MS83,85..ARL

 1
12108-49015

4M..MS8#,95

 1
12108A - GASKET(FOR OIL FILLER CAP)
90301-44049

4M..MS8#,95

 1
90430-37140

4M..MS83,85..ARL

 1
Common parts
90179-08012
90179-10021
90341-16037
