MS85L-YB (1974)

Toyota Crown

Production Oct 1974 - Aug 1979
Engine 4M
Transmission 3H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7504-7611)LHD..4H ; (7511-7908)MS85..LHD..3H..BTP ; (7802-7908)RS80..LHD..4F,4H

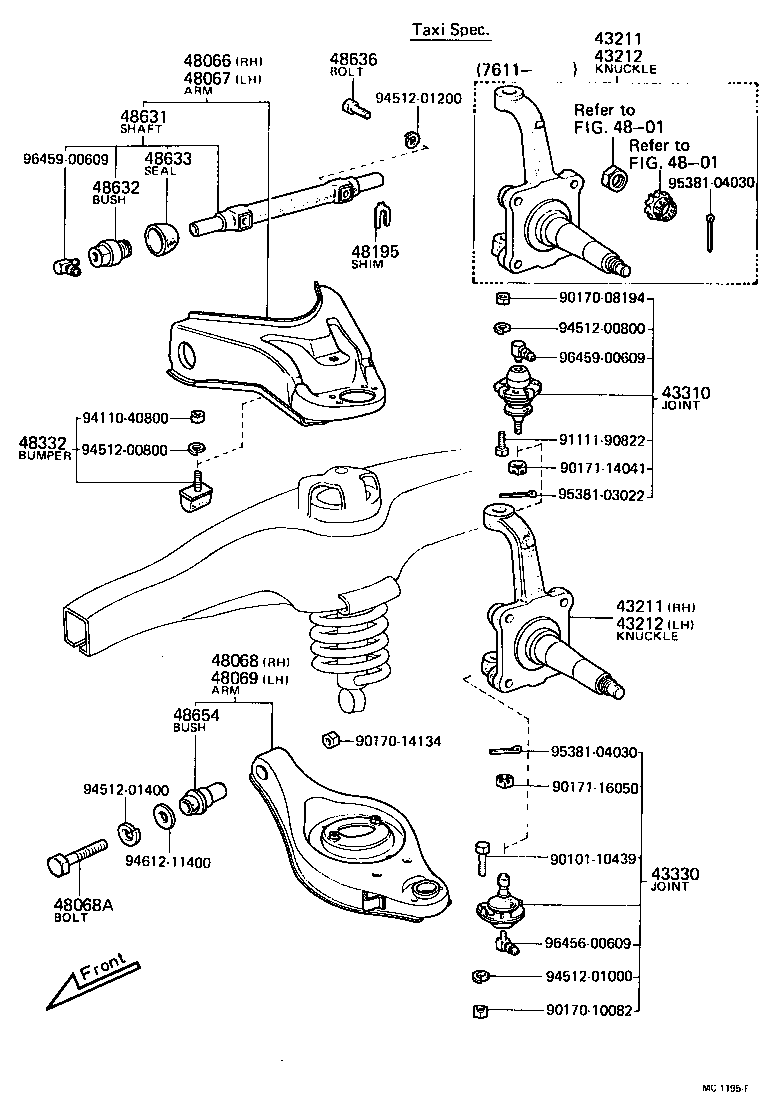

Click highlighted areas on diagram

diagram 43211 43211 43212 43212 43310 43330 4801 4801 48066 48067 48068 48068A 48069 48195 48332 48631 48632 48633 48636 48654 9010110439 9017008194 9017010082 9017014134 9017114041 9017116050 9111190822 9411040800 9451200800 9451200800 9451201000 9451201200 9451201400 9461211400 9538103022 9538104030 9538104030 9645600609 9645900609 9645900609
Part # Description Qty Price
43211 - KNUCKLE, STEERING, RH
43211-30070

MS8#,95,RS80

FOR DISC BRAKE

 1
43211-39015

MS8#,95,RS80

FOR DISC BRAKE

 1
43211-30100

MS8#,95,RS80

FOR DISC BRAKE

 1
43211 - KNUCKLE, STEERING, RH
43211-30070

MS8#,95,RS80

FOR DISC BRAKE

 1
43211-39015

MS8#,95,RS80

FOR DISC BRAKE

 1
43211-30100

MS8#,95,RS80

FOR DISC BRAKE

 1
43212 - KNUCKLE, STEERING, LH
43212-30050

MS8#,95,RS80

FOR DISC BRAKE

 1
43212-30040

MS8#,95,RS80

FOR DISC BRAKE

 1
43212-39015

MS8#,95,RS80

FOR DISC BRAKE

 1
43212 - KNUCKLE, STEERING, LH
43212-30050

MS8#,95,RS80

FOR DISC BRAKE

 1
43212-30040

MS8#,95,RS80

FOR DISC BRAKE

 1
43212-39015

MS8#,95,RS80

FOR DISC BRAKE

 1
43310 - JOINT ASSY, UPPER BALL
43360-39015

MS8#,95,RS80

 2
43350-39015

MS85..LHD..3H..BTP

SU.OMAN TAXI SPEC.

 2
43330 - JOINT ASSY, LOWER BALL, FRONT
43330-39055

MS8#,95,RS80

RH.

 1
43330-39065

MS85..LHD..3H..BTP

FOR RH.,SU.OMAN TAXI SPEC.

 1
43340-39045

MS85..LHD..3H..BTP

FOR LH.,SU.OMAN TAXI SPEC.

 1
43340-39035

MS8#,95,RS80

LH.

 1
48066 - ARM SUB-ASSY, FRONT SUSPENSION, UPPER RH
48066-30050

MS85..LHD..3H..BTP

SU.OMAN TAXI SPEC.

 1
48066-30040

MS8#,95,RS80

 1
48067 - ARM SUB-ASSY, FRONT SUSPENSION, UPPER LH
48067-30040

MS8#,95,RS80

 1
48067-30050

MS85..LHD..3H..BTP

SU.OMAN TAXI SPEC.

 1
48068 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH
48068-30041

MS8#,95,RS80

 1
48068A - BOLT(FOR FRONT SUSPENSION LOWER ARM)
90101-14204

MS8#,95,RS80

 2
48069 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH
48069-30041

MS8#,95,RS80

 1
48195 - SHIM, CAMBER ADJUST
90565-12023

MS8#,95,RS80

T=2.3

 1
90565-12024

MS8#,95,RS80

T=1.6

 1
90565-12025

MS8#,95,RS80

T=1.2

 1
48332 - BUMPER, FRONT SPRING, NO.2
48305-39015

MS8#,95,RS80

 2
48631 - SHAFT, FRONT SUSPENSION UPPER ARM
04485-30040

MS8#,95,RS80

 2
04485-30030

MS85..LHD..3H..BTP

SU.OMAN TAXI SPEC.

 2
48632 - BUSH, UPPER ARM
48632-39016

MS8#,95,RS80

 2
48632-30012

MS85..LHD..3H..BTP

SU.OMAN TAXI SPEC.

 4
48633 - SEAL, UPPER ARM PIVOT DUST
48633-30011

MS85..LHD..3H..BTP

SU.OMAN TAXI SPEC.

 4
48636 - BOLT, UPPER ARM SET
90101-12297

MS8#,95,RS80

 4
48654 - BUSH, LOWER ARM
48654-30010

MS8#,95,RS80

 2
Common parts
90101-10439
90170-08194
90170-10082
90170-14134
90171-14041
90171-16050
91111-90822
94110-40800
94512-00800
94512-01000
94512-01200
94512-01400
94612-11400
95381-03022
95381-04030
96456-00609
96459-00609
Linked diagrams
4801

(7410-7908)

Click highlighted areas on diagram

diagram 43211 43211 43212 43212 43310 43330 4801 4801 48066 48067 48068 48068A 48069 48195 48332 48631 48631B 48631E 48632 48636 48654 9010110439 9017008194 9017010082 9017014134 9017114041 9017116050 9034506014 9034506014 9111170822 9411040800 9451200800 9451200800 9451201000 9451201200 9451201400 9453101200 9461211400 9538103022 9538104030 9538104030
Part # Description Qty Price
43211 - KNUCKLE, STEERING, RH
43211-30070

MS8#,95,RS80

FOR DISC BRAKE

 1
43211-39015

MS8#,95,RS80

FOR DISC BRAKE

 1
43211-30100

MS8#,95,RS80

FOR DISC BRAKE

 1
43211 - KNUCKLE, STEERING, RH
43211-30070

MS8#,95,RS80

FOR DISC BRAKE

 1
43211-39015

MS8#,95,RS80

FOR DISC BRAKE

 1
43211-30100

MS8#,95,RS80

FOR DISC BRAKE

 1
43212 - KNUCKLE, STEERING, LH
43212-30050

MS8#,95,RS80

FOR DISC BRAKE

 1
43212-30040

MS8#,95,RS80

FOR DISC BRAKE

 1
43212-39015

MS8#,95,RS80

FOR DISC BRAKE

 1
43212 - KNUCKLE, STEERING, LH
43212-30050

MS8#,95,RS80

FOR DISC BRAKE

 1
43212-30040

MS8#,95,RS80

FOR DISC BRAKE

 1
43212-39015

MS8#,95,RS80

FOR DISC BRAKE

 1
43310 - JOINT ASSY, UPPER BALL
43360-39015

MS8#,95,RS80

 2
43350-39015

MS85..LHD..3H..BTP

SU.OMAN TAXI SPEC.

 2
43330 - JOINT ASSY, LOWER BALL, FRONT
43330-39055

MS8#,95,RS80

RH.

 1
43330-39065

MS85..LHD..3H..BTP

FOR RH.,SU.OMAN TAXI SPEC.

 1
43340-39045

MS85..LHD..3H..BTP

FOR LH.,SU.OMAN TAXI SPEC.

 1
43340-39035

MS8#,95,RS80

LH.

 1
48066 - ARM SUB-ASSY, FRONT SUSPENSION, UPPER RH
48066-30050

MS85..LHD..3H..BTP

SU.OMAN TAXI SPEC.

 1
48066-30040

MS8#,95,RS80

 1
48067 - ARM SUB-ASSY, FRONT SUSPENSION, UPPER LH
48067-30040

MS8#,95,RS80

 1
48067-30050

MS85..LHD..3H..BTP

SU.OMAN TAXI SPEC.

 1
48068 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH
48068-30041

MS8#,95,RS80

 1
48068A - BOLT(FOR FRONT SUSPENSION LOWER ARM)
90101-14204

MS8#,95,RS80

 2
48069 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH
48069-30041

MS8#,95,RS80

 1
48195 - SHIM, CAMBER ADJUST
90565-12023

MS8#,95,RS80

T=2.3

 1
90565-12024

MS8#,95,RS80

T=1.6

 1
90565-12025

MS8#,95,RS80

T=1.2

 1
48332 - BUMPER, FRONT SPRING, NO.2
48305-39015

MS8#,95,RS80

 2
48631 - SHAFT, FRONT SUSPENSION UPPER ARM
04485-30040

MS8#,95,RS80

 2
04485-30030

MS85..LHD..3H..BTP

SU.OMAN TAXI SPEC.

 2
48631B - RETAINER, CUSHION(FOR FRONT SUSPENSION UPPER ARM)
90948-02020

MS8#,95,RS80

 2
48631E - BOLT(FOR UPPER SUSPENSION ARM)
90101-12299

MS8#,95,RS80

 2
48632 - BUSH, UPPER ARM
48632-39016

MS8#,95,RS80

 2
48632-30012

MS85..LHD..3H..BTP

SU.OMAN TAXI SPEC.

 4
48636 - BOLT, UPPER ARM SET
90101-12297

MS8#,95,RS80

 4
48654 - BUSH, LOWER ARM
48654-30010

MS8#,95,RS80

 2
Common parts
90101-10439
90170-08194
90170-10082
90170-14134
90171-14041
90171-16050
90345-06014
91111-70822
94110-40800
94512-00800
94512-01000
94512-01200
94512-01400
94531-01200
94612-11400
95381-03022
95381-04030
Linked diagrams
4801
