Toyota Crown MS85 DOOR MOTOR & DOOR SOLENOID

Manufacturers Home
Toyota
GR
CROWN
MS85L-NG (1974)
8511 - DOOR MOTOR & DOOR SOLENOID

MS85L-NG (1974)

Toyota Crown

Production Oct 1974 - Aug 1979

Engine 4M

Transmission 3HC ATM

Displacement 2500cc

Power 168 HP (125 kW)

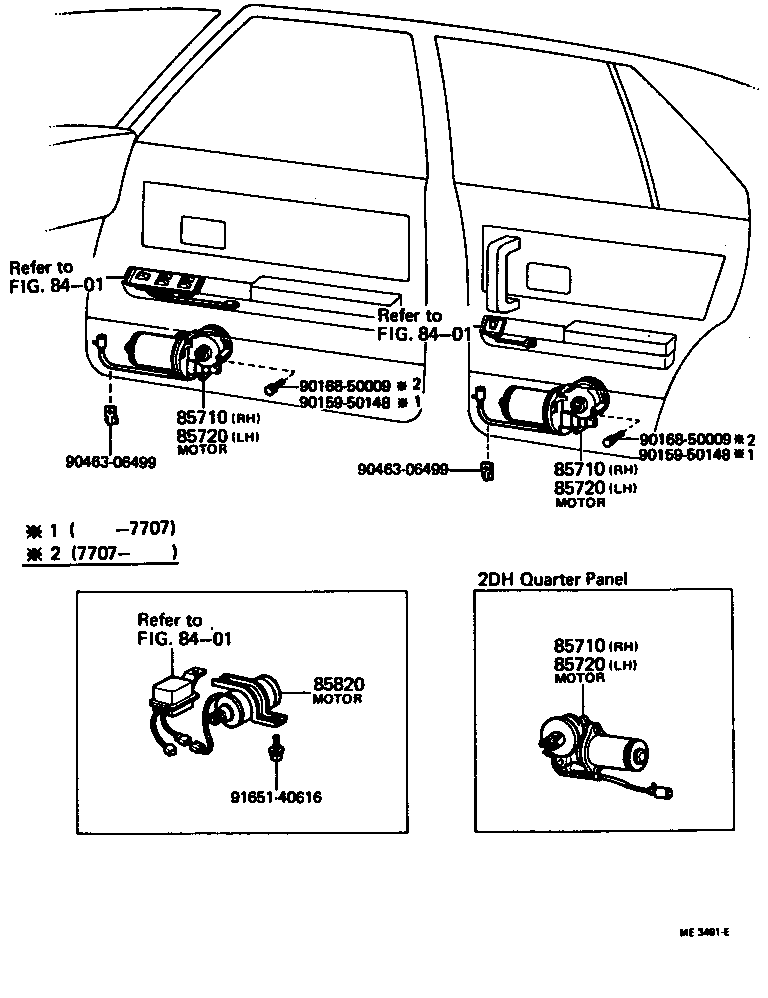

(7410-7611)2D ; (7410-7611)ROY,SAL ; (7611-7908)ROY,SAL

Click highlighted areas on diagram

Part #	Description	Period	Qty
85710 - MOTOR ASSY, POWER WINDOW REGULATOR, RH
85710-30031	MS85..ROY,SAL ROY=1 (REAR DOOR)	10/1975 - 11/1976	2
85710-30030	MS85..SAL	10/1974 - 10/1975	2
85710-14050	MS85..ROY,SAL RHD,ROY=REAR=1	11/1976 - 07/1977	2
85710-30080	MS85..ROY,SAL RHD,ROY=REAR=1	07/1977 - 08/1979	2
85710 - MOTOR ASSY, POWER WINDOW REGULATOR, RH
85710-30031	MS85..ROY,SAL ROY=1 (REAR DOOR)	10/1975 - 11/1976	2
85710-30030	MS85..SAL	10/1974 - 10/1975	2
85710-14050	MS85..ROY,SAL RHD,ROY=REAR=1	11/1976 - 07/1977	2
85710-30080	MS85..ROY,SAL RHD,ROY=REAR=1	07/1977 - 08/1979	2
85710 - MOTOR ASSY, POWER WINDOW REGULATOR, RH
85710-30031	MS85..ROY,SAL ROY=1 (REAR DOOR)	10/1975 - 11/1976	2
85710-30030	MS85..SAL	10/1974 - 10/1975	2
85710-14050	MS85..ROY,SAL RHD,ROY=REAR=1	11/1976 - 07/1977	2
85710-30080	MS85..ROY,SAL RHD,ROY=REAR=1	07/1977 - 08/1979	2
85720 - MOTOR ASSY, POWER WINDOW REGULATOR, LH
85720-14060	MS85..ROY,SAL	11/1976 - 07/1977	2
85720-30030	MS85..SAL	10/1974 - 10/1975	2
85720-30031	MS85..ROY,SAL	10/1975 - 11/1976	2
85720-30050	MS85..ROY,SAL	07/1977 - 08/1979	2
85720 - MOTOR ASSY, POWER WINDOW REGULATOR, LH
85720-14060	MS85..ROY,SAL	11/1976 - 07/1977	2
85720-30030	MS85..SAL	10/1974 - 10/1975	2
85720-30031	MS85..ROY,SAL	10/1975 - 11/1976	2
85720-30050	MS85..ROY,SAL	07/1977 - 08/1979	2
85720 - MOTOR ASSY, POWER WINDOW REGULATOR, LH
85720-14060	MS85..ROY,SAL	11/1976 - 07/1977	2
85720-30030	MS85..SAL	10/1974 - 10/1975	2
85720-30031	MS85..ROY,SAL	10/1975 - 11/1976	2
85720-30050	MS85..ROY,SAL	07/1977 - 08/1979	2
Common parts
90159-50148
90168-50009
90463-06499
91651-40616
Linked diagrams
8401

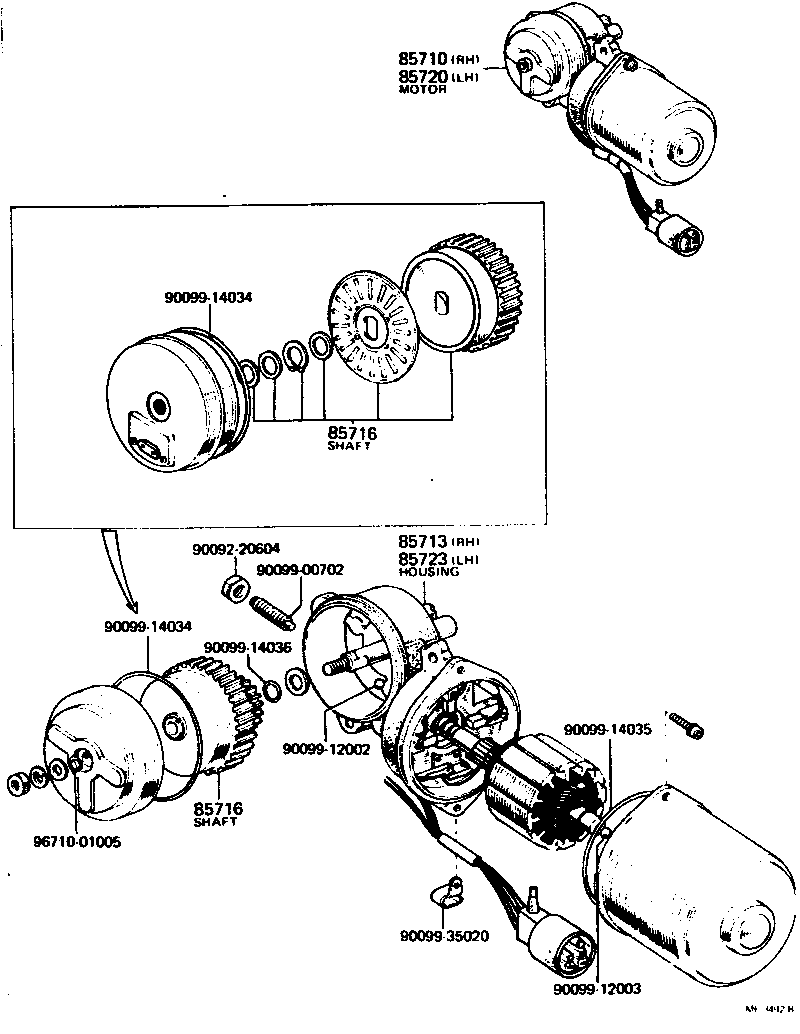

(7410-7510)2D ; (7410-7510)SAL

Click highlighted areas on diagram

Part #	Description	Period	Qty
85710 - MOTOR ASSY, POWER WINDOW REGULATOR, RH
85710-30031	MS85..ROY,SAL ROY=1 (REAR DOOR)	10/1975 - 11/1976	2
85710-30030	MS85..SAL	10/1974 - 10/1975	2
85710-14050	MS85..ROY,SAL RHD,ROY=REAR=1	11/1976 - 07/1977	2
85710-30080	MS85..ROY,SAL RHD,ROY=REAR=1	07/1977 - 08/1979	2
85713 - HOUSING, POWER WINDOW REGULATOR MOTOR GEAR, RH
85607-30030	MS85..SAL	10/1974 - 10/1975	2
85607-14050	MS85..ROY,SAL RHD,ROY=REAR=1	11/1976 - 07/1977	2
85607-30031	MS85..ROY,SAL ROY=1 (REAR DOOR)	10/1975 - 11/1976	2
85716 - SHAFT, POWER WINDOW REGULATOR MOTOR DRIVE
85716-30031	MS85..SAL 2D=2	11/1976 - 07/1977	4
85716 - SHAFT, POWER WINDOW REGULATOR MOTOR DRIVE
85716-30031	MS85..SAL 2D=2	11/1976 - 07/1977	4
85720 - MOTOR ASSY, POWER WINDOW REGULATOR, LH
85720-14060	MS85..ROY,SAL	11/1976 - 07/1977	2
85720-30030	MS85..SAL	10/1974 - 10/1975	2
85720-30031	MS85..ROY,SAL	10/1975 - 11/1976	2
85720-30050	MS85..ROY,SAL	07/1977 - 08/1979	2
85723 - HOUSING, POWER WINDOW REGULATOR MOTOR GEAR, LH
85608-30030	MS85..SAL	10/1974 - 10/1975	2
85608-14060	MS85..ROY,SAL	11/1976 - 07/1977	2
85608-30031	MS85..ROY,SAL	10/1975 - 11/1976	2
Common parts
90092-20604
90099-00702
90099-12002
90099-12003
90099-14034
90099-14035
90099-14036
90099-35020
96710-01005

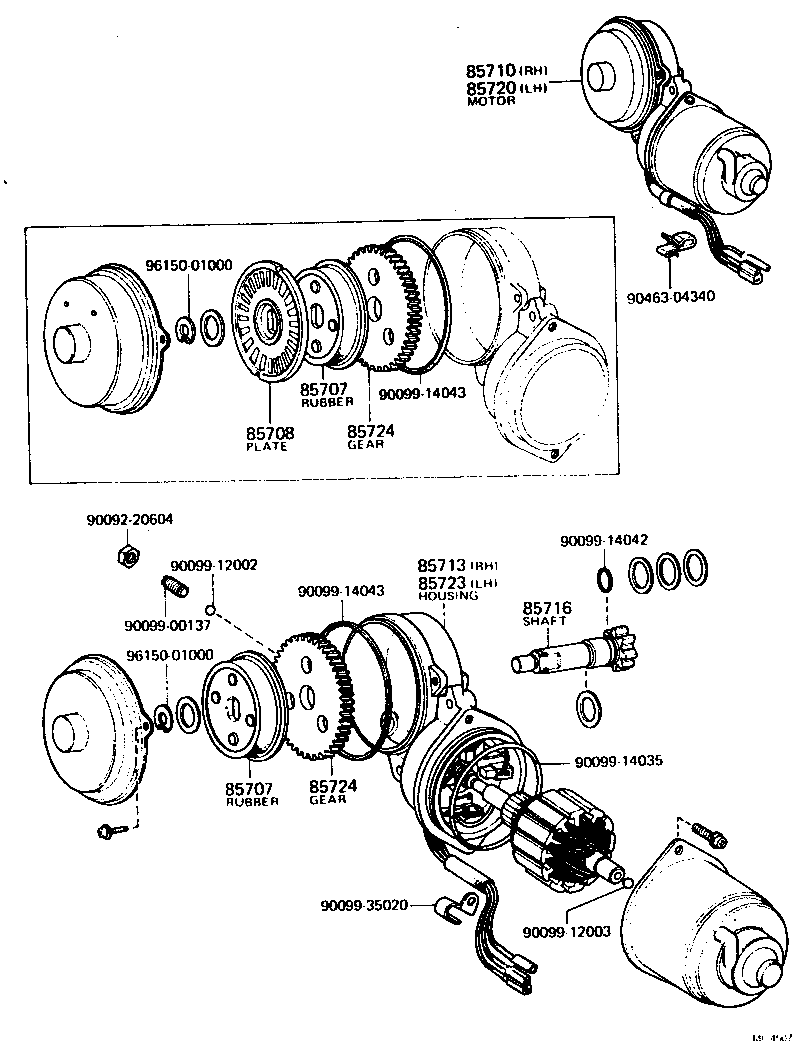

(7510-7611)2D ; (7510-7611)ROY,SAL ; (7611-7707)ROY,SAL

Click highlighted areas on diagram

Part #	Description	Period	Qty
85707 - RUBBER SUB-ASSY, POWER WINDOW REGULATOR MOTOR CUSHION
85707-30031	MS85..ROY,SAL	11/1976 - 07/1977	4
85707 - RUBBER SUB-ASSY, POWER WINDOW REGULATOR MOTOR CUSHION
85707-30031	MS85..ROY,SAL	11/1976 - 07/1977	4
85710 - MOTOR ASSY, POWER WINDOW REGULATOR, RH
85710-30031	MS85..ROY,SAL ROY=1 (REAR DOOR)	10/1975 - 11/1976	2
85710-30030	MS85..SAL	10/1974 - 10/1975	2
85710-14050	MS85..ROY,SAL RHD,ROY=REAR=1	11/1976 - 07/1977	2
85710-30080	MS85..ROY,SAL RHD,ROY=REAR=1	07/1977 - 08/1979	2
85713 - HOUSING, POWER WINDOW REGULATOR MOTOR GEAR, RH
85607-30030	MS85..SAL	10/1974 - 10/1975	2
85607-14050	MS85..ROY,SAL RHD,ROY=REAR=1	11/1976 - 07/1977	2
85607-30031	MS85..ROY,SAL ROY=1 (REAR DOOR)	10/1975 - 11/1976	2
85716 - SHAFT, POWER WINDOW REGULATOR MOTOR DRIVE
85716-30031	MS85..SAL 2D=2	11/1976 - 07/1977	4
85720 - MOTOR ASSY, POWER WINDOW REGULATOR, LH
85720-14060	MS85..ROY,SAL	11/1976 - 07/1977	2
85720-30030	MS85..SAL	10/1974 - 10/1975	2
85720-30031	MS85..ROY,SAL	10/1975 - 11/1976	2
85720-30050	MS85..ROY,SAL	07/1977 - 08/1979	2
85723 - HOUSING, POWER WINDOW REGULATOR MOTOR GEAR, LH
85608-30030	MS85..SAL	10/1974 - 10/1975	2
85608-14060	MS85..ROY,SAL	11/1976 - 07/1977	2
85608-30031	MS85..ROY,SAL	10/1975 - 11/1976	2
85724 - GEAR, POWER WINDOW REGULATOR MOTOR HELICAL
85724-30031	MS85..ROY,SAL	11/1976 - 07/1977	4
85724 - GEAR, POWER WINDOW REGULATOR MOTOR HELICAL
85724-30031	MS85..ROY,SAL	11/1976 - 07/1977	4
Common parts
90092-20604
90099-00137
90099-12002
90099-12003
90099-14035
90099-14042
90099-14043
90099-35020
90463-04340
96150-01000

MS85L-NG (1974)

(7410-7611)2D ; (7410-7611)ROY,SAL ; (7611-7908)ROY,SAL

(7410-7510)2D ; (7410-7510)SAL

(7510-7611)2D ; (7510-7611)ROY,SAL ; (7611-7707)ROY,SAL
