MS85L-KB (1974)
Toyota Crown
(7410-7604)4M
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-41212 |
4M..MS8#,95..BTP,DLX,SAL,STD W/HOT AIR INTAKE |
1 | ||
| 17700-42083 |
4M..MS8#,95..LHD L/HOT AIR INTAKE |
1 | ||
| 17700-41212 |
4M..MS8#,95..GEN W/HOT AIR INTAKE |
1 | ||
| 17700-45130 |
4M..MS8#,95..EUR,GEN W/HOT AIR INTAKE |
1 | ||
| 17700-45120 |
4M..MS8#,95..GEN L/HOT AIR INTAKE |
1 | ||
| 17700-45200 |
4M..MS8#,95..GEN L/HOT AIR INTAKE |
1 | ||
| 17700-45121 |
4M..MS8#,95..GEN L/HOT AIR INTAKE |
1 | ||
| 17700-45201 |
4M..MS8#,95..GEN L/HOT AIR INTAKE |
1 | ||
| 17700-45131 |
4M..MS8#,95..EUR,GEN W/HOT AIR INTAKE |
1 | ||
| 17700-45191 |
4M..MS8#,95..EUR,GEN W/HOT AIR INTAKE |
1 | ||
| 17700-45202 |
4M..MS8#,95..GEN L/HOT AIR INTAKE |
1 | ||
| 17700-45192 |
4M..MS8#,95..EUR,GEN W/HOT AIR INTAKE |
1 | ||
| 17700-45190 |
4M..MS8#,95..EUR,GEN W/HOT AIR INTAKE |
1 | ||
| 17700A - NUT, WING(FOR AIR CLEANER) | ||||
| 90175-06003 |
4M..MS8#,95 |
1 | ||
| 90175-06026 |
4M..MS8#,95 |
1 | ||
| 94271-00600 |
4M..MS8#,95 |
1 | ||
| 17700B - WASHER, SEAL(FOR AIR CLEANER) | ||||
| 90210-06023 |
4M..MS8#,95 |
1 | ||
| 90210-09026 |
4M..MS8#,95 |
1 | ||
| 17700F - BOLT, STUD(FOR AIR CLEANER SETTING) | ||||
| 90116-06222 |
4M..MS8#,95 L=80,S=12&28 |
1 | ||
| 90116-06147 |
4M..MS8#,95..LHD L=70,S=13&30 |
1 | ||
| 17706 - INLET SUB-ASSY, AIR CLEANER, NO.2 | ||||
| 17895-42010 |
4M..MS8#,95..BTP,DLX,SAL,STD W/HOT AIR INTAKE |
1 | ||
| 17895-42010 |
4M..MS8#,95..GEN W/HOT AIR INTAKE |
1 | ||
| 17895-42010 |
4M..MS8#,95..BTP,DLX,SAL,STD W/HOT AIR INTAKE |
1 | ||
| 17895-45021 |
4M..MS8#,95 W/HOT AIR INTAKE |
1 | ||
| 17895-45020 |
4M..MS8#,95 W/HOT AIR INTAKE |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-41050 |
4M..MS8#,95 |
1 | ||
| 17801-41090 |
4M..MS8#,95 |
1 | ||
| 17841 - GASKET, FILTER ELEMENT | ||||
| 17841-41040 |
4M..MS8#,95 |
2 | ||
| 17841-41050 |
4M..MS8#,95 |
2 | ||
| 17841 - GASKET, FILTER ELEMENT | ||||
| 17841-41040 |
4M..MS8#,95 |
2 | ||
| 17841-41050 |
4M..MS8#,95 |
2 | ||
| 17845 - GASKET, AIR CLEANER CAP | ||||
| 17845-41040 |
4M..MS8#,95..LHD |
1 | ||
| 17845-41040 |
4M..MS8#,95 |
1 | ||
| 17848 - GASKET, AIR CLEANER TO CARBURETOR | ||||
| 90430-72003 |
4M..MS8#,95 |
1 | ||
| 90430-72114 |
4M..MS8#,95 |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-42010 |
4M..MS8#,95..GEN W/HOT AIR INTAKE |
1 | ||
| 17881-42010 |
4M..MS8#,95..BTP,DLX,SAL,STD W/HOT AIR INTAKE |
1 | ||
| 17881-26010 |
4M..MS8#,95 W/HOT AIR INTAKE |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10560 |
4M..MS8#,95..BTP,DLX,SAL,STD W/HOT AIR INTAKE |
2 | ||
| 96111-10560 |
4M..MS8#,95..GEN W/HOT AIR INTAKE |
2 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10560 |
4M..MS8#,95..BTP,DLX,SAL,STD W/HOT AIR INTAKE |
2 | ||
| 96111-10560 |
4M..MS8#,95..GEN W/HOT AIR INTAKE |
2 | ||
| Common parts | ||||
| 90116-08057 | ||||
| 90179-08123 | ||||
| 91651-41016 | ||||
| Linked diagrams | ||||
| 1709 | ||||

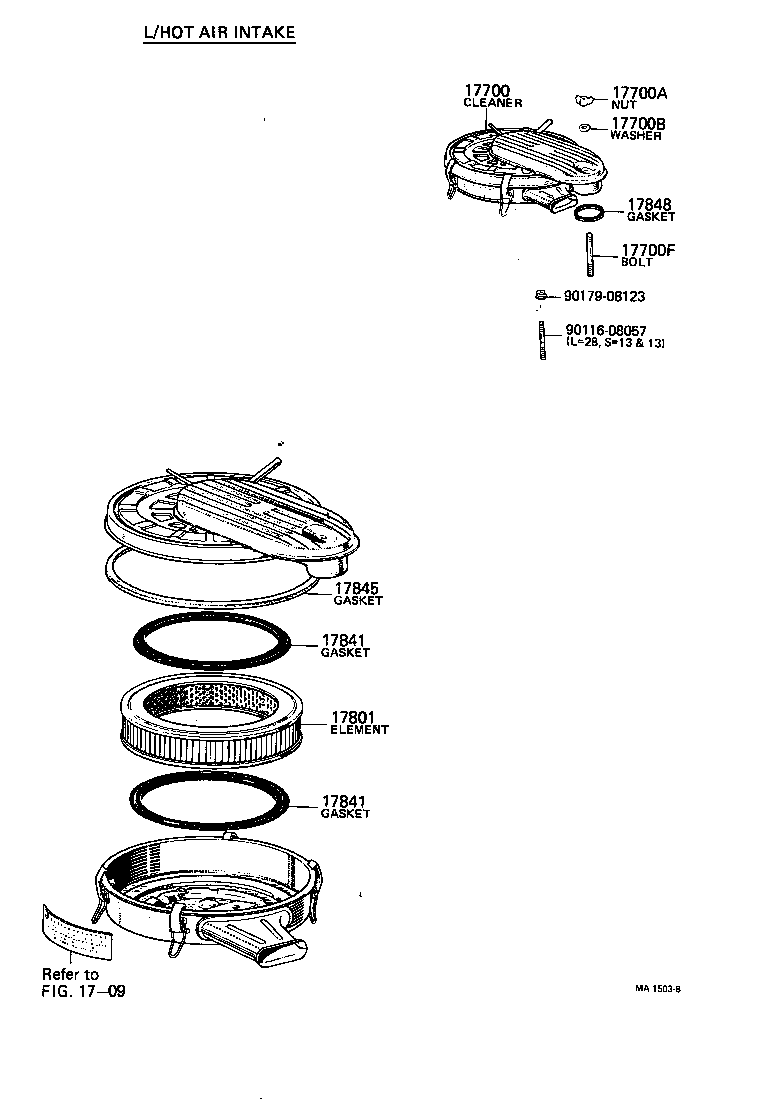

(7410-7611)4M..LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-41212 |
4M..MS8#,95..BTP,DLX,SAL,STD W/HOT AIR INTAKE |
1 | ||
| 17700-42083 |
4M..MS8#,95..LHD L/HOT AIR INTAKE |
1 | ||
| 17700-41212 |
4M..MS8#,95..GEN W/HOT AIR INTAKE |
1 | ||
| 17700-45130 |
4M..MS8#,95..EUR,GEN W/HOT AIR INTAKE |
1 | ||
| 17700-45120 |
4M..MS8#,95..GEN L/HOT AIR INTAKE |
1 | ||
| 17700-45200 |
4M..MS8#,95..GEN L/HOT AIR INTAKE |
1 | ||
| 17700-45121 |
4M..MS8#,95..GEN L/HOT AIR INTAKE |
1 | ||
| 17700-45201 |
4M..MS8#,95..GEN L/HOT AIR INTAKE |
1 | ||
| 17700-45131 |
4M..MS8#,95..EUR,GEN W/HOT AIR INTAKE |
1 | ||
| 17700-45191 |
4M..MS8#,95..EUR,GEN W/HOT AIR INTAKE |
1 | ||
| 17700-45202 |
4M..MS8#,95..GEN L/HOT AIR INTAKE |
1 | ||
| 17700-45192 |
4M..MS8#,95..EUR,GEN W/HOT AIR INTAKE |
1 | ||
| 17700-45190 |
4M..MS8#,95..EUR,GEN W/HOT AIR INTAKE |
1 | ||
| 17700A - NUT, WING(FOR AIR CLEANER) | ||||
| 90175-06003 |
4M..MS8#,95 |
1 | ||
| 90175-06026 |
4M..MS8#,95 |
1 | ||
| 94271-00600 |
4M..MS8#,95 |
1 | ||
| 17700B - WASHER, SEAL(FOR AIR CLEANER) | ||||
| 90210-06023 |
4M..MS8#,95 |
1 | ||
| 90210-09026 |
4M..MS8#,95 |
1 | ||
| 17700F - BOLT, STUD(FOR AIR CLEANER SETTING) | ||||
| 90116-06222 |
4M..MS8#,95 L=80,S=12&28 |
1 | ||
| 90116-06147 |
4M..MS8#,95..LHD L=70,S=13&30 |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-41050 |
4M..MS8#,95 |
1 | ||
| 17801-41090 |
4M..MS8#,95 |
1 | ||
| 17841 - GASKET, FILTER ELEMENT | ||||
| 17841-41040 |
4M..MS8#,95 |
2 | ||
| 17841-41050 |
4M..MS8#,95 |
2 | ||
| 17841 - GASKET, FILTER ELEMENT | ||||
| 17841-41040 |
4M..MS8#,95 |
2 | ||
| 17841-41050 |
4M..MS8#,95 |
2 | ||
| 17845 - GASKET, AIR CLEANER CAP | ||||
| 17845-41040 |
4M..MS8#,95..LHD |
1 | ||
| 17845-41040 |
4M..MS8#,95 |
1 | ||
| 17848 - GASKET, AIR CLEANER TO CARBURETOR | ||||
| 90430-72003 |
4M..MS8#,95 |
1 | ||
| 90430-72114 |
4M..MS8#,95 |
1 | ||
| Common parts | ||||
| 90116-08057 | ||||
| 90179-08123 | ||||
| Linked diagrams | ||||
| 1709 | ||||

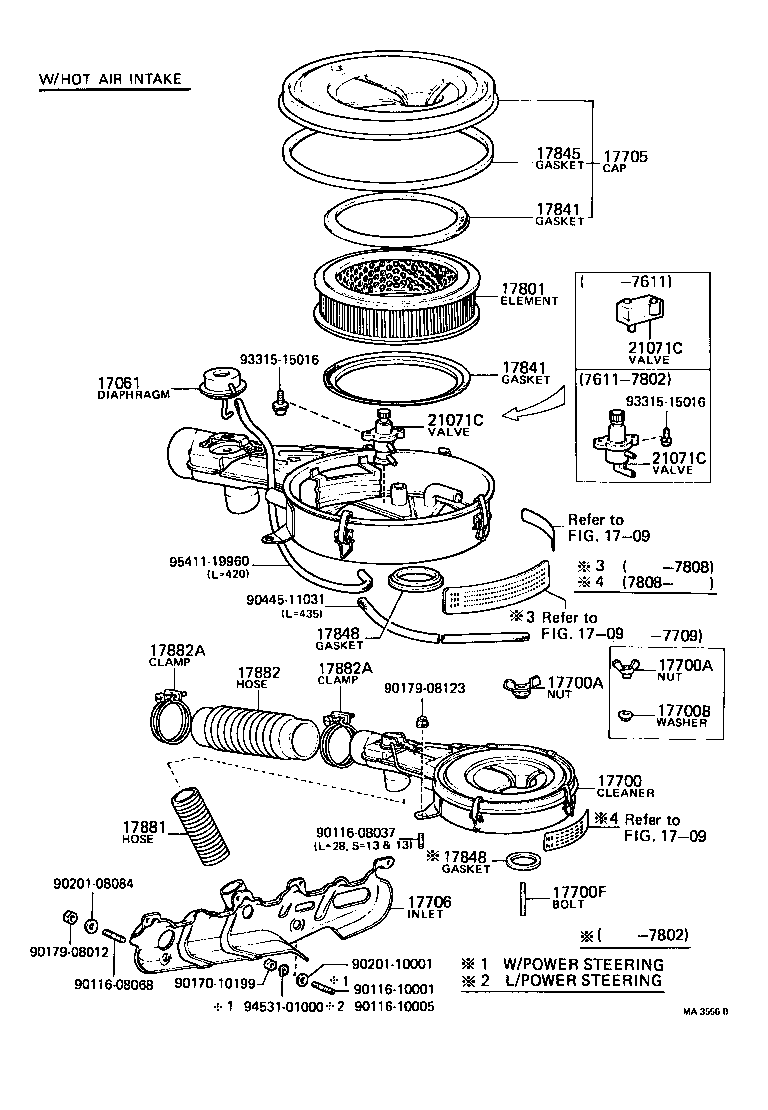

(7609-7611)4M..MS83,85..ARL ; (7611-7908)4M
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17061 - DIAPHRAGM SUB-ASSY | ||||
| 17061-41010 |
4M..MS8#,95 W/HOT AIR INTAKE |
1 | ||
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-41212 |
4M..MS8#,95..BTP,DLX,SAL,STD W/HOT AIR INTAKE |
1 | ||
| 17700-42083 |
4M..MS8#,95..LHD L/HOT AIR INTAKE |
1 | ||
| 17700-41212 |
4M..MS8#,95..GEN W/HOT AIR INTAKE |
1 | ||
| 17700-45130 |
4M..MS8#,95..EUR,GEN W/HOT AIR INTAKE |
1 | ||
| 17700-45120 |
4M..MS8#,95..GEN L/HOT AIR INTAKE |
1 | ||
| 17700-45200 |
4M..MS8#,95..GEN L/HOT AIR INTAKE |
1 | ||
| 17700-45121 |
4M..MS8#,95..GEN L/HOT AIR INTAKE |
1 | ||
| 17700-45201 |
4M..MS8#,95..GEN L/HOT AIR INTAKE |
1 | ||
| 17700-45131 |
4M..MS8#,95..EUR,GEN W/HOT AIR INTAKE |
1 | ||
| 17700-45191 |
4M..MS8#,95..EUR,GEN W/HOT AIR INTAKE |
1 | ||
| 17700-45202 |
4M..MS8#,95..GEN L/HOT AIR INTAKE |
1 | ||
| 17700-45192 |
4M..MS8#,95..EUR,GEN W/HOT AIR INTAKE |
1 | ||
| 17700-45190 |
4M..MS8#,95..EUR,GEN W/HOT AIR INTAKE |
1 | ||
| 17700A - NUT, WING(FOR AIR CLEANER) | ||||
| 90175-06003 |
4M..MS8#,95 |
1 | ||
| 90175-06026 |
4M..MS8#,95 |
1 | ||
| 94271-00600 |
4M..MS8#,95 |
1 | ||
| 17700A - NUT, WING(FOR AIR CLEANER) | ||||
| 90175-06003 |
4M..MS8#,95 |
1 | ||
| 90175-06026 |
4M..MS8#,95 |
1 | ||
| 94271-00600 |
4M..MS8#,95 |
1 | ||
| 17700B - WASHER, SEAL(FOR AIR CLEANER) | ||||
| 90210-06023 |
4M..MS8#,95 |
1 | ||
| 90210-09026 |
4M..MS8#,95 |
1 | ||
| 17700F - BOLT, STUD(FOR AIR CLEANER SETTING) | ||||
| 90116-06222 |
4M..MS8#,95 L=80,S=12&28 |
1 | ||
| 90116-06147 |
4M..MS8#,95..LHD L=70,S=13&30 |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-41120 |
4M..MS8#,95 |
1 | ||
| 17705-41090 |
4M..MS8#,95 |
1 | ||
| 17706 - INLET SUB-ASSY, AIR CLEANER, NO.2 | ||||
| 17895-42010 |
4M..MS8#,95..BTP,DLX,SAL,STD W/HOT AIR INTAKE |
1 | ||
| 17895-42010 |
4M..MS8#,95..GEN W/HOT AIR INTAKE |
1 | ||
| 17895-42010 |
4M..MS8#,95..BTP,DLX,SAL,STD W/HOT AIR INTAKE |
1 | ||
| 17895-45021 |
4M..MS8#,95 W/HOT AIR INTAKE |
1 | ||
| 17895-45020 |
4M..MS8#,95 W/HOT AIR INTAKE |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-41050 |
4M..MS8#,95 |
1 | ||
| 17801-41090 |
4M..MS8#,95 |
1 | ||
| 17841 - GASKET, FILTER ELEMENT | ||||
| 17841-41040 |
4M..MS8#,95 |
2 | ||
| 17841-41050 |
4M..MS8#,95 |
2 | ||
| 17841 - GASKET, FILTER ELEMENT | ||||
| 17841-41040 |
4M..MS8#,95 |
2 | ||
| 17841-41050 |
4M..MS8#,95 |
2 | ||
| 17845 - GASKET, AIR CLEANER CAP | ||||
| 17845-41040 |
4M..MS8#,95..LHD |
1 | ||
| 17845-41040 |
4M..MS8#,95 |
1 | ||
| 17848 - GASKET, AIR CLEANER TO CARBURETOR | ||||
| 90430-72003 |
4M..MS8#,95 |
1 | ||
| 90430-72114 |
4M..MS8#,95 |
1 | ||
| 17848 - GASKET, AIR CLEANER TO CARBURETOR | ||||
| 90430-72003 |
4M..MS8#,95 |
1 | ||
| 90430-72114 |
4M..MS8#,95 |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-42010 |
4M..MS8#,95..GEN W/HOT AIR INTAKE |
1 | ||
| 17881-42010 |
4M..MS8#,95..BTP,DLX,SAL,STD W/HOT AIR INTAKE |
1 | ||
| 17881-26010 |
4M..MS8#,95 W/HOT AIR INTAKE |
1 | ||
| 21071C - VALVE SUB-ASSY, THERMOSTATIC(FOR AIR CLEANER) | ||||
| 17728-41010 |
4M..MS8#,95 W/HOT AIR INTAKE |
1 | ||
| 17728-41020 |
4M..MS8#,95 W/HOT AIR INTAKE |
1 | ||
| 21071-45021 |
4M..MS8#,95..GEN L/HOT AIR INTAKE |
1 | ||
| 21071C - VALVE SUB-ASSY, THERMOSTATIC(FOR AIR CLEANER) | ||||
| 17728-41010 |
4M..MS8#,95 W/HOT AIR INTAKE |
1 | ||
| 17728-41020 |
4M..MS8#,95 W/HOT AIR INTAKE |
1 | ||
| 21071-45021 |
4M..MS8#,95..GEN L/HOT AIR INTAKE |
1 | ||
| 21071C - VALVE SUB-ASSY, THERMOSTATIC(FOR AIR CLEANER) | ||||
| 17728-41010 |
4M..MS8#,95 W/HOT AIR INTAKE |
1 | ||
| 17728-41020 |
4M..MS8#,95 W/HOT AIR INTAKE |
1 | ||
| 21071-45021 |
4M..MS8#,95..GEN L/HOT AIR INTAKE |
1 | ||
| Common parts | ||||
| 90116-08037 | ||||
| 90116-08068 | ||||
| 90116-10001 | ||||
| 90116-10005 | ||||
| 90170-10199 | ||||
| 90179-08012 | ||||
| 90179-08123 | ||||
| 90201-08084 | ||||
| 90201-10001 | ||||
| 90445-11031 | ||||
| 93315-15016 | ||||
| 94531-01000 | ||||
| 95411-19960 | ||||
| Linked diagrams | ||||
| 1709 | ||||
(7611-7908)4M
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-41212 |
4M..MS8#,95..BTP,DLX,SAL,STD W/HOT AIR INTAKE |
1 | ||
| 17700-42083 |
4M..MS8#,95..LHD L/HOT AIR INTAKE |
1 | ||
| 17700-41212 |
4M..MS8#,95..GEN W/HOT AIR INTAKE |
1 | ||
| 17700-45130 |
4M..MS8#,95..EUR,GEN W/HOT AIR INTAKE |
1 | ||
| 17700-45120 |
4M..MS8#,95..GEN L/HOT AIR INTAKE |
1 | ||
| 17700-45200 |
4M..MS8#,95..GEN L/HOT AIR INTAKE |
1 | ||
| 17700-45121 |
4M..MS8#,95..GEN L/HOT AIR INTAKE |
1 | ||
| 17700-45201 |
4M..MS8#,95..GEN L/HOT AIR INTAKE |
1 | ||
| 17700-45131 |
4M..MS8#,95..EUR,GEN W/HOT AIR INTAKE |
1 | ||
| 17700-45191 |
4M..MS8#,95..EUR,GEN W/HOT AIR INTAKE |
1 | ||
| 17700-45202 |
4M..MS8#,95..GEN L/HOT AIR INTAKE |
1 | ||
| 17700-45192 |
4M..MS8#,95..EUR,GEN W/HOT AIR INTAKE |
1 | ||
| 17700-45190 |
4M..MS8#,95..EUR,GEN W/HOT AIR INTAKE |
1 | ||
| 17700A - NUT, WING(FOR AIR CLEANER) | ||||
| 90175-06003 |
4M..MS8#,95 |
1 | ||
| 90175-06026 |
4M..MS8#,95 |
1 | ||
| 94271-00600 |
4M..MS8#,95 |
1 | ||
| 17700A - NUT, WING(FOR AIR CLEANER) | ||||
| 90175-06003 |
4M..MS8#,95 |
1 | ||
| 90175-06026 |
4M..MS8#,95 |
1 | ||
| 94271-00600 |
4M..MS8#,95 |
1 | ||
| 17700B - WASHER, SEAL(FOR AIR CLEANER) | ||||
| 90210-06023 |
4M..MS8#,95 |
1 | ||
| 90210-09026 |
4M..MS8#,95 |
1 | ||
| 17700F - BOLT, STUD(FOR AIR CLEANER SETTING) | ||||
| 90116-06222 |
4M..MS8#,95 L=80,S=12&28 |
1 | ||
| 90116-06147 |
4M..MS8#,95..LHD L=70,S=13&30 |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-41120 |
4M..MS8#,95 |
1 | ||
| 17705-41090 |
4M..MS8#,95 |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-41050 |
4M..MS8#,95 |
1 | ||
| 17801-41090 |
4M..MS8#,95 |
1 | ||
| 17841 - GASKET, FILTER ELEMENT | ||||
| 17841-41040 |
4M..MS8#,95 |
2 | ||
| 17841-41050 |
4M..MS8#,95 |
2 | ||
| 17841 - GASKET, FILTER ELEMENT | ||||
| 17841-41040 |
4M..MS8#,95 |
2 | ||
| 17841-41050 |
4M..MS8#,95 |
2 | ||
| 17845 - GASKET, AIR CLEANER CAP | ||||
| 17845-41040 |
4M..MS8#,95..LHD |
1 | ||
| 17845-41040 |
4M..MS8#,95 |
1 | ||
| 17848 - GASKET, AIR CLEANER TO CARBURETOR | ||||
| 90430-72003 |
4M..MS8#,95 |
1 | ||
| 90430-72114 |
4M..MS8#,95 |
1 | ||
| 17848 - GASKET, AIR CLEANER TO CARBURETOR | ||||
| 90430-72003 |
4M..MS8#,95 |
1 | ||
| 90430-72114 |
4M..MS8#,95 |
1 | ||
| 21071C - VALVE SUB-ASSY, THERMOSTATIC(FOR AIR CLEANER) | ||||
| 17728-41010 |
4M..MS8#,95 W/HOT AIR INTAKE |
1 | ||
| 17728-41020 |
4M..MS8#,95 W/HOT AIR INTAKE |
1 | ||
| 21071-45021 |
4M..MS8#,95..GEN L/HOT AIR INTAKE |
1 | ||
| Common parts | ||||
| 90116-08037 | ||||
| 90179-08123 | ||||
| 90445-11015 | ||||
| Linked diagrams | ||||
| 1709 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
