MS85L-HGW (1976)

Toyota Crown

Production Nov 1976 - Aug 1979
Engine 4M
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7611-7908)ATM

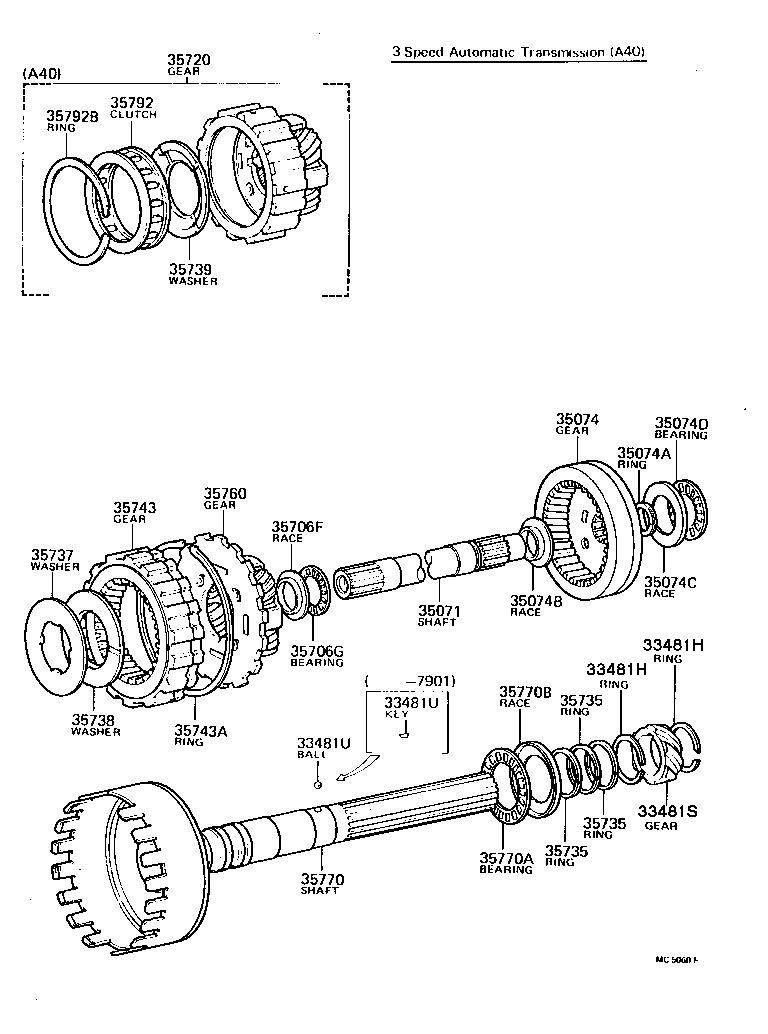

Click highlighted areas on diagram

diagram 33481H 33481H 33481S 33481U 33481U 35071 35074 35074A 35074B 35074C 35074D 35706F 35706G 35720 35735 35735 35735 35737 35738 35739 35743 35743A 35760 35770 35770A 35770B 35792 35792B
Part # Description Qty Price
33481H - RING, SHAFT SNAP (FOR ATM SPEEDMETER DRIVE GEAR)
90520-28009

MS83,85,95..ATM

 2
33481H - RING, SHAFT SNAP (FOR ATM SPEEDMETER DRIVE GEAR)
90520-28009

MS83,85,95..ATM

 2
33481S - GEAR, SPEEDOMETER DRIVE (ATM)
33481-20030

MS83,85,95..ATM

N=6

 1
33481-26010

MS83,85,95..ATM

N=6,MARK 6X18-20,N=6

 1
33481U - BALL (FOR SPEEDOMETER DRIVE GEAR)
90360-06004

MS83,85,95..ATM

 1
90280-03005

MS83,85,95..ATM

 1
33481U - BALL (FOR SPEEDOMETER DRIVE GEAR)
90360-06004

MS83,85,95..ATM

 1
90280-03005

MS83,85,95..ATM

 1
35071 - SHAFT SUB-ASSY, PLANETARY INTERMEDIATE
35708-22011

MS83,85,95..ATM

 1
35071-40010

MS83,85,95..ATM

 1
35074 - GEAR SUB-ASSY, REAR PLANETARY RING
35074-22010

MS83,85,95..ATM

 1
35074A - RING, SET (FOR REAR PLANETARY RING GEAR)
90522-20037

MS83,85,95..ATM

 1
35074B - RACE, THRUST BEARING (FOR REAR PLANETARY RING GEAR FRON
35789-22050

MS83,85,95..ATM

 1
35074C - RACE, THRUST BEARING (FOR REAR PLANETARY RING GEAR REAR
35789-22020

MS83,85,95..ATM

 1
35074D - BEARING, THRUST (FOR REAR PLANETARY RING GEAR REAR)
90374-28014

MS83,85,95..ATM

 1
35706F - RACE, THRUST BEARING (FOR SUN GEAR REAR)
35789-22010

MS83,85,95..ATM

 1
35706G - BEARING, THRUST (FOR SUN GEAR REAR)
90374-23012

MS83,85,95..ATM

 1
35720 - GEAR ASSY, FRONT PLANETARY
35720-40020

MS83,85,95..ATM

 1
35720-22030

MS83,85,95..ATM

 1
35735 - RING, PLANETARY OUTPUT SNAP
35735-30010

MS83,85,95..ATM

 2
35735-22010

MS83,85,95..ATM

 3
35735 - RING, PLANETARY OUTPUT SNAP
35735-30010

MS83,85,95..ATM

 2
35735-22010

MS83,85,95..ATM

 3
35735 - RING, PLANETARY OUTPUT SNAP
35735-30010

MS83,85,95..ATM

 2
35735-22010

MS83,85,95..ATM

 3
35737 - WASHER, PLANETARY CARRIER THRUST
35737-22010

MS83,85,95..ATM

 1
35737-30010

MS83,85,95..ATM

 1
35738 - WASHER, PLANETARY CARRIER THRUST, NO.2
35738-22010

MS83,85,95..ATM

 1
35739 - WASHER, PLANETARY CARRIER THRUST, NO.3
35739-22011

MS83,85,95..ATM

 1
35743 - GEAR, FRONT PLANETARY RING
35743-22010

MS83,85,95..ATM

 1
35743A - RING, SHAFT SNAP (FOR FRONT PLANETARY RING GEAR)
90520-99121

MS83,85,95..ATM

 1
35760 - GEAR ASSY, REAR PLANETARY
35760-22020

MS83,85,95..ATM

 1
35770 - SHAFT ASSY, OUTPUT
35770-22011

MS83,85,95..ATM

 1
35770-22010

MS83,85,95..ATM

 1
35770A - BEARING, THRUST (FOR OUTPUT SHAFT)
90374-38013

MS83,85,95..ATM

 1
35770B - RACE, THRUST BEARING (FOR OUTPUT SHAFT)
35789-22040

MS83,85,95..ATM

 1
35792 - CLUTCH, 1 WAY, NO.2
35792-22030

MS83,85,95..ATM

 1
35792B - RING, HOLE SNAP (FOR 1 WAY CLUTCH NO.2)
90521-79148

MS83,85,95..ATM

 1
