MS83L-YD (1975)

Toyota Crown

Production Jan 1975 - Aug 1979
Engine 4M
Transmission 3H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7501-7908)MS83,88

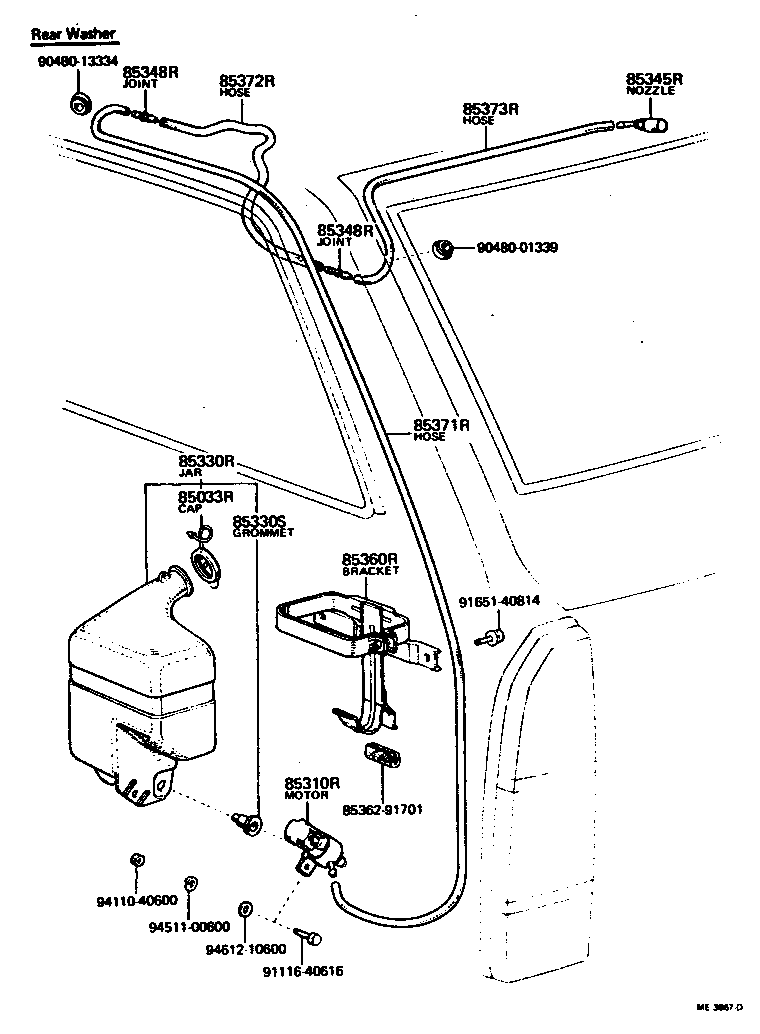

Click highlighted areas on diagram

diagram 85033R 85310R 85330R 85330S 85345R 85348R 85348R 85360R 8536291701 85371R 85372R 85373R 9048001339 9048013334 9111640616 9165140814 9411040600 9451100600 9461210600
Part # Description Qty Price
85033R - CAP ASSY, REAR WASHER
85033-36120

MS83,88

 1
85310R - MOTOR ASSY, REAR WASHER
85310-23010

MS83,88

 1
85310-20100

MS83,88

 1
85330R - JAR ASSY, REAR WASHER
85330-23011

MS83,88

 1
85330-23010

MS83,88

 1
85330S - BUSH, REAR WASHER JAR
90099-32057

MS83,88

 1
90099-32089

MS83,88

 1
85345R - NOZZLE, REAR WASHER
85035-31010

MS83,88

 1
85348R - JOINT, REAR WASHER HOSE, NO.1
85349-12011

MS83,88

 2
85348R - JOINT, REAR WASHER HOSE, NO.1
85349-12011

MS83,88

 2
85360R - BRACKET ASSY, REAR WASHER
85360-31010

MS83,88

 1
85371R - HOSE, REAR WASHER (FROM MOTOR TO JOINT)
90446-06253

MS83,88

*H,L=1400

 1
85372R - HOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE)
90099-33031

MS83,88

*H,L=670

 1
85373R - HOSE, REAR WASHER (FROM JOINT TO NOZZLE)
90446-06320

MS83,88

*H,L=620

 1
Common parts
85362-91701
90480-01339
90480-13334
91116-40616
91651-40814
94110-40600
94511-00600
94612-10600
