MS83L-YD (1975)

Toyota Crown

Production Jan 1975 - Aug 1979
Engine 4M
Transmission 3H MTM
Displacement 2500cc
Power 168 HP (125 kW)

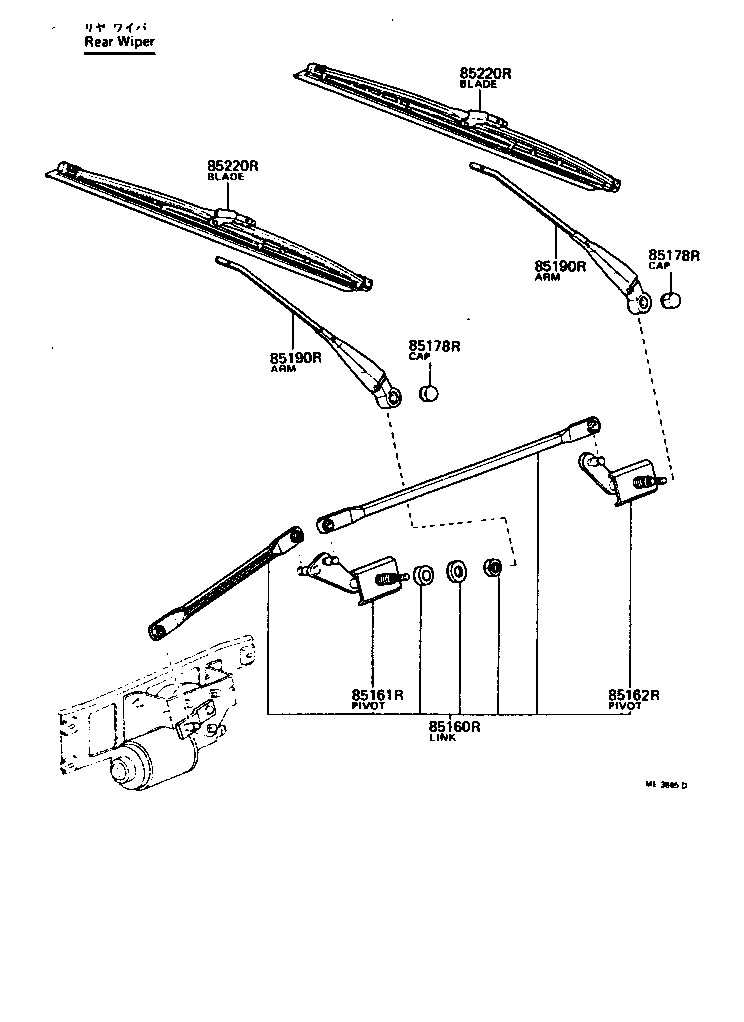

(7501-7908)MS83,88

Click highlighted areas on diagram

diagram 85160R 85161R 85162R 85178R 85178R 85190R 85190R 85220R 85220R
Part # Description Qty Price
85160R - LINK ASSY, REAR WIPER
85160-31010

MS83,88

 1
85161R - PIVOT, REAR WIPER LINK, NO.1
85161-31010

MS83,88

 1
85162R - PIVOT, REAR WIPER LINK, NO.2
85162-31010

MS83,88

 1
85178R - NUT (FOR REAR WIPER ARM SETTING)
90176-06001

MS83,88

 2
85178R - NUT (FOR REAR WIPER ARM SETTING)
90176-06001

MS83,88

 2
85190R - ARM ASSY, REAR WIPER
85190-31010

MS83,88

 2
85190R - ARM ASSY, REAR WIPER
85190-31010

MS83,88

 2
85220R - BLADE ASSY, REAR WIPER
85220-31010

MS83,88

 2
85220R - BLADE ASSY, REAR WIPER
85220-31010

MS83,88

 2

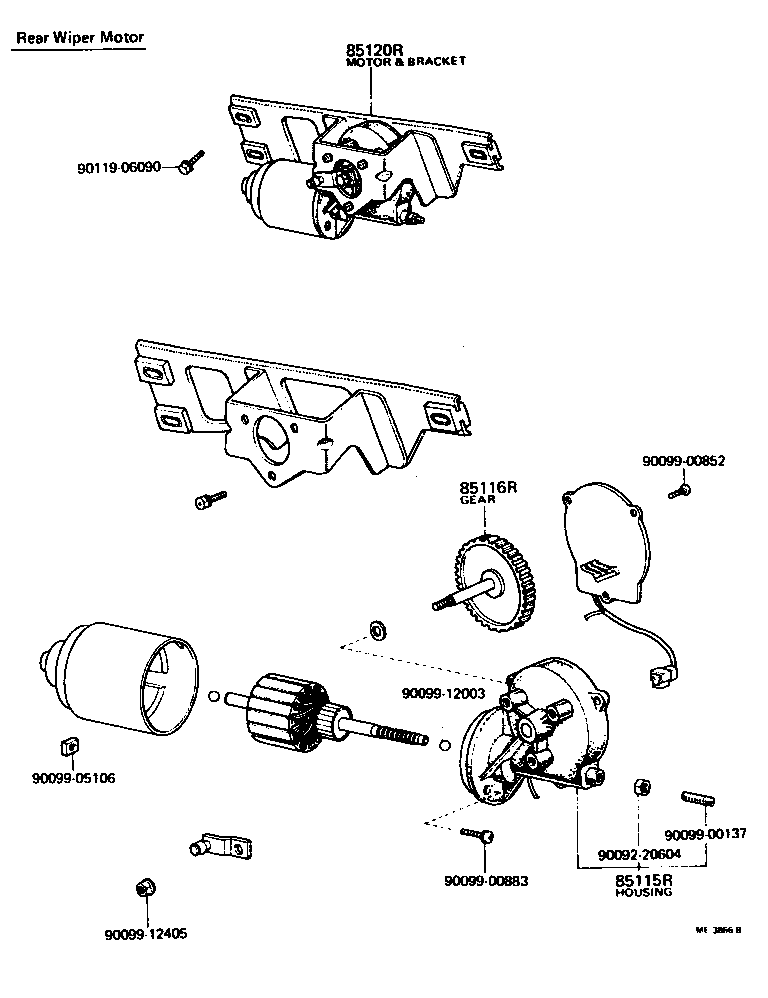

(7501-7908)MS83,88

Click highlighted areas on diagram

diagram 85115R 85116R 85120R 9009220604 9009900137 9009900852 9009900883 9009905106 9009912003 9009912405 9011906090
Part # Description Qty Price
85115R - HOUSING, REAR WIPER MOTOR GEAR
85115-31010

MS83,88

 1
85116R - GEAR, REAR WIPER MOTOR
85116-95101

MS83,88

 1
85120R - MOTOR AND BRACKET ASSY, REAR WIPER
85120-31010

MS83,88

 1
Common parts
90092-20604
90099-00137
90099-00852
90099-00883
90099-05106
90099-12003
90099-12405
90119-06090
