MS83L-YD (1975)

Toyota Crown

Production Jan 1975 - Aug 1979
Engine 4M
Transmission 3H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7501-7908)MS83,88

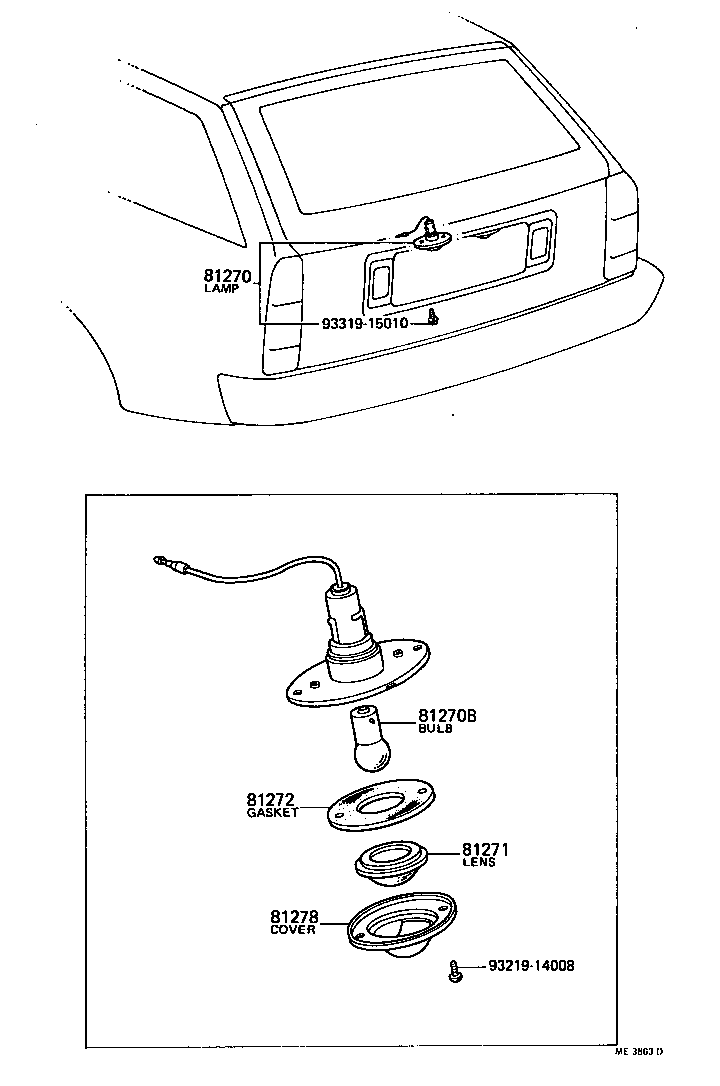

Click highlighted areas on diagram

diagram 81270 81270B 81271 81272 81278 9321914008 9331915010
Part # Description Qty Price
81270 - LAMP ASSY, LICENSE PLATE
81270-29145

MS83,88

 2
81270B - BULB (FOR LICENSE PLATE LAMP)
99132-11050

MS8#,95,RS80

12V 5W,12V 5W

 2
99132-11050

MS8#,RS80

12V 5W,12V 5W

 2
81271 - LENS, LICENSE PLATE LAMP
81271-23040

MS83,88

 2
81272 - GASKET, LICENSE PLATE LAMP LENS
81272-23040

MS83,88

 2
81278 - COVER, LICENSE PLATE LAMP
81278-23040

MS83,88

 2
Common parts
93219-14008
93319-15010
