MS83L-YD (1975)

Toyota Crown

Production Jan 1975 - Aug 1979
Engine 4M
Transmission 3H MTM
Displacement 2500cc
Power 168 HP (125 kW)

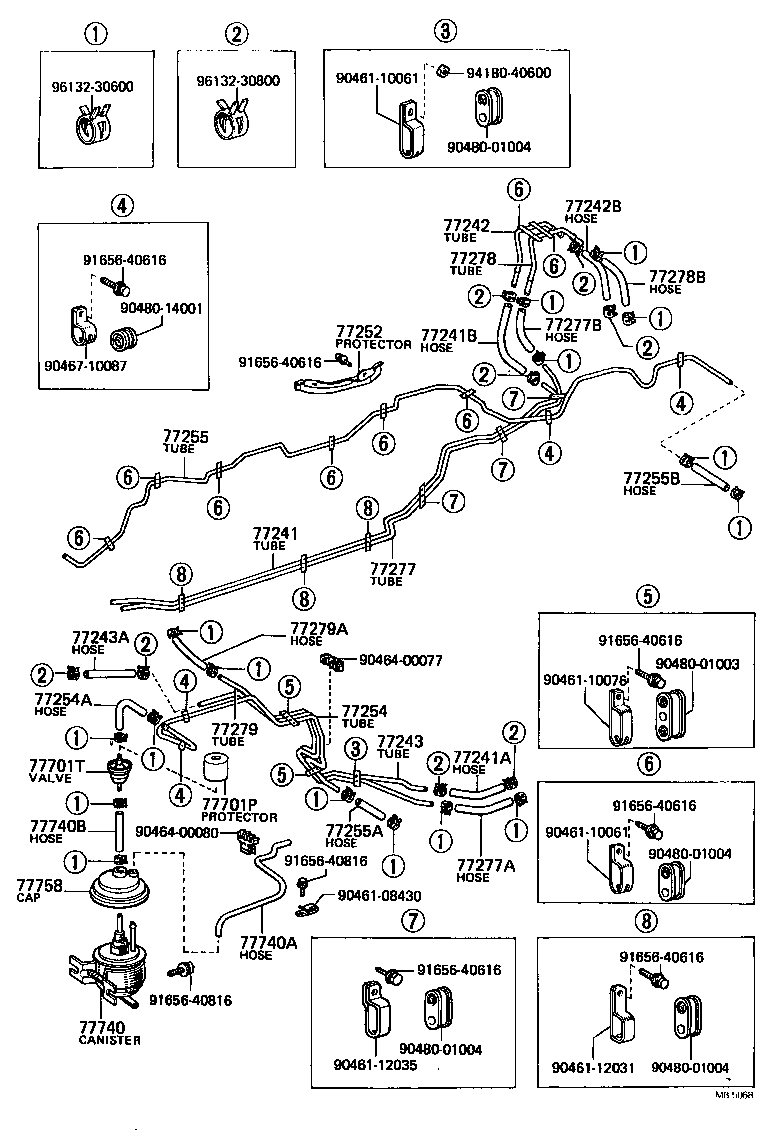

(7501-7510)WG

Click highlighted areas on diagram

diagram 77241 77241A 77241B 77242 77242B 77243 77243A 77252 77254 77254A 77255 77255A 77255B 77277 77277A 77277B 77278 77278B 77279 77279A 77701P 77701T 77740 77740A 77740B 77758 9046108430 9046110061 9046110061 9046110076 9046112031 9046112035 9046400077 9046400080 9046710087 9048001003 9048001004 9048001004 9048001004 9048001004 9048014001 9165640616 9165640616 9165640616 9165640616 9165640616 9165640616 9165640816 9165640816 9418040600 9613230600 9613230800
Part # Description Qty Price
77241 - TUBE, FUEL MAIN, NO.1
77253-30070

MS83,85,95,RS80

 1
77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1)
95335-08017

MS8#,95,RS80

L=170

 1
77241B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1)
77259-30060

MS83,85,95,RS80

 1
95332-08030

MS83,85,95,RS80

*H,L=300,ID=7.6

 1
95331-08026

MS83,85,95,RS80

*H,L=260

 1
95332-08030

MS83

*H,L=260,ID=7.6

 1
77242 - TUBE, FUEL MAIN, NO.2
77254-31030

MS83

 1
77242B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.2)
95331-08026

MS83,85,95,RS80

*H,L=260

 1
95332-08024

MS83

*H,L=240,ID=7.6

 1
95332-08026

MS83,85,95,RS80

*H,L=260,ID=7.6

 1
77243 - TUBE, FUEL MAIN, NO.3
77252-30070

MS8#,95,RS80

 1
77252-30071

MS8#,95,RS80

 1
77252-30072

MS8#,95,RS80

 1
77243A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.3)
95335-08017

MS8#,95

L=170

 1
77252 - PROTECTOR, FUEL TUBE
77267-30020

MS83,85,95,RS80

FOR MAIN &RETURN TUBE

 1
77266-30020

MS8#,95,RS80

FOR BRAKE TUBE

 1
77254 - TUBE, FUEL EMISSION, NO.1
77261-30020

MS83,85

FOR AUSTRALIA

 1
77261-30010

MS83,85

FOR AUSTRALIA

 1
77254A - HOSE, FUEL, NO.1 (FOR EMISSION TUBE, NO.1)
95331-06014

MS83,85

*H,L=140,FOR AUSTRALIA

 1
77255 - TUBE, FUEL EMISSION, NO.2
77262-31050

MS83

FOR AUSTRALIA

 1
77262-31030

MS83

FOR AUSTRALIA

 1
77255A - HOSE, FUEL, NO.1 (FOR EMISSION TUBE, NO.2)
95331-06013

MS83,85

*H,L=130,FOR AUSTRALIA

 1
77255B - HOSE, FUEL, NO.2 (FOR EMISSION TUBE, NO.2)
95331-06013

MS83

*H,L=130,FOR AUSTRALIA

 1
77277 - TUBE, FUEL RETURN, NO.1
77257-30050

MS83,85,95

 1
77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1)
95331-06019

MS8#,95

*H,L=190

 1
95332-06019

MS8#,95

*H,L=190

 1
77277B - HOSE, FUEL, NO.2(FOR RETURN TUBE, NO.1)
95332-06026

MS83,85,95

*H,L=260

 1
95332-06022

MS83

*H,L=220

 1
95331-06022

MS83,85,95

*H,L=220

 1
77279-30030

MS83,85,95

 1
77278 - TUBE, FUEL RETURN, NO.2
77258-31010

MS83

 1
77278B - HOSE, FUEL, NO.2 (FOR RETURN TUBE, NO.2)
95332-06022

MS83

*H,L=220

 1
95332-06026

MS83

*H,L=260

 1
95331-06026

MS83

*H,L=260

 1
77279 - TUBE, FUEL RETURN, NO.3
77256-30020

MS8#,95

 1
77256-30021

MS8#,95

 1
77279A - HOSE, FUEL, NO.1 (FOR RETURN TUBE, NO.3)
95331-06026

MS8#,95

*H,L=260

 1
95332-06026

MS8#,95

*H,L=260

 1
77701P - PROTECTOR, CHECK VALVE
90917-10031

MS83,85

FOR AUSTRALIA

 1
77701T - VALVE, CHECK (FOR MAIN FUEL TANK)
90917-10012

MS83,88..EUR,GEN

 1
90917-10020

MS83,85

FOR AUSTRALIA

 1
77740 - CANISTER ASSY, CHARCOAL
77740-30040

MS83,85

FOR AUSTRALIA

 1
77740-30030

MS83,85

FOR AUSTRALIA

 1
77740A - HOSE, FUEL, NO.1(FOR CHARCOAL CANISTER)
90445-07338

MS83,85

FOR AUSTRALIA,L=950

 1
77740B - HOSE, FUEL, NO.2(FOR CHARCOAL CANISTER)
95331-06017

MS83,85

*H,L=170,FOR AUSTRALIA

 1
95331-06019

MS83,85

*H,L=190,FOR AUSTRALIA

 1
95331-06007

MS83,85

*H,L=70,FOR AUSTRALIA

 1
77758 - CAP, CHARCOAL CANISTER
77758-30011

MS83,85

FOR AUSTRALIA

 1
77758-30020

MS83,85

FOR AUSTRALIA

 1
Common parts
90461-08430
90461-10061
90461-10076
90461-12031
90461-12035
90464-00077
90464-00080
90467-10087
90480-01003
90480-01004
90480-14001
91656-40616
91656-40816
94180-40600
96132-30600
96132-30800

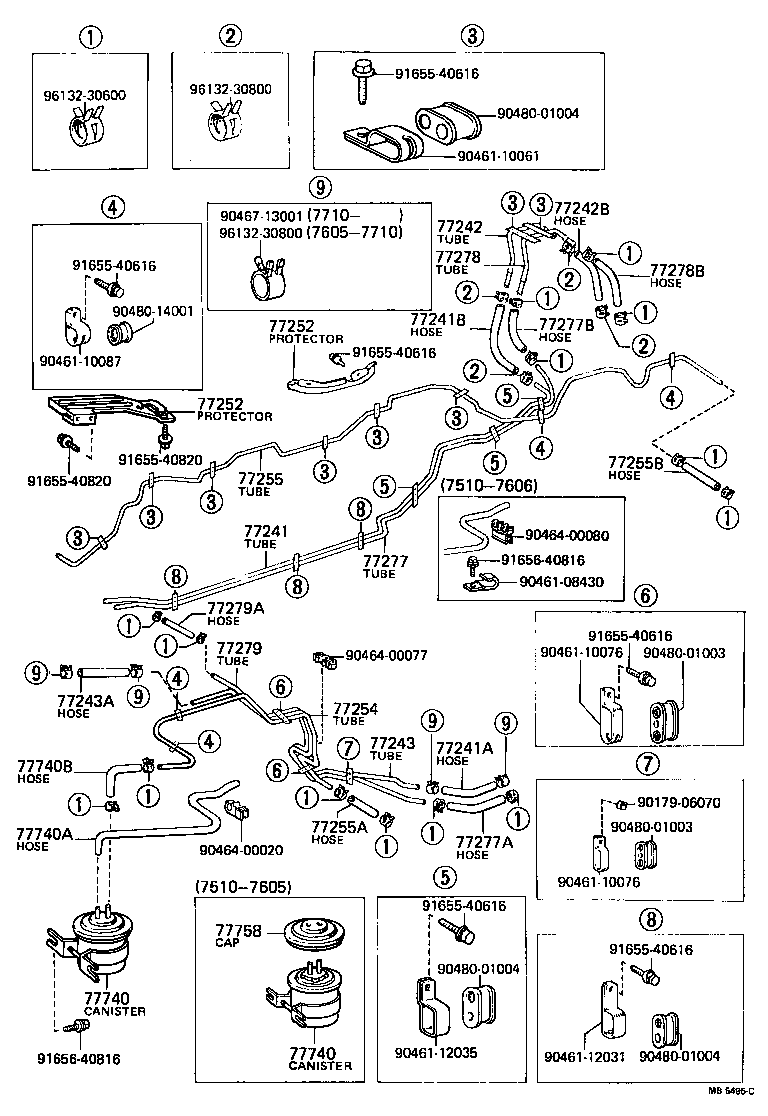

(7510-7908)WG

Click highlighted areas on diagram

diagram 77241 77241A 77241B 77242 77242B 77243 77243A 77252 77252 77254 77255 77255A 77255B 77277 77277A 77277B 77278 77278B 77279 77279A 77740 77740 77740A 77740B 77758 9017906070 9046108430 9046110061 9046110076 9046110076 9046110087 9046112031 9046112035 9046400020 9046400077 9046400080 9046713001 9048001003 9048001003 9048001004 9048001004 9048001004 9048014001 9165540616 9165540616 9165540616 9165540616 9165540616 9165540616 9165540820 9165540820 9165640816 9165640816 9613230600 9613230800 9613230800
Part # Description Qty Price
77241 - TUBE, FUEL MAIN, NO.1
77253-30070

MS83,85,95,RS80

 1
77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1)
95335-08017

MS8#,95,RS80

L=170

 1
77241B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1)
77259-30060

MS83,85,95,RS80

 1
95332-08030

MS83,85,95,RS80

*H,L=300,ID=7.6

 1
95331-08026

MS83,85,95,RS80

*H,L=260

 1
95332-08030

MS83

*H,L=260,ID=7.6

 1
77242 - TUBE, FUEL MAIN, NO.2
77254-31030

MS83

 1
77242B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.2)
95331-08026

MS83,85,95,RS80

*H,L=260

 1
95332-08024

MS83

*H,L=240,ID=7.6

 1
95332-08026

MS83,85,95,RS80

*H,L=260,ID=7.6

 1
77243 - TUBE, FUEL MAIN, NO.3
77252-30070

MS8#,95,RS80

 1
77252-30071

MS8#,95,RS80

 1
77252-30072

MS8#,95,RS80

 1
77243A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.3)
95335-08017

MS8#,95

L=170

 1
77252 - PROTECTOR, FUEL TUBE
77267-30020

MS83,85,95,RS80

FOR MAIN &RETURN TUBE

 1
77266-30020

MS8#,95,RS80

FOR BRAKE TUBE

 1
77252 - PROTECTOR, FUEL TUBE
77267-30020

MS83,85,95,RS80

FOR MAIN &RETURN TUBE

 1
77266-30020

MS8#,95,RS80

FOR BRAKE TUBE

 1
77254 - TUBE, FUEL EMISSION, NO.1
77261-30020

MS83,85

FOR AUSTRALIA

 1
77261-30010

MS83,85

FOR AUSTRALIA

 1
77255 - TUBE, FUEL EMISSION, NO.2
77262-31050

MS83

FOR AUSTRALIA

 1
77262-31030

MS83

FOR AUSTRALIA

 1
77255A - HOSE, FUEL, NO.1 (FOR EMISSION TUBE, NO.2)
95331-06013

MS83,85

*H,L=130,FOR AUSTRALIA

 1
77255B - HOSE, FUEL, NO.2 (FOR EMISSION TUBE, NO.2)
95331-06013

MS83

*H,L=130,FOR AUSTRALIA

 1
77277 - TUBE, FUEL RETURN, NO.1
77257-30050

MS83,85,95

 1
77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1)
95331-06019

MS8#,95

*H,L=190

 1
95332-06019

MS8#,95

*H,L=190

 1
77277B - HOSE, FUEL, NO.2(FOR RETURN TUBE, NO.1)
95332-06026

MS83,85,95

*H,L=260

 1
95332-06022

MS83

*H,L=220

 1
95331-06022

MS83,85,95

*H,L=220

 1
77279-30030

MS83,85,95

 1
77278 - TUBE, FUEL RETURN, NO.2
77258-31010

MS83

 1
77278B - HOSE, FUEL, NO.2 (FOR RETURN TUBE, NO.2)
95332-06022

MS83

*H,L=220

 1
95332-06026

MS83

*H,L=260

 1
95331-06026

MS83

*H,L=260

 1
77279 - TUBE, FUEL RETURN, NO.3
77256-30020

MS8#,95

 1
77256-30021

MS8#,95

 1
77279A - HOSE, FUEL, NO.1 (FOR RETURN TUBE, NO.3)
95331-06026

MS8#,95

*H,L=260

 1
95332-06026

MS8#,95

*H,L=260

 1
77740 - CANISTER ASSY, CHARCOAL
77740-30040

MS83,85

FOR AUSTRALIA

 1
77740-30030

MS83,85

FOR AUSTRALIA

 1
77740 - CANISTER ASSY, CHARCOAL
77740-30040

MS83,85

FOR AUSTRALIA

 1
77740-30030

MS83,85

FOR AUSTRALIA

 1
77740A - HOSE, FUEL, NO.1(FOR CHARCOAL CANISTER)
90445-07338

MS83,85

FOR AUSTRALIA,L=950

 1
77740B - HOSE, FUEL, NO.2(FOR CHARCOAL CANISTER)
95331-06017

MS83,85

*H,L=170,FOR AUSTRALIA

 1
95331-06019

MS83,85

*H,L=190,FOR AUSTRALIA

 1
95331-06007

MS83,85

*H,L=70,FOR AUSTRALIA

 1
77758 - CAP, CHARCOAL CANISTER
77758-30011

MS83,85

FOR AUSTRALIA

 1
77758-30020

MS83,85

FOR AUSTRALIA

 1
Common parts
90179-06070
90461-08430
90461-10061
90461-10076
90461-10087
90461-12031
90461-12035
90464-00020
90464-00077
90464-00080
90467-13001
90480-01003
90480-01004
90480-14001
91655-40616
91655-40820
91656-40816
96132-30600
96132-30800

(7410-7908)

Click highlighted areas on diagram

diagram 77308 77308 77308 77308 77308 77308A 77308B 77308C 77308C 77308E 77308G 77308G 77308G 77308G 77308G 77308G 77308G 77308G 77308J 77308J 77308R 77308R 77308R 77308R 77308R 77308R 9054105018 9054105018 9054105018 9054105018 9165140612 9166640618 9166640618 9166640618 9338515015 9338515016
Part # Description Qty Price
77308 - COVER SUB-ASSY, FUEL INLET BOX
77350-91701

MS83,88

 1
77308 - COVER SUB-ASSY, FUEL INLET BOX
77350-91701

MS83,88

 1
77308 - COVER SUB-ASSY, FUEL INLET BOX
77350-91701

MS83,88

 1
77308 - COVER SUB-ASSY, FUEL INLET BOX
77350-91701

MS83,88

 1
77308 - COVER SUB-ASSY, FUEL INLET BOX
77350-91701

MS83,88

 1
77308A - CUSHION(FOR FUEL INLET BOX COVER)
90541-05001

MS83,88

 1
77308E - PLATE, FUEL INLET BOX
61726-91701

MS83,88

 1
Common parts
90541-05018
91651-40612
91666-40618
93385-15015
93385-15016

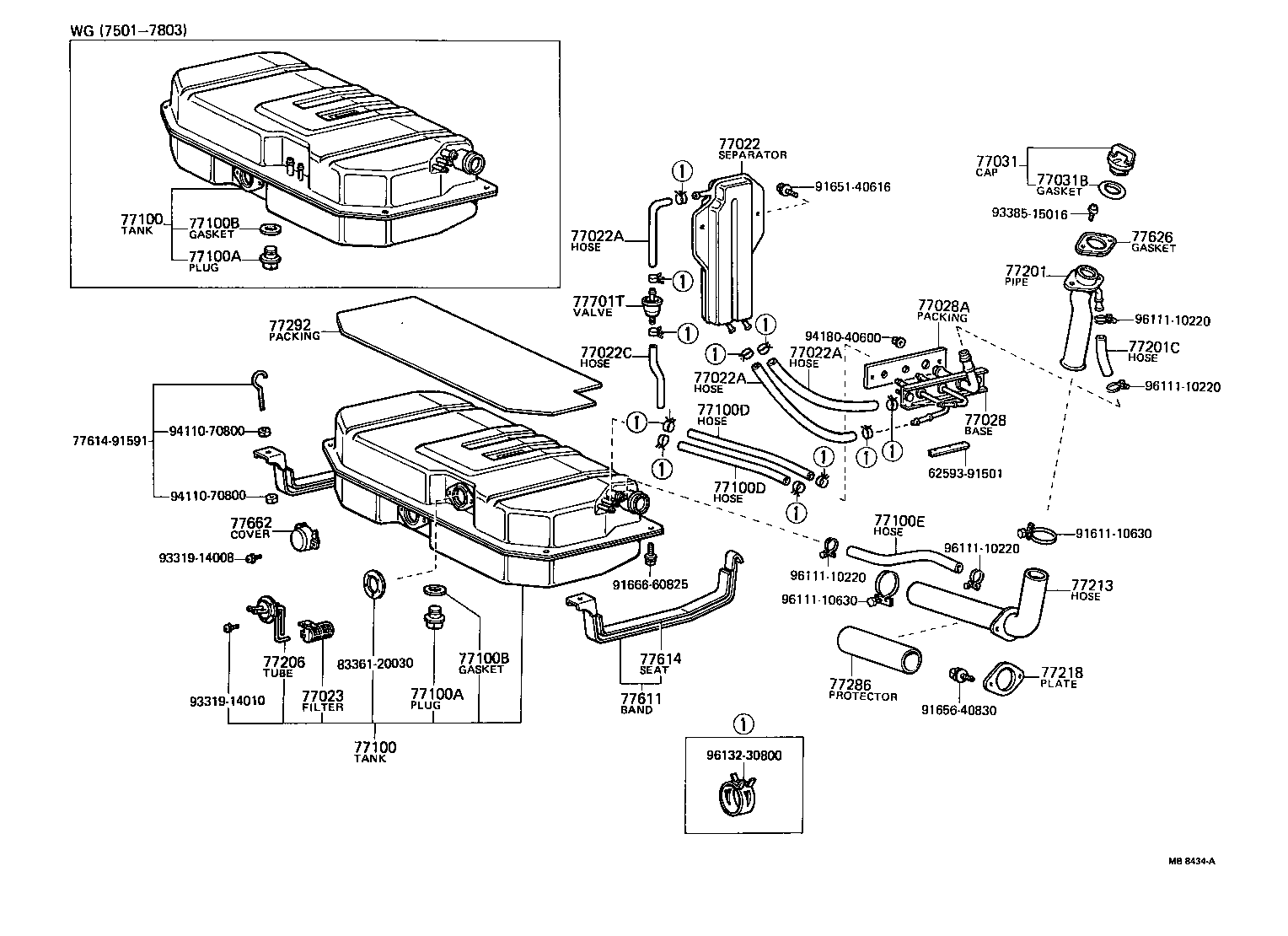

(7501-7908)WG

Click highlighted areas on diagram

diagram 6259391501 77022 77022A 77022A 77022A 77022C 77023 77028 77028A 77031 77031B 77100 77100 77100A 77100A 77100B 77100B 77100D 77100D 77100E 77201 77201C 77206 77213 77218 77286 77292 77611 77614 7761491591 77626 77662 77701T 8336120030 9161110630 9165140616 9165640830 9166660825 9331914008 9331914010 9338515016 9411070800 9411070800 9418040600 9611110220 9611110220 9611110220 9611110220 9611110630 9613230800
Part # Description Qty Price
77022 - SEPARATOR SUB-ASSY, FUEL EVAPORATIVE
77219-91506

MS83,88

 1
77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)
95331-08024

MS83

*H,L=240

 2
95331-08040

MS83

*H,L=400,FOR AUSTRALIA

 1
95331-08011

MS83,88..EUR,GEN

*H,L=110

 1
95332-08024

MS83

*H,L=240,ID=7.6

 2
77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)
95331-08024

MS83

*H,L=240

 2
95331-08040

MS83

*H,L=400,FOR AUSTRALIA

 1
95331-08011

MS83,88..EUR,GEN

*H,L=110

 1
95332-08024

MS83

*H,L=240,ID=7.6

 2
77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)
95331-08024

MS83

*H,L=240

 2
95331-08040

MS83

*H,L=400,FOR AUSTRALIA

 1
95331-08011

MS83,88..EUR,GEN

*H,L=110

 1
95332-08024

MS83

*H,L=240,ID=7.6

 2
77022C - HOSE OR TUBE(FOR FUEL EVAPORATIVE SEPARATOR)
95331-08034

MS83,88..EUR,GEN

L=340

 1
95332-08034

MS83,88..EUR,GEN

L=340

 1
77023 - FILTER SUB-ASSY, FUEL SUCTION TUBE
77023-22040

MS83,88

 1
77028 - BASE SUB-ASSY, BREATHER JOINT, NO.1
77012-91701

MS83

 1
77028A - PACKING, NO.1 (FOR BREATHER JOINT, NO.1)
77293-91701

MS83

 1
77031 - CAP ASSY, FUEL TANK
77310-30050

MS8#,95,RS80

 1
77310-14070

MS8#,95,RS80

 1
77031B - GASKET (FOR FUEL TANK CAP)
77316-12040

MS8#,95,RS80

 1
77316-12050

MS8#,95,RS80

 1
77316-12060

MS8#,95,RS80

 1
77100 - TANK ASSY, FUEL
77001-91598

MS83

 1
77001-91701

MS83

 1
77100 - TANK ASSY, FUEL
77001-91598

MS83

 1
77001-91701

MS83

 1
77100A - PLUG(FOR FUEL TANK)
90105-12018

MS8#,95,RS80

 1
77100A - PLUG(FOR FUEL TANK)
90105-12018

MS8#,95,RS80

 1
77100B - GASKET(FOR FUEL TANK)
90430-12038

MS83,88

 1
90430-12245

MS8#,95,RS80

 1
77100B - GASKET(FOR FUEL TANK)
90430-12038

MS83,88

 1
90430-12245

MS8#,95,RS80

 1
77100D - HOSE, FUEL, NO.1(FOR FUEL TANK)
95331-08042

MS83

*H,L=420

 2
95332-08042

MS83

*H,L=420,ID=7.6

 2
77100D - HOSE, FUEL, NO.1(FOR FUEL TANK)
95331-08042

MS83

*H,L=420

 2
95332-08042

MS83

*H,L=420,ID=7.6

 2
77100E - HOSE, FUEL, NO.2(FOR FUEL TANK)
90445-21881

MS83

L=450

 1
77201 - PIPE SUB-ASSY, FUEL TANK INLET
77201-91701

MS83

 1
77201C - HOSE, FUEL, NO.3(FOR FUEL TANK INLET PIPE)
90445-22003

MS83

L=120

 1
77206 - TUBE SUB-ASSY, FUEL TANK SUCTION
77203-91701

MS83

 1
77213 - HOSE, FUEL TANK SUB INLET
77213-91702

MS83

 1
77218 - PLATE, FUEL INLET PIPE SET
77215-91501

MS83,88

 1
77215-91701

MS83,88

 1
77286 - PROTECTOR, FUEL TANK INLET PIPE
77286-91501

MS83,88

 1
77292 - PACKING, FUEL TANK, CENTER
77247-91503

MS83

 1
77611 - BAND, FUEL TANK
77601-91703

MS83

 2
77601-91701

MS83

 2
77601-91702

MS83

 2
77614 - SEAT, FUEL TANK BAND
77242-91505

MS83

 2
77626 - GASKET, FUEL INLET PIPE
77262-91701

MS83,88

 1
77626-91503

MS83,88

 1
77662 - COVER, FUEL TANK GAGE
77662-13010

MS83,88

 1
77701T - VALVE, CHECK (FOR MAIN FUEL TANK)
90917-10012

MS83,88..EUR,GEN

 1
90917-10020

MS83,85

FOR AUSTRALIA

 1
Common parts
62593-91501
77614-91591
83361-20030
91611-10630
91651-40616
91656-40830
91666-60825
93319-14008
93319-14010
93385-15016
94110-70800
94180-40600
96111-10220
96111-10630
96132-30800
