MS83L-YD (1975)

Toyota Crown

Production Jan 1975 - Aug 1979
Engine 4M
Transmission 3H MTM
Displacement 2500cc
Power 168 HP (125 kW)

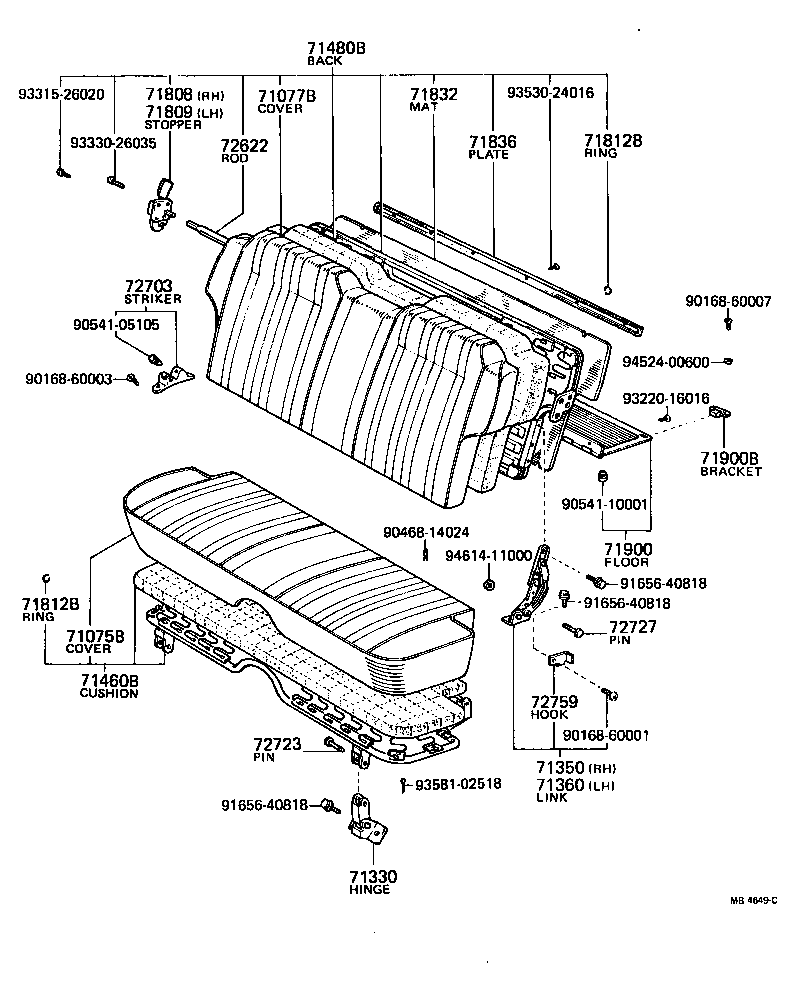

(7501-7908)MS83,88

Click highlighted areas on diagram

diagram 71075B 71077B 71330 71350 71360 71460B 71480B 71808 71809 71812B 71812B 71832 71836 71900 71900B 72622 72703 72723 72727 72759 9016860001 9016860003 9016860007 9046814024 9054105105 9054110001 9165640818 9165640818 9165640818 9322016016 9331526020 9333026035 9353024016 9358102518 9452400600 9461411000
Part # Description Qty Price
71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE)
71075-91703

MS83

FB.

 1
71075-91707

MS83..3H

PF.

 1
71075-9171104

MS83

FB.BLUE,BLUE,TRIM8#

 1
71075-9171504

MS83..3H

PF.BLUE,BLUE,TRIM8#

 1
71075-9171103

MS83

FB.GRAY,GRAY,TRIM1#

 1
71075-9171514

MS83..3H

PF.BLUE,BLUE,TRIM8#

 1
71075-9171114

MS83

FB.BLUE,BLUE,TRIM8#

 1
71075-9171503

MS83..3H

PF.GRAY,GRAY,TRIM1#

 1
71077B - COVER, REAR SEAT BACK (FOR BENCH TYPE)
71077-91707

MS83..3H

PF.

 1
71077-91703

MS83

FB.

 1
71077-9171103

MS83

FB.GRAY,GRAY,TRIM1#

 1
71077-9171503

MS83..3H

PF.GRAY,GRAY,TRIM1#

 1
71077-9171504

MS83..3H

PF.BLUE,BLUE,TRIM8#

 1
71077-9171104

MS83

FB.BLUE,BLUE,TRIM8#

 1
71077-9171114

MS83

FB.BLUE,BLUE,TRIM8#

 1
71077-9171514

MS83..3H

PF.BLUE,BLUE,TRIM8#

 1
71330 - HINGE ASSY, REAR SEAT CUSHION
72710-91503

MS83,88

 2
71350 - LINK ASSY, REAR SEAT BACK CUSHION, RH
72730-91701

MS83

 1
71360 - LINK ASSY, REAR SEAT BACK CUSHION, LH
72740-91701

MS83

 1
71460B - CUSHION ASSY, REAR SEAT (FOR BENCH TYPE)
71460-91703

MS83

FB.

 1
71460-91707

MS83..3H

PF.

 1
71460-9170904

MS83

FB.BLUE,BLUE,TRIM8#

 1
71460-9171504

MS83..3H

PF.BLUE,BLUE,TRIM8#

 1
71460-9171503

MS83..3H

PF.GRAY,GRAY,TRIM1#

 1
71460-9170903

MS83

FB.GRAY,GRAY,TRIM1#

 1
71460-9171514

MS83..3H

PF.BLUE,BLUE,TRIM8#

 1
71460-9170914

MS83

FB.BLUE,BLUE,TRIM8#

 1
71480B - BACK ASSY, REAR SEAT (FOR BENCH TYPE)
71480-91711

MS83..3H

PF.

 1
71480-91703

MS83

FB.

 1
71480-9171304

MS83

FB.BLUE,BLUE,TRIM8#

 1
71480-9172204

MS83..3H

PF.BLUE,BLUE,TRIM8#

 1
71480-9172203

MS83..3H

PF.GRAY,GRAY,TRIM1#

 1
71480-9171303

MS83

FB.GRAY,GRAY,TRIM1#

 1
71480-9172214

MS83..3H

PF.BLUE,BLUE,TRIM8#

 1
71480-9171314

MS83

FB.BLUE,BLUE,TRIM8#

 1
71808 - STOPPER SUB-ASSY, REAR SEAT BACK, RH
71808-91503

MS83,88

 1
71809 - STOPPER SUB-ASSY, REAR SEAT BACK, LH
71809-91503

MS83,88

 1
71812B - CLIP(FOR REAR SEAT CUSHION COVER)
90468-18071

MS8#,95,RS80

 1
71812B - CLIP(FOR REAR SEAT CUSHION COVER)
90468-18071

MS8#,95,RS80

 1
71832 - CARPET OR MAT, REAR SEAT BACK
71881-9170106

MS83

BROWN,BROWN,TRIM4#

 1
71881-9170603

MS83

GRAY,GRAY,TRIM1#

 1
71881-9170604

MS83

BLUE,BLUE,TRIM8#

 1
71836 - PLATE, REAR SEAT BACK CARPET OR MAT SUPPORT, UPPER
71833-91503

MS83,88

 1
71837-91702

MS83,88

 1
71900 - FLOOR ASSY, REAR SEAT
71409-91701

MS83

 1
71409-9170304

MS83

BLUE,BLUE,TRIM8#

 1
71409-9170303

MS83

GRAY,GRAY,TRIM1#

 1
71900B - BRACKET (FOR REAR SEAT FLOOR)
71957-91501

MS83,88

 2
72622 - ROD, REAR SEAT BACK STOPPER CONNECTING
72622-91501

MS83,88

 1
72703 - STRIKER SUB-ASSY, REAR SEAT BACK STOPPER
72703-91503

MS83,88

 2
72723 - PIN, REAR SEAT CUSHION, NO.2
90240-10119

MS83,88

 2
72727 - PIN, REAR SEAT CUSHION, NO.3
72727-91503

MS83,88

 1
72759 - HOOK, REAR SEAT BACK LINK
72759-91701

MS83,88

 2
Common parts
90168-60001
90168-60003
90168-60007
90468-14024
90541-05105
90541-10001
91656-40818
93220-16016
93315-26020
93330-26035
93530-24016
93581-02518
94524-00600
94614-11000

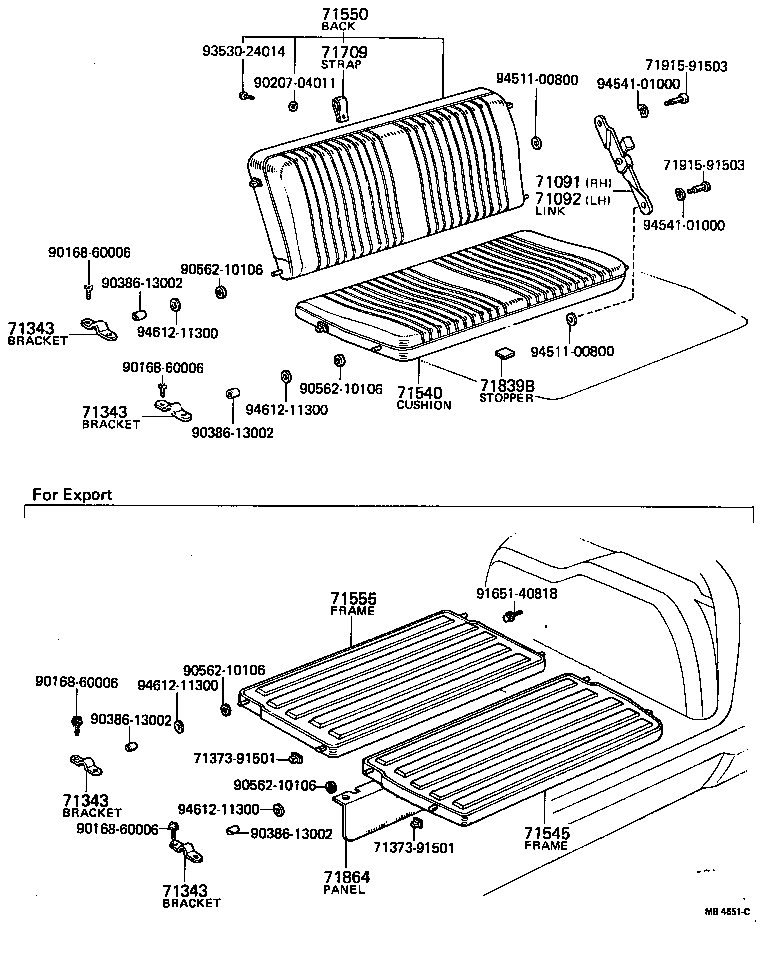

(7501-7908)WG

Click highlighted areas on diagram

diagram 71091 71092 71343 71343 71343 71343 7137391501 7137391501 71540 71545 71550 71555 71709 71839B 71864 7191591503 7191591503 9016860006 9016860006 9016860006 9016860006 9020704011 9038613002 9038613002 9038613002 9038613002 9056210106 9056210106 9056210106 9056210106 9165140818 9353024014 9451100800 9451100800 9454101000 9454101000 9461211300 9461211300 9461211300 9461211300
Part # Description Qty Price
71091 - LINK SUB-ASSY, 3RD SEAT, RH
71501-91701

MS83..EUR,GEN

 1
71501-91701

MS83

 1
71092 - LINK SUB-ASSY, 3RD SEAT, LH
71502-91701

MS83..EUR,GEN

 1
71502-91701

MS83

 1
71343 - BRACKET, 3RD SEAT BACK
71343-91503

MS83..EUR,GEN

FOR 3RD SEAT

 4
71343-91503

MS83

FOR DECK COMPARTMENT

 6
71343 - BRACKET, 3RD SEAT BACK
71343-91503

MS83..EUR,GEN

FOR 3RD SEAT

 4
71343-91503

MS83

FOR DECK COMPARTMENT

 6
71343 - BRACKET, 3RD SEAT BACK
71343-91503

MS83..EUR,GEN

FOR 3RD SEAT

 4
71343-91503

MS83

FOR DECK COMPARTMENT

 6
71343 - BRACKET, 3RD SEAT BACK
71343-91503

MS83..EUR,GEN

FOR 3RD SEAT

 4
71343-91503

MS83

FOR DECK COMPARTMENT

 6
71540 - CUSHION ASSY, 3RD SEAT
71510-9170304

MS83..EUR,GEN

BLUE,BLUE

 1
71510-9170314

MS83

BLUE,BLUE

 1
71510-9170206

MS83..GEN

BROWN,BROWN

 1
71510-9170303

MS83..EUR,GEN

GRAY,GRAY

 1
71510-91701

MS83

 1
71545 - FRAME, 3RD SEAT CUSHION
71170-91705

MS83

 1
71170-91702

MS83

 1
71550 - BACK SUB-ASSY, SIDE SEAT
71520-9170106

MS83..GEN

BROWN,BROWN

 1
71520-9170203

MS83..EUR,GEN

GRAY,GRAY

 1
71520-9170214

MS83

BLUE,BLUE

 1
71520-9170204

MS83..EUR,GEN

BLUE,BLUE

 1
71555 - FRAME, 3RD SEAT BACK
71180-91702

MS83

 1
71709 - STRAP SUB-ASSY, 3RD SEAT BACK
71798-91504

MS83..EUR,GEN

 1
71798-91504

MS83

 1
71839B - STOPPER, 3RD SEAT CUSHION RUBBER
71369-91503

MS83..EUR,GEN

 2
71864 - PANEL, DECK COMPARTMENT BOX PARTITION
71864-91701

MS83

 1
Common parts
71373-91501
71915-91503
90168-60006
90207-04011
90386-13002
90562-10106
91651-40818
93530-24014
94511-00800
94541-01000
94612-11300
