MS83L-YD (1975)
Toyota Crown
Production
Jan 1975
-
Aug 1979
Engine
4M
Transmission
3H MTM
Displacement
2500cc
Power
168 HP (125 kW)
(7501-7908)MS83,88

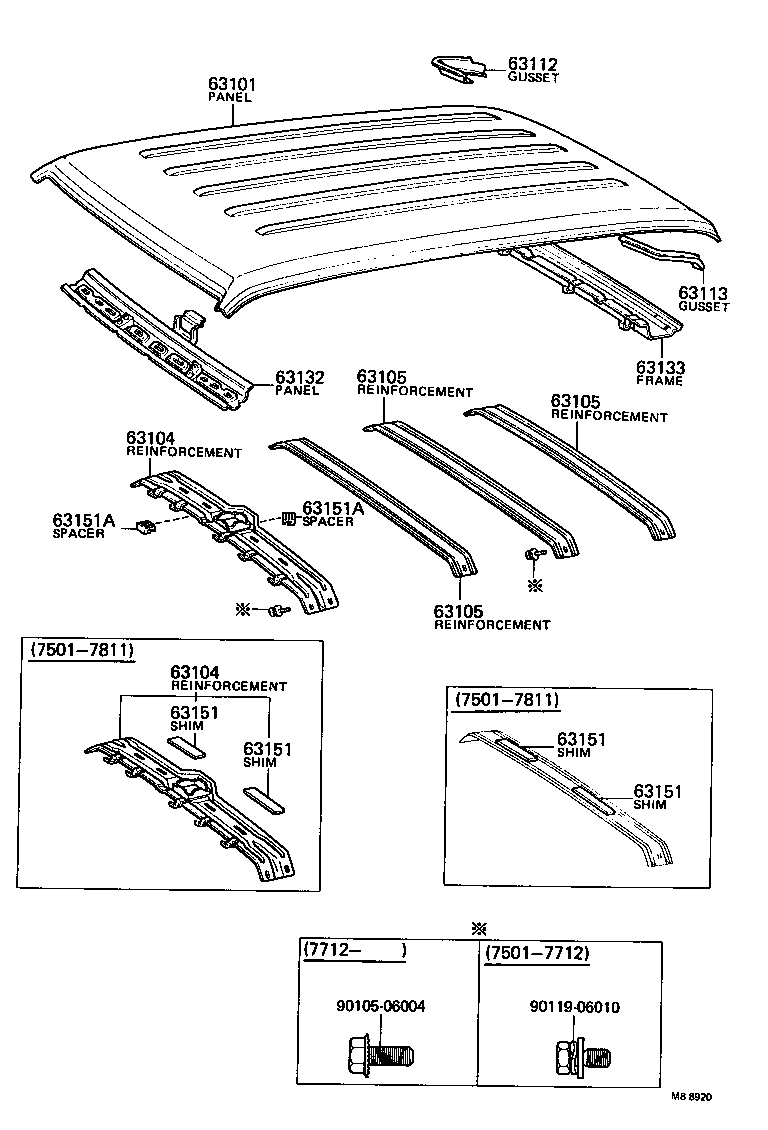

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63101 - PANEL SUB-ASSY, ROOF | ||||
| 63111-91701 |
MS83,88 |
1 | ||
| 63104 - REINFORCEMENT SUB-ASSY, ROOF PANEL, CENTER | ||||
| 63103-91701 |
MS83,88 |
1 | ||
| 63104 - REINFORCEMENT SUB-ASSY, ROOF PANEL, CENTER | ||||
| 63103-91701 |
MS83,88 |
1 | ||
| 63105 - REINFORCEMENT SUB-ASSY, ROOF PANEL, REAR | ||||
| 63142-91701 |
MS83,88 |
3 | ||
| 63105 - REINFORCEMENT SUB-ASSY, ROOF PANEL, REAR | ||||
| 63142-91701 |
MS83,88 |
3 | ||
| 63105 - REINFORCEMENT SUB-ASSY, ROOF PANEL, REAR | ||||
| 63142-91701 |
MS83,88 |
3 | ||
| 63112 - GUSSET, ROOF PANEL SIDE, RH | ||||
| 63112-91701 |
MS83,88 |
1 | ||
| 63113 - GUSSET, ROOF PANEL SIDE, LH | ||||
| 63113-91701 |
MS83,88 |
1 | ||
| 63132 - PANEL, WINDSHIELD HEADER, INNER | ||||
| 63102-91701 |
MS83,88 |
1 | ||
| 63133 - FRAME, BACK WINDOW OPENING, UPPER | ||||
| 63105-91701 |
MS83,88 |
1 | ||
| 63151 - SHIM, ROOF REINFORCEMENT | ||||
| 63153-91701 |
MS83,88 |
11 | ||
| 63153-91701 |
MS83,88 |
8 | ||
| 63153-91701 |
MS83,88 |
5 | ||
| 63151 - SHIM, ROOF REINFORCEMENT | ||||
| 63153-91701 |
MS83,88 |
11 | ||
| 63153-91701 |
MS83,88 |
8 | ||
| 63153-91701 |
MS83,88 |
5 | ||
| 63151 - SHIM, ROOF REINFORCEMENT | ||||
| 63153-91701 |
MS83,88 |
11 | ||
| 63153-91701 |
MS83,88 |
8 | ||
| 63153-91701 |
MS83,88 |
5 | ||
| 63151 - SHIM, ROOF REINFORCEMENT | ||||
| 63153-91701 |
MS83,88 |
11 | ||
| 63153-91701 |
MS83,88 |
8 | ||
| 63153-91701 |
MS83,88 |
5 | ||
| 63151A - SPACER, ROOF REINFORCEMENT | ||||
| 63159-91701 |
MS83,88 |
2 | ||
| 63151A - SPACER, ROOF REINFORCEMENT | ||||
| 63159-91701 |
MS83,88 |
2 | ||
| Common parts | ||||
| 90105-06004 | ||||
| 90119-06010 | ||||
