MS83L-YD (1975)
Toyota Crown
Production
Jan 1975
-
Aug 1979
Engine
4M
Transmission
3H MTM
Displacement
2500cc
Power
168 HP (125 kW)
(7501-7908)MS83,88

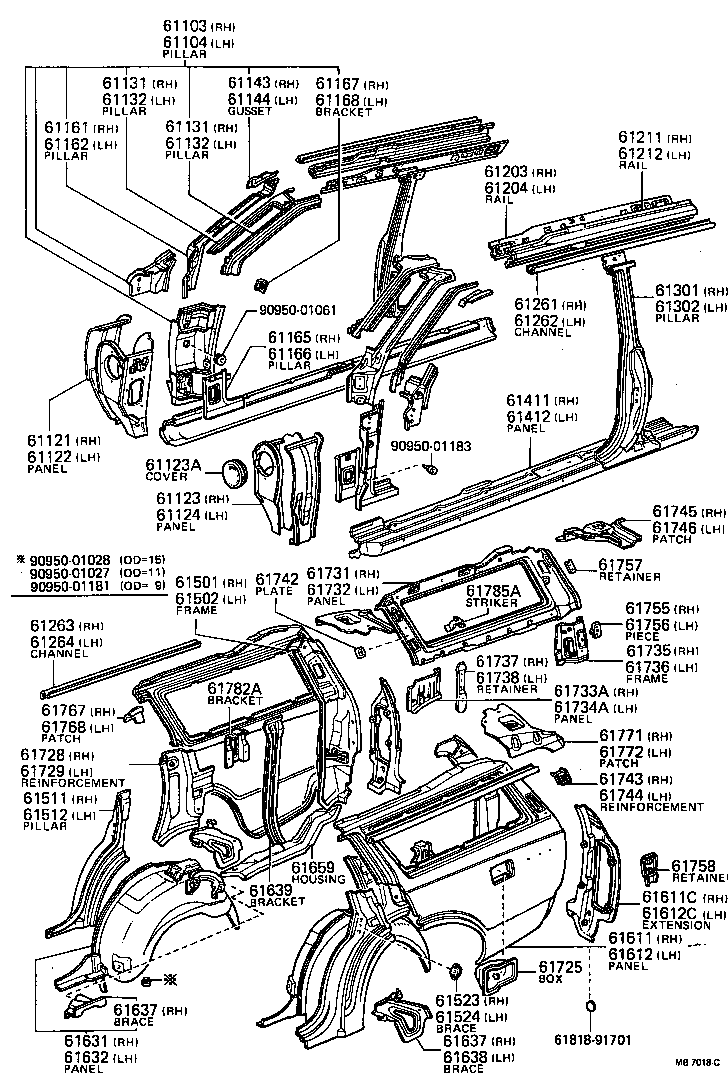

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 61103 - PILLAR SUB-ASSY, FRONT BODY, RH | ||||
| 61021-30040 |
MS8#,RS80 |
1 | ||
| 61104 - PILLAR SUB-ASSY, FRONT BODY, LH | ||||
| 61022-30040 |
MS8#,RS80 |
1 | ||
| 61121 - PANEL, COWL SIDE, OUTER RH | ||||
| 61121-30070 |
MS8#,95,RS80 |
1 | ||
| 61122 - PANEL, COWL SIDE, OUTER LH | ||||
| 61122-30080 |
MS8#,95,RS80 |
1 | ||
| 61123 - PANEL, COWL SIDE LOWER, RH | ||||
| 61041-30020 |
MS8#,95,RS80..LHD |
1 | ||
| 61124 - PANEL, COWL SIDE LOWER, LH | ||||
| 61042-30020 |
MS8#,95,RS80..LHD |
1 | ||
| 61131 - PILLAR, FRONT BODY, UPPER OUTER RH | ||||
| 61131-30080 |
MS8#,RS80 OUTER |
1 | ||
| 61147-30010 |
MS8#,RS80 INNER |
1 | ||
| 61131 - PILLAR, FRONT BODY, UPPER OUTER RH | ||||
| 61131-30080 |
MS8#,RS80 OUTER |
1 | ||
| 61147-30010 |
MS8#,RS80 INNER |
1 | ||
| 61132 - PILLAR, FRONT BODY, UPPER OUTER LH | ||||
| 61132-30100 |
MS8#,RS80 OUTER |
1 | ||
| 61148-30010 |
MS8#,RS80 INNER |
1 | ||
| 61132 - PILLAR, FRONT BODY, UPPER OUTER LH | ||||
| 61132-30100 |
MS8#,RS80 OUTER |
1 | ||
| 61148-30010 |
MS8#,RS80 INNER |
1 | ||
| 61143 - GUSSET, FRONT PILLAR DOOR OPENING, UPPER RH | ||||
| 61143-30010 |
MS8#,RS80 |
1 | ||
| 61144 - GUSSET, FRONT PILLAR DOOR OPENING, UPPER LH | ||||
| 61144-30010 |
MS8#,RS80 |
1 | ||
| 61161 - PILLAR, FRONT BODY, UPPER INNER RH | ||||
| 61161-30070 |
MS8#,RS80 |
1 | ||
| 61162 - PILLAR, FRONT BODY, UPPER INNER LH | ||||
| 61162-30080 |
MS8#,RS80 |
1 | ||
| 61165 - PILLAR, FRONT BODY LOWER INNER, RH | ||||
| 61163-30040 |
MS8#,95,RS80 |
1 | ||
| 61166 - PILLAR, FRONT BODY LOWER INNER, LH | ||||
| 61164-30040 |
MS8#,95,RS80 |
1 | ||
| 61167 - BRACKET, INSTRUMENT PANEL TO COWL SIDE, RH | ||||
| 61183-30010 |
MS8#,95,RS80 |
1 | ||
| 61168 - BRACKET, INSTRUMENT PANEL TO COWL SIDE, LH | ||||
| 61183-30010 |
MS8#,95,RS80 |
1 | ||
| 61203 - RAIL SUB-ASSY, ROOF SIDE, INNER RH | ||||
| 61231-91701 |
MS83,88 |
1 | ||
| 61204 - RAIL SUB-ASSY, ROOF SIDE, INNER LH | ||||
| 61232-91701 |
MS83,88 |
1 | ||
| 61211 - RAIL, ROOF SIDE, OUTER RH | ||||
| 61211-91701 |
MS83,88 |
1 | ||
| 61212 - RAIL, ROOF SIDE, OUTER LH | ||||
| 61212-91701 |
MS83,88 |
1 | ||
| 61261 - CHANNEL, ROOF DRIP, RH | ||||
| 61261-91701 |
MS83,88 |
1 | ||
| 61262 - CHANNEL, ROOF DRIP, LH | ||||
| 61262-91701 |
MS83,88 |
1 | ||
| 61263 - CHANNEL, ROOF DRIP, REAR RH | ||||
| 61267-91701 |
MS83,88 |
1 | ||
| 61264 - CHANNEL, ROOF DRIP, REAR LH | ||||
| 61268-91701 |
MS83,88 |
1 | ||
| 61301 - PILLAR SUB-ASSY, CENTER BODY, RH | ||||
| 61007-30902 |
MS8#,RS80 |
1 | ||
| 61007-30905 |
MS8#,RS80 |
1 | ||
| 61302 - PILLAR SUB-ASSY, CENTER BODY, LH | ||||
| 61008-30902 |
MS8#,RS80 |
1 | ||
| 61008-30905 |
MS8#,RS80 |
1 | ||
| 61411 - PANEL, ROCKER, OUTER RH | ||||
| 61401-30050 |
MS8#,95,RS80..4D |
1 | ||
| 61411-30090 |
MS8#,95,RS80..4D |
1 | ||
| 61412 - PANEL, ROCKER, OUTER LH | ||||
| 61412-30090 |
MS8#,95,RS80..4D |
1 | ||
| 61402-30050 |
MS8#,95,RS80..4D |
1 | ||
| 61501 - FRAME SUB-ASSY, BACK SIDE, RH | ||||
| 61051-91701 |
MS83,88 |
1 | ||
| 61502 - FRAME SUB-ASSY, BACK SIDE, LH | ||||
| 61052-91701 |
MS83,88 |
1 | ||
| 61511 - PILLAR, QUARTER LOCK, RH | ||||
| 61511-30090 |
MS8#,RS80 |
1 | ||
| 61512 - PILLAR, QUARTER LOCK, LH | ||||
| 61512-30090 |
MS8#,RS80 |
1 | ||
| 61523 - BRACE, QUARTER LOCK PILLAR TO ROCKER PANEL, RH | ||||
| 61503-30230 |
MS8#,95,RS80..4D |
1 | ||
| 61524 - BRACE, QUARTER LOCK PILLAR TO ROCKER PANEL, LH | ||||
| 61503-30230 |
MS8#,95,RS80..4D |
1 | ||
| 61611 - PANEL, QUARTER, RH | ||||
| 61611-91702 |
MS83,88 |
1 | ||
| 61611C - EXTENSION, QUARTER PANEL, RH | ||||
| 61625-91701 |
MS83,88 |
1 | ||
| 61612 - PANEL, QUARTER, LH | ||||
| 61612-91702 |
MS83,88 |
1 | ||
| 61612C - EXTENSION, QUARTER PANEL, LH | ||||
| 61626-91701 |
MS83,88 |
1 | ||
| 61631 - PANEL, QUARTER WHEEL HOUSE, RH | ||||
| 61603-91701 |
MS83 |
1 | ||
| 61632 - PANEL, QUARTER WHEEL HOUSE, LH | ||||
| 61604-91701 |
MS83 |
1 | ||
| 61637 - BRACE, QUARTER WHEEL HOUSE, RH | ||||
| 61639-91701 |
MS83 |
1 | ||
| 61637 - BRACE, QUARTER WHEEL HOUSE, RH | ||||
| 61639-91701 |
MS83 |
1 | ||
| 61639 - BRACKET, SPARE WHEEL CARRIER | ||||
| 58305-91701 |
MS83 |
1 | ||
| 61659 - HOUSING, SPARE WHEEL | ||||
| 61627-91701 |
MS83 |
1 | ||
| 61725 - BOX, FUEL INLET | ||||
| 61725-91701 |
MS83,88 |
1 | ||
| 61728 - REINFORCEMENT, QUARTER PANEL, FRONT RH | ||||
| 61618-91701 |
MS83,88 |
1 | ||
| 61618-91702 |
MS83,88 |
1 | ||
| 61729 - REINFORCEMENT, QUARTER PANEL, FRONT LH | ||||
| 61619-91701 |
MS83,88 |
1 | ||
| 61731 - PANEL, ROOF SIDE, INNER UPPER RH | ||||
| 61731-91702 |
MS83,88 |
1 | ||
| 61732 - PANEL, ROOF SIDE, INNER UPPER LH | ||||
| 61732-91702 |
MS83,88 |
1 | ||
| 61733A - PANEL, ROOF SIDE, INNER FRONT RH | ||||
| 61733-91701 |
MS83,88 |
1 | ||
| 61734A - PANEL, ROOF SIDE, INNER FRONT LH | ||||
| 61734-91701 |
MS83,88 |
1 | ||
| 61735 - FRAME, ROOF SIDE PANEL, RH | ||||
| 61735-91701 |
MS83,88 |
1 | ||
| 61736 - FRAME,ROOF SIDE PANEL, LH | ||||
| 61736-91701 |
MS83,88 |
1 | ||
| 61738 - RETAINER, QUARTER TRIM, UPPER LH | ||||
| 61752-91701 |
MS83,88 |
1 | ||
| 61742 - PLATE, SAFETY BELT ANCHOR, SIDE | ||||
| 58162-91501 |
MS83,88 |
2 | ||
| 58162-91702 |
MS83,88..GEN |
2 | ||
| 61743 - REINFORCEMENT, BACK DOOR OPENING, INNER RH | ||||
| 61743-91701 |
MS83,88 |
1 | ||
| 61744 - REINFORCEMENT, BACK DOOR OPENING, INNER LH | ||||
| 61743-91701 |
MS83,88 |
1 | ||
| 61745 - PATCH, BACK DOOR OPENING, LOWER RH | ||||
| 61773-91701 |
MS83,88 |
1 | ||
| 61746 - PATCH, BACK DOOR OPENING, LOWER LH | ||||
| 61774-91701 |
MS83,88 |
1 | ||
| 61755 - PIECE, BACK FRAME SIDE INNER, RH | ||||
| 61708-91701 |
MS83,88 |
1 | ||
| 61756 - PIECE, BACK FRAME SIDE INNER, LH | ||||
| 61708-91701 |
MS83,88 |
1 | ||
| 61757 - RETAINER, BACK DOOR STOPPER, UPPER | ||||
| 61757-91701 |
MS83,88 |
2 | ||
| 61758 - RETAINER, BACK DOOR STOPPER, LOWER | ||||
| 61758-91701 |
MS83,88 |
2 | ||
| 61767 - PATCH, REAR PILLAR FRONT CORNER, RH | ||||
| 61715-91701 |
MS83,88 |
1 | ||
| 61768 - PATCH, REAR PILLAR FRONT CORNER, LH | ||||
| 61716-91701 |
MS83,88 |
1 | ||
| 61771 - PATCH, BACK DOOR OPENING, UPPER RH | ||||
| 61771-91701 |
MS83,88 |
1 | ||
| 61772 - PATCH, BACK DOOR OPENING, UPPER LH | ||||
| 61772-91701 |
MS83,88 |
1 | ||
| 61782A - BRACKET,FUEL EVAPORATIVE SEPARATOR, REAR | ||||
| 61783-91506 |
MS83 |
2 | ||
| 61785A - STRIKER, SPARE WHEEL COVER LOCK | ||||
| 61785-91701 |
MS83 |
1 | ||
| Common parts | ||||
| 61818-91701 | ||||
| 90950-01027 | ||||
| 90950-01028 | ||||
| 90950-01061 | ||||
| 90950-01181 | ||||
| 90950-01183 | ||||
