MS83L-YD (1975)

Toyota Crown

Production Jan 1975 - Aug 1979
Engine 4M
Transmission 3H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7410-7908)

Click highlighted areas on diagram

diagram 57163 57458 58101 58113 58114 58161 58161 58169 58203 58212 58213 58217 58225 58225 58227 58242 58253 58254 58255 58255A 58260 58271 58273 58273 58286 58288 58367 58367 58383A 58384A 74701 9095001002 9095001005 9095001005 9095001013 9095001060 9095001060 9095001126 9331116016 9352055014
Part # Description Qty Price
57163 - MEMBER, FRONT FLOOR CROSS, NO.2
57459-30010

MS8#,95,RS80..BTP,DLX,SAL,STD

 1
57206-30020

MS8#,95,RS80

 1
57206-30010

MS8#,95,RS80

 1
57458 - MEMBER, FRONT FLOOR CROSS, NO.1
57408-30011

MS8#,95,RS80

 1
57408-30010

MS8#,95,RS80

 1
58101 - PAN SUB-ASSY, FRONT FLOOR
58111-30160

MS8#,RS80..3H,3HC,4H

 1
58111-30100

MS8#,RS80..3H,3HC,4H

 1
58161 - PLATE, BELT ANCHOR, REAR
58161-30070

MS8#,95,RS80

 1
58161-30080

MS8#,95,RS80

CENTER

 1
58161 - PLATE, BELT ANCHOR, REAR
58161-30070

MS8#,95,RS80

 1
58161-30080

MS8#,95,RS80

CENTER

 1
58203 - BRACKET SUB-ASSY, FRONT SEAT
58204-30020

MS8#,RS80..3H,3HC,4H

 1
58212 - REINFORCEMENT SUB-ASSY, FRONT FLOOR SIDE, RH
57411-30010

MS8#,95,RS80

 1
58213 - REINFORCEMENT SUB-ASSY, FRONT FLOOR SIDE, LH
57412-30010

MS8#,95,RS80

 1
58227 - PLATE, AIR GUIDE, OUTSIDE
58226-30020

MS8#,95,RS80

RH.

 1
58227-30020

MS8#,95,RS80

LH.

 1
58242 - HANGER, PARKING BRAKE RETURN SPRING
58249-30010

MS8#,95,RS80

 1
58253 - BRACKET, FRONT SEAT, OUTER REAR RH
57468-30010

MS8#,95,RS80

 1
58254 - BRACKET, FRONT SEAT, OUTER REAR LH
57469-30020

MS8#,95,RS80

 1
57469-30010

MS8#,95,RS80

 1
58255A - CLAMP, PARKING BRAKE CABLE, NO.2
58255-30030

MS8#,95,RS80

 1
58271 - PLATE, BELT ANCHOR, FRONT
58271-30020

MS8#,95,RS80

 1
58273 - PLATE, BELT ANCHOR SIDE
58273-30020

MS8#,95,RS80

LH.

 1
58273 - PLATE, BELT ANCHOR SIDE
58273-30020

MS8#,95,RS80

LH.

 1
58367 - BRACKET, FUEL TUBE CLAMP
58367-30050

MS8#,95,RS80

FRONT

 1
58367 - BRACKET, FUEL TUBE CLAMP
58367-30050

MS8#,95,RS80

FRONT

 1
58383A - BRACKET, REAR SEAT SUPPORT, RH
58401-91501

MS83,88

 1
58384A - BRACKET, REAR SEAT SUPPORT, LH
58401-91501

MS83,88

 1
Common parts
90950-01002
90950-01005
90950-01013
90950-01060
90950-01126
93311-16016
93520-55014

(7501-7908)WG

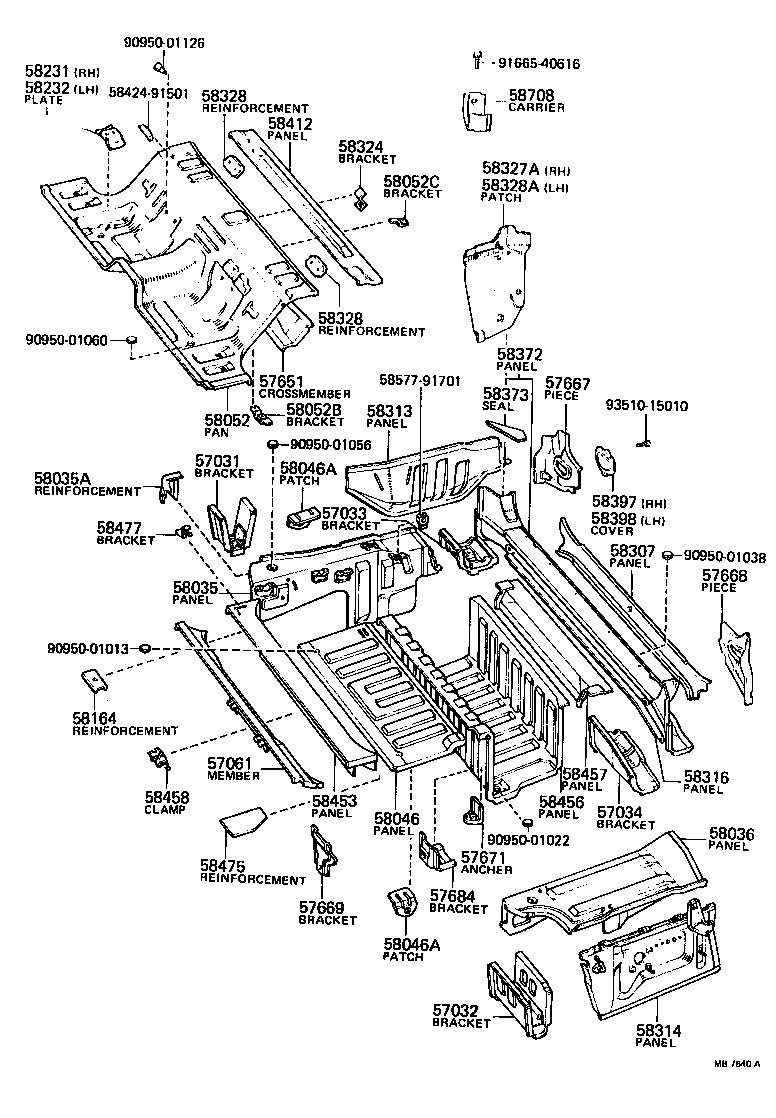

Click highlighted areas on diagram

diagram 57031 57032 57033 57034 57061 57651 57667 57668 57669 57671 57684 58035 58035A 58036 58046 58046A 58046A 58052 58052B 58052C 58164 58231 58232 58307 58313 58314 58316 58324 58327A 58328 58328 58328A 58372 58373 58397 58398 58412 5842491501 58453 58456 58457 58458 58475 58477 5857791701 58708 9095001013 9095001022 9095001038 9095001056 9095001060 9095001126 9166540616 9351015010
Part # Description Qty Price
57031 - BRACKET SUB-ASSY, NO.7 BODY MOUNTING, RH
57031-91701

MS83

 1
57032 - BRACKET SUB-ASSY, NO.7 BODY MOUNTING, LH
57032-91701

MS83

 1
57033 - BRACKET SUB-ASSY, NO.8 BODY MOUNTING, RH
57033-91701

MS83

 1
57034 - BRACKET SUB-ASSY, NO.8 BODY MOUNTING, LH
57034-91701

MS83

 1
57061 - MEMBER SUB-ASSY, 3RD SEAT FLOOR
57061-91701

MS83..EUR,GEN

FOR W/3RD SEAT

 1
57061-91702

MS83

 1
57651 - CROSSMEMBER, REAR FLOOR, FRONT
57407-91701

MS83

 1
57667 - PIECE, BACK LOWER SIDE, RH
58377-91701

MS83,88

 1
57668 - PIECE, BACK LOWER SIDE, LH
58378-91701

MS83,88

 1
57669 - BRACKET, FUEL TANK SUPPORT, REAR
57062-91701

MS83

 2
57671 - ANCHER, FUEL TANK
57671-91501

MS83

 2
57684 - BRACKET, FUEL TANK, REAR
57065-91701

MS83

 2
58035 - PANEL SUB-ASSY, REAR FLOOR SIDE, RH
58047-91703

MS83

 1
58047-91701

MS83..EUR,GEN

FOR W/3RD SEAT

 1
58035A - REINFORCEMENT, 3RD SEAT FLOOR SIDE
58469-91701

MS83

 1
58036 - PANEL SUB-ASSY, REAR FLOOR SIDE, LH
58048-91703

MS83

 1
58048-91701

MS83..EUR,GEN

FOR W/3RD SEAT

 1
58046 - PANEL SUB-ASSY, 3RD SEAT FLOOR, FRONT
59312-91701

MS83

 1
58455-91701

MS83

 1
58046A - PATCH, BODY MOUNTING
57496-91701

MS83

LH.

 1
57495-91701

MS83

RH.

 1
58046A - PATCH, BODY MOUNTING
57496-91701

MS83

LH.

 1
57495-91701

MS83

RH.

 1
58052 - PAN SUB-ASSY, CENTER FLOOR
58211-30140

MS83

 1
58052B - BRACKET, FUEL TUBE, NO.1
58369-30010

MS83,85,95,RS80

 1
58052C - BRACKET, FUEL TUBE, NO.2
58367-91702

MS83

 2
58231 - PLATE, REAR SEAT LINK, RH
58383-91701

MS83

 1
58232 - PLATE, REAR SEAT LINK, LH
58384-91701

MS83

 1
58307 - PANEL SUB-ASSY, BODY LOWER BACK
58371-91701

MS83,88

 1
58313 - PANEL, REAR FLOOR SIDE, RH
57661-91701

MS83

 1
58314 - PANEL, REAR FLOOR SIDE, LH
57068-91706

MS83..EUR,GEN

 1
57068-91702

MS83

FOR AUSTRALIA

 1
58316 - PANEL, REAR BODY FLOOR, NO.2
58468-91701

MS83

 1
58324 - BRACKET, FLEXIBLE HOSE
47351-30100

MS8#,95,RS80

 1
58327A - PATCH, REAR FLOOR SIDE, RH
57663-91701

MS83

 1
58328 - REINFORCEMENT, SAFETY BELT ANCHORAGE
58028-30010

MS83,85,95,RS80

LH.

 1
58162-30030

MS83,85,95,RS80..BTP,DLX,SAL

RH.

 1
58028-30010

MS83,85,95,RS80..GEN

LH.

 1
58162-30030

MS83,85,95,RS80..GEN

RH.

 1
58328 - REINFORCEMENT, SAFETY BELT ANCHORAGE
58028-30010

MS83,85,95,RS80

LH.

 1
58162-30030

MS83,85,95,RS80..BTP,DLX,SAL

RH.

 1
58028-30010

MS83,85,95,RS80..GEN

LH.

 1
58162-30030

MS83,85,95,RS80..GEN

RH.

 1
58328A - PATCH, REAR FLOOR SIDE, LH
57664-91701

MS83,88

 1
58372 - PANEL, BODY LOWER BACK, INNER
58307-91590

MS83

 1
58373 - SEAL, BACK FRAME, LOWER
58379-91702

MS83,88

 2
58397 - COVER, LOWER BACK, OUTER RH
58397-91701

MS83,88

 1
58398 - COVER, LOWER BACK, OUTER LH
58398-91701

MS83,88

 1
58412 - PANEL, REAR FLOOR, FRONT
58412-91701

MS83

 1
58453 - PANEL, 3RD SEAT FLOOR, FRONT
58453-91701

MS83

 1
58456 - PANEL, 3RD SEAT FLOOR MAIN, NO.2
58456-91701

MS83

 1
58457 - PANEL, 3RD SEAT FLOOR END
58467-91701

MS83

 1
58458 - CLAMP, FUEL HOSE
57658-91701

MS83

 1
58475 - REINFORCEMENT, 3RD SEAT FLOOR, FRONT
58475-91701

MS83

 2
58477 - BRACKET, SPARE WHEEL COVER
58477-91701

MS83

 1
58708 - CARRIER SUB-ASSY, JACK
58794-30010

MS83,85,95,RS80

 1
58794-30011

MS83,85,95,RS80

 1
Common parts
58424-91501
58577-91701
90950-01013
90950-01022
90950-01038
90950-01056
90950-01060
90950-01126
91665-40616
93510-15010
