MS135R-AEPQF (1987)

Toyota Crown

Production Sep 1987 - Oct 1991
Engine 7MGE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8709- )7MGE

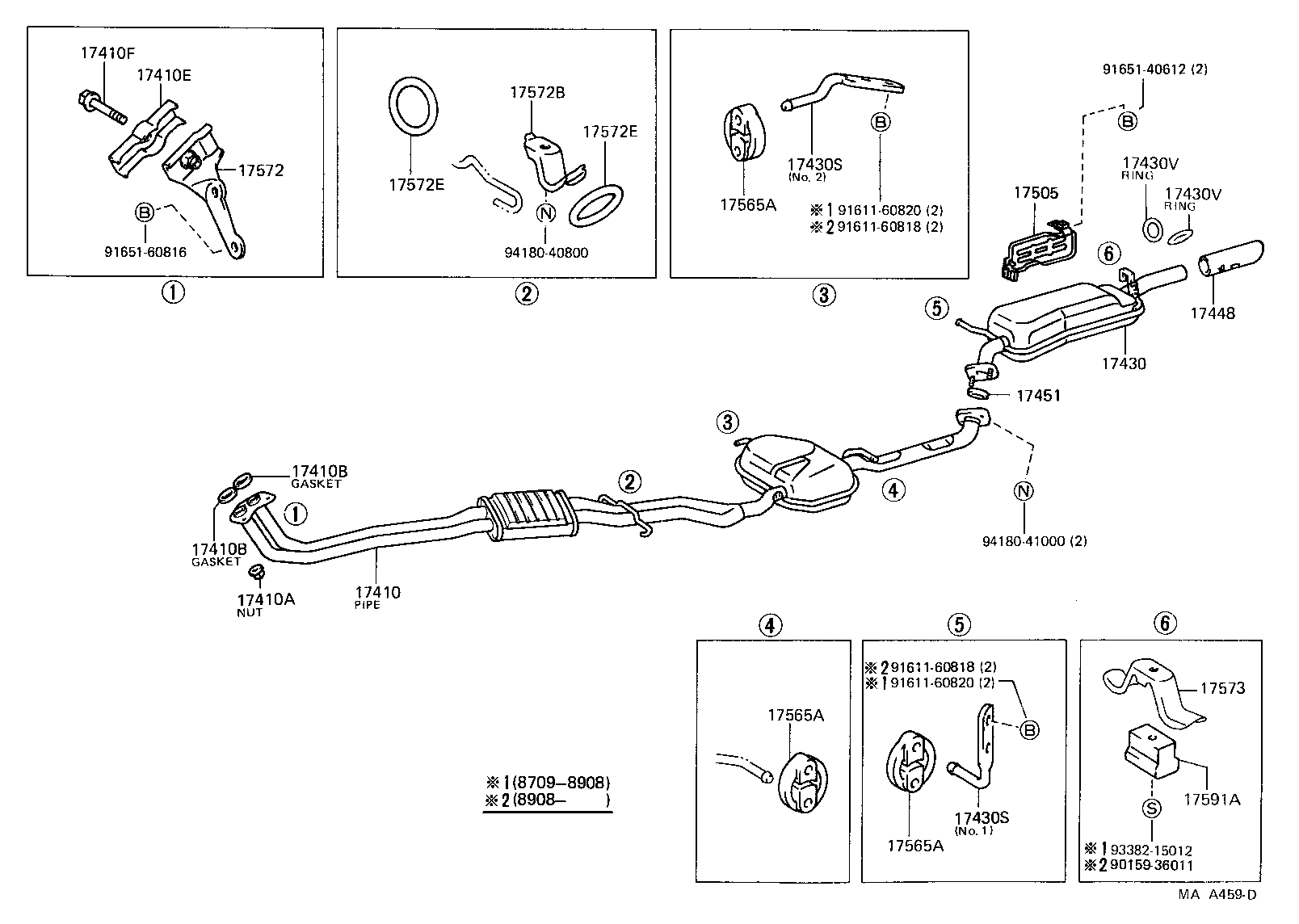

Click highlighted areas on diagram

diagram 17410 17410A 17410B 17410B 17410E 17410F 17430 17430S 17430S 17430V 17430V 17448 17451 17505 17565A 17565A 17565A 17572 17572B 17572E 17572E 17573 17591A 9015936011 9161160818 9161160818 9161160820 9161160820 9165140612 9165160816 9338215012 9418040800 9418041000
Part # Description Qty Price
17410 - PIPE ASSY, EXHAUST, FRONT
17410-42050

7MGE..MS135

 1
17410-42160

7MGE..MS135

 1
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10070

1GFE,2L,5M#,7MGE..GS131,LS130,MS13#

 3
17410B - GASKET, EXHAUST PIPE
90917-06004

1GFE,5M#,7MGE..GS131,MS13#

 2
90917-06039

1GFE,5M#,7MGE..GS131,MS13#

 2
17410B - GASKET, EXHAUST PIPE
90917-06004

1GFE,5M#,7MGE..GS131,MS13#

 2
90917-06039

1GFE,5M#,7MGE..GS131,MS13#

 2
17410E - CLAMP NO.1, EXHAUST PIPE FRONT (FOR FRONT)
90917-04041

1GFE,5M#,7MGE..GS131,MS13#

 1
17410F - BOLT OR RING, EXHAUST PIPE FRONT (FOR FRONT)
90105-10018

1GFE,5M#,7MGE..GS131,MS13#

 1
90105-10019

1GFE,5M#,7MGE..GS131,MS13#

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-42130

7MGE..MS135

 1
17430-42131

7MGE..MS135

 1
17430S - BRACKET, EXHAUST TAIL PIPE (FOR REAR)
17575-42020

7MGE..MS135

NO.2

 1
17574-42020

7MGE..MS135

NO.1

 1
17430S - BRACKET, EXHAUST TAIL PIPE (FOR REAR)
17575-42020

7MGE..MS135

NO.2

 1
17574-42020

7MGE..MS135

NO.1

 1
17430V - BOLT OR RING, EXHAUST TAIL PIPE (FOR REAR)
90301-32005

1GFE,5ME,7MGE..GS131,MS133,135

 2
90301-32005

5ME,7MGE..MS133,135

 2
17430V - BOLT OR RING, EXHAUST TAIL PIPE (FOR REAR)
90301-32005

1GFE,5ME,7MGE..GS131,MS133,135

 2
90301-32005

5ME,7MGE..MS133,135

 2
17448 - BAFFLE, TAIL PIPE
17448-43020

1GFE,5ME,7MGE..GS131,MS133,135;5M..MS132..SED..(4FC,5F)..(DLX,ROY,SAL)

 1
17451 - GASKET, EXHAUST PIPE
90917-06024

7MGE..MS135

 1
90917-06036

7MGE..MS135

 1
90917-06073

7MGE..MS135

 1
17505 - INSULATOR SUB-ASSY, EXHAUST PIPE HEAT NO.1
17505-70090

7MGE..MS135

 1
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-63060

7MGE..MS135

 3
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-63060

7MGE..MS135

 3
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-63060

7MGE..MS135

 3
17572 - BRACKET, EXHAUST PIPE NO.1 SUPPORT
17571-41080

5M#,7MGE..MS13#

 1
17572B - BRACKET, EXHAUST PIPE SUPPORT, NO.2
17572-54100

1GFE,5M#,7MGE..GS131,MS13#

 2
17572E - RING,O(FOR BRACKET, EXHAUST PIPE SUPPORT, NO.2)
90301-34207

1GFE,5M#,7MGE..GS131,MS13#

 2
17572E - RING,O(FOR BRACKET, EXHAUST PIPE SUPPORT, NO.2)
90301-34207

1GFE,5M#,7MGE..GS131,MS13#

 2
17573 - BRACKET, EXHAUST PIPE NO.1 SUPPORT, LOWER
17573-41040

1GFE,2L,5M#,7MGE,4Y..GS131,LS130,MS13#,YS132..HT,SED

 1
17591A - STOPPER, EXHAUST PIPE SUPPORT
17591-36010

2L,5M#,7MGE,4Y..LS130,MS13#,YS132..HT,SED

 1
17591-36011

1GFE,2L,5M#,7MGE,4Y..GS131,LS130,MS13#,YS132..HT,SED

 1
Common parts
90159-36011
91611-60818
91611-60820
91651-40612
91651-60816
93382-15012
94180-40800
94180-41000
