MS135L-ATPQFV (1987)
Toyota Crown
ILLUST NO. 2 OF 2(8709- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83189 - BRACKET, METER | ||||
| 83189-20020 |
GS131,LS130,MS13#,YS132 |
1 | ||
| 83189 - BRACKET, METER | ||||
| 83189-20020 |
GS131,LS130,MS13#,YS132 |
1 | ||
| 83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1 | ||||
| 83710-30790 |
MS13#..LHD..4FC |
1 | ||
| 83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1 | ||||
| 83710-30790 |
MS13#..LHD..4FC |
1 | ||
| 83770 - ADAPTER ASSY, SPEEDOMETER CABLE | ||||
| 83770-30070 |
GS131,MS13#..ATM |
1 | ||
| Common parts | ||||
| 83791-30050 | ||||
| 83791-30101 | ||||

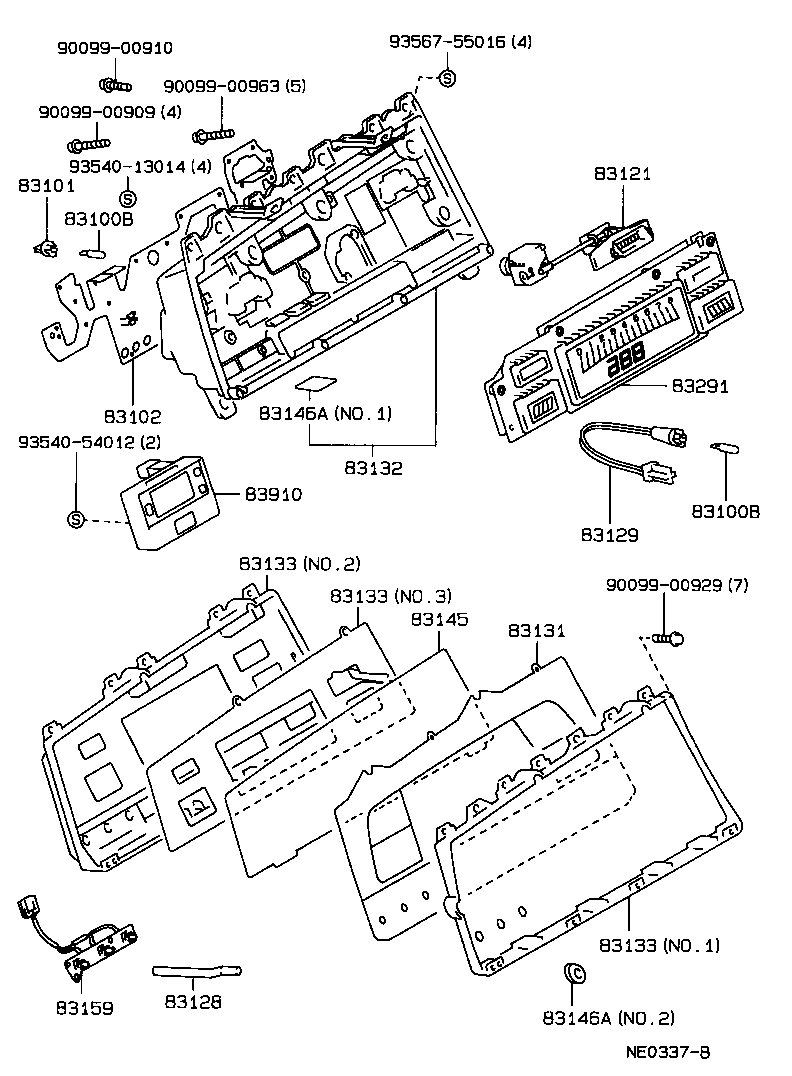

ILLUST NO. 1 OF 2(8709- )MS135..LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
MS135..LHD;GS131,MS132..(ROY,SAL)..GEN 12V 1.2W W/O SOCKET |
10 | ||
| 83109-24010 |
MS135..LHD 12V 1.4W,GREEN CAP |
2 | ||
| 83109-24030 |
MS135..LHD 12V3.4W W(GREEN CAP) |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
MS135..LHD;GS131,MS132..(ROY,SAL)..GEN 12V 1.2W W/O SOCKET |
10 | ||
| 83109-24010 |
MS135..LHD 12V 1.4W,GREEN CAP |
2 | ||
| 83109-24030 |
MS135..LHD 12V3.4W W(GREEN CAP) |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
MS133,135;LS130..RHD;MS132..SAL..GCC OD=11.3,BLACK |
10 | ||
| 83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1 | ||||
| 83247-3A460 |
MS135..LHD |
1 | ||
| 83121 - COUNTER, TOTAL | ||||
| 83121-30250 |
MS135..LHD |
1 | ||
| 83128 - KNOB, TRIP COUNTER | ||||
| 83128-32090 |
MS135..LHD |
3 | ||
| 83129 - WIRE, METER | ||||
| 83129-80090 |
MS135..LHD |
1 | ||
| 83131 - DIAL, METER, NO.1 | ||||
| 83131-30730 |
MS135..LHD |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-3A150 |
MS135..LHD |
1 | ||
| 83133 - PLATE, COMBINATION METER, NO.1 | ||||
| 83133-30390 |
MS135..LHD NO.1 |
1 | ||
| 83133-30790 |
MS135..LHD NO.3 |
1 | ||
| 83133-30770 |
MS135..LHD NO.2 |
1 | ||
| 83133 - PLATE, COMBINATION METER, NO.1 | ||||
| 83133-30390 |
MS135..LHD NO.1 |
1 | ||
| 83133-30790 |
MS135..LHD NO.3 |
1 | ||
| 83133-30770 |
MS135..LHD NO.2 |
1 | ||
| 83133 - PLATE, COMBINATION METER, NO.1 | ||||
| 83133-30390 |
MS135..LHD NO.1 |
1 | ||
| 83133-30790 |
MS135..LHD NO.3 |
1 | ||
| 83133-30770 |
MS135..LHD NO.2 |
1 | ||
| 83145 - LENS, METER, NO.1 | ||||
| 83145-30290 |
MS135..LHD |
1 | ||
| 83146A - COVER, SPEEDMETER | ||||
| 83146-22010 |
MS135..LHD NO.1 |
7 | ||
| 83146-32030 |
MS135..LHD NO.2 |
3 | ||
| 83146A - COVER, SPEEDMETER | ||||
| 83146-22010 |
MS135..LHD NO.1 |
7 | ||
| 83146-32030 |
MS135..LHD NO.2 |
3 | ||
| 83159 - SWITCH, METER, NO.1 | ||||
| 83159-30070 |
MS135..LHD |
1 | ||
| 83291 - COMPUTER, COMBINATION METER | ||||
| 83291-30080 |
MS135..LHD |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-30470 |
MS132..LHD..ROY;MS132..DLX,SAL,STD;LS130,MS133,135,YS132..LHD |
1 | ||
| 83910-30471 |
MS132..LHD..ROY;MS132..DLX,SAL,STD;LS130,MS133,135,YS132..LHD |
1 | ||
| Common parts | ||||
| 90099-00909 | ||||
| 90099-00910 | ||||
| 90099-00929 | ||||
| 90099-00963 | ||||
| 93540-13014 | ||||
| 93540-54012 | ||||
| 93567-55016 | ||||
