MS135L-ATPQFV (1987)

Toyota Crown

Production Sep 1987 - Aug 1989
Engine 7MGE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 3(8709- )HT

Click highlighted areas on diagram

diagram 64383C 64384C 67603 67603D 67604 67604D 67785G 67785H 68190 7401 7401 8302 8401 8401 9016440005 9016440005 9016840068 9018304029 9331216014 9356715018
Part # Description Qty Price
64383C - GRILLE, REAR DOOR SPEAKER, RH
64383-3008002

MS135..HT

MAROON,TRIM3#

 1
64383-3008006

MS135..HT

SABLE,TRIM4#

 1
64383-3008004

MS135..HT

BLUE,TRIM8#

 1
64384C - GRILLE, REAR DOOR SPEAKER, LH
64384-3006002

MS135..HT

MAROON,TRIM3#

 1
64384-3006004

MS135..HT

BLUE,TRIM8#

 1
64384-3006006

MS135..HT

SABLE,TRIM4#

 1
67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH
67630-3A35002

MS135..GCC

MAROON,TRIM3#

 1
67630-3A38002

MS135..GCC

W(REAR POWER SEAT),MAROON,TRIM3#

 1
67630-3A38004

MS135..GCC

W(REAR POWER SEAT),BLUE,TRIM8#

 1
67630-3A35006

MS135..GCC

SABLE,TRIM4#

 1
67630-3A38006

MS135..GCC

W(REAR POWER SEAT),SABLE,TRIM4#

 1
67630-3A35004

MS135..GCC

BLUE,TRIM8#

 1
67603D - RETAINER, REAR DOOR TRIM, RH
67771-12050

GS131,MS133,135..ROY,SAL,SALEX;MS132..(4FC,5F)..(DLX,ROY,SAL)

 10
67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH
67640-3A35004

MS135..GCC

BLUE,TRIM8#

 1
67640-3A35006

MS135..GCC

SABLE,TRIM4#

 1
67640-3A38002

MS135..GCC

W(REAR POWER SEAT),MAROON,TRIM3#

 1
67640-3A35002

MS135..GCC

MAROON,TRIM3#

 1
67640-3A38004

MS135..GCC

W(REAR POWER SEAT),BLUE,TRIM8#

 1
67640-3A38006

MS135..GCC

W(REAR POWER SEAT),SABLE,TRIM4#

 1
67604D - RETAINER, REAR DOOR TRIM, LH
67771-12050

GS131,MS133,135..ROY,SAL,SALEX;MS132..(4FC,5F)..(DLX,ROY,SAL)

 10
67785G - HOLDER, REAR DOOR LOCK CONTROL KNOB, RH
67785-3008004

MS133,135..HT

BLUE,TRIM8#

 1
67785-3008002

MS133,135..HT

MAROON,TRIM3#

 1
67785-3008006

MS133,135..HT

SABLE,TRIM4#

 1
67785H - HOLDER, REAR DOOR LOCK CONTROL KNOB, LH
67785-3008002

MS133,135..HT

MAROON,TRIM3#

 1
67785-3008006

MS133,135..HT

SABLE,TRIM4#

 1
67785-3008004

MS133,135..HT

BLUE,TRIM8#

 1
68190 - WEATHERSTRIP ASSY, REAR DOOR GLASS, INNER
68240-30120

MS133,135..HT

LH

 1
68190-30160

MS133,135..HT

RH

 1
Common parts
90164-40005
90168-40068
90183-04029
93312-16014
93567-15018
Linked diagrams
7401
8302
8401

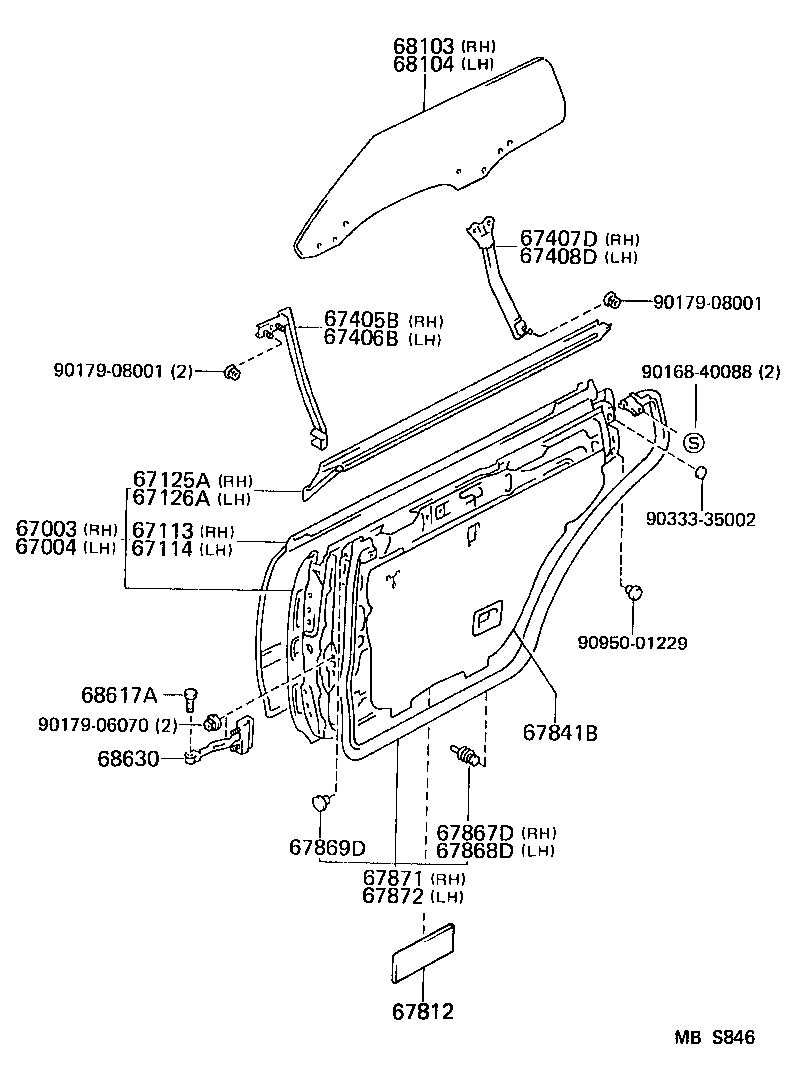

ILLUST NO. 1 OF 3(8709- )HT

Click highlighted areas on diagram

diagram 67003 67004 67113 67114 67125A 67126A 67405B 67406B 67407D 67408D 67812 67841B 67867D 67868D 67869D 67871 67872 68103 68104 68617A 68630 9016840088 9017906070 9017908001 9017908001 9033335002 9095001229
Part # Description Qty Price
67003 - PANEL SUB-ASSY, REAR DOOR, RH
67003-30440

MS133,135..GCC

 1
67004 - PANEL SUB-ASSY, REAR DOOR, LH
67004-30440

MS133,135..GCC

 1
67113 - PANEL, REAR DOOR, OUTER RH
67113-30906

MS133,135..HT

 1
67114 - PANEL, REAR DOOR, OUTER LH
67114-30906

MS133,135..HT

 1
67125A - REINFORCEMENT, REAR DOOR OUTSIDE PANEL, RH
67125-30050

MS133,135..HT

 1
67126A - REINFORCEMENT, REAR DOOR OUTSIDE PANEL, LH
67126-30060

MS133,135..HT

 1
67405B - GUIDE SUB-ASSY, REAR DOOR WINDOW, FRONT RH
67405-30090

MS133,135..HT

 1
67406B - GUIDE SUB-ASSY, REAR DOOR WINDOW, FRONT LH
67406-30090

MS133,135..HT

 1
67407D - GUIDE SUB-ASSY, REAR DOOR WINDOW, REAR RH
67407-30110

MS133,135..HT

 1
67408D - GUIDE SUB-ASSY, REAR DOOR WINDOW, REAR LH
67408-30100

MS133,135..HT

 1
67841B - COVER, REAR DOOR SERVICE HOLE
67841-30300

MS133,135..GCC

RH

 1
67842-30160

MS133,135..GCC

LH

 1
67867D - RETAINER, REAR DOOR WEATHERSTRIP, RH
67868-30050

MS133,135..HT

 18
67868D - RETAINER, REAR DOOR WEATHERSTRIP, LH
67868-30050

MS133,135..GCC

 18
67869D - CLIP, DOOR WEATHERSTRIP
67869-30020

MS133,135..HT

 6
67871 - WEATHERSTRIP, REAR DOOR, RH
67871-30140

MS133,135..GCC

 1
67871-30141

MS133,135..GCC

 1
67872 - WEATHERSTRIP, REAR DOOR, LH
67872-30140

MS133,135..GCC

 1
67872-30141

MS133,135..GCC

 1
68103 - GLASS SUB-ASSY, REAR DOOR, RH
68113-30310

MS133,135..HT

*TT,T=5.0

 1
68113-30320

MS133,135..HT

*TT,T=5.0,BRONZE

 1
68104 - GLASS SUB-ASSY, REAR DOOR, LH
68114-30230

MS133,135..HT

*TT,T=5.0

 1
68114-30240

MS133,135..HT

*TT,T=5.0,BRONZE

 1
68617A - PIN, REAR DOOR CHECK
68617-30030

GS131,LS130,MS13#,YS132

 2
68630 - CHECK ASSY, REAR DOOR
68630-30090

MS133,135..GCC

 2
Common parts
90168-40088
90179-06070
90179-08001
90333-35002
90950-01229

(8709-8908)

Click highlighted areas on diagram

diagram 12345
Part # Description Qty Price
