MS135L-ATPQFV (1987)

Toyota Crown

Production Sep 1987 - Aug 1989
Engine 7MGE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8709- )MS135..LHD

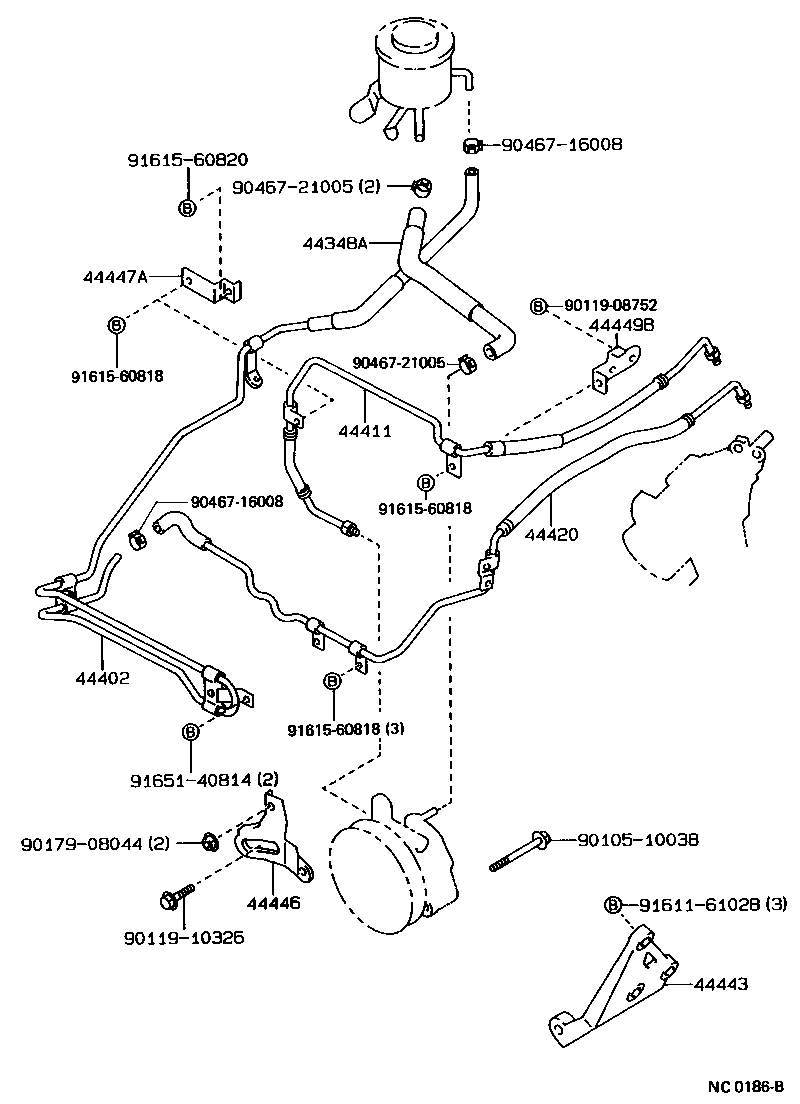

Click highlighted areas on diagram

diagram 44348A 44402 44411 44420 44443 44446 44447A 44449B 9010510038 9011908752 9011910326 9017908044 9046716008 9046716008 9046721005 9046721005 9161161028 9161560818 9161560818 9161560818 9165140814 9165160820
Part # Description Qty Price
44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1
44348-30110

MS135

 1
44402 - COOLER SUB-ASSY, POWER STEERING OIL, NO.1
44402-30120

MS135..LHD

 1
44411 - HOSE, PRESSURE FEED
44411-30430

MS135..LHD

 1
44420 - COOLER ASSY, OIL
44420-30050

MS135..LHD

 1
44443 - BRACKET, PUMP
44443-30100

MS135

 1
44446 - STRUT, ADJUSTING
44446-30100

MS135

 1
44447A - BRACKET, HOSE SUPPORT, NO.1
44447-30070

MS135..LHD

 1
44449B - BRACKET, HOSE SUPPORT, NO.3
44449-30080

MS135..LHD

 1
Common parts
90105-10038
90119-08752
90119-10326
90179-08044
90467-16008
90467-21005
91611-61028
91615-60818
91651-40814
91651-60820
