MS135L-ATPQFV (1987)
Toyota Crown
(8709-8809)5M#,7MGE ; (8809-8908)5M# ; (8809-)7MGE..GEN ; (8908- )5M ; (8908

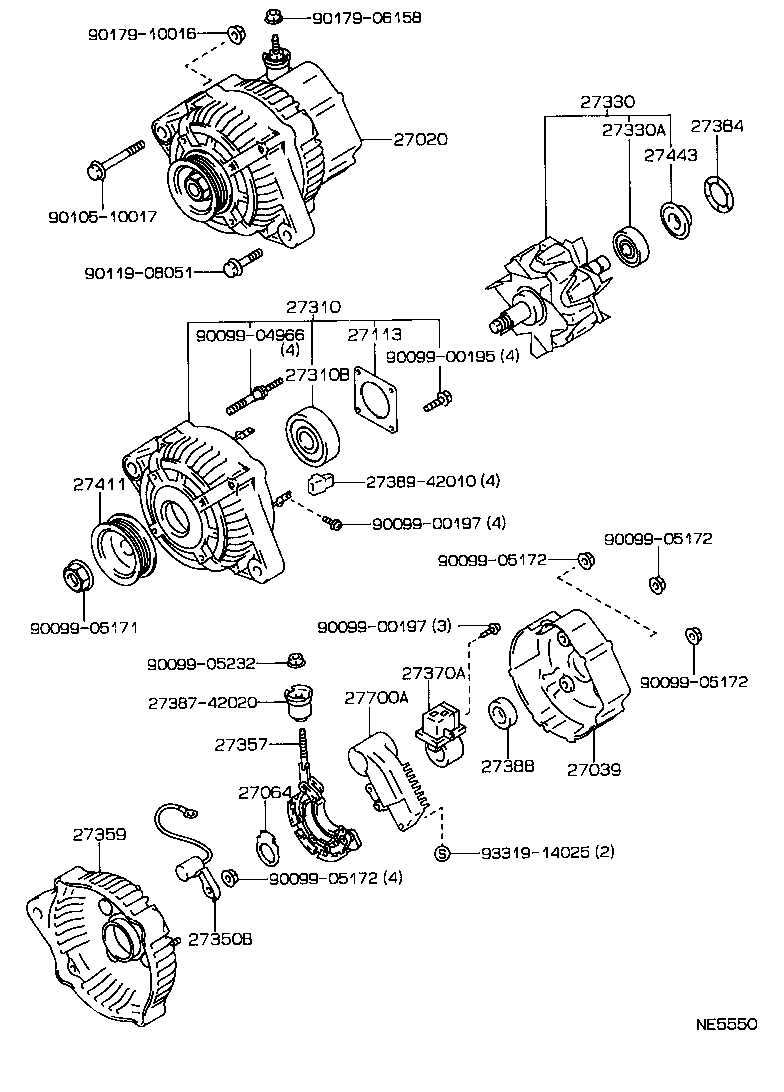

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27060-43160 |
7MGE..MS135 12V 70A |
1 | ||
| 27039 - COVER, ALTERNATOR REAR END | ||||
| 27039-72010 |
5M#,7MGE..MS13# |
1 | ||
| 27039-42010 |
7MGE..MS135..GCC |
1 | ||
| 27113 - PLATE, BEARING RETAINER, ALTERNATOR | ||||
| 27312-42010 |
7MGE..MS135..GCC |
1 | ||
| 27312-70200 |
5M#,7MGE..MS13# |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-70100 |
7MGE..MS135 |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10178 |
7MGE..MS135 |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-72101 |
7MGE..MS135 |
1 | ||
| 27330A - BEARING(FOR ALTERNATOR ROTOR) | ||||
| 90099-10140 |
1GFE,5M#,7MGE..GS131,MS13# |
1 | ||
| 27350B - CONDENSER, ALTERNATOR | ||||
| 90099-52096 |
7MGE..MS135..GCC |
1 | ||
| 90099-52083 |
7MGE..MS135 |
1 | ||
| 27357 - HOLDER, ALTERNATOR, W/RECTIFIER | ||||
| 27357-63020 |
5M#,7MGE..MS13# |
1 | ||
| 27359 - FRAME, ALTERNATOR RECTIFIER END | ||||
| 27359-43160 |
7MGE..MS135 |
1 | ||
| 27370A - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| 27370-63021 |
5ME,7MGE..MS133,135 |
1 | ||
| 27371 - BRUSH, ALTERNATOR | ||||
| 27371-63020 |
5ME,7MGE..MS133,135 |
2 | ||
| 27372 - SPRING, ALTERNATOR BRUSH | ||||
| 27372-72100 |
5M#,7MGE..MS13# |
2 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-16180 |
7MGE..MS135 |
1 | ||
| 27443 - COVER, ALTERNATOR BEARING | ||||
| 27443-63020 |
1GFE,5M#,7MGE..GS131,MS13# |
1 | ||
| 27700A - REGULATOR ASSY, GENERATOR | ||||
| 27700-70030 |
5M#,7MGE..MS13# |
1 | ||
| Common parts | ||||
| 27387-70170 | ||||
| 27389-63020 | ||||
| 90015-10029 | ||||
| 90099-00186 | ||||
| 90099-00949 | ||||
| 90099-00959 | ||||
| 90099-04966 | ||||
| 90099-05119 | ||||
| 90099-05171 | ||||
| 90099-05172 | ||||
| 90105-10017 | ||||
| 90119-08051 | ||||
| 90119-08682 | ||||
| 90179-06158 | ||||
| 90179-10016 | ||||
| 91611-61040 | ||||
| 93319-14025 | ||||
(8809- )7MGE..GCC
12V 80A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27060-43160 |
7MGE..MS135 12V 70A |
1 | ||
| 27039 - COVER, ALTERNATOR REAR END | ||||
| 27039-72010 |
5M#,7MGE..MS13# |
1 | ||
| 27039-42010 |
7MGE..MS135..GCC |
1 | ||
| 27064 - SEAL, ALTERNATOR PLATE | ||||
| 27064-42010 |
7MGE..MS135..GCC |
1 | ||
| 27113 - PLATE, BEARING RETAINER, ALTERNATOR | ||||
| 27312-42010 |
7MGE..MS135..GCC |
1 | ||
| 27312-70200 |
5M#,7MGE..MS13# |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-70100 |
7MGE..MS135 |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10178 |
7MGE..MS135 |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-72101 |
7MGE..MS135 |
1 | ||
| 27330A - BEARING(FOR ALTERNATOR ROTOR) | ||||
| 90099-10140 |
1GFE,5M#,7MGE..GS131,MS13# |
1 | ||
| 27350B - CONDENSER, ALTERNATOR | ||||
| 90099-52096 |
7MGE..MS135..GCC |
1 | ||
| 90099-52083 |
7MGE..MS135 |
1 | ||
| 27357 - HOLDER, ALTERNATOR, W/RECTIFIER | ||||
| 27357-63020 |
5M#,7MGE..MS13# |
1 | ||
| 27359 - FRAME, ALTERNATOR RECTIFIER END | ||||
| 27359-43160 |
7MGE..MS135 |
1 | ||
| 27370A - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| 27370-63021 |
5ME,7MGE..MS133,135 |
1 | ||
| 27384 - WASHER | ||||
| 27384-42010 |
7MGE..MS135..GCC |
1 | ||
| 27388 - COVER, ALTERNATOR BRUSH | ||||
| 27388-42010 |
7MGE..MS135..GCC |
1 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-16180 |
7MGE..MS135 |
1 | ||
| 27443 - COVER, ALTERNATOR BEARING | ||||
| 27443-63020 |
1GFE,5M#,7MGE..GS131,MS13# |
1 | ||
| 27700A - REGULATOR ASSY, GENERATOR | ||||
| 27700-70030 |
5M#,7MGE..MS13# |
1 | ||
| Common parts | ||||
| 27387-42020 | ||||
| 27389-42010 | ||||
| 90099-00195 | ||||
| 90099-00197 | ||||
| 90099-04966 | ||||
| 90099-05171 | ||||
| 90099-05172 | ||||
| 90099-05232 | ||||
| 90105-10017 | ||||
| 90119-08051 | ||||
| 90179-06158 | ||||
| 90179-10016 | ||||
| 93319-14025 | ||||
