MS135L-ATPQFV (1987)

Toyota Crown

Production Sep 1987 - Aug 1989
Engine 7MGE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8812- )5M#,7MGE

Click highlighted areas on diagram

diagram 9099992002 9099992002 9099992003 9099992004 9099992006 9099992007 9099992008
Part # Description Qty Price
Common parts
90999-92002
90999-92003
90999-92004
90999-92006
90999-92007
90999-92008

(8709-8908)7MGE

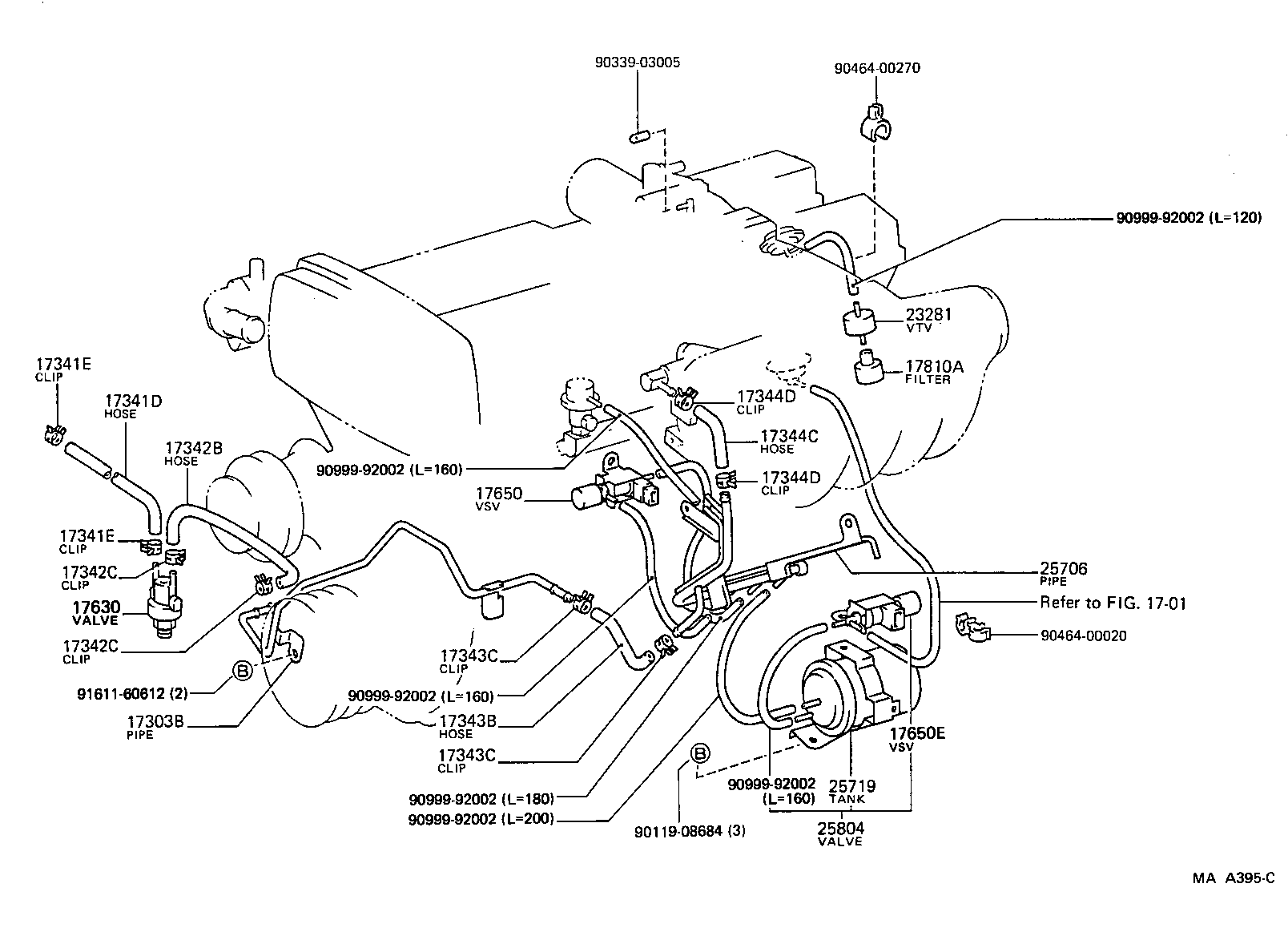

Click highlighted areas on diagram

diagram 1701 17303B 17341D 17341E 17341E 17342B 17342C 17342C 17343B 17343C 17343C 17344C 17344D 17344D 17630 17650 17650E 17810A 23281 25706 25719 25804 9011908684 9033903005 9046400020 9046400270 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9161160612
Part # Description Qty Price
17303B - PIPE SUB-ASSY, AIR, NO.1
17303-42020

7MGE..MS135

 1
17341E - CLIP, NO.1(FOR IDLE-UP HOSE)
96132-30400

7MGE..MS135

 2
17341E - CLIP, NO.1(FOR IDLE-UP HOSE)
96132-30400

7MGE..MS135

 2
17342B - HOSE, NO.2(FOR IDLE-UP)
90910-05186

7MGE..MS135

 1
17342C - CLIP, NO.2(FOR IDLE-UP HOSE)
96132-30400

7MGE..MS135

 2
17342C - CLIP, NO.2(FOR IDLE-UP HOSE)
96132-30400

7MGE..MS135

 2
17343B - HOSE, NO.3(FOR IDLE-UP)
90910-05185

7MGE..MS135

 1
17343C - CLIP, NO.3(FOR IDLE-UP HOSE)
96132-30400

7MGE..MS135

 2
17343C - CLIP, NO.3(FOR IDLE-UP HOSE)
96132-30400

7MGE..MS135

 2
17344C - HOSE, NO.4(FOR IDLE-UP)
90910-05190

7MGE..MS135

 1
17344D - CLIP, NO.4(FOR IDLE-UP HOSE)
96132-30800

7MGE..MS135

 2
96132-40800

7MGE..MS135

 2
96132-41300

7MGE..MS135

 2
17344D - CLIP, NO.4(FOR IDLE-UP HOSE)
96132-30800

7MGE..MS135

 2
96132-40800

7MGE..MS135

 2
96132-41300

7MGE..MS135

 2
17630 - VALVE ASSY, AIR CONTROL
17630-70020

7MGE..MS135

 1
17650 - VALVE ASSY, VACUUM SWITCHING
90910-12024

7MGE..MS135

 1
17650E - VALVE, VACUUM SWITCHING
90910-12032

7MGE..MS135

 1
17810A - FILTER ASSY, AIR
90925-06006

5ME,7MGE..MS133,135

 1
23281 - VALVE, VACUUM TRANSMITTING, NO.1
90925-01014

7MGE..MS135

 1
25706 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.1
25706-42010

7MGE..MS135

 1
25706-42011

7MGE..MS135

 1
25719 - TANK, VACUUM SURGE
25719-42010

7MGE..MS135

 1
25804 - VALVE SET, VACUUM CONTROL
25804-42010

7MGE..MS135

 1
Common parts
90119-08684
90339-03005
90464-00020
90464-00270
90999-92002
91611-60612
Linked diagrams
1701
