MS135L-AEPQF (1987)
Toyota Crown

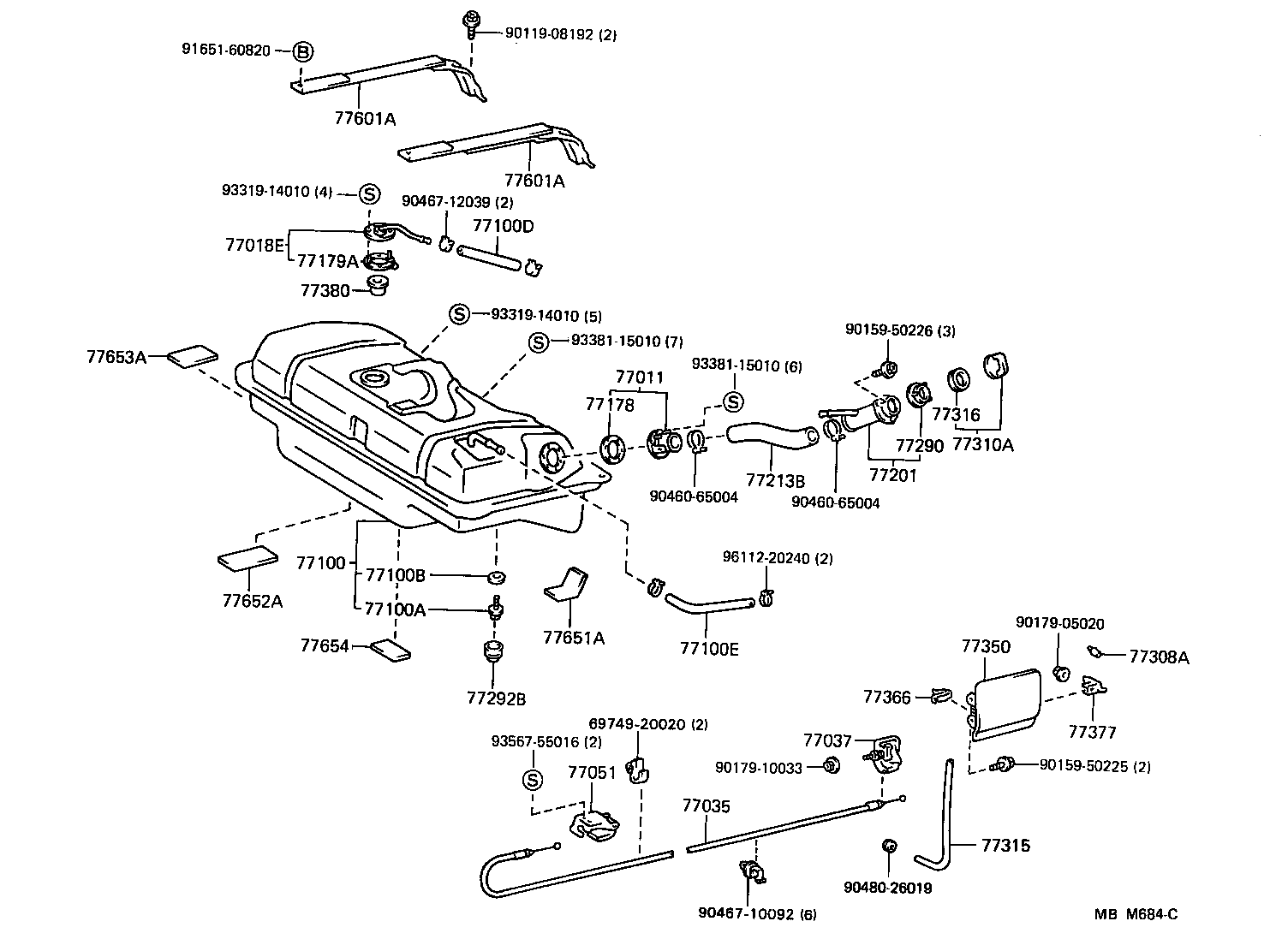

ILLUST NO. 1 OF 2(8709-8908)MS133,135
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77011 - PIPE SUB-ASSY, FUEL TANK FILLER, LOWER | ||||
| 77011-30020 |
MS133,135 |
1 | ||
| 77011-30021 |
GS131,MS133,135 |
1 | ||
| 77018E - TUBE SUB-ASSY, FUEL TANK EVAPORATION VENT | ||||
| 77018-30050 |
GS131,LS130,MS13#,YS132..HT,SED |
1 | ||
| 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL | ||||
| 77035-30150 |
GS131,LS130,MS13#,YS132..LHD..(HT,SED) |
1 | ||
| 77037 - LOCK SUB-ASSY, FUEL FILLER OPENING LID | ||||
| 77037-14010 |
LS130,MS13#,YS132..HT,SED |
1 | ||
| 77037-90K00 |
GS131,LS130,MS13#,YS132..HT,SED |
1 | ||
| 77051 - LEVER SUB-ASSY, FUEL LID OPEN | ||||
| 77051-3006002 |
GS131,LS130,MS13#,YS132..4F,4FC,4HC,5F MAROON,TRIM3# |
1 | ||
| 77051-3006004 |
MS132,135;GS131,LS130,MS133,YS132..SAL,SALEX,STD BLUE,TRIM8# |
1 | ||
| 77051-3006006 |
MS132,135..ROY,SAL;GS131,MS133..SAL,SALEX SABLE,TRIM4# |
1 | ||
| 77051-3006002 |
GS131,LS130,MS13#,YS132 MAROON,TRIM3# |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-30934 |
MS133,135 |
1 | ||
| 77001-30936 |
GS131,MS133,135 |
1 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90105-12116 |
GS131,LS130,MS13#,YS132..HT,SED |
1 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-12245 |
GS131,LS130,MS13#,YS132..HT,SED |
1 | ||
| 77100D - HOSE, FUEL, NO.1(FOR FUEL TANK) | ||||
| 95333-06020 |
GS131,LS130,MS13#,YS132..HT,SED *H,L=200 |
1 | ||
| 77100E - HOSE, FUEL, NO.2(FOR FUEL TANK) | ||||
| 90445-22913 |
GS131,MS133,135 L=300 |
1 | ||
| 77178 - GASKET, FUEL TANK FILLER PIPE, LOWER | ||||
| 77178-10010 |
GS131,LS130,MS13#,YS132..HT,SED |
1 | ||
| 77179A - GASKET, FUEL TANK BREATHER TUBE | ||||
| 77179-16010 |
GS131,LS130,MS13#,YS132..HT,SED |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-30171 |
GS131,LS130,MS13#,YS132..HT,SED |
1 | ||
| 77201-30170 |
LS130,MS13#,YS132..HT,SED |
1 | ||
| 77213B - HOSE, FUEL TANK TO FILLER PIPE | ||||
| 77213-30060 |
MS133,135 |
1 | ||
| 77213-30100 |
GS131,MS133,135 |
1 | ||
| 77213-30061 |
GS131,MS133,135 |
1 | ||
| 77290 - SHIELD ASSY, FUEL TANK FILLER PIPE | ||||
| 77291-30030 |
GS131,LS130,MS13#,YS132..HT,SED |
1 | ||
| 77292B - SHIELD, FUEL TANK DRAIN PLUG | ||||
| 77292-30020 |
GS131,LS130,MS13#,YS132..HT,SED |
1 | ||
| 77308A - CUSHION(FOR FUEL INLET BOX COVER) | ||||
| 90541-08016 |
GS131,LS130,MS13#,YS132..HT,SED |
2 | ||
| 77310A - CAP ASSY, FUEL TANK | ||||
| 77310-16011 |
GS131,MS13#,YS132 |
1 | ||
| 77315 - HOSE, FUEL FILLER OPENING | ||||
| 90446-09011 |
LS130,MS13#,YS132..HT,SED L=590 |
1 | ||
| 77316 - GASKET, FUEL TANK CAP | ||||
| 77316-16010 |
GS131,LS130,MS13#,YS132 |
1 | ||
| 77350 - LID ASSY, FUEL FILLER OPENING | ||||
| 77350-30130 |
GS131,LS130,MS132,135,YS132..SED |
1 | ||
| 77350-30131 |
GS131,LS130,MS13#,YS132..SED |
1 | ||
| 77366 - SPRING, FUEL FILLER OPENING LID HINGE | ||||
| 77360-24010 |
GS131,LS130,MS13#,YS132 |
1 | ||
| 77377 - RETAINER, FUEL FILLER OPENING LID LOCK | ||||
| 77377-20030 |
GS131,LS130,MS13#,YS132 |
1 | ||
| 77380 - VALVE ASSY, FUEL CUT OFF | ||||
| 77380-14020 |
GS131,LS130,MS13#,YS132..HT,SED |
1 | ||
| 77601A - BAND SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77601-30110 |
GS131,MS133,135 |
2 | ||
| 77601-30140 |
GS131,MS133,135 |
2 | ||
| 77601A - BAND SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77601-30110 |
GS131,MS133,135 |
2 | ||
| 77601-30140 |
GS131,MS133,135 |
2 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-30070 |
GS131,MS133,135 |
2 | ||
| 77652A - CUSHION, FUEL TANK, NO.2 | ||||
| 77652-30030 |
GS131,MS133,135 |
1 | ||
| 77653A - CUSHION, FUEL TANK, NO.3 | ||||
| 77653-30020 |
GS131,MS133,135 |
2 | ||
| 77654 - CUSHION, FUEL TANK, NO.2 | ||||
| 77651-30070 |
GS131,MS133,135 |
4 | ||
| Common parts | ||||
| 69749-20020 | ||||
| 90119-08192 | ||||
| 90159-50225 | ||||
| 90159-50226 | ||||
| 90179-05020 | ||||
| 90179-10033 | ||||
| 90460-65004 | ||||
| 90467-10092 | ||||
| 90467-12039 | ||||
| 90480-26019 | ||||
| 91651-60820 | ||||
| 93319-14010 | ||||
| 93381-15010 | ||||
| 93567-55016 | ||||
| 96112-20240 | ||||

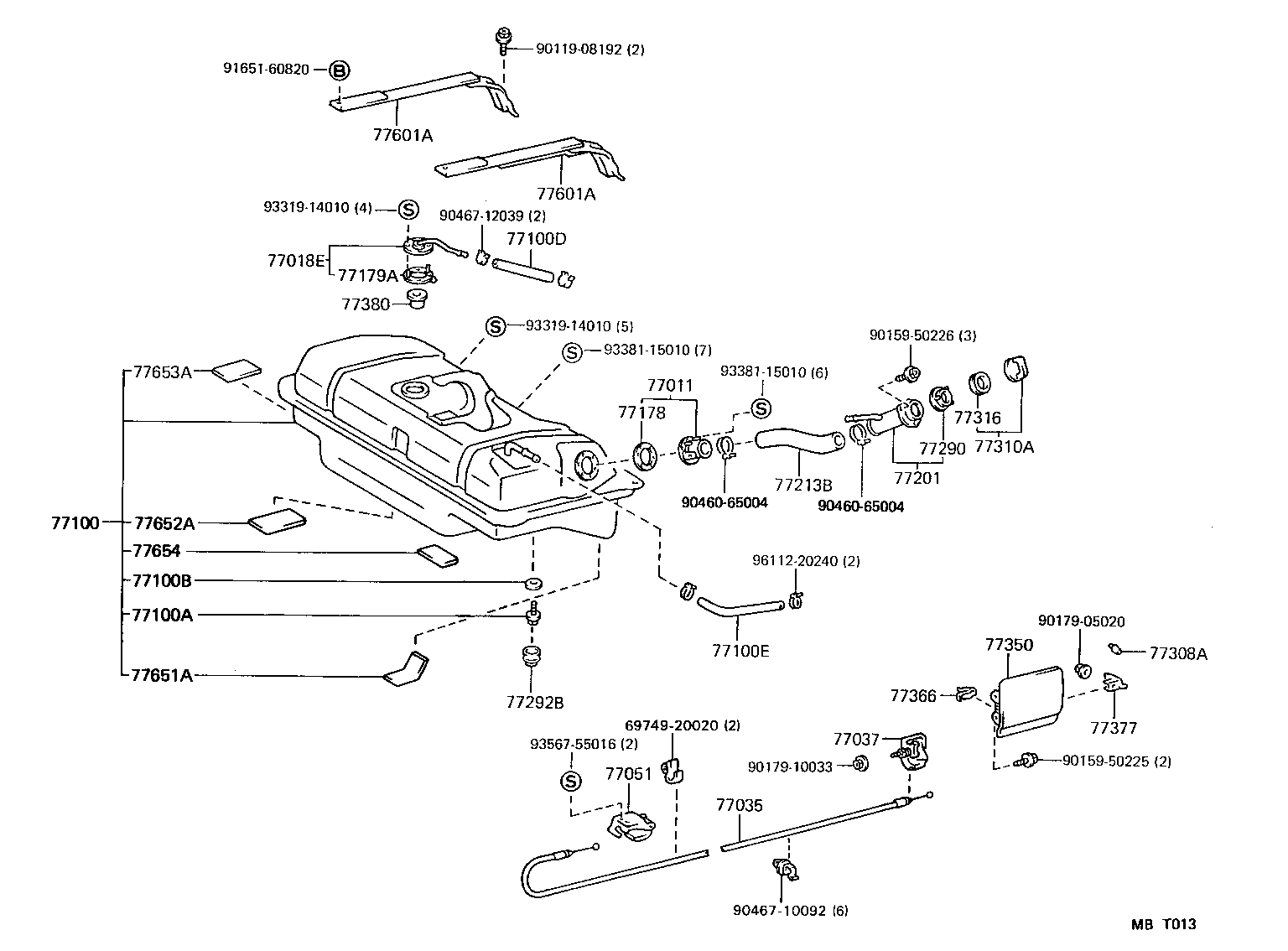

(8908- )GS131,MS133,135
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77011 - PIPE SUB-ASSY, FUEL TANK FILLER, LOWER | ||||
| 77011-30020 |
MS133,135 |
1 | ||
| 77011-30021 |
GS131,MS133,135 |
1 | ||
| 77018E - TUBE SUB-ASSY, FUEL TANK EVAPORATION VENT | ||||
| 77018-30050 |
GS131,LS130,MS13#,YS132..HT,SED |
1 | ||
| 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL | ||||
| 77035-30150 |
GS131,LS130,MS13#,YS132..LHD..(HT,SED) |
1 | ||
| 77037 - LOCK SUB-ASSY, FUEL FILLER OPENING LID | ||||
| 77037-14010 |
LS130,MS13#,YS132..HT,SED |
1 | ||
| 77037-90K00 |
GS131,LS130,MS13#,YS132..HT,SED |
1 | ||
| 77051 - LEVER SUB-ASSY, FUEL LID OPEN | ||||
| 77051-3006002 |
GS131,LS130,MS13#,YS132..4F,4FC,4HC,5F MAROON,TRIM3# |
1 | ||
| 77051-3006004 |
MS132,135;GS131,LS130,MS133,YS132..SAL,SALEX,STD BLUE,TRIM8# |
1 | ||
| 77051-3006006 |
MS132,135..ROY,SAL;GS131,MS133..SAL,SALEX SABLE,TRIM4# |
1 | ||
| 77051-3006002 |
GS131,LS130,MS13#,YS132 MAROON,TRIM3# |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-30934 |
MS133,135 |
1 | ||
| 77001-30936 |
GS131,MS133,135 |
1 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90105-12116 |
GS131,LS130,MS13#,YS132..HT,SED |
1 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-12245 |
GS131,LS130,MS13#,YS132..HT,SED |
1 | ||
| 77100D - HOSE, FUEL, NO.1(FOR FUEL TANK) | ||||
| 95333-06020 |
GS131,LS130,MS13#,YS132..HT,SED *H,L=200 |
1 | ||
| 77100E - HOSE, FUEL, NO.2(FOR FUEL TANK) | ||||
| 90445-22913 |
GS131,MS133,135 L=300 |
1 | ||
| 77178 - GASKET, FUEL TANK FILLER PIPE, LOWER | ||||
| 77178-10010 |
GS131,LS130,MS13#,YS132..HT,SED |
1 | ||
| 77179A - GASKET, FUEL TANK BREATHER TUBE | ||||
| 77179-16010 |
GS131,LS130,MS13#,YS132..HT,SED |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-30171 |
GS131,LS130,MS13#,YS132..HT,SED |
1 | ||
| 77201-30170 |
LS130,MS13#,YS132..HT,SED |
1 | ||
| 77213B - HOSE, FUEL TANK TO FILLER PIPE | ||||
| 77213-30060 |
MS133,135 |
1 | ||
| 77213-30100 |
GS131,MS133,135 |
1 | ||
| 77213-30061 |
GS131,MS133,135 |
1 | ||
| 77290 - SHIELD ASSY, FUEL TANK FILLER PIPE | ||||
| 77291-30030 |
GS131,LS130,MS13#,YS132..HT,SED |
1 | ||
| 77292B - SHIELD, FUEL TANK DRAIN PLUG | ||||
| 77292-30020 |
GS131,LS130,MS13#,YS132..HT,SED |
1 | ||
| 77308A - CUSHION(FOR FUEL INLET BOX COVER) | ||||
| 90541-08016 |
GS131,LS130,MS13#,YS132..HT,SED |
2 | ||
| 77310A - CAP ASSY, FUEL TANK | ||||
| 77310-16011 |
GS131,MS13#,YS132 |
1 | ||
| 77316 - GASKET, FUEL TANK CAP | ||||
| 77316-16010 |
GS131,LS130,MS13#,YS132 |
1 | ||
| 77350 - LID ASSY, FUEL FILLER OPENING | ||||
| 77350-30130 |
GS131,LS130,MS132,135,YS132..SED |
1 | ||
| 77350-30131 |
GS131,LS130,MS13#,YS132..SED |
1 | ||
| 77366 - SPRING, FUEL FILLER OPENING LID HINGE | ||||
| 77360-24010 |
GS131,LS130,MS13#,YS132 |
1 | ||
| 77377 - RETAINER, FUEL FILLER OPENING LID LOCK | ||||
| 77377-20030 |
GS131,LS130,MS13#,YS132 |
1 | ||
| 77380 - VALVE ASSY, FUEL CUT OFF | ||||
| 77380-14020 |
GS131,LS130,MS13#,YS132..HT,SED |
1 | ||
| 77601A - BAND SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77601-30110 |
GS131,MS133,135 |
2 | ||
| 77601-30140 |
GS131,MS133,135 |
2 | ||
| 77601A - BAND SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77601-30110 |
GS131,MS133,135 |
2 | ||
| 77601-30140 |
GS131,MS133,135 |
2 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-30070 |
GS131,MS133,135 |
2 | ||
| 77652A - CUSHION, FUEL TANK, NO.2 | ||||
| 77652-30030 |
GS131,MS133,135 |
1 | ||
| 77653A - CUSHION, FUEL TANK, NO.3 | ||||
| 77653-30020 |
GS131,MS133,135 |
2 | ||
| 77654 - CUSHION, FUEL TANK, NO.2 | ||||
| 77651-30070 |
GS131,MS133,135 |
4 | ||
| Common parts | ||||
| 69749-20020 | ||||
| 90119-08192 | ||||
| 90159-50225 | ||||
| 90159-50226 | ||||
| 90179-05020 | ||||
| 90179-10033 | ||||
| 90460-65004 | ||||
| 90467-10092 | ||||
| 90467-12039 | ||||
| 91651-60820 | ||||
| 93319-14010 | ||||
| 93381-15010 | ||||
| 93567-55016 | ||||
| 96112-20240 | ||||

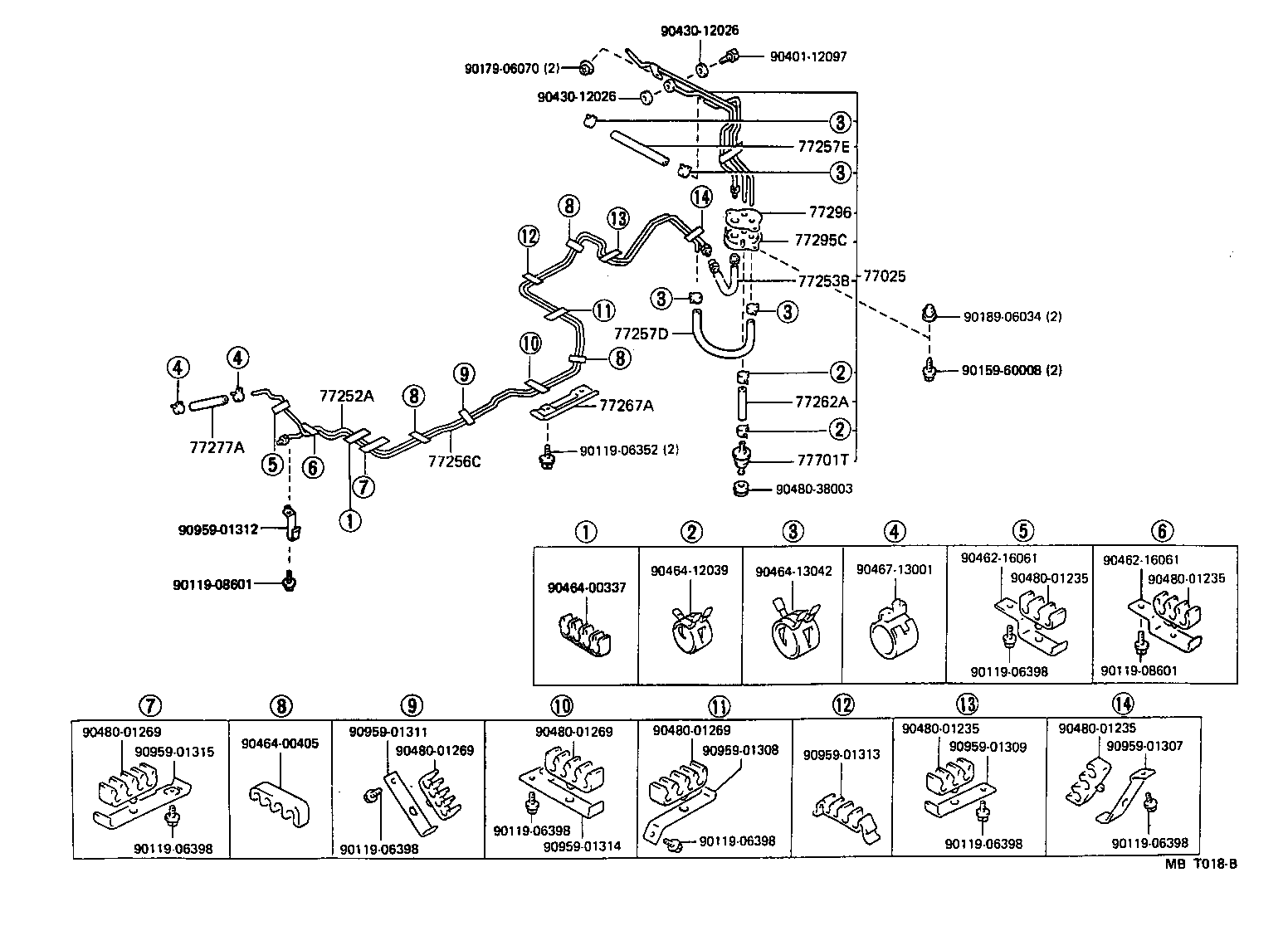

ILLUST NO. 2 OF 2(8709-8908)MS135..GEN ; (8908- )MS135..GEN ;(8908- )GS131,MS133..RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77025 - TUBE SUB-ASSY, FUEL MAIN & RETURN, REAR | ||||
| 77025-30220 |
MS135..GEN;GS131,MS133..RHD |
1 | ||
| 77252A - TUBE, FUEL MAIN, NO.2 | ||||
| 77252-30390 |
GS131,MS133,135 |
1 | ||
| 77253B - HOSE, FUEL, NO.1(FOR FUEL MAIN NO.3 TUBE) | ||||
| 77259-30100 |
GS131,MS133,135 |
1 | ||
| 77256C - TUBE, FUEL RETURN, NO.2 | ||||
| 77256-30260 |
GS131,MS133,135 |
1 | ||
| 77257D - HOSE, FUEL, NO.1(FOR FUEL RETURN NO.3 TUBE) | ||||
| 95333-08030 |
GS131,MS133,135 |
1 | ||
| 77257E - HOSE, FUEL, NO.2(FOR FUEL RETURN NO.3 TUBE) | ||||
| 95333-08020 |
GS131,MS133,135 |
1 | ||
| 77262A - HOSE, FUEL, NO.1(FOR FUEL TANK TO CANISTER CENTER TUBE) | ||||
| 95333-06020 |
MS132,133..SED..GEN;GS131,LS130,MS135,YS132..(ROY,STD)..GEN |
1 | ||
| 77267A - PROTECTOR, FUEL TUBE, NO.2 | ||||
| 77267-30050 |
GS131,LS130,MS13#,YS132 |
1 | ||
| 77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1) | ||||
| 23271-42040 |
MS133,135 *H,L=266 |
1 | ||
| 23271-43070 |
MS133,135 *H,L=350 |
1 | ||
| 23271-42041 |
MS133,135 *H,L=266 |
1 | ||
| 77295C - GROMMET, FUEL TUBE | ||||
| 77295-30020 |
GS131,LS130,MS13#,YS132..HT,SED |
1 | ||
| 77296 - PLATE, FUEL TUBE GROMMET SUPPORT | ||||
| 77296-30020 |
GS131,LS130,MS13#,YS132..HT,SED |
1 | ||
| 77701T - VALVE, CHECK (FOR MAIN FUEL TANK) | ||||
| 90917-10020 |
MS132,133..SED..GEN;GS131,LS130,MS135,YS132..(ROY,STD)..GEN |
1 | ||
| 90917-10020 |
GS131,LS130,MS13#,YS132..SED..GEN |
1 | ||
| Common parts | ||||
| 90119-06352 | ||||
| 90119-06398 | ||||
| 90119-08601 | ||||
| 90159-60008 | ||||
| 90179-06070 | ||||
| 90189-06034 | ||||
| 90401-12097 | ||||
| 90430-12026 | ||||
| 90462-16061 | ||||
| 90464-00337 | ||||
| 90464-00405 | ||||
| 90464-12039 | ||||
| 90464-13042 | ||||
| 90467-13001 | ||||
| 90480-01235 | ||||
| 90480-01269 | ||||
| 90480-38003 | ||||
| 90959-01307 | ||||
| 90959-01308 | ||||
| 90959-01309 | ||||
| 90959-01311 | ||||
| 90959-01312 | ||||
| 90959-01313 | ||||
| 90959-01314 | ||||
| 90959-01315 | ||||
