MS135L-AEPQF (1987)
Toyota Crown

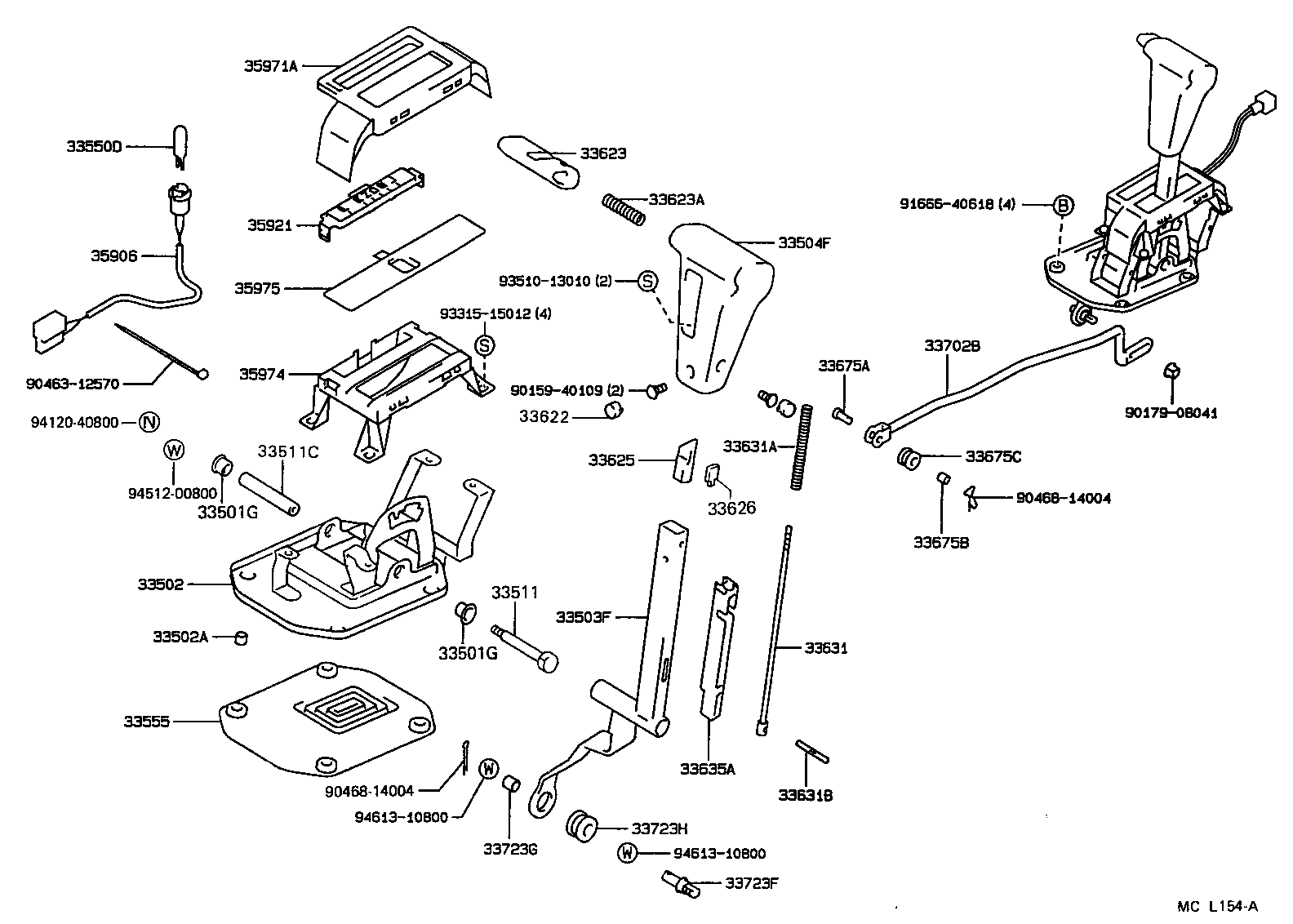

(8908- )4FC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33501G - BUSH (FOR FLOOR SHIFT CONTROL SHAFT) | ||||
| 90386-11012 |
GS131,MS13#..4FC |
2 | ||
| 90385-11003 |
MS13#..4FC |
1 | ||
| 90385-11003 |
GS131,MS13#..4FC |
2 | ||
| 33501G - BUSH (FOR FLOOR SHIFT CONTROL SHAFT) | ||||
| 90386-11012 |
GS131,MS13#..4FC |
2 | ||
| 90385-11003 |
MS13#..4FC |
1 | ||
| 90385-11003 |
GS131,MS13#..4FC |
2 | ||
| 33502 - PLATE SUB-ASSY, SHIFT LEVER | ||||
| 33502-30221 |
MS13#..LHD..4FC |
1 | ||
| 33502-30250 |
MS13#..LHD..4FC |
1 | ||
| 33502-30222 |
MS13#..LHD..4FC |
1 | ||
| 33502A - COLLAR (FOR FLOOR SHIFT SETTING) | ||||
| 90387-06065 |
GS131,MS13#..4FC OD=8.8 |
4 | ||
| 33503F - LEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT) | ||||
| 33503-30180 |
MS13#..LHD..4FC |
1 | ||
| 33503-30220 |
MS13#..LHD..4FC |
1 | ||
| 33503-30200 |
MS13#..LHD..4FC |
1 | ||
| 33504F - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 33542-3016006 |
MS13#..LHD..4FC SABLE,TRIM4# |
1 | ||
| 33542-3016002 |
MS13#..LHD..4FC MAROON,TRIM3# |
1 | ||
| 33542-3016004 |
MS13#..LHD..4FC DARK BLUE,TRIM8# |
1 | ||
| 33542-3021006 |
MS13#..LHD..4FC SABLE,TRIM4# |
1 | ||
| 33542-3021002 |
MS13#..LHD..4FC MAROON,TRIM3# |
1 | ||
| 33542-3021004 |
MS13#..LHD..4FC BLUE,TRIM8# |
1 | ||
| 33511 - SHAFT, CONTROL (FOR FLOOR SHIFT) | ||||
| 33511-30390 |
GS131,MS13#..4FC |
1 | ||
| 33511-30341 |
MS13#..4FC |
1 | ||
| 33511C - COLLAR (FOR CONTROL SHAFT) | ||||
| 90387-08109 |
GS131,MS13#..4FC |
1 | ||
| 33550D - BULB, POSITION INDICATOR LAMP | ||||
| 99132-12034 |
GS131,MS13#..4FC 12V 3.4W |
1 | ||
| 33555 - BOOT, SHIFT LEVER | ||||
| 33555-30160 |
MS13#..4FC |
1 | ||
| 33555-30161 |
MS13#..LHD..4FC |
1 | ||
| 33555-30161 |
GS131,MS13#..4FC |
1 | ||
| 33622 - COVER, SHIFT LEVER KNOB, NO.1 | ||||
| 33622-3005036 |
MS13#..LHD..4FC SABLE,TRIM4# |
1 | ||
| 33622-3005024 |
MS13#..LHD..4FC DARK BLUE,TRIM8# |
1 | ||
| 33622-3005022 |
MS13#..LHD..4FC MAROON,TRIM3# |
1 | ||
| 33622-3009006 |
MS13#..LHD..4FC SABLE,TRIM4# |
1 | ||
| 33622-3009002 |
MS13#..LHD..4FC MAROON,TRIM3# |
1 | ||
| 33622-3009004 |
MS13#..LHD..4FC BLUE,TRIM8# |
1 | ||
| 33623 - BUTTON, SHIFT LEVER KNOB | ||||
| 33623-3008002 |
MS13#..LHD..4FC MAROON,TRIM3# |
1 | ||
| 33623-3008006 |
MS13#..LHD..4FC SABLE,TRIM4# |
1 | ||
| 33623-3008004 |
MS13#..LHD..4FC BLUE,TRIM8# |
1 | ||
| 33623-3010002 |
MS13#..LHD..4FC MAROON,TRIM3# |
1 | ||
| 33623-3010006 |
MS13#..LHD..4FC SABLE,TRIM4# |
1 | ||
| 33623-3010004 |
MS13#..LHD..4FC BLUE,TRIM8# |
1 | ||
| 33623A - SPRING, COMPRESSION (FOR SHIFT LEVER KNOB BUTTON) | ||||
| 90501-07009 |
GS131,MS13#..4FC |
1 | ||
| 33625 - SLEEVE, SHIFT LEVER KNOB | ||||
| 33625-30020 |
GS131,MS13#..4FC |
1 | ||
| 33625-32010 |
MS13#..4FC |
1 | ||
| 33626 - STOPPER, SHIFT LEVER BUTTON | ||||
| 33626-30010 |
GS131,MS13#..4FC |
1 | ||
| 33631 - ROD, DETENT | ||||
| 33631-16020 |
MS13#..4FC |
1 | ||
| 33631-16020 |
GS131,MS13#..4FC |
1 | ||
| 33631A - SPRING, COMPRESSION (FOR DETENT ROD) | ||||
| 90501-07082 |
GS131,MS13#..4FC |
1 | ||
| 90501-08017 |
GS131,MS13#..4FC |
1 | ||
| 90501-08017 |
MS13#..4FC |
1 | ||
| 33631B - PIN, SLOTTED SPRING (FOR DETENT ROD) | ||||
| 90256-04003 |
GS131,MS13#..4FC |
1 | ||
| 33635A - GUIDE, WIRE, NO.1 (FOR SHIFT LEVER) | ||||
| 33635-30050 |
GS131,MS13#..4FC |
1 | ||
| 33635-30040 |
GS131,MS13#..4FC |
1 | ||
| 33675A - PIN, W/HOLE (FOR TRANSMISSION CONTROL ROD) | ||||
| 90240-08120 |
GS131,MS13#..4FC |
1 | ||
| 33675B - BUSH (FOR TRANSMISSION CONTROL ROD) | ||||
| 90389-08005 |
MS135..4FC;GS131,MS132,133..ATM |
1 | ||
| 90389-08005 |
MS13#..4FC |
1 | ||
| 33675C - GROMMET (FOR TRANSMISSION CONTROL ROD) | ||||
| 90480-17177 |
MS135..4FC;GS131,MS132,133..ATM |
1 | ||
| 90480-17177 |
MS13#..4FC |
1 | ||
| 33702B - ROD SUB-ASSY, GEAR SHIFTING, NO.1 (FOR FLOOR SHIFT) | ||||
| 33702-30200 |
MS135..4FC |
1 | ||
| 33723F - SWIVEL, CONNECTING ROD (FOR FLOOR SHIFT) | ||||
| 33723-22010 |
GS131,MS13#..4FC |
1 | ||
| 33723G - BUSH (FOR FLOOR SHIFT CONTROL SHAFT) | ||||
| 90389-08005 |
GS131,MS13#..4FC |
1 | ||
| 33723H - GROMMET (FOR FLOOR SHIFT CONTROL SHAFT) | ||||
| 90480-17177 |
GS131,MS13#..4FC |
1 | ||
| 35906 - WIRE SUB-ASSY, INDICATOR LAMP | ||||
| 35906-12050 |
GS131,MS13#..4FC |
1 | ||
| 35906-30050 |
GS131,MS13#..4FC |
1 | ||
| 35921 - PLATE, CONTROL POSITION INDICATOR | ||||
| 35921-30360 |
MS13#..LHD..4FC |
1 | ||
| 35921-30340 |
MS13#..LHD..4FC |
1 | ||
| 35971A - HOUSING, POSITION INDICATOR, UPPER | ||||
| 35971-30200 |
GS131,MS13#..4FC |
1 | ||
| 35971-30230 |
MS13#..LHD..4FC |
1 | ||
| 35974 - HOUSING, POSITION INDICATOR, LOWER | ||||
| 35974-30060 |
GS131,MS13#..4FC |
1 | ||
| 35975 - COVER, SLIDE (FOR POSITION INDICATOR) | ||||
| 35975-30110 |
MS13#..LHD..4FC |
1 | ||
| 35975-30150 |
MS13#..LHD..4FC |
1 | ||
| 35975-30130 |
MS13#..LHD..4FC |
1 | ||
| Common parts | ||||
| 90159-40109 | ||||
| 90179-08041 | ||||
| 90463-12570 | ||||
| 90468-14004 | ||||
| 91666-40618 | ||||
| 93315-15012 | ||||
| 93510-13010 | ||||
| 94120-40800 | ||||
| 94512-00800 | ||||
| 94613-10800 | ||||

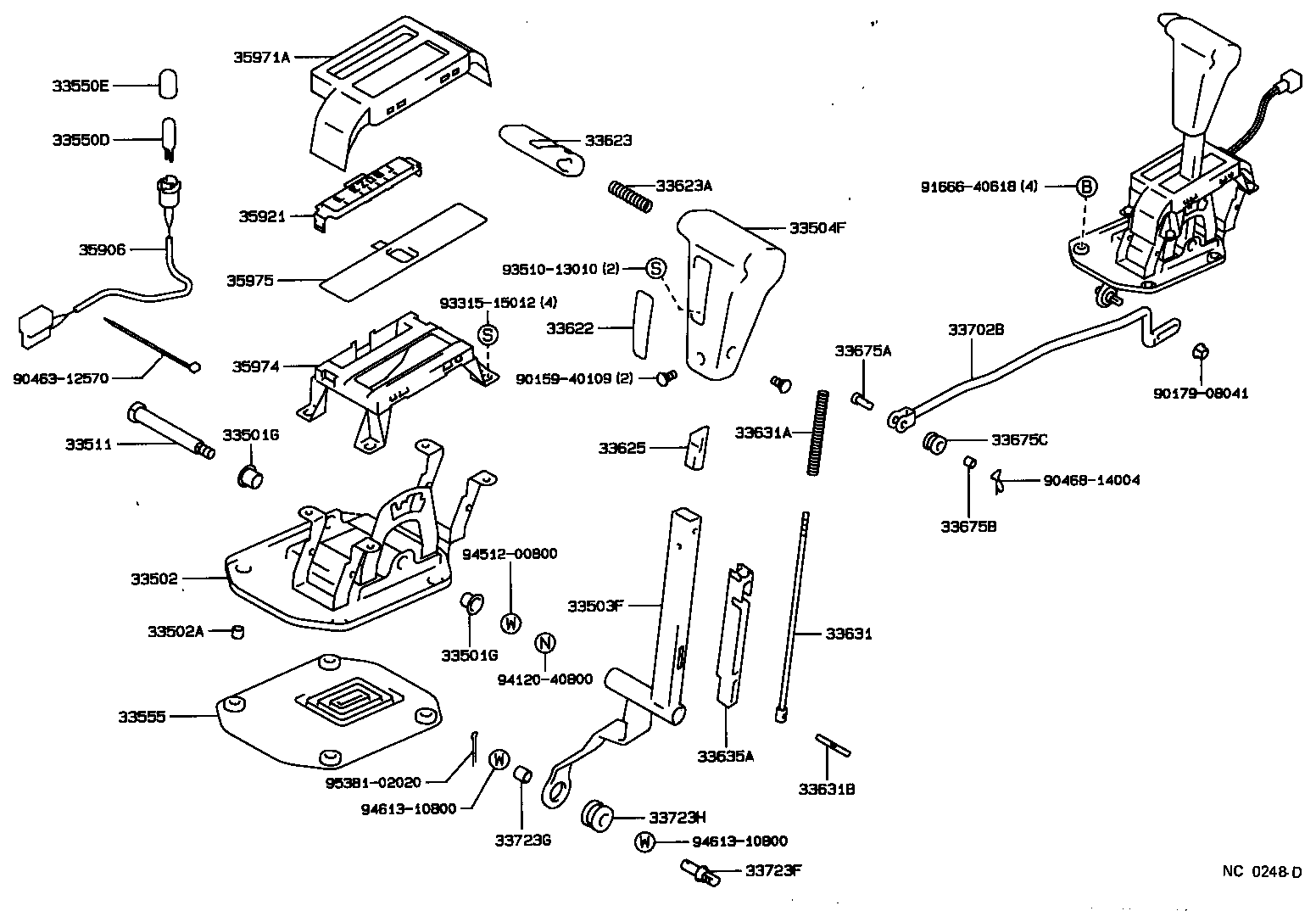

(8709-8908)4FC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33501G - BUSH (FOR FLOOR SHIFT CONTROL SHAFT) | ||||
| 90386-11012 |
GS131,MS13#..4FC |
2 | ||
| 90385-11003 |
MS13#..4FC |
1 | ||
| 90385-11003 |
GS131,MS13#..4FC |
2 | ||
| 33501G - BUSH (FOR FLOOR SHIFT CONTROL SHAFT) | ||||
| 90386-11012 |
GS131,MS13#..4FC |
2 | ||
| 90385-11003 |
MS13#..4FC |
1 | ||
| 90385-11003 |
GS131,MS13#..4FC |
2 | ||
| 33502 - PLATE SUB-ASSY, SHIFT LEVER | ||||
| 33502-30221 |
MS13#..LHD..4FC |
1 | ||
| 33502-30250 |
MS13#..LHD..4FC |
1 | ||
| 33502-30222 |
MS13#..LHD..4FC |
1 | ||
| 33502A - COLLAR (FOR FLOOR SHIFT SETTING) | ||||
| 90387-06065 |
GS131,MS13#..4FC OD=8.8 |
4 | ||
| 33503F - LEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT) | ||||
| 33503-30180 |
MS13#..LHD..4FC |
1 | ||
| 33503-30220 |
MS13#..LHD..4FC |
1 | ||
| 33503-30200 |
MS13#..LHD..4FC |
1 | ||
| 33504F - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 33542-3016006 |
MS13#..LHD..4FC SABLE,TRIM4# |
1 | ||
| 33542-3016002 |
MS13#..LHD..4FC MAROON,TRIM3# |
1 | ||
| 33542-3016004 |
MS13#..LHD..4FC DARK BLUE,TRIM8# |
1 | ||
| 33542-3021006 |
MS13#..LHD..4FC SABLE,TRIM4# |
1 | ||
| 33542-3021002 |
MS13#..LHD..4FC MAROON,TRIM3# |
1 | ||
| 33542-3021004 |
MS13#..LHD..4FC BLUE,TRIM8# |
1 | ||
| 33511 - SHAFT, CONTROL (FOR FLOOR SHIFT) | ||||
| 33511-30390 |
GS131,MS13#..4FC |
1 | ||
| 33511-30341 |
MS13#..4FC |
1 | ||
| 33550D - BULB, POSITION INDICATOR LAMP | ||||
| 99132-12034 |
GS131,MS13#..4FC 12V 3.4W |
1 | ||
| 33550E - CAP, POSITION INDICATOR LAMP | ||||
| 90339-09005 |
MS13#..4FC |
1 | ||
| 33555 - BOOT, SHIFT LEVER | ||||
| 33555-30160 |
MS13#..4FC |
1 | ||
| 33555-30161 |
MS13#..LHD..4FC |
1 | ||
| 33555-30161 |
GS131,MS13#..4FC |
1 | ||
| 33622 - COVER, SHIFT LEVER KNOB, NO.1 | ||||
| 33622-3005036 |
MS13#..LHD..4FC SABLE,TRIM4# |
1 | ||
| 33622-3005024 |
MS13#..LHD..4FC DARK BLUE,TRIM8# |
1 | ||
| 33622-3005022 |
MS13#..LHD..4FC MAROON,TRIM3# |
1 | ||
| 33622-3009006 |
MS13#..LHD..4FC SABLE,TRIM4# |
1 | ||
| 33622-3009002 |
MS13#..LHD..4FC MAROON,TRIM3# |
1 | ||
| 33622-3009004 |
MS13#..LHD..4FC BLUE,TRIM8# |
1 | ||
| 33623 - BUTTON, SHIFT LEVER KNOB | ||||
| 33623-3008002 |
MS13#..LHD..4FC MAROON,TRIM3# |
1 | ||
| 33623-3008006 |
MS13#..LHD..4FC SABLE,TRIM4# |
1 | ||
| 33623-3008004 |
MS13#..LHD..4FC BLUE,TRIM8# |
1 | ||
| 33623-3010002 |
MS13#..LHD..4FC MAROON,TRIM3# |
1 | ||
| 33623-3010006 |
MS13#..LHD..4FC SABLE,TRIM4# |
1 | ||
| 33623-3010004 |
MS13#..LHD..4FC BLUE,TRIM8# |
1 | ||
| 33623A - SPRING, COMPRESSION (FOR SHIFT LEVER KNOB BUTTON) | ||||
| 90501-07009 |
GS131,MS13#..4FC |
1 | ||
| 33625 - SLEEVE, SHIFT LEVER KNOB | ||||
| 33625-30020 |
GS131,MS13#..4FC |
1 | ||
| 33625-32010 |
MS13#..4FC |
1 | ||
| 33631 - ROD, DETENT | ||||
| 33631-16020 |
MS13#..4FC |
1 | ||
| 33631-16020 |
GS131,MS13#..4FC |
1 | ||
| 33631A - SPRING, COMPRESSION (FOR DETENT ROD) | ||||
| 90501-07082 |
GS131,MS13#..4FC |
1 | ||
| 90501-08017 |
GS131,MS13#..4FC |
1 | ||
| 90501-08017 |
MS13#..4FC |
1 | ||
| 33631B - PIN, SLOTTED SPRING (FOR DETENT ROD) | ||||
| 90256-04003 |
GS131,MS13#..4FC |
1 | ||
| 33635A - GUIDE, WIRE, NO.1 (FOR SHIFT LEVER) | ||||
| 33635-30050 |
GS131,MS13#..4FC |
1 | ||
| 33635-30040 |
GS131,MS13#..4FC |
1 | ||
| 33675A - PIN, W/HOLE (FOR TRANSMISSION CONTROL ROD) | ||||
| 90240-08120 |
GS131,MS13#..4FC |
1 | ||
| 33675B - BUSH (FOR TRANSMISSION CONTROL ROD) | ||||
| 90389-08005 |
MS135..4FC;GS131,MS132,133..ATM |
1 | ||
| 90389-08005 |
MS13#..4FC |
1 | ||
| 33675C - GROMMET (FOR TRANSMISSION CONTROL ROD) | ||||
| 90480-17177 |
MS135..4FC;GS131,MS132,133..ATM |
1 | ||
| 90480-17177 |
MS13#..4FC |
1 | ||
| 33702B - ROD SUB-ASSY, GEAR SHIFTING, NO.1 (FOR FLOOR SHIFT) | ||||
| 33702-30200 |
MS135..4FC |
1 | ||
| 33723F - SWIVEL, CONNECTING ROD (FOR FLOOR SHIFT) | ||||
| 33723-22010 |
GS131,MS13#..4FC |
1 | ||
| 33723G - BUSH (FOR FLOOR SHIFT CONTROL SHAFT) | ||||
| 90389-08005 |
GS131,MS13#..4FC |
1 | ||
| 33723H - GROMMET (FOR FLOOR SHIFT CONTROL SHAFT) | ||||
| 90480-17177 |
GS131,MS13#..4FC |
1 | ||
| 35906 - WIRE SUB-ASSY, INDICATOR LAMP | ||||
| 35906-12050 |
GS131,MS13#..4FC |
1 | ||
| 35906-30050 |
GS131,MS13#..4FC |
1 | ||
| 35921 - PLATE, CONTROL POSITION INDICATOR | ||||
| 35921-30360 |
MS13#..LHD..4FC |
1 | ||
| 35921-30340 |
MS13#..LHD..4FC |
1 | ||
| 35971A - HOUSING, POSITION INDICATOR, UPPER | ||||
| 35971-30200 |
GS131,MS13#..4FC |
1 | ||
| 35971-30230 |
MS13#..LHD..4FC |
1 | ||
| 35974 - HOUSING, POSITION INDICATOR, LOWER | ||||
| 35974-30060 |
GS131,MS13#..4FC |
1 | ||
| 35975 - COVER, SLIDE (FOR POSITION INDICATOR) | ||||
| 35975-30110 |
MS13#..LHD..4FC |
1 | ||
| 35975-30150 |
MS13#..LHD..4FC |
1 | ||
| 35975-30130 |
MS13#..LHD..4FC |
1 | ||
| Common parts | ||||
| 90159-40109 | ||||
| 90179-08041 | ||||
| 90463-12570 | ||||
| 90468-14004 | ||||
| 91666-40618 | ||||
| 93315-15012 | ||||
| 93510-13010 | ||||
| 94120-40800 | ||||
| 94512-00800 | ||||
| 94613-10800 | ||||
| 95381-02020 | ||||
(8709- )4F,5F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33504F - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 33542-3016006 |
MS13#..LHD..4FC SABLE,TRIM4# |
1 | ||
| 33542-3016002 |
MS13#..LHD..4FC MAROON,TRIM3# |
1 | ||
| 33542-3016004 |
MS13#..LHD..4FC DARK BLUE,TRIM8# |
1 | ||
| 33542-3021006 |
MS13#..LHD..4FC SABLE,TRIM4# |
1 | ||
| 33542-3021002 |
MS13#..LHD..4FC MAROON,TRIM3# |
1 | ||
| 33542-3021004 |
MS13#..LHD..4FC BLUE,TRIM8# |
1 | ||
| Common parts | ||||
| 91611-60825 | ||||
| 93381-16012 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
