8712 - HEATING & AIR CONDITIONING - HEATER UNIT & BLOWER

MS133L-ATMJEV (1987)

Toyota Crown

Production Sep 1987 - Oct 1991

Engine 5ME

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

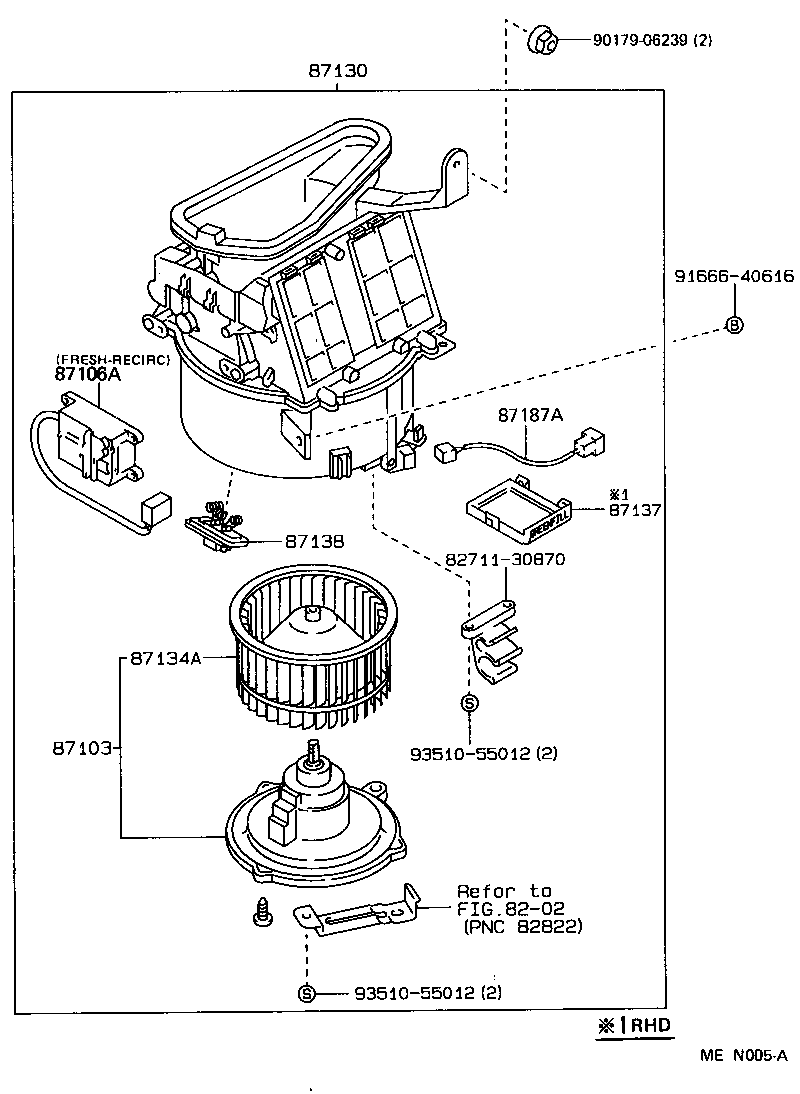

ILLUST NO. 1 OF 2(8709- )LS130..LHD ; (8709- )GS131,MS13#,YS132

Click highlighted areas on diagram

BLOWER

Part #	Description	Period	Qty
87103 - MOTOR SUB-ASSY, HEATER BLOWER, W/FAN
87103-30290	GS131,LS130,MS13#,YS132..LHD	09/1987 - 10/1991	1
87106A - SERVO SUB-ASSY, DAMPER
87106-30040	LS130,MS132,133,YS132..LHD..(DLX,SAL,SALEX,STD) AIR MIX,BI-LEVEL	09/1987 - 12/1987	1
87106-30080	LS130,MS13#,YS132..LHD FRESH-RECIRC	09/1987 - 08/1989	1
87106-30041	LS130,MS132,133,YS132..LHD..(DLX,SAL,SALEX,STD) AIR MIX,BI-LEVEL	12/1987 - 05/1988	1
87106-30030	MS132..GCC;MS13#..LHD..(ROY,SALEX) MODE	09/1987 - 05/1988	1
87106-30031	MS132,133..GCC MODE	05/1988 - 08/1989	1
87106-30031	MS132..GCC;MS132..ROY;MS133,135..LHD MODE	08/1989 - 10/1991	1
87106-30041	MS132,133..GCC AIR MIX,BI-LEVEL	05/1988 - 08/1989	1
87106-30080	GS131,LS130,MS13#,YS132..LHD FRESH-RECIRC	08/1989 - 10/1991	1
87106-30041	LS130,MS132,133,YS132..LHD..(DLX,SAL,SALEX,STD) AIR MIX,BI-LEVEL	08/1989 - 10/1991	1
87130 - BLOWER ASSY, HEATER, FRONT
87130-30420	GS131,LS130,MS13#,YS132..LHD	09/1987 - 10/1991	1
87134A - FAN, BLOWER, NO.2
87134-30050	GS131,LS130,MS13#,YS132..LHD	09/1987 - 10/1991	1
87138 - RESISTOR, HEATER BLOWER
87138-30340	GS131,LS130,MS13#,YS132..LHD BLOWER	09/1987 - 10/1990	1
87138-30390	GS131,LS130,MS13#,YS132..LHD BLOWER	10/1990 - 10/1991	1
87187A - WIRE, BLOWER MOTOR LEAD
87187-30010	LS130..LHD;GS131,MS13#,YS132	09/1987 - 10/1991	1
Common parts
82711-30870
90179-06239
91666-40616
93510-55012
Linked diagrams
8202

ILLUST NO. 2 OF 2(8709- )LS130,MS132,133..LHD..DLX,SAL,SALEX,STD

Click highlighted areas on diagram

HEATER UNIT

Part #	Description	Period	Qty
55907C - CABLE SUB-ASSY, WATER VALVE CONTROL
87286-30050	LS130,MS13#,YS132..LHD	09/1987 - 10/1991	1
87106A - SERVO SUB-ASSY, DAMPER
87106-30040	LS130,MS132,133,YS132..LHD..(DLX,SAL,SALEX,STD) AIR MIX,BI-LEVEL	09/1987 - 12/1987	1
87106-30080	LS130,MS13#,YS132..LHD FRESH-RECIRC	09/1987 - 08/1989	1
87106-30041	LS130,MS132,133,YS132..LHD..(DLX,SAL,SALEX,STD) AIR MIX,BI-LEVEL	12/1987 - 05/1988	1
87106-30030	MS132..GCC;MS13#..LHD..(ROY,SALEX) MODE	09/1987 - 05/1988	1
87106-30031	MS132,133..GCC MODE	05/1988 - 08/1989	1
87106-30031	MS132..GCC;MS132..ROY;MS133,135..LHD MODE	08/1989 - 10/1991	1
87106-30041	MS132,133..GCC AIR MIX,BI-LEVEL	05/1988 - 08/1989	1
87106-30080	GS131,LS130,MS13#,YS132..LHD FRESH-RECIRC	08/1989 - 10/1991	1
87106-30041	LS130,MS132,133,YS132..LHD..(DLX,SAL,SALEX,STD) AIR MIX,BI-LEVEL	08/1989 - 10/1991	1
87106A - SERVO SUB-ASSY, DAMPER
87106-30040	LS130,MS132,133,YS132..LHD..(DLX,SAL,SALEX,STD) AIR MIX,BI-LEVEL	09/1987 - 12/1987	1
87106-30080	LS130,MS13#,YS132..LHD FRESH-RECIRC	09/1987 - 08/1989	1
87106-30041	LS130,MS132,133,YS132..LHD..(DLX,SAL,SALEX,STD) AIR MIX,BI-LEVEL	12/1987 - 05/1988	1
87106-30030	MS132..GCC;MS13#..LHD..(ROY,SALEX) MODE	09/1987 - 05/1988	1
87106-30031	MS132,133..GCC MODE	05/1988 - 08/1989	1
87106-30031	MS132..GCC;MS132..ROY;MS133,135..LHD MODE	08/1989 - 10/1991	1
87106-30041	MS132,133..GCC AIR MIX,BI-LEVEL	05/1988 - 08/1989	1
87106-30080	GS131,LS130,MS13#,YS132..LHD FRESH-RECIRC	08/1989 - 10/1991	1
87106-30041	LS130,MS132,133,YS132..LHD..(DLX,SAL,SALEX,STD) AIR MIX,BI-LEVEL	08/1989 - 10/1991	1
87107 - UNIT SUB-ASSY, HEATER RADIATOR
87107-30400	LS130,MS13#,YS132..LHD	09/1987 - 10/1991	1
87150 - RADIATOR ASSY, HEATER
87150-30530	LS130,MS132,133,YS132..LHD..(DLX,SAL,SALEX,STD)	09/1987 - 05/1988	1
87150-30531	LS130,MS132,133,YS132..LHD..(DLX,SAL,SALEX,STD)	05/1988 - 10/1991	1
Common parts
90179-06239
90480-01420
Linked diagrams
8715

MS133L-ATMJEV (1987)

ILLUST NO. 1 OF 2(8709- )LS130..LHD ; (8709- )GS131,MS13#,YS132

ILLUST NO. 2 OF 2(8709- )LS130,MS132,133..LHD..DLX,SAL,SALEX,STD

Part Price Details
