MS133L-AEPGEV (1989)

Toyota Crown

Production Aug 1989 - Oct 1991
Engine 5ME
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8908- )GS131,MS133,135

Click highlighted areas on diagram

diagram 6974920020 77011 77018E 77035 77037 77051 77100 77100A 77100B 77100D 77100E 77178 77179A 77201 77213B 77290 77292B 77308A 77310A 77316 77350 77366 77377 77380 77601A 77601A 77651A 77652A 77653A 77654 9011908192 9015950225 9015950226 9017905020 9017910033 9046065004 9046065004 9046710092 9046712039 9165160820 9331914010 9331914010 9338115010 9338115010 9356755016 9611220240
Part # Description Qty Price
77011 - PIPE SUB-ASSY, FUEL TANK FILLER, LOWER
77011-30020

MS133,135

 1
77018E - TUBE SUB-ASSY, FUEL TANK EVAPORATION VENT
77018-30050

GS131,LS130,MS13#,YS132..HT,SED

 1
77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL
77035-30150

GS131,LS130,MS13#,YS132..LHD..(HT,SED)

 1
77037 - LOCK SUB-ASSY, FUEL FILLER OPENING LID
77037-14010

LS130,MS13#,YS132..HT,SED

 1
77051 - LEVER SUB-ASSY, FUEL LID OPEN
77051-3006002

GS131,LS130,MS13#,YS132..4F,4FC,4HC,5F

MAROON,TRIM3#

 1
77051-3006004

MS132,135;GS131,LS130,MS133,YS132..SAL,SALEX,STD

BLUE,TRIM8#

 1
77051-3006006

MS132,135..ROY,SAL;GS131,MS133..SAL,SALEX

SABLE,TRIM4#

 1
77051-3006002

GS131,LS130,MS13#,YS132

MAROON,TRIM3#

 1
77100 - TANK ASSY, FUEL
77001-30934

MS133,135

 1
77100A - PLUG(FOR FUEL TANK)
90105-12116

GS131,LS130,MS13#,YS132..HT,SED

 1
77100B - GASKET(FOR FUEL TANK)
90430-12245

GS131,LS130,MS13#,YS132..HT,SED

 1
77100D - HOSE, FUEL, NO.1(FOR FUEL TANK)
95333-06020

GS131,LS130,MS13#,YS132..HT,SED

*H,L=200

 1
77100E - HOSE, FUEL, NO.2(FOR FUEL TANK)
90445-22913

GS131,MS133,135

L=300

 1
77178 - GASKET, FUEL TANK FILLER PIPE, LOWER
77178-10010

GS131,LS130,MS13#,YS132..HT,SED

 1
77179A - GASKET, FUEL TANK BREATHER TUBE
77179-16010

GS131,LS130,MS13#,YS132..HT,SED

 1
77201 - PIPE SUB-ASSY, FUEL TANK INLET
77201-30170

LS130,MS13#,YS132..HT,SED

 1
77213B - HOSE, FUEL TANK TO FILLER PIPE
77213-30060

MS133,135

 1
77213-30100

GS131,MS133,135

 1
77290 - SHIELD ASSY, FUEL TANK FILLER PIPE
77291-30030

GS131,LS130,MS13#,YS132..HT,SED

 1
77292B - SHIELD, FUEL TANK DRAIN PLUG
77292-30020

GS131,LS130,MS13#,YS132..HT,SED

 1
77308A - CUSHION(FOR FUEL INLET BOX COVER)
90541-08016

GS131,LS130,MS13#,YS132..HT,SED

 2
77310A - CAP ASSY, FUEL TANK
77310-16011

GS131,MS13#,YS132

 1
77316 - GASKET, FUEL TANK CAP
77316-16010

GS131,LS130,MS13#,YS132

 1
77366 - SPRING, FUEL FILLER OPENING LID HINGE
77360-24010

GS131,LS130,MS13#,YS132

 1
77377 - RETAINER, FUEL FILLER OPENING LID LOCK
77377-20030

GS131,LS130,MS13#,YS132

 1
77380 - VALVE ASSY, FUEL CUT OFF
77380-14020

GS131,LS130,MS13#,YS132..HT,SED

 1
77601A - BAND SUB-ASSY, FUEL TANK, NO.1
77601-30110

GS131,MS133,135

 2
77601-30140

GS131,MS133,135

 2
77601A - BAND SUB-ASSY, FUEL TANK, NO.1
77601-30110

GS131,MS133,135

 2
77601-30140

GS131,MS133,135

 2
77651A - CUSHION, FUEL TANK, NO.1
77651-30070

GS131,MS133,135

 2
77652A - CUSHION, FUEL TANK, NO.2
77652-30030

GS131,MS133,135

 1
77653A - CUSHION, FUEL TANK, NO.3
77653-30020

GS131,MS133,135

 2
77654 - CUSHION, FUEL TANK, NO.2
77651-30070

GS131,MS133,135

 4
Common parts
69749-20020
90119-08192
90159-50225
90159-50226
90179-05020
90179-10033
90460-65004
90467-10092
90467-12039
91651-60820
93319-14010
93381-15010
93567-55016
96112-20240

(8908- )MS135..GCC ; (8908- )GS131,MS133..LHD

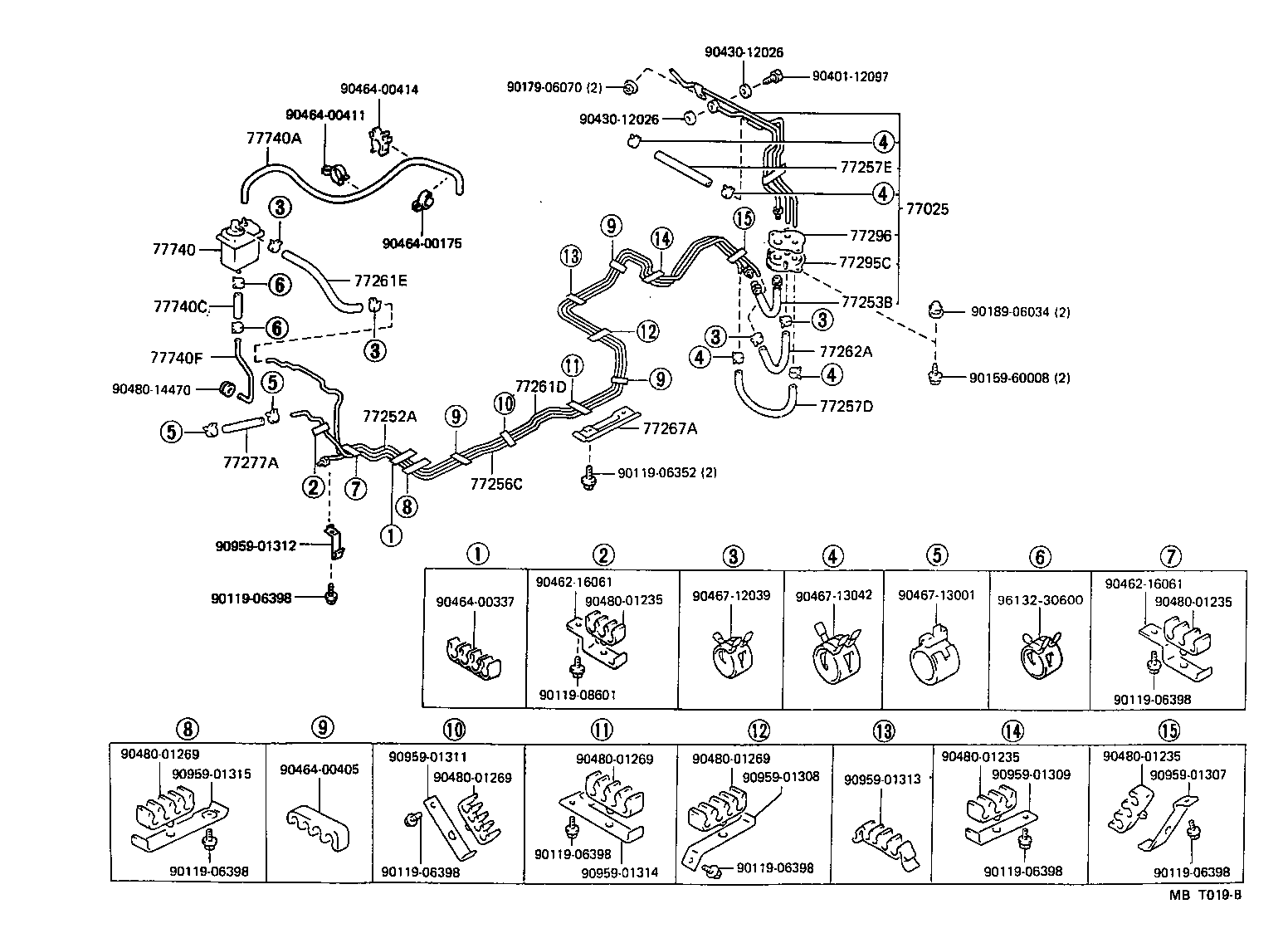

Click highlighted areas on diagram

diagram 77025 77252A 77253B 77256C 77257D 77257E 77261D 77261E 77262A 77267A 77277A 77295C 77296 77740 77740A 77740C 77740F 9011906352 9011906398 9011906398 9011906398 9011906398 9011906398 9011906398 9011906398 9011906398 9011908601 9015960008 9017906070 9018906034 9040112097 9043012026 9043012026 9046216061 9046216061 9046400175 9046400337 9046400405 9046400411 9046400414 9046712039 9046713001 9046713042 9048001235 9048001235 9048001235 9048001235 9048001269 9048001269 9048001269 9048001269 9048014470 9095901307 9095901308 9095901309 9095901311 9095901312 9095901313 9095901314 9095901315 9613230600
Part # Description Qty Price
77025 - TUBE SUB-ASSY, FUEL MAIN & RETURN, REAR
77025-30170

MS135..GCC;GS131,MS133..LHD

 1
77252A - TUBE, FUEL MAIN, NO.2
77252-30390

GS131,MS133,135

 1
77253B - HOSE, FUEL, NO.1(FOR FUEL MAIN NO.3 TUBE)
77259-30100

GS131,MS133,135

 1
77256C - TUBE, FUEL RETURN, NO.2
77256-30260

GS131,MS133,135

 1
77257D - HOSE, FUEL, NO.1(FOR FUEL RETURN NO.3 TUBE)
95333-08030

GS131,MS133,135

 1
77257E - HOSE, FUEL, NO.2(FOR FUEL RETURN NO.3 TUBE)
95333-08020

GS131,MS133,135

 1
77261D - TUBE, FUEL TANK TO CANISTER
77261-30100

MS133,135..GCC

 1
77261E - HOSE, FUEL, NO.1 (FOR FUEL TANK TO CANISTER TUBE)
95333-06020

MS13#..(HT,SED)..GCC

*H,L=200

 1
95333-06020

GS131,MS133..LHD;MS132,135..(DLX,ROY)..GCC

*H,L=200

 1
77262A - HOSE, FUEL, NO.1(FOR FUEL TANK TO CANISTER CENTER TUBE)
95333-06030

GS131,MS133..LHD;MS132,135..(HT,SED)..GCC

 1
77267A - PROTECTOR, FUEL TUBE, NO.2
77267-30050

GS131,LS130,MS13#,YS132

 1
77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1)
23271-42040

MS133,135

*H,L=266

 1
23271-43070

MS133,135

*H,L=350

 1
23271-42041

MS133,135

*H,L=266

 1
77295C - GROMMET, FUEL TUBE
77295-30020

GS131,LS130,MS13#,YS132..HT,SED

 1
77296 - PLATE, FUEL TUBE GROMMET SUPPORT
77296-30020

GS131,LS130,MS13#,YS132..HT,SED

 1
77740 - CANISTER ASSY, CHARCOAL
77740-30130

MS132,135..GCC;GS131,MS133..LHD

 1
77740A - HOSE, FUEL, NO.1(FOR CHARCOAL CANISTER)
90999-92004

MS133..GCC

L=950

 1
77740C - HOSE, FUEL, NO.3(FOR CHARCOAL CANISTER)
90445-12119

MS135..V;GS131,MS133..LHD;MS132,135..(SED,WG)..GCC

L=100

 1
77740F - TUBE, FUEL, NO.1(FOR CHARCOAL CANISTER)
77264-30030

MS132,135..GCC;GS131,MS133..LHD

 1
Common parts
90119-06352
90119-06398
90119-08601
90159-60008
90179-06070
90189-06034
90401-12097
90430-12026
90462-16061
90464-00175
90464-00337
90464-00405
90464-00411
90464-00414
90467-12039
90467-13001
90467-13042
90480-01235
90480-01269
90480-14470
90959-01307
90959-01308
90959-01309
90959-01311
90959-01312
90959-01313
90959-01314
90959-01315
96132-30600
