MS132R-AESDS (1987)
Toyota Crown

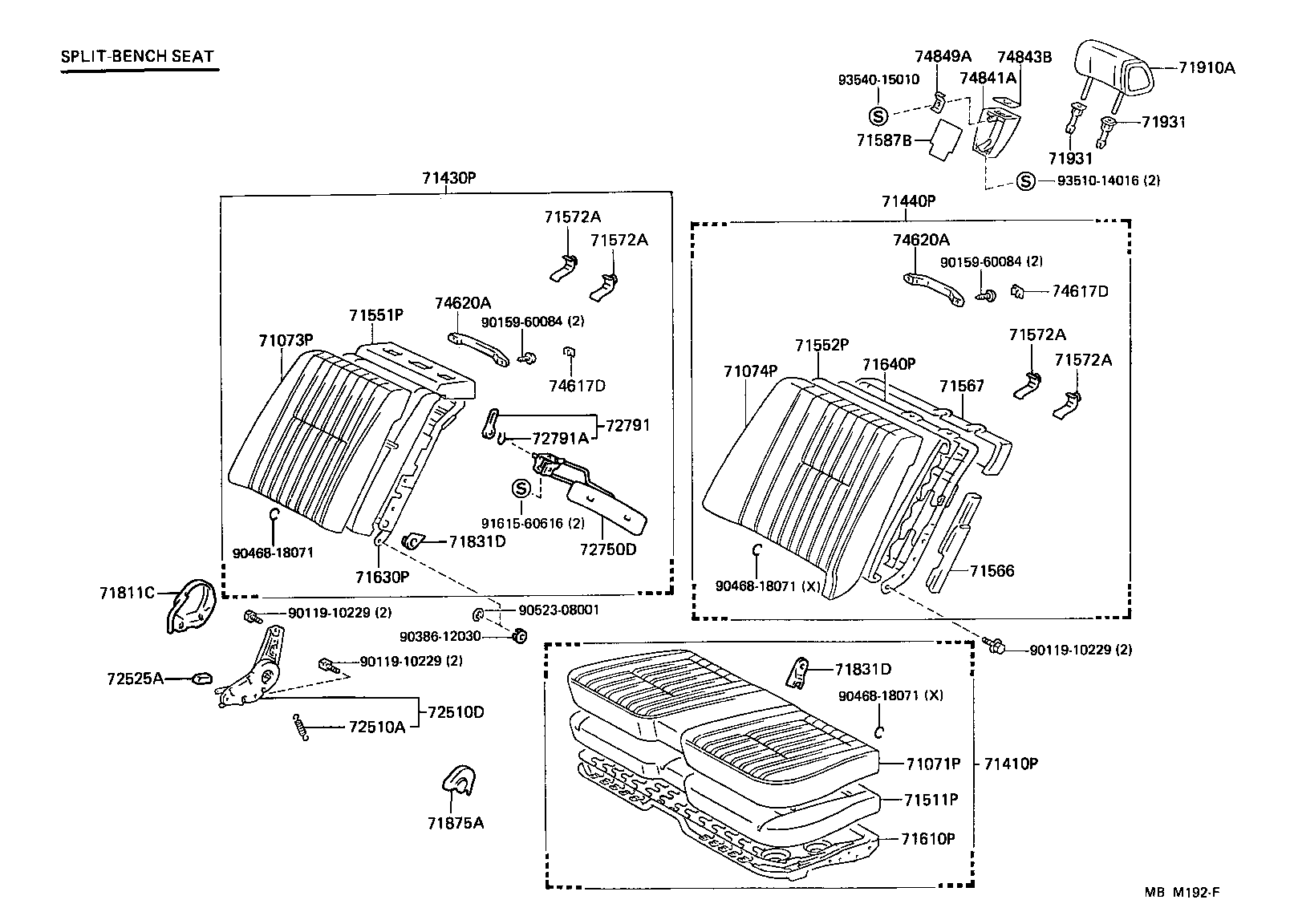

ILLUST NO. 1 OF 4(8709- )RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071P - COVER, FRONT SEAT CUSHION(FOR SEMI-SEPARATE TYPE) | ||||
| 71071-3A73004 |
LS130,MS132..4H,4HC BLUE,TRIM8# |
1 | ||
| 71071-3A73002 |
LS130,MS132..4H,4HC MAROON,TRIM3# |
1 | ||
| 71073P - COVER, FRONT SEAT BACK, RH(FOR SEMI-SEPARATE TYPE) | ||||
| 71073-3A51004 |
LS130,MS132..4H,4HC BLUE,TRIM8# |
1 | ||
| 71073-3A51002 |
LS130,MS132..4H,4HC MAROON,TRIM3# |
1 | ||
| 71410P - CUSHION ASSY, FRONT SEAT(FOR SEMI-SEPARATE TYPE) | ||||
| 71410-3F01002 |
LS130,MS132..4H,4HC ***,MAROON,TRIM3# |
1 | ||
| 71410-3F01004 |
LS130,MS132..4H,4HC ***,BLUE,TRIM8# |
1 | ||
| 71430P - BACK ASSY, FRONT SEAT, RH(FOR SEMI-SEPARATE TYPE) | ||||
| 71430-3F33002 |
LS130,MS132..4H,4HC ***,MAROON,TRIM3# |
1 | ||
| 71430-3F33004 |
LS130,MS132..4H,4HC ***,BLUE,TRIM8# |
1 | ||
| 71511P - PAD, FRONT SEAT CUSHION(FOR SEMI-SEPARATE TYPE) | ||||
| 71511-30650 |
LS130,MS132,YS132..4H,4HC |
1 | ||
| 71551P - PAD, FRONT SEAT BACK, RH(FOR SEMI-SEPARATE TYPE) | ||||
| 71551-30550 |
LS130,MS132..4H,4HC |
1 | ||
| 71552P - PAD, FRONT SEAT BACK, LH(FOR SEMI-SEPARATE TYPE) | ||||
| 71505-30050 |
LS130,MS132..4H,4HC |
1 | ||
| 71566 - PAD, FRONT SEAT BACK, INSIDE LH | ||||
| 71566-30050 |
LS130,MS132..4H,4HC |
1 | ||
| 71567 - PAD, FRONT SEAT BACK SAFETY | ||||
| 71567-30090 |
LS130,MS132..4H,4HC LH |
1 | ||
| 71567-30110 |
LS130,MS132..4H,4HC RH |
1 | ||
| 71572A - PAD, FRONT SEAT BACK SILENCER, B | ||||
| 71572-30040 |
LS130,MS132,YS132..4H,4HC |
3 | ||
| 71572A - PAD, FRONT SEAT BACK SILENCER, B | ||||
| 71572-30040 |
LS130,MS132,YS132..4H,4HC |
3 | ||
| 71572A - PAD, FRONT SEAT BACK SILENCER, B | ||||
| 71572-30040 |
LS130,MS132,YS132..4H,4HC |
3 | ||
| 71572A - PAD, FRONT SEAT BACK SILENCER, B | ||||
| 71572-30040 |
LS130,MS132,YS132..4H,4HC |
3 | ||
| 71587B - PROTECTOR, FRONT SEAT BACK EDGE | ||||
| 71587-30010 |
LS130,MS132,YS132..4H,4HC |
1 | ||
| 71610P - SPRING ASSY, FRONT SEAT CUSHION(FOR SEMI-SEPARATE TYPE) | ||||
| 71610-30320 |
LS130,MS132..4H,4HC |
1 | ||
| 71630P - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEMI-SEPARATE TYPE | ||||
| 71630-30720 |
LS130,MS132..4H,4HC |
1 | ||
| 71640P - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEMI-SEPARATE TYPE | ||||
| 71640-30440 |
LS130,MS132..4H,4HC |
1 | ||
| 71811C - COVER, RECLINING ADJUSTER, RH | ||||
| 71811-3022002 |
LS130,MS135..4F,4H,4HC;MS132,YS132..SED..(4F,4FC,4HC,5F)..(DLX,SAL,STD) MAROON,TRIM3# |
1 | ||
| 71811-3022004 |
MS135..SED..GCC;MS135,YS132..4F,4HC;GS131,LS130,MS132,133..SED..(DLX,SAL,STD) BLUE,TRIM8# |
1 | ||
| 71831D - COVER, FRONT SEAT HINGE, RH | ||||
| 71831-3004002 |
LS130,MS132,135..4H,4HC MAROON,TRIM3# |
1 | ||
| 71831-3004004 |
LS130,MS132,135..4H,4HC BLUE,TRIM8# |
1 | ||
| 71831D - COVER, FRONT SEAT HINGE, RH | ||||
| 71831-3004002 |
LS130,MS132,135..4H,4HC MAROON,TRIM3# |
1 | ||
| 71831-3004004 |
LS130,MS132,135..4H,4HC BLUE,TRIM8# |
1 | ||
| 71875A - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-3005002 |
LS130,MS132,135..4H,4HC MAROON,TRIM3# |
1 | ||
| 71875-3005004 |
LS130,MS132,135..4H,4HC BLUE,TRIM8# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-3037012 |
LS130,MS132,YS132..(DLX,STD)..GEN MAROON,TRIM3# |
2 | ||
| 71910-3037014 |
LS130,MS132,133,YS132..(DLX,STD)..GEN BLUE,TRIM8# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-1006054 |
MS132..WG..GCC;LS130,MS132,YS132..DLX,STD W(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71931-1001042 |
MS132..WG..GCC;LS130,MS132,YS132..DLX,STD W/O(LOCK),MAROON,TRIM3# |
2 | ||
| 71931-1001054 |
MS132..WG..GCC;LS130,MS132,YS132..DLX,STD W/O(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71930-1006042 |
MS132..WG..GCC;LS130,MS132,YS132..DLX,STD W(LOCK),MAROON,TRIM3# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-1006054 |
MS132..WG..GCC;LS130,MS132,YS132..DLX,STD W(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71931-1001042 |
MS132..WG..GCC;LS130,MS132,YS132..DLX,STD W/O(LOCK),MAROON,TRIM3# |
2 | ||
| 71931-1001054 |
MS132..WG..GCC;LS130,MS132,YS132..DLX,STD W/O(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71930-1006042 |
MS132..WG..GCC;LS130,MS132,YS132..DLX,STD W(LOCK),MAROON,TRIM3# |
2 | ||
| 72510A - SPRING, TENSION, NO.1(FOR RECLINING SEAT ADJUSTER) | ||||
| 90507-15002 |
GS131,LS130,MS132,133,YS132 |
1 | ||
| 72510D - ADJUSTER ASSY, RECLINING SEAT, OUTER RH | ||||
| 72510-30300 |
MS135..V;MS132..LHD..ROY;MS135,YS132..LHD..SED..(4F,4FC);GS131,LS130,MS132,133..(HT,SED)..(DLX,SAL,SALEX,STD) |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-3008004 |
MS135..V;MS135,YS132..4F,4HC;MS132,135..LHD..SED..ROY;GS131,LS130,MS132,133..DLX,SAL,SALEX,STD BLUE,TRIM8# |
1 | ||
| 72525-3008002 |
MS135,YS132..4F,4HC;MS132,135..LHD..ROY..GEN;LS130,MS132,133..DLX,SAL,SALEX,STD MAROON,TRIM3# |
1 | ||
| 72750D - ADJUSTER ASSY, LUMBAR SUPPORT, RH | ||||
| 72760-30090 |
LS130,MS132,135..4H,4HC |
1 | ||
| 72791 - LEVER, LUMBAR SUPPORT | ||||
| 72791-2202034 |
LS130,MS13#,YS132 DARK BLUE,TRIM8# |
1 | ||
| 72791-2202032 |
LS130,MS13#,YS132 MAROON,TRIM3# |
1 | ||
| 72791A - RING, SHAFT SNAP(FOR LUMBER SUPPORT LEVER) | ||||
| 90520-01002 |
GS131,LS130,MS13#,YS132 |
1 | ||
| 74841A - PANEL, FRONT SEAT BACK CONTROL | ||||
| 74841-3003014 |
LS130,MS132,YS132..4H,4HC BLUE,TRIM8# |
1 | ||
| 74841-3003002 |
LS130,MS132,YS132..4H,4HC MAROON,TRIM3# |
1 | ||
| 74843B - ORNAMENT, FRONT SEAT BACK CONTROL PANEL | ||||
| 74843-30031 |
LS130,MS132,YS132..4H,4HC |
1 | ||
| 74849A - RETAINER, FRONT SEAT BACK CONTROL PANEL SET | ||||
| 74849-30010 |
LS130,MS132,YS132..4H,4HC |
1 | ||
| Common parts | ||||
| 90119-10229 | ||||
| 90159-60084 | ||||
| 90386-12030 | ||||
| 90468-18071 | ||||
| 90523-08001 | ||||
| 91615-60616 | ||||
| 93510-14016 | ||||
| 93540-15010 | ||||
ILLUST NO. 3 OF 4(8709- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 72110A - TRACK ASSY, FRONT SEAT, OUTER RH | ||||
| 72110-30460 |
LS130,MS132,YS132..4H,4HC |
1 | ||
| 72110A - TRACK ASSY, FRONT SEAT, OUTER RH | ||||
| 72110-30460 |
LS130,MS132,YS132..4H,4HC |
1 | ||
| 72110A - TRACK ASSY, FRONT SEAT, OUTER RH | ||||
| 72110-30460 |
LS130,MS132,YS132..4H,4HC |
1 | ||
| 72120 - TRACK ASSY, FRONT SEAT, OUTER LH | ||||
| 72120-30390 |
LS130,MS132,YS132..4H,4HC |
1 | ||
| 72120 - TRACK ASSY, FRONT SEAT, OUTER LH | ||||
| 72120-30390 |
LS130,MS132,YS132..4H,4HC |
1 | ||
| 72120 - TRACK ASSY, FRONT SEAT, OUTER LH | ||||
| 72120-30390 |
LS130,MS132,YS132..4H,4HC |
1 | ||
| 72137B - COVER, SEAT TRACK, RH | ||||
| 72137-3003002 |
MS135..4HC;LS130,MS132,YS132..DLX,SAL,STD MAROON,TRIM3# |
1 | ||
| 72137-3003004 |
MS135..4HC;MS135..SED..GCC;GS131,LS130,MS132,133,YS132..DLX,SAL,STD BLUE,TRIM8# |
1 | ||
| 72137B - COVER, SEAT TRACK, RH | ||||
| 72137-3003002 |
MS135..4HC;LS130,MS132,YS132..DLX,SAL,STD MAROON,TRIM3# |
1 | ||
| 72137-3003004 |
MS135..4HC;MS135..SED..GCC;GS131,LS130,MS132,133,YS132..DLX,SAL,STD BLUE,TRIM8# |
1 | ||
| 72137B - COVER, SEAT TRACK, RH | ||||
| 72137-3003002 |
MS135..4HC;LS130,MS132,YS132..DLX,SAL,STD MAROON,TRIM3# |
1 | ||
| 72137-3003004 |
MS135..4HC;MS135..SED..GCC;GS131,LS130,MS132,133,YS132..DLX,SAL,STD BLUE,TRIM8# |
1 | ||
| 72138B - COVER, SEAT TRACK, LH | ||||
| 72138-3002002 |
MS135..4HC;LS130,MS132,YS132..DLX,SAL,STD MAROON,TRIM3# |
1 | ||
| 72138-3002004 |
MS135..4HC;MS135..SED..GCC;GS131,LS130,MS132,133,YS132..DLX,SAL,STD BLUE,TRIM8# |
1 | ||
| 72138B - COVER, SEAT TRACK, LH | ||||
| 72138-3002002 |
MS135..4HC;LS130,MS132,YS132..DLX,SAL,STD MAROON,TRIM3# |
1 | ||
| 72138-3002004 |
MS135..4HC;MS135..SED..GCC;GS131,LS130,MS132,133,YS132..DLX,SAL,STD BLUE,TRIM8# |
1 | ||
| 72138B - COVER, SEAT TRACK, LH | ||||
| 72138-3002002 |
MS135..4HC;LS130,MS132,YS132..DLX,SAL,STD MAROON,TRIM3# |
1 | ||
| 72138-3002004 |
MS135..4HC;MS135..SED..GCC;GS131,LS130,MS132,133,YS132..DLX,SAL,STD BLUE,TRIM8# |
1 | ||
| 72211 - HANDLE, SEAT TRACK ADJUSTING | ||||
| 72211-30110 |
LS130,MS132,135,YS132..4H,4HC |
1 | ||
| 72213 - KNOB, SEAT TRACK ADJUSTING HANDLE | ||||
| 72213-2201014 |
LS130,MS132,135,YS132..4H,4HC BLUE,TRIM8# |
1 | ||
| 72213-2201012 |
LS130,MS132,135,YS132..4H,4HC MAROON,TRIM3# |
1 | ||
| 72301A - WIRE SUB-ASSY, SEAT TRACK EQUALIZING, RH | ||||
| 72301-30130 |
LS130,MS132,135,YS132..4H,4HC |
1 | ||
| 72301A - WIRE SUB-ASSY, SEAT TRACK EQUALIZING, RH | ||||
| 72301-30130 |
LS130,MS132,135,YS132..4H,4HC |
1 | ||
| 72301A - WIRE SUB-ASSY, SEAT TRACK EQUALIZING, RH | ||||
| 72301-30130 |
LS130,MS132,135,YS132..4H,4HC |
1 | ||
| 72301D - WIRE SUB-ASSY, SEAT TRACK EQUALIZING, LH | ||||
| 72301-30130 |
LS130,MS132,135,YS132..4H,4HC |
1 | ||
| 72301D - WIRE SUB-ASSY, SEAT TRACK EQUALIZING, LH | ||||
| 72301-30130 |
LS130,MS132,135,YS132..4H,4HC |
1 | ||
| 72301D - WIRE SUB-ASSY, SEAT TRACK EQUALIZING, LH | ||||
| 72301-30130 |
LS130,MS132,135,YS132..4H,4HC |
1 | ||
| Common parts | ||||
| 90116-10085 | ||||
| 90119-06230 | ||||
| 90119-10349 | ||||
| 90119-11016 | ||||
| 90168-40049 | ||||
| 90179-10015 | ||||
| 90389-06003 | ||||
| 90506-04002 | ||||
| 90506-08006 | ||||
| 90506-18043 | ||||
| 90507-18007 | ||||
| 90540-17004 | ||||
| 91611-60816 | ||||
| 91612-40616 | ||||
| 94543-01000 | ||||
ILLUST NO. 3 OF 4(8709- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 72137B - COVER, SEAT TRACK, RH | ||||
| 72137-3003002 |
MS135..4HC;LS130,MS132,YS132..DLX,SAL,STD MAROON,TRIM3# |
1 | ||
| 72137-3003004 |
MS135..4HC;MS135..SED..GCC;GS131,LS130,MS132,133,YS132..DLX,SAL,STD BLUE,TRIM8# |
1 | ||
| 72138B - COVER, SEAT TRACK, LH | ||||
| 72138-3002002 |
MS135..4HC;LS130,MS132,YS132..DLX,SAL,STD MAROON,TRIM3# |
1 | ||
| 72138-3002004 |
MS135..4HC;MS135..SED..GCC;GS131,LS130,MS132,133,YS132..DLX,SAL,STD BLUE,TRIM8# |
1 | ||
| Common parts | ||||
| 90116-10085 | ||||
| 90119-10349 | ||||
| 90119-11016 | ||||
| 90168-40049 | ||||
| 90168-40081 | ||||
| 90179-10015 | ||||
| 91611-60816 | ||||
ILLUST NO. 1 OF 4(8709- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071P - COVER, FRONT SEAT CUSHION(FOR SEMI-SEPARATE TYPE) | ||||
| 71071-3A73004 |
LS130,MS132..4H,4HC BLUE,TRIM8# |
1 | ||
| 71071-3A73002 |
LS130,MS132..4H,4HC MAROON,TRIM3# |
1 | ||
| 71073P - COVER, FRONT SEAT BACK, RH(FOR SEMI-SEPARATE TYPE) | ||||
| 71073-3A51004 |
LS130,MS132..4H,4HC BLUE,TRIM8# |
1 | ||
| 71073-3A51002 |
LS130,MS132..4H,4HC MAROON,TRIM3# |
1 | ||
| 71410P - CUSHION ASSY, FRONT SEAT(FOR SEMI-SEPARATE TYPE) | ||||
| 71410-3F01002 |
LS130,MS132..4H,4HC ***,MAROON,TRIM3# |
1 | ||
| 71410-3F01004 |
LS130,MS132..4H,4HC ***,BLUE,TRIM8# |
1 | ||
| 71430P - BACK ASSY, FRONT SEAT, RH(FOR SEMI-SEPARATE TYPE) | ||||
| 71430-3F33002 |
LS130,MS132..4H,4HC ***,MAROON,TRIM3# |
1 | ||
| 71430-3F33004 |
LS130,MS132..4H,4HC ***,BLUE,TRIM8# |
1 | ||
| 71511P - PAD, FRONT SEAT CUSHION(FOR SEMI-SEPARATE TYPE) | ||||
| 71511-30650 |
LS130,MS132,YS132..4H,4HC |
1 | ||
| 71551P - PAD, FRONT SEAT BACK, RH(FOR SEMI-SEPARATE TYPE) | ||||
| 71551-30550 |
LS130,MS132..4H,4HC |
1 | ||
| 71552P - PAD, FRONT SEAT BACK, LH(FOR SEMI-SEPARATE TYPE) | ||||
| 71505-30050 |
LS130,MS132..4H,4HC |
1 | ||
| 71572A - PAD, FRONT SEAT BACK SILENCER, B | ||||
| 71572-30040 |
LS130,MS132,YS132..4H,4HC |
3 | ||
| 71572A - PAD, FRONT SEAT BACK SILENCER, B | ||||
| 71572-30040 |
LS130,MS132,YS132..4H,4HC |
3 | ||
| 71572A - PAD, FRONT SEAT BACK SILENCER, B | ||||
| 71572-30040 |
LS130,MS132,YS132..4H,4HC |
3 | ||
| 71572A - PAD, FRONT SEAT BACK SILENCER, B | ||||
| 71572-30040 |
LS130,MS132,YS132..4H,4HC |
3 | ||
| 71610P - SPRING ASSY, FRONT SEAT CUSHION(FOR SEMI-SEPARATE TYPE) | ||||
| 71610-30320 |
LS130,MS132..4H,4HC |
1 | ||
| 71630P - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEMI-SEPARATE TYPE | ||||
| 71630-30720 |
LS130,MS132..4H,4HC |
1 | ||
| 71640P - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEMI-SEPARATE TYPE | ||||
| 71640-30440 |
LS130,MS132..4H,4HC |
1 | ||
| 71811C - COVER, RECLINING ADJUSTER, RH | ||||
| 71811-3022002 |
LS130,MS135..4F,4H,4HC;MS132,YS132..SED..(4F,4FC,4HC,5F)..(DLX,SAL,STD) MAROON,TRIM3# |
1 | ||
| 71811-3022004 |
MS135..SED..GCC;MS135,YS132..4F,4HC;GS131,LS130,MS132,133..SED..(DLX,SAL,STD) BLUE,TRIM8# |
1 | ||
| 71812C - COVER, RECLINING ADJUSTER, LH | ||||
| 71812-3013002 |
LS130,MS135..4F,4HC;MS132,YS132..SED..(4F,4FC,4H,5F)..(DLX,SAL,STD) MAROON,TRIM3# |
1 | ||
| 71831A - COVER, FRONT SEAT HINGE | ||||
| 71831-3005002 |
LS130,MS132..4H,4HC MAROON,TRIM3# |
1 | ||
| 71831-3005004 |
LS130,MS132..4H,4HC BLUE,TRIM8# |
1 | ||
| 71831D - COVER, FRONT SEAT HINGE, RH | ||||
| 71831-3004002 |
LS130,MS132,135..4H,4HC MAROON,TRIM3# |
1 | ||
| 71831-3004004 |
LS130,MS132,135..4H,4HC BLUE,TRIM8# |
1 | ||
| 71875A - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-3005002 |
LS130,MS132,135..4H,4HC MAROON,TRIM3# |
1 | ||
| 71875-3005004 |
LS130,MS132,135..4H,4HC BLUE,TRIM8# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-3037012 |
LS130,MS132,YS132..(DLX,STD)..GEN MAROON,TRIM3# |
2 | ||
| 71910-3037014 |
LS130,MS132,133,YS132..(DLX,STD)..GEN BLUE,TRIM8# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-1006054 |
MS132..WG..GCC;LS130,MS132,YS132..DLX,STD W(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71931-1001042 |
MS132..WG..GCC;LS130,MS132,YS132..DLX,STD W/O(LOCK),MAROON,TRIM3# |
2 | ||
| 71931-1001054 |
MS132..WG..GCC;LS130,MS132,YS132..DLX,STD W/O(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71930-1006042 |
MS132..WG..GCC;LS130,MS132,YS132..DLX,STD W(LOCK),MAROON,TRIM3# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-1006054 |
MS132..WG..GCC;LS130,MS132,YS132..DLX,STD W(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71931-1001042 |
MS132..WG..GCC;LS130,MS132,YS132..DLX,STD W/O(LOCK),MAROON,TRIM3# |
2 | ||
| 71931-1001054 |
MS132..WG..GCC;LS130,MS132,YS132..DLX,STD W/O(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71930-1006042 |
MS132..WG..GCC;LS130,MS132,YS132..DLX,STD W(LOCK),MAROON,TRIM3# |
2 | ||
| 72510A - SPRING, TENSION, NO.1(FOR RECLINING SEAT ADJUSTER) | ||||
| 90507-15002 |
GS131,LS130,MS132,133,YS132 |
1 | ||
| 72510D - ADJUSTER ASSY, RECLINING SEAT, OUTER RH | ||||
| 72510-30300 |
MS135..V;MS132..LHD..ROY;MS135,YS132..LHD..SED..(4F,4FC);GS131,LS130,MS132,133..(HT,SED)..(DLX,SAL,SALEX,STD) |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-3008004 |
MS135..V;MS135,YS132..4F,4HC;MS132,135..LHD..SED..ROY;GS131,LS130,MS132,133..DLX,SAL,SALEX,STD BLUE,TRIM8# |
1 | ||
| 72525-3008002 |
MS135,YS132..4F,4HC;MS132,135..LHD..ROY..GEN;LS130,MS132,133..DLX,SAL,SALEX,STD MAROON,TRIM3# |
1 | ||
| 72526 - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-3005002 |
MS132,135..RHD..ROY;GS131,LS130,MS133..4F,4FC,5F;MS132,YS132..(4F,4FC,4H,5F)..(DLX,SAL,STD) MAROON,TRIM3# |
1 | ||
| 72750D - ADJUSTER ASSY, LUMBAR SUPPORT, RH | ||||
| 72760-30090 |
LS130,MS132,135..4H,4HC |
1 | ||
| 72791 - LEVER, LUMBAR SUPPORT | ||||
| 72791-2202034 |
LS130,MS13#,YS132 DARK BLUE,TRIM8# |
1 | ||
| 72791-2202032 |
LS130,MS13#,YS132 MAROON,TRIM3# |
1 | ||
| 72791A - RING, SHAFT SNAP(FOR LUMBER SUPPORT LEVER) | ||||
| 90520-01002 |
GS131,LS130,MS13#,YS132 |
1 | ||
| 74841A - PANEL, FRONT SEAT BACK CONTROL | ||||
| 74841-3003014 |
LS130,MS132,YS132..4H,4HC BLUE,TRIM8# |
1 | ||
| 74841-3003002 |
LS130,MS132,YS132..4H,4HC MAROON,TRIM3# |
1 | ||
| 74843B - ORNAMENT, FRONT SEAT BACK CONTROL PANEL | ||||
| 74843-30031 |
LS130,MS132,YS132..4H,4HC |
1 | ||
| 74849A - RETAINER, FRONT SEAT BACK CONTROL PANEL SET | ||||
| 74849-30010 |
LS130,MS132,YS132..4H,4HC |
1 | ||
| Common parts | ||||
| 67772-20021 | ||||
| 90101-06022 | ||||
| 90116-06075 | ||||
| 90119-10229 | ||||
| 90159-60084 | ||||
| 90168-40049 | ||||
| 90168-40070 | ||||
| 90179-06032 | ||||
| 90386-12030 | ||||
| 90389-06024 | ||||
| 90467-11004 | ||||
| 90468-18071 | ||||
| 90520-01002 | ||||
| 90523-08001 | ||||
| 91615-60616 | ||||
| 93530-54020 | ||||
ILLUST NO. 1 OF 4(8709- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-3058004 |
LS130,MS132..4H,4HC BLUE,TRIM8# |
1 | ||
| 71074-3058002 |
LS130,MS132..4H,4HC MAROON,TRIM3# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71440-3F16002 |
LS130,MS132..4H,4HC MAROON,TRIM3# |
1 | ||
| 71440-3F16004 |
LS130,MS132..4H,4HC BLUE,TRIM8# |
1 | ||
| 71572A - PAD, FRONT SEAT BACK SILENCER, B | ||||
| 71572-30040 |
LS130,MS132,YS132..4H,4HC |
3 | ||
| 71572A - PAD, FRONT SEAT BACK SILENCER, B | ||||
| 71572-30040 |
LS130,MS132,YS132..4H,4HC |
3 | ||
| 71572A - PAD, FRONT SEAT BACK SILENCER, B | ||||
| 71572-30040 |
LS130,MS132,YS132..4H,4HC |
3 | ||
| 71572A - PAD, FRONT SEAT BACK SILENCER, B | ||||
| 71572-30040 |
LS130,MS132,YS132..4H,4HC |
3 | ||
| 71811C - COVER, RECLINING ADJUSTER, RH | ||||
| 71811-3022002 |
LS130,MS135..4F,4H,4HC;MS132,YS132..SED..(4F,4FC,4HC,5F)..(DLX,SAL,STD) MAROON,TRIM3# |
1 | ||
| 71811-3022004 |
MS135..SED..GCC;MS135,YS132..4F,4HC;GS131,LS130,MS132,133..SED..(DLX,SAL,STD) BLUE,TRIM8# |
1 | ||
| 71811C - COVER, RECLINING ADJUSTER, RH | ||||
| 71811-3022002 |
LS130,MS135..4F,4H,4HC;MS132,YS132..SED..(4F,4FC,4HC,5F)..(DLX,SAL,STD) MAROON,TRIM3# |
1 | ||
| 71811-3022004 |
MS135..SED..GCC;MS135,YS132..4F,4HC;GS131,LS130,MS132,133..SED..(DLX,SAL,STD) BLUE,TRIM8# |
1 | ||
| 71812C - COVER, RECLINING ADJUSTER, LH | ||||
| 71812-3013002 |
LS130,MS135..4F,4HC;MS132,YS132..SED..(4F,4FC,4H,5F)..(DLX,SAL,STD) MAROON,TRIM3# |
1 | ||
| 71812C - COVER, RECLINING ADJUSTER, LH | ||||
| 71812-3013002 |
LS130,MS135..4F,4HC;MS132,YS132..SED..(4F,4FC,4H,5F)..(DLX,SAL,STD) MAROON,TRIM3# |
1 | ||
| 71831D - COVER, FRONT SEAT HINGE, RH | ||||
| 71831-3004002 |
LS130,MS132,135..4H,4HC MAROON,TRIM3# |
1 | ||
| 71831-3004004 |
LS130,MS132,135..4H,4HC BLUE,TRIM8# |
1 | ||
| 71831D - COVER, FRONT SEAT HINGE, RH | ||||
| 71831-3004002 |
LS130,MS132,135..4H,4HC MAROON,TRIM3# |
1 | ||
| 71831-3004004 |
LS130,MS132,135..4H,4HC BLUE,TRIM8# |
1 | ||
| 71875A - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-3005002 |
LS130,MS132,135..4H,4HC MAROON,TRIM3# |
1 | ||
| 71875-3005004 |
LS130,MS132,135..4H,4HC BLUE,TRIM8# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-3037012 |
LS130,MS132,YS132..(DLX,STD)..GEN MAROON,TRIM3# |
2 | ||
| 71910-3037014 |
LS130,MS132,133,YS132..(DLX,STD)..GEN BLUE,TRIM8# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-1006054 |
MS132..WG..GCC;LS130,MS132,YS132..DLX,STD W(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71931-1001042 |
MS132..WG..GCC;LS130,MS132,YS132..DLX,STD W/O(LOCK),MAROON,TRIM3# |
2 | ||
| 71931-1001054 |
MS132..WG..GCC;LS130,MS132,YS132..DLX,STD W/O(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71930-1006042 |
MS132..WG..GCC;LS130,MS132,YS132..DLX,STD W(LOCK),MAROON,TRIM3# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-1006054 |
MS132..WG..GCC;LS130,MS132,YS132..DLX,STD W(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71931-1001042 |
MS132..WG..GCC;LS130,MS132,YS132..DLX,STD W/O(LOCK),MAROON,TRIM3# |
2 | ||
| 71931-1001054 |
MS132..WG..GCC;LS130,MS132,YS132..DLX,STD W/O(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71930-1006042 |
MS132..WG..GCC;LS130,MS132,YS132..DLX,STD W(LOCK),MAROON,TRIM3# |
2 | ||
| 72510A - SPRING, TENSION, NO.1(FOR RECLINING SEAT ADJUSTER) | ||||
| 90507-15002 |
GS131,LS130,MS132,133,YS132 |
1 | ||
| 72510D - ADJUSTER ASSY, RECLINING SEAT, OUTER RH | ||||
| 72510-30300 |
MS135..V;MS132..LHD..ROY;MS135,YS132..LHD..SED..(4F,4FC);GS131,LS130,MS132,133..(HT,SED)..(DLX,SAL,SALEX,STD) |
1 | ||
| 72510D - ADJUSTER ASSY, RECLINING SEAT, OUTER RH | ||||
| 72510-30300 |
MS135..V;MS132..LHD..ROY;MS135,YS132..LHD..SED..(4F,4FC);GS131,LS130,MS132,133..(HT,SED)..(DLX,SAL,SALEX,STD) |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-3008004 |
MS135..V;MS135,YS132..4F,4HC;MS132,135..LHD..SED..ROY;GS131,LS130,MS132,133..DLX,SAL,SALEX,STD BLUE,TRIM8# |
1 | ||
| 72525-3008002 |
MS135,YS132..4F,4HC;MS132,135..LHD..ROY..GEN;LS130,MS132,133..DLX,SAL,SALEX,STD MAROON,TRIM3# |
1 | ||
| 72526 - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-3005002 |
MS132,135..RHD..ROY;GS131,LS130,MS133..4F,4FC,5F;MS132,YS132..(4F,4FC,4H,5F)..(DLX,SAL,STD) MAROON,TRIM3# |
1 | ||
| 72750D - ADJUSTER ASSY, LUMBAR SUPPORT, RH | ||||
| 72760-30090 |
LS130,MS132,135..4H,4HC |
1 | ||
| 72760D - ADJUSTER ASSY, LUMBAR SUPPORT, LH | ||||
| 72760-30090 |
LS130,MS132,135..4H,4HC;LS130,MS132,133,YS132..LHD..(4F,4FC,5F)..(DLX,SAL,SALEX,STD) |
1 | ||
| 72791 - LEVER, LUMBAR SUPPORT | ||||
| 72791-2202034 |
LS130,MS13#,YS132 DARK BLUE,TRIM8# |
1 | ||
| 72791-2202032 |
LS130,MS13#,YS132 MAROON,TRIM3# |
1 | ||
| 72791 - LEVER, LUMBAR SUPPORT | ||||
| 72791-2202034 |
LS130,MS13#,YS132 DARK BLUE,TRIM8# |
1 | ||
| 72791-2202032 |
LS130,MS13#,YS132 MAROON,TRIM3# |
1 | ||
| 72791A - RING, SHAFT SNAP(FOR LUMBER SUPPORT LEVER) | ||||
| 90520-01002 |
GS131,LS130,MS13#,YS132 |
1 | ||
| 72791A - RING, SHAFT SNAP(FOR LUMBER SUPPORT LEVER) | ||||
| 90520-01002 |
GS131,LS130,MS13#,YS132 |
1 | ||
| Common parts | ||||
| 67772-20021 | ||||
| 90119-10229 | ||||
| 90159-60084 | ||||
| 90168-40070 | ||||
| 90386-12030 | ||||
| 90467-11004 | ||||
| 90468-04092 | ||||
| 90468-16012 | ||||
| 90468-18071 | ||||
| 90520-01002 | ||||
| 90523-08001 | ||||
| 90560-12025 | ||||
| 91611-60816 | ||||
| 91615-60616 | ||||
| 93530-54020 | ||||
| Linked diagrams | ||||
| 7404 | ||||
| 8511 | ||||
ILLUST NO. 2 OF 4(8709- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71513B - PAD, FRONT SEAT CUSHION, B | ||||
| 71513-30350 |
LS130,MS132,135,YS132..4H,4HC |
2 | ||
| 71513B - PAD, FRONT SEAT CUSHION, B | ||||
| 71513-30350 |
LS130,MS132,135,YS132..4H,4HC |
2 | ||
| 71513B - PAD, FRONT SEAT CUSHION, B | ||||
| 71513-30350 |
LS130,MS132,135,YS132..4H,4HC |
2 | ||
| 71513B - PAD, FRONT SEAT CUSHION, B | ||||
| 71513-30350 |
LS130,MS132,135,YS132..4H,4HC |
2 | ||
| 71513B - PAD, FRONT SEAT CUSHION, B | ||||
| 71513-30350 |
LS130,MS132,135,YS132..4H,4HC |
2 | ||
| 71513B - PAD, FRONT SEAT CUSHION, B | ||||
| 71513-30350 |
LS130,MS132,135,YS132..4H,4HC |
2 | ||
| 71515 - PAD, FRONT SEAT CUSHION, D | ||||
| 71515-30060 |
LS130,MS132,135..4H,4HC |
1 | ||
| 71515 - PAD, FRONT SEAT CUSHION, D | ||||
| 71515-30060 |
LS130,MS132,135..4H,4HC |
1 | ||
| 71523A - PAD, FRONT SEAT CUSHION SILENCER, C | ||||
| 71672-30030 |
LS130,MS132,YS132..4H,4HC |
4 | ||
| 71523A - PAD, FRONT SEAT CUSHION SILENCER, C | ||||
| 71672-30030 |
LS130,MS132,YS132..4H,4HC |
4 | ||
| 71523A - PAD, FRONT SEAT CUSHION SILENCER, C | ||||
| 71672-30030 |
LS130,MS132,YS132..4H,4HC |
4 | ||
| 71523A - PAD, FRONT SEAT CUSHION SILENCER, C | ||||
| 71672-30030 |
LS130,MS132,YS132..4H,4HC |
4 | ||
| 71523A - PAD, FRONT SEAT CUSHION SILENCER, C | ||||
| 71672-30030 |
LS130,MS132,YS132..4H,4HC |
4 | ||
| 71523A - PAD, FRONT SEAT CUSHION SILENCER, C | ||||
| 71672-30030 |
LS130,MS132,YS132..4H,4HC |
4 | ||
| 71523A - PAD, FRONT SEAT CUSHION SILENCER, C | ||||
| 71672-30030 |
LS130,MS132,YS132..4H,4HC |
4 | ||
| 71523A - PAD, FRONT SEAT CUSHION SILENCER, C | ||||
| 71672-30030 |
LS130,MS132,YS132..4H,4HC |
4 | ||
| 71523A - PAD, FRONT SEAT CUSHION SILENCER, C | ||||
| 71672-30030 |
LS130,MS132,YS132..4H,4HC |
4 | ||
| 71523A - PAD, FRONT SEAT CUSHION SILENCER, C | ||||
| 71672-30030 |
LS130,MS132,YS132..4H,4HC |
4 | ||
| 71523A - PAD, FRONT SEAT CUSHION SILENCER, C | ||||
| 71672-30030 |
LS130,MS132,YS132..4H,4HC |
4 | ||
| 71523A - PAD, FRONT SEAT CUSHION SILENCER, C | ||||
| 71672-30030 |
LS130,MS132,YS132..4H,4HC |
4 | ||
| 71523A - PAD, FRONT SEAT CUSHION SILENCER, C | ||||
| 71672-30030 |
LS130,MS132,YS132..4H,4HC |
4 | ||
| 71523A - PAD, FRONT SEAT CUSHION SILENCER, C | ||||
| 71672-30030 |
LS130,MS132,YS132..4H,4HC |
4 | ||
| 71524 - PAD, FRONT SEAT CUSHION SILENCER, D | ||||
| 71524-30050 |
LS130,MS132,135,YS132..4H,4HC |
2 | ||
| 71524 - PAD, FRONT SEAT CUSHION SILENCER, D | ||||
| 71524-30050 |
LS130,MS132,135,YS132..4H,4HC |
2 | ||
| 71524 - PAD, FRONT SEAT CUSHION SILENCER, D | ||||
| 71524-30050 |
LS130,MS132,135,YS132..4H,4HC |
2 | ||
| 71524 - PAD, FRONT SEAT CUSHION SILENCER, D | ||||
| 71524-30050 |
LS130,MS132,135,YS132..4H,4HC |
2 | ||
| 71524 - PAD, FRONT SEAT CUSHION SILENCER, D | ||||
| 71524-30050 |
LS130,MS132,135,YS132..4H,4HC |
2 | ||
| 71524 - PAD, FRONT SEAT CUSHION SILENCER, D | ||||
| 71524-30050 |
LS130,MS132,135,YS132..4H,4HC |
2 | ||
| 71524 - PAD, FRONT SEAT CUSHION SILENCER, D | ||||
| 71524-30050 |
LS130,MS132,135,YS132..4H,4HC |
2 | ||
| 71524 - PAD, FRONT SEAT CUSHION SILENCER, D | ||||
| 71524-30050 |
LS130,MS132,135,YS132..4H,4HC |
2 | ||
| 71531 - PAD, FRONT SEAT CUSHION CORNER, A | ||||
| 71531-30040 |
LS130,MS132,YS132..4H,4HC |
1 | ||
| 71531 - PAD, FRONT SEAT CUSHION CORNER, A | ||||
| 71531-30040 |
LS130,MS132,YS132..4H,4HC |
1 | ||
| 71532 - PAD, FRONT SEAT CUSHION CORNER, B | ||||
| 71532-30070 |
LS130,MS132,135,YS132..4H,4HC |
1 | ||
| 71532 - PAD, FRONT SEAT CUSHION CORNER, B | ||||
| 71532-30070 |
LS130,MS132,135,YS132..4H,4HC |
1 | ||
| 71532 - PAD, FRONT SEAT CUSHION CORNER, B | ||||
| 71532-30070 |
LS130,MS132,135,YS132..4H,4HC |
1 | ||
| 71554 - PAD, FRONT SEAT BACK, C | ||||
| 71554-30310 |
LS130,MS132,YS132..4H,4HC |
1 | ||
| 71554 - PAD, FRONT SEAT BACK, C | ||||
| 71554-30310 |
LS130,MS132,YS132..4H,4HC |
1 | ||
| 71571 - PAD, FRONT SEAT BACK SILENCER, A | ||||
| 71571-30140 |
LS130,MS132..4H,4HC RH |
1 | ||
| 71571-30100 |
LS130,MS132..4H,4HC LH |
1 | ||
| 71571 - PAD, FRONT SEAT BACK SILENCER, A | ||||
| 71571-30140 |
LS130,MS132..4H,4HC RH |
1 | ||
| 71571-30100 |
LS130,MS132..4H,4HC LH |
1 | ||
| 71571 - PAD, FRONT SEAT BACK SILENCER, A | ||||
| 71571-30140 |
LS130,MS132..4H,4HC RH |
1 | ||
| 71571-30100 |
LS130,MS132..4H,4HC LH |
1 | ||
| 71571 - PAD, FRONT SEAT BACK SILENCER, A | ||||
| 71571-30140 |
LS130,MS132..4H,4HC RH |
1 | ||
| 71571-30100 |
LS130,MS132..4H,4HC LH |
1 | ||
| 71571 - PAD, FRONT SEAT BACK SILENCER, A | ||||
| 71571-30140 |
LS130,MS132..4H,4HC RH |
1 | ||
| 71571-30100 |
LS130,MS132..4H,4HC LH |
1 | ||
| 71571 - PAD, FRONT SEAT BACK SILENCER, A | ||||
| 71571-30140 |
LS130,MS132..4H,4HC RH |
1 | ||
| 71571-30100 |
LS130,MS132..4H,4HC LH |
1 | ||
| 71571 - PAD, FRONT SEAT BACK SILENCER, A | ||||
| 71571-30140 |
LS130,MS132..4H,4HC RH |
1 | ||
| 71571-30100 |
LS130,MS132..4H,4HC LH |
1 | ||
| 71571 - PAD, FRONT SEAT BACK SILENCER, A | ||||
| 71571-30140 |
LS130,MS132..4H,4HC RH |
1 | ||
| 71571-30100 |
LS130,MS132..4H,4HC LH |
1 | ||
| 71573 - PAD, FRONT SEAT BACK SILENCER, C | ||||
| 71573-30080 |
LS130,MS132,YS132..4H,4HC |
1 | ||
| 71573 - PAD, FRONT SEAT BACK SILENCER, C | ||||
| 71573-30080 |
LS130,MS132,YS132..4H,4HC |
1 | ||
| 71584B - PAD, FRONT SEAT BACK CORNER, D | ||||
| 71672-30030 |
LS130,MS132,YS132..4H,4HC |
1 | ||
| 71584B - PAD, FRONT SEAT BACK CORNER, D | ||||
| 71672-30030 |
LS130,MS132,YS132..4H,4HC |
1 | ||
| 71587 - PROTECTOR, FRONT SEAT BACK EDGE | ||||
| 71587-30020 |
LS130,MS132,YS132..4H,4HC |
1 | ||
| 71587 - PROTECTOR, FRONT SEAT BACK EDGE | ||||
| 71587-30020 |
LS130,MS132,YS132..4H,4HC |
1 | ||
ILLUST NO. 4 OF 4(8709-8908)
| Part # | Description | Qty | Price |
|---|
Part Price Details
Loading price information...
Part Number:
Price:
