MS132R-AESDS (1987)

Toyota Crown

Production Sep 1987 - Sep 1988
Engine 5M
Transmission 4HC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8709-8908)SED,WG..DLX,ROY,SAL

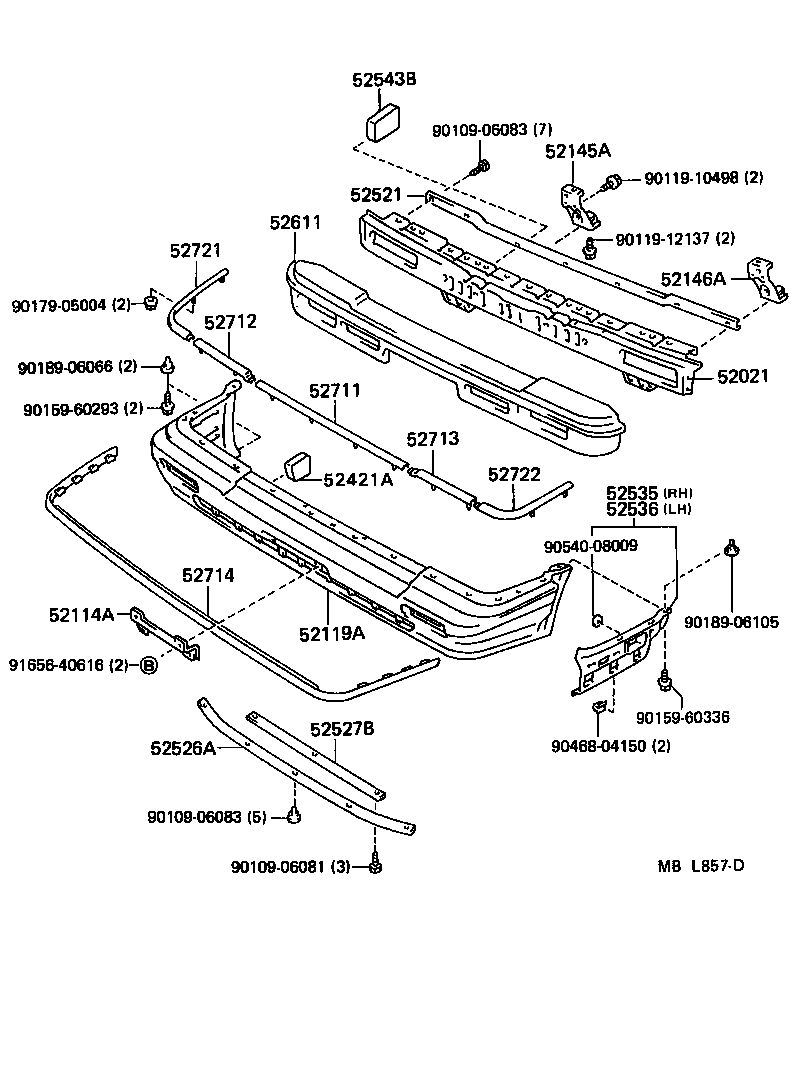

Click highlighted areas on diagram

diagram 52021 52114A 52119A 52145A 52146A 52421A 52521 52526A 52527B 52535 52536 52543B 52611 52711 52712 52713 52714 52721 52722 9010906081 9010906083 9010906083 9011910498 9011912137 9015960293 9015960336 9017905004 9018906066 9018906105 9046804150 9054008009 9165640616
Part # Description Qty Price
52021 - REINFORCEMENT SUB-ASSY, FRONT BUMPER
52021-30090

MS132..WG;LS130,MS132,133,YS132..(DLX,STD)..GEN

 1
52114A - BRACKET, FRONT BUMPER EXTENSION MOUNTING
52114-30050

MS132..4F;GS131,LS130,MS135,YS132..GEN;MS132,133..(DLX,ROY,SAL)..GEN

 1
52119A - COVER, FRONT BUMPER
52119-30916

MS132..WG;LS130,MS132,YS132..(DLX,STD)..GEN

 1
52145A - STAY, FRONT BUMPER, NO.2 RH
52145-30030

GS131,LS130,MS13#,YS132

 1
52146A - STAY, FRONT BUMPER, NO.2 LH
52146-30030

GS131,LS130,MS13#,YS132

 1
52521 - RETAINER, FRONT BUMPER, UPPER CENTER
52521-30050

MS132..WG;LS130,MS132,YS132..(DLX,STD)..GEN

 1
52526A - RETAINER, FRONT BUMPER, LOWER NO.1
52526-30040

MS132..WG;LS130,MS132,YS132..(DLX,STD)..GEN

 1
52527B - RETAINER, FRONT BUMPER, LOWER NO.2
52527-30010

GS131,LS130,MS13#,YS132

 1
52535 - RETAINER, FRONT BUMPER SIDE, RH
52535-30060

MS132..WG;LS130,MS132,YS132..(DLX,STD)..GEN

 1
52536 - RETAINER, FRONT BUMPER SIDE, LH
52536-30060

MS132..WG;LS130,MS132,YS132..(DLX,STD)..GEN

 1
52611 - ABSORBER, FRONT BUMPER ENERGY
52611-30040

MS132..WG;LS130,MS132,YS132..(DLX,STD)..GEN

 1
52711 - MOULDING, FRONT BUMPER
52711-30030

MS132..WG;LS130,MS132,YS132..(DLX,STD)..GEN

 1
52714 - PLUG, FRONT BUMPER MOULDING, LH
52714-30050

MS132..WG;LS130,MS132,YS132..(DLX,STD)..GEN

 1
52721 - MOULDING, FRONT BUMPER EXTENSION, RH
52721-30020

MS132..WG;LS130,MS132,YS132..(DLX,STD)..GEN

 1
52722 - MOULDING, FRONT BUMPER EXTENSION, LH
52722-30020

MS132..WG;LS130,MS132,YS132..(DLX,STD)..GEN

 1
Common parts
90109-06081
90109-06083
90119-10498
90119-12137
90159-60293
90159-60336
90179-05004
90189-06066
90189-06105
90468-04150
90540-08009
91656-40616
