MS132R-AEMGS (1987)

Toyota Crown

Production Sep 1987 - Aug 1989
Engine 5M
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(8709- )LS130..LHD ; (8709- )GS131,MS13#,YS132

Click highlighted areas on diagram

BLOWER

diagram 8202 8271130870 87103 87106A 87130 87134A 87137 87138 87187A 9017906239 9166640616 9351055012 9351055012
Part # Description Qty Price
87103 - MOTOR SUB-ASSY, HEATER BLOWER, W/FAN
87103-30280

GS131;MS132..RHD..(DLX,SAL,STD)

 1
87106A - SERVO SUB-ASSY, DAMPER
87106-30010

MS132,135..RHD

MODE

 1
87106-30070

GS131,MS132,135..RHD

FRESH-RECIRC

 1
87106-30150

MS132,133..RHD..(DLX,SAL,STD)

BI-LEVEL

 1
87106-30140

MS132,133..RHD..(DLX,SAL)

AIR MIX,BI-LEVEL

 1
87130 - BLOWER ASSY, HEATER, FRONT
87130-30410

GS131,MS132,135..RHD

 1
87134A - FAN, BLOWER, NO.2
87134-30040

GS131,LS130,MS13#..RHD

 1
87138 - RESISTOR, HEATER BLOWER
87138-30330

GS131,MS13#..RHD

BLOWER

 1
87187A - WIRE, BLOWER MOTOR LEAD
87187-30010

LS130..LHD;GS131,MS13#,YS132

 1
Common parts
82711-30870
90179-06239
91666-40616
93510-55012
Linked diagrams
8202

ILLUST NO. 2 OF 2(8709- )RHD..DLX,SAL

Click highlighted areas on diagram

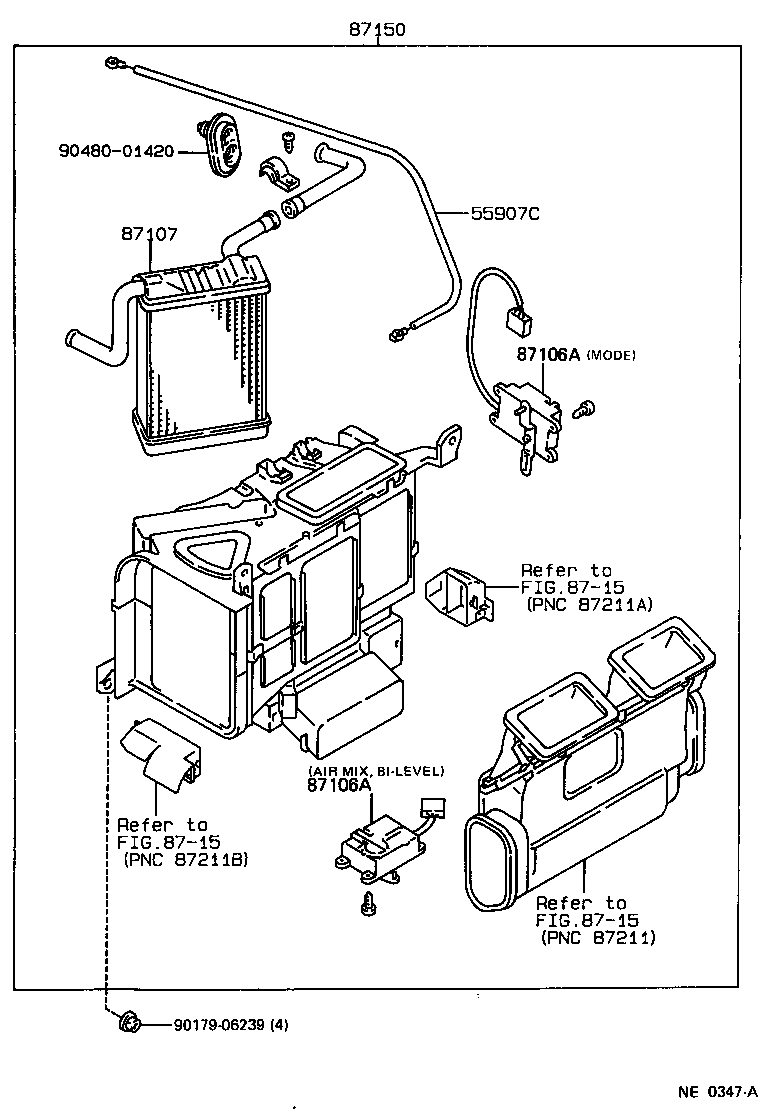

HEATER UNIT

diagram 55907C 87106A 87106A 87107 8715 8715 8715 87150 9017906239 9048001420
Part # Description Qty Price
55907C - CABLE SUB-ASSY, WATER VALVE CONTROL
87286-30060

MS132,133..RHD..(DLX,SAL)

 1
87106A - SERVO SUB-ASSY, DAMPER
87106-30010

MS132,135..RHD

MODE

 1
87106-30070

GS131,MS132,135..RHD

FRESH-RECIRC

 1
87106-30150

MS132,133..RHD..(DLX,SAL,STD)

BI-LEVEL

 1
87106-30140

MS132,133..RHD..(DLX,SAL)

AIR MIX,BI-LEVEL

 1
87106A - SERVO SUB-ASSY, DAMPER
87106-30010

MS132,135..RHD

MODE

 1
87106-30070

GS131,MS132,135..RHD

FRESH-RECIRC

 1
87106-30150

MS132,133..RHD..(DLX,SAL,STD)

BI-LEVEL

 1
87106-30140

MS132,133..RHD..(DLX,SAL)

AIR MIX,BI-LEVEL

 1
87107 - UNIT SUB-ASSY, HEATER RADIATOR
87107-30390

GS131,MS13#..RHD..(DLX,ROY,SAL)

 1
87150 - RADIATOR ASSY, HEATER
87150-30600

MS132..RHD..(DLX,SAL)

 1
Common parts
90179-06239
90480-01420
Linked diagrams
8715

ILLUST NO. 2 OF 2(8709- )MS132,133..GEN ; (8709- )GS131,LS130,YS132..LHD

Click highlighted areas on diagram

BOOST VENTILATOR

diagram 87106A 87106A 8715 88910 9017906239 9095001022 9095001588
Part # Description Qty Price
87106A - SERVO SUB-ASSY, DAMPER
87106-30010

MS132,135..RHD

MODE

 1
87106-30070

GS131,MS132,135..RHD

FRESH-RECIRC

 1
87106-30150

MS132,133..RHD..(DLX,SAL,STD)

BI-LEVEL

 1
87106-30140

MS132,133..RHD..(DLX,SAL)

AIR MIX,BI-LEVEL

 1
87106A - SERVO SUB-ASSY, DAMPER
87106-30010

MS132,135..RHD

MODE

 1
87106-30070

GS131,MS132,135..RHD

FRESH-RECIRC

 1
87106-30150

MS132,133..RHD..(DLX,SAL,STD)

BI-LEVEL

 1
87106-30140

MS132,133..RHD..(DLX,SAL)

AIR MIX,BI-LEVEL

 1
88910 - VENTILATOR ASSY, BOOST
88910-30070

MS132..RHD..(DLX,SAL,STD)

 1
Common parts
90179-06239
90950-01022
90950-01588
Linked diagrams
8715
