MS132L-AWPGSV (1987)

Toyota Crown

Production Sep 1987 - Oct 1991
Engine 5M
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

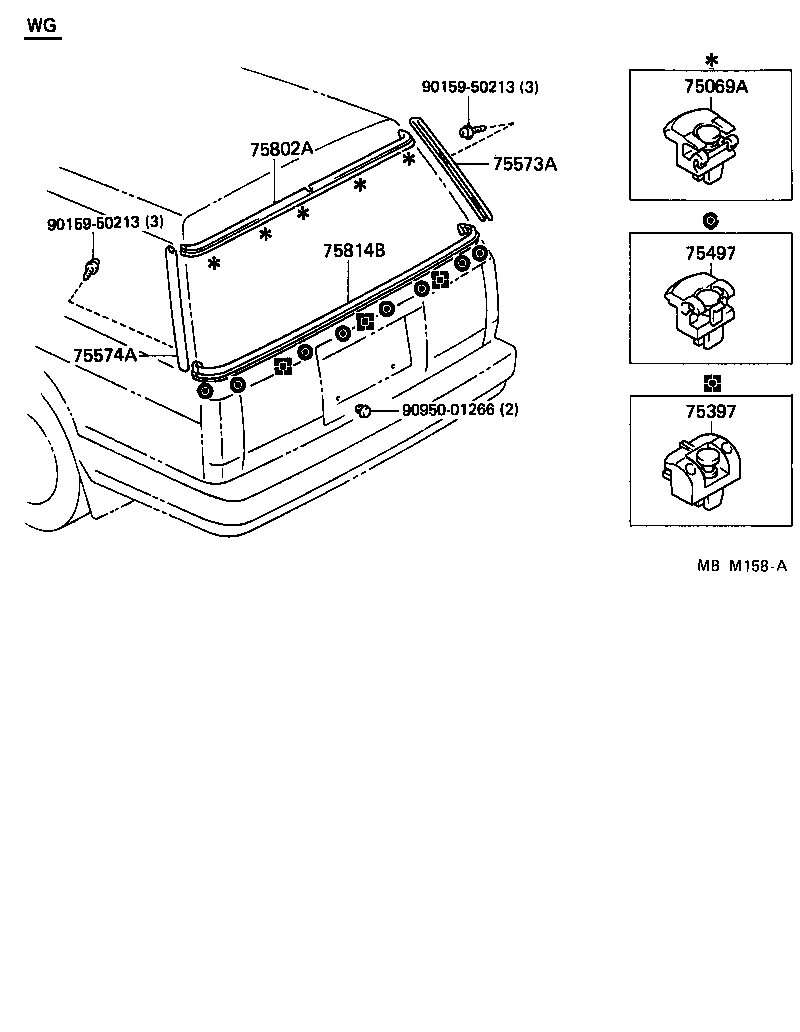

(8709-8908)WG

Click highlighted areas on diagram

diagram 75069A 75397 75497 75573A 75574A 75802A 75814B 9015950213 9015950213 9095001266
Part # Description Qty Price
75069A - CLIP SUB-ASSY, OUTSIDE MOULDING, NO.4
75069-91701

MS132..WG

 5
75397 - CLIP, BACK DOOR MOULDING, NO.3
75397-91702

MS132..WG

 2
75397-91702

MS132..WG

 3
75397-91702

MS132..WG

 2
75497 - CLIP, BACK WINDOW OUTSIDE MOULDING, NO.2
75497-91702

MS132..WG

 8
75573A - MOULDING, BACK WINDOW, OUTSIDE RH
75501-91702

MS132..WG

 1
75574A - MOULDING, BACK WINDOW, OUTSIDE LH
75502-91702

MS132..WG

 1
75802A - MOULDING SUB-ASSY, BACK DOOR, OUTSIDE UPPER
75802-91703

MS132..WG

 1
75802-91704

MS132..WG

W(REAR WINDOW WIPER)

 1
75814B - MOULDING, BACK DOOR, OUTSIDE LOWER
75814-91703

MS132..WG

 1
Common parts
90159-50213
90950-01266

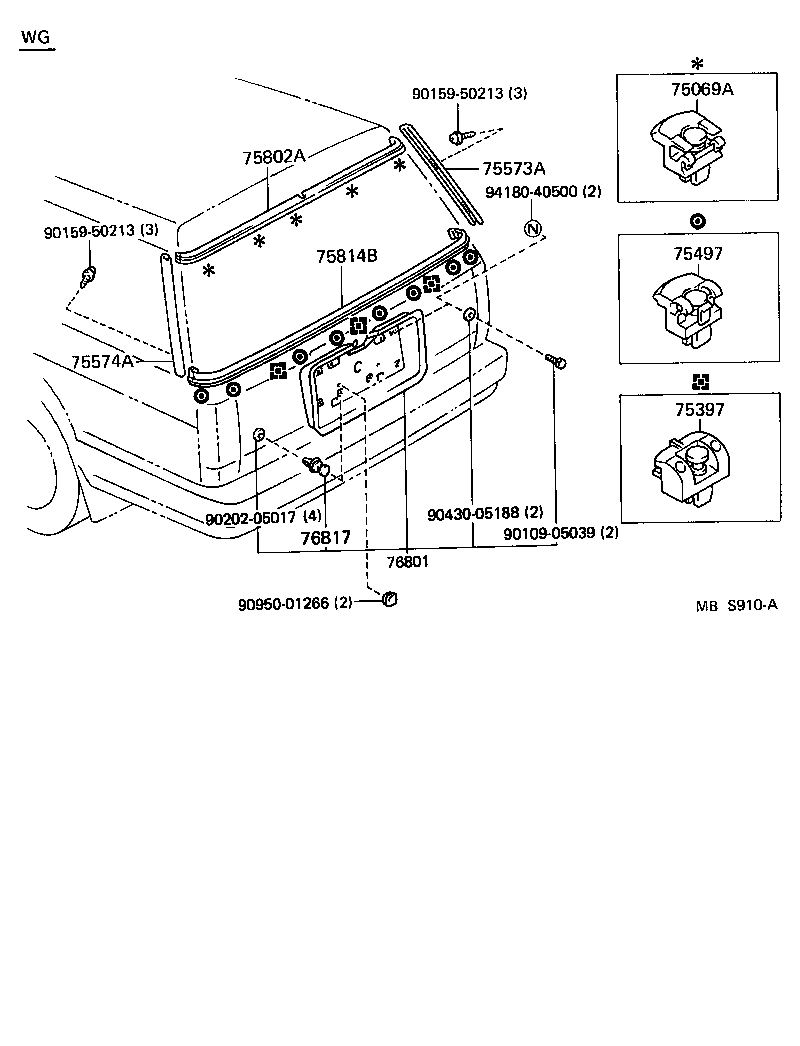

(8908- )WG

Click highlighted areas on diagram

diagram 75069A 75397 75497 75573A 75574A 75802A 75814B 76801 76817 9010905039 9015950213 9015950213 9020205017 9043005188 9095001266 9418040500
Part # Description Qty Price
75069A - CLIP SUB-ASSY, OUTSIDE MOULDING, NO.4
75069-91701

MS132..WG

 5
75397 - CLIP, BACK DOOR MOULDING, NO.3
75397-91702

MS132..WG

 2
75397-91702

MS132..WG

 3
75397-91702

MS132..WG

 2
75497 - CLIP, BACK WINDOW OUTSIDE MOULDING, NO.2
75497-91702

MS132..WG

 8
75573A - MOULDING, BACK WINDOW, OUTSIDE RH
75501-91702

MS132..WG

 1
75574A - MOULDING, BACK WINDOW, OUTSIDE LH
75502-91702

MS132..WG

 1
75802A - MOULDING SUB-ASSY, BACK DOOR, OUTSIDE UPPER
75802-91703

MS132..WG

 1
75802-91704

MS132..WG

W(REAR WINDOW WIPER)

 1
75814B - MOULDING, BACK DOOR, OUTSIDE LOWER
75814-91703

MS132..WG

 1
76801 - GARNISH SUB-ASSY, BACK DOOR, OUTSIDE
76801-91701

MS132..WG

 1
76817 - CLIP, BACK DOOR OUTSIDE GARNISH
76817-23010

MS132..WG

 4
Common parts
90109-05039
90159-50213
90202-05017
90430-05188
90950-01266
94180-40500
