MS132L-AWPGS (1987)
Toyota Crown
Production
Sep 1987
-
Sep 1988
Engine
5M
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8709- )YS132 ; (8709- )GS131,LS130,MS132,133..4F,5F

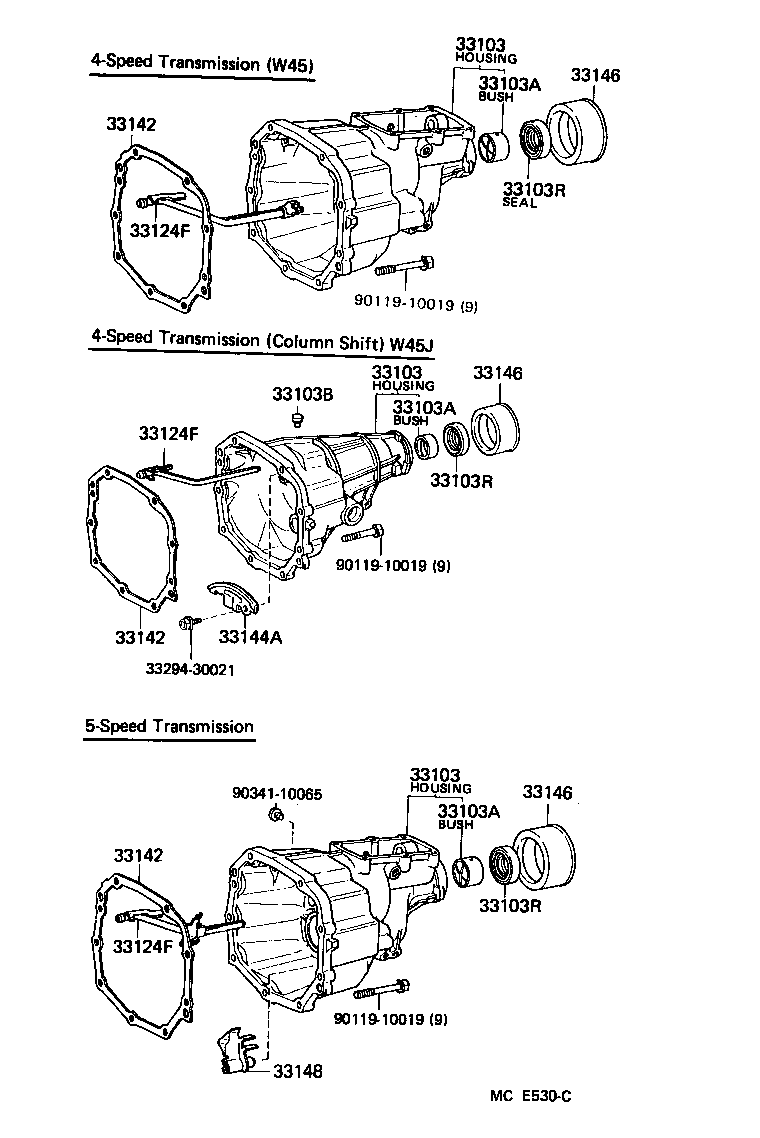

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33103 - HOUSING SUB-ASSY, EXTENSION(MTM) | ||||
| 33103-22100 |
LS130,MS132,YS132..4F |
1 | ||
| 33103 - HOUSING SUB-ASSY, EXTENSION(MTM) | ||||
| 33103-22100 |
LS130,MS132,YS132..4F |
1 | ||
| 33103 - HOUSING SUB-ASSY, EXTENSION(MTM) | ||||
| 33103-22100 |
LS130,MS132,YS132..4F |
1 | ||
| 33103A - BUSH(FOR MANUAL TRANSMISSION EXTENSION HOUSING) | ||||
| 90999-73105 |
GS131,LS130,MS132,133,YS132..4F,5F |
1 | ||
| 33103A - BUSH(FOR MANUAL TRANSMISSION EXTENSION HOUSING) | ||||
| 90999-73105 |
GS131,LS130,MS132,133,YS132..4F,5F |
1 | ||
| 33103A - BUSH(FOR MANUAL TRANSMISSION EXTENSION HOUSING) | ||||
| 90999-73105 |
GS131,LS130,MS132,133,YS132..4F,5F |
1 | ||
| 33124F - PIPE, OIL RECEIVER, NO.1(FOR EXTENSION HOUSING) | ||||
| 33106-22020 |
LS130,MS132,YS132..4F |
1 | ||
| 33124F - PIPE, OIL RECEIVER, NO.1(FOR EXTENSION HOUSING) | ||||
| 33106-22020 |
LS130,MS132,YS132..4F |
1 | ||
| 33124F - PIPE, OIL RECEIVER, NO.1(FOR EXTENSION HOUSING) | ||||
| 33106-22020 |
LS130,MS132,YS132..4F |
1 | ||
| 33142 - GASKET, EXTENSION HOUSING(MTM) | ||||
| 33142-22010 |
YS132;LS130,MS132,133..4F,5F |
1 | ||
| 33142 - GASKET, EXTENSION HOUSING(MTM) | ||||
| 33142-22010 |
YS132;LS130,MS132,133..4F,5F |
1 | ||
| 33142 - GASKET, EXTENSION HOUSING(MTM) | ||||
| 33142-22010 |
YS132;LS130,MS132,133..4F,5F |
1 | ||
| Common parts | ||||
| 33294-30021 | ||||
| 90119-10019 | ||||
| 90341-10065 | ||||
