MS132L-AWMGSV (1987)

Toyota Crown

Production Sep 1987 - Oct 1991
Engine 5M
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

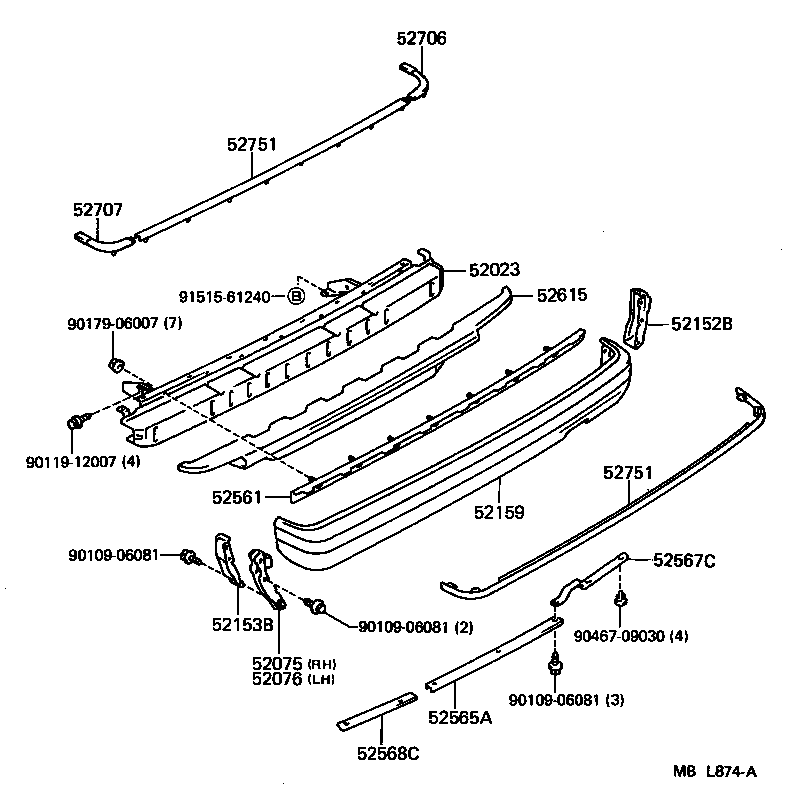

(8709-8908)WG

Click highlighted areas on diagram

diagram 52023 52075 52076 52152B 52153B 52159 52561 52565A 52567C 52568C 52615 52706 52707 52751 52751 9010906081 9010906081 9010906081 9011912007 9017906007 9046709030 9151561240
Part # Description Qty Price
52023 - REINFORCEMENT SUB-ASSY, REAR BUMPER
52023-91702

MS132..WG

 1
52075 - RETAINER SUB-ASSY, REAR BUMPER SIDE, RH
52075-91702

MS132..WG

 1
52075-31010

MS132..WG

 1
52076 - RETAINER SUB-ASSY, REAR BUMPER SIDE, LH
52076-91702

MS132..WG

 1
52076-31010

MS132..WG

 1
52152B - EXTENSION, REAR BUMPER, RH
52152-30913

MS132..WG

 1
52153B - EXTENSION, REAR BUMPER, LH
52153-30913

MS132..WG

 1
52159 - COVER, REAR BUMPER
52159-30910

MS132..WG;LS130,MS132,133,YS132..(DLX,STD)..GEN

 1
52561 - RETAINER, REAR BUMPER, UPPER CENTER
52561-30030

MS132..WG;LS130,MS132,133,YS132..(DLX,STD)..GEN

 1
52565A - RETAINER, REAR BUMPER, LOWER
52565-30020

GS131,LS130,MS13#,YS132

 1
52567C - RETAINER, REAR BUMPER LOWER SIDE, RH
52567-30020

MS132..WG

 1
52568C - RETAINER, REAR BUMPER LOWER SIDE, LH
52568-30040

MS132..WG;LS130,MS132,133,YS132..(DLX,STD)..GEN

 1
52615 - ABSORBER, REAR BUMPER ENERGY
52615-30040

MS132..WG;LS130,MS132,133,YS132..(DLX,STD)..GEN

 1
52706 - MOULDING SUB-ASSY, REAR BUMPER SIDE, RH
52706-91701

MS132..WG

 1
52707 - MOULDING SUB-ASSY, REAR BUMPER SIDE, LH
52707-91701

MS132..WG

 1
52751 - MOULDING, REAR BUMPER
52751-91702

MS132..WG

LWR

 1
52751-30030

MS132..WG

UPR

 1
52751 - MOULDING, REAR BUMPER
52751-91702

MS132..WG

LWR

 1
52751-30030

MS132..WG

UPR

 1
Common parts
90109-06081
90119-12007
90179-06007
90467-09030
91515-61240

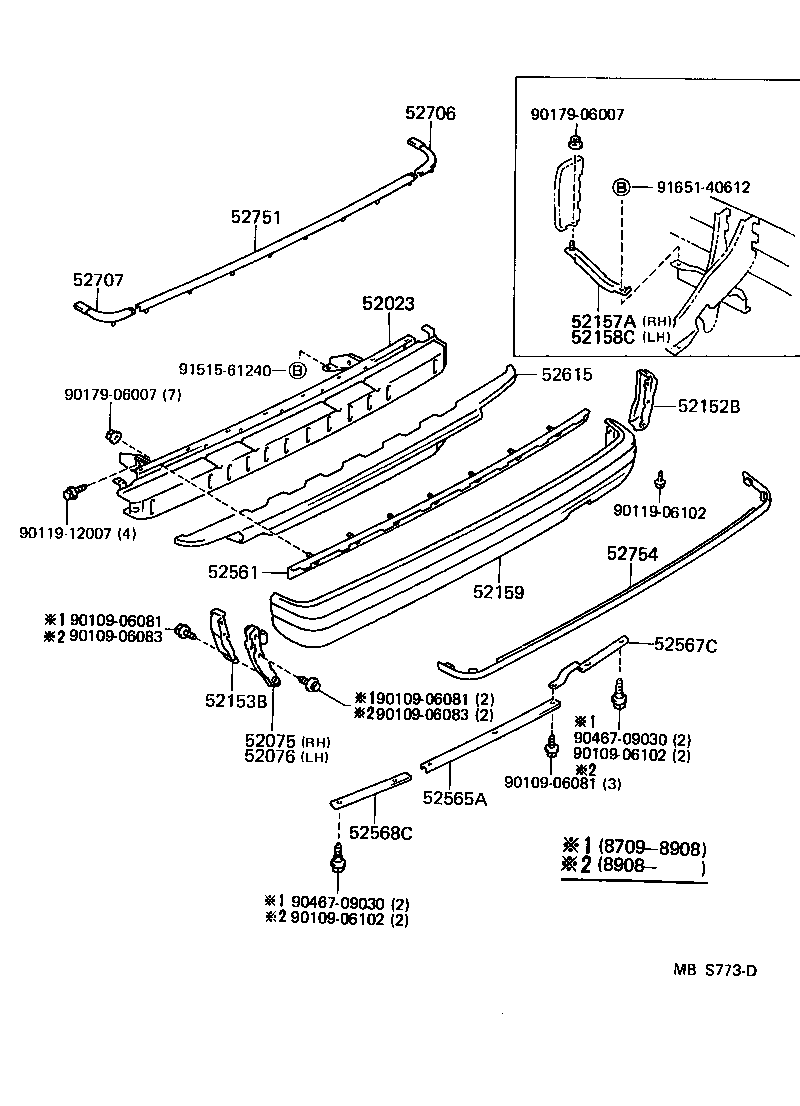

(8908- )WG

Click highlighted areas on diagram

diagram 52023 52075 52076 52152B 52153B 52157A 52158C 52159 52561 52565A 52567C 52568C 52615 52706 52707 52751 52754 9010906081 9010906081 9010906081 9010906083 9010906083 9010906102 9010906102 9011906102 9011912007 9017906007 9017906007 9046709030 9046709030 9151561240 9165140612
Part # Description Qty Price
52023 - REINFORCEMENT SUB-ASSY, REAR BUMPER
52023-91702

MS132..WG

 1
52075 - RETAINER SUB-ASSY, REAR BUMPER SIDE, RH
52075-91702

MS132..WG

 1
52075-31010

MS132..WG

 1
52076 - RETAINER SUB-ASSY, REAR BUMPER SIDE, LH
52076-91702

MS132..WG

 1
52076-31010

MS132..WG

 1
52152B - EXTENSION, REAR BUMPER, RH
52152-30913

MS132..WG

 1
52153B - EXTENSION, REAR BUMPER, LH
52153-30913

MS132..WG

 1
52157A - SUPPORT, REAR BUMPER SIDE, NO.2 RH
52157-31010

MS132..WG

 1
52158C - SUPPORT, REAR BUMPER SIDE, NO.2 LH
52158-31010

MS132..WG

 1
52159 - COVER, REAR BUMPER
52159-30910

MS132..WG;LS130,MS132,133,YS132..(DLX,STD)..GEN

 1
52561 - RETAINER, REAR BUMPER, UPPER CENTER
52561-30030

MS132..WG;LS130,MS132,133,YS132..(DLX,STD)..GEN

 1
52565A - RETAINER, REAR BUMPER, LOWER
52565-30020

GS131,LS130,MS13#,YS132

 1
52567C - RETAINER, REAR BUMPER LOWER SIDE, RH
52567-30020

MS132..WG

 1
52568C - RETAINER, REAR BUMPER LOWER SIDE, LH
52568-30040

MS132..WG;LS130,MS132,133,YS132..(DLX,STD)..GEN

 1
52615 - ABSORBER, REAR BUMPER ENERGY
52615-30040

MS132..WG;LS130,MS132,133,YS132..(DLX,STD)..GEN

 1
52706 - MOULDING SUB-ASSY, REAR BUMPER SIDE, RH
52706-91701

MS132..WG

 1
52707 - MOULDING SUB-ASSY, REAR BUMPER SIDE, LH
52707-91701

MS132..WG

 1
52751 - MOULDING, REAR BUMPER
52751-91702

MS132..WG

LWR

 1
52751-30030

MS132..WG

UPR

 1
52754 - MOULDING, REAR BUMPER, NO.2
52751-91702

MS132..WG

 1
Common parts
90109-06081
90109-06083
90109-06102
90119-06102
90119-12007
90179-06007
90467-09030
91515-61240
91651-40612
