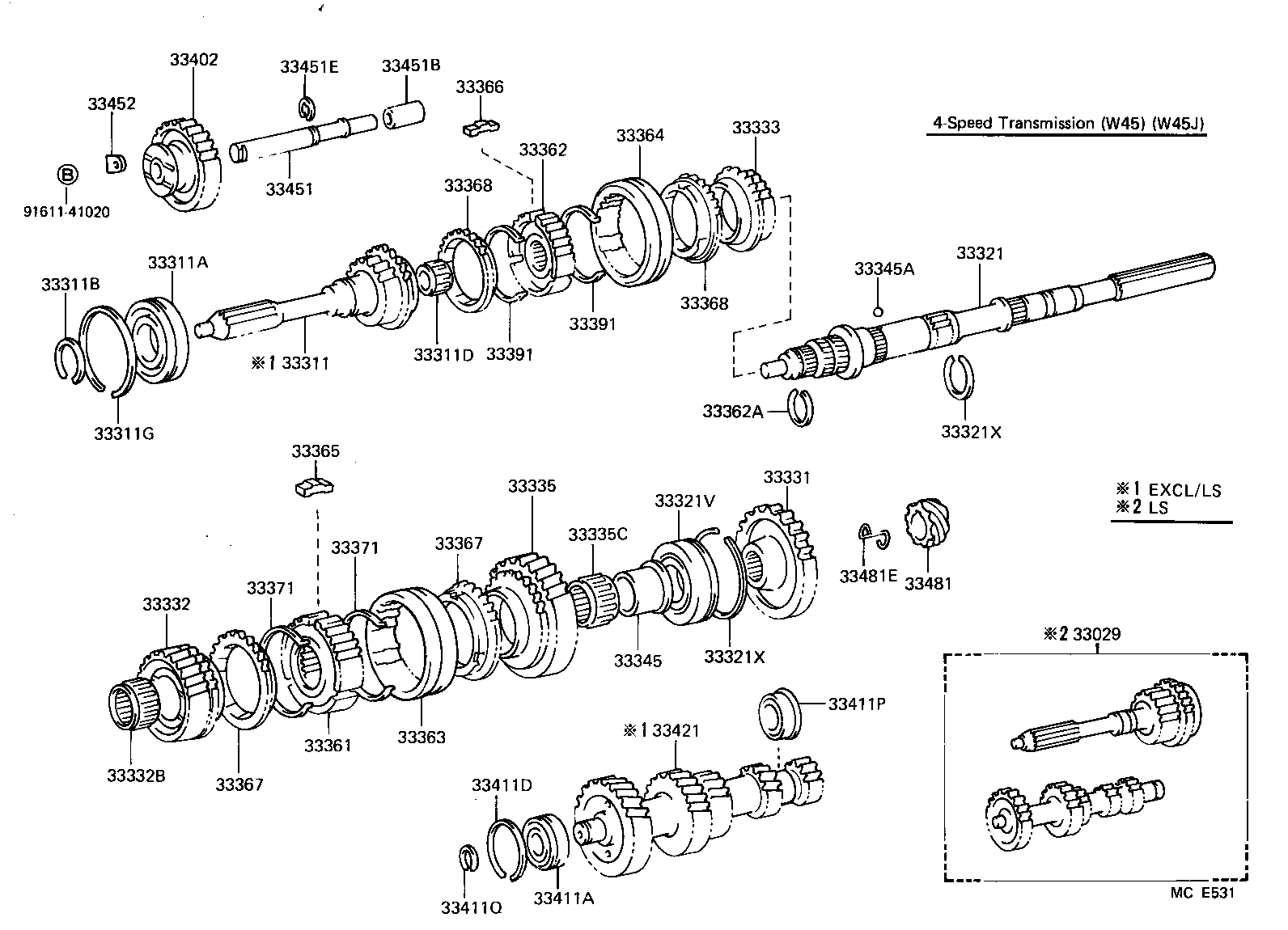

MS132L-AEPGS (1987)
Toyota Crown
(8709- )YS132 ; (8709- )LS130,MS132..4F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33311A - BEARING (FOR INPUT SHAFT FRONT) | ||||
| 90363-35007 |
YS132;GS131,LS130,MS132,133..4F,5F |
1 | ||
| 90363-35007 |
YS132;GS131,LS130,MS132,133..4F,5F |
1 | ||
| 33311B - RING, SHAFT SNAP (FOR FRONT BEARING) | ||||
| 90520-33107 |
YS132;GS131,LS130,MS132,133..4F,5F T=2.30-2.35,MARK 11 |
1 | ||
| 90520-33169 |
YS132;GS131,LS130,MS132,133..4F,5F T=2.10,MARK 2 |
1 | ||
| 90520-33168 |
YS132;GS131,LS130,MS132,133..4F,5F T=2.05,MARK 1 |
1 | ||
| 90520-33171 |
YS132;GS131,LS130,MS132,133..4F,5F T=2.20,MARK 4 |
1 | ||
| 90520-33132 |
YS132;GS131,LS130,MS132,133..4F,5F T=2.35-2.40,MARK 12 |
1 | ||
| 90520-33172 |
YS132;GS131,LS130,MS132,133..4F,5F T=2.25,MARK 5 |
1 | ||
| 90520-33107 |
YS132;GS131,LS130,MS132,133..4F,5F T=2.30-2.35,MARK 11 |
1 | ||
| 90520-33170 |
YS132;GS131,LS130,MS132,133..4F,5F T=2.15,MARK 3 |
1 | ||
| 90520-33171 |
YS132;GS131,LS130,MS132,133..4F,5F T=2.20,MARK 4 |
1 | ||
| 90520-33132 |
YS132;GS131,LS130,MS132,133..4F,5F T=2.35-2.40,MARK 12 |
1 | ||
| 90520-33172 |
YS132;GS131,LS130,MS132,133..4F,5F T=2.25,MARK 5 |
1 | ||
| 90520-33170 |
YS132;GS131,LS130,MS132,133..4F,5F T=2.15,MARK 3 |
1 | ||
| 90520-33169 |
YS132;GS131,LS130,MS132,133..4F,5F T=2.10,MARK 2 |
1 | ||
| 90520-33168 |
YS132;GS131,LS130,MS132,133..4F,5F T=2.05,MARK 1 |
1 | ||
| 33311D - BEARING, INPUT SHAFT | ||||
| 90364-19043 |
YS132;GS131,LS130,MS132,133..4F,5F |
1 | ||
| 33311G - RING, SHAFT SNAP (FOR FRONT BEARING) | ||||
| 90520-76001 |
YS132;GS131,LS130,MS132,133..4F,5F |
1 | ||
| 33321 - SHAFT, OUTPUT | ||||
| 33321-22050 |
YS132;GS131,LS130,MS132,133..4F,5F |
1 | ||
| 33321V - BEARING (FOR OUTPUT SHAFT CENTER) | ||||
| 90363-35009 |
YS132;GS131,LS130,MS132,133..4F,5F |
1 | ||
| 90363-35009 |
YS132;GS131,LS130,MS132,133..4F,5F |
1 | ||
| 33321X - RING, SHAFT SNAP (FOR OUTPUT SHAFT CENTER BEARING) | ||||
| 90520-33003 |
YS132;GS131,LS130,MS132,133..4F,5F T=2.73,MARK 19 |
1 | ||
| 90520-33001 |
YS132;GS131,LS130,MS132,133..4F,5F T=2.61,MARK 17 |
1 | ||
| 90520-33005 |
YS132;GS131,LS130,MS132,133..4F,5F T=2.85,MARK 21 |
1 | ||
| 90520-33002 |
YS132;GS131,LS130,MS132,133..4F,5F T=2.67,MARK 18 |
1 | ||
| 90520-33002 |
YS132;GS131,LS130,MS132,133..4F,5F T=2.67,MARK 18 |
1 | ||
| 90520-33107 |
YS132;GS131,LS130,MS132,133..4F,5F T=2.30-2.35,MARK 11 |
1 | ||
| 90520-33132 |
YS132;GS131,LS130,MS132,133..4F,5F T=2.35-2.40,MARK 12 |
1 | ||
| 90520-33109 |
YS132;GS131,LS130,MS132,133..4F,5F T=2.50,MARK 15 |
1 | ||
| 90520-33004 |
YS132;GS131,LS130,MS132,133..4F,5F T=2.79,MARK 20 |
1 | ||
| 90520-33133 |
YS132;GS131,LS130,MS132,133..4F,5F T=2.45,MARK 14 |
1 | ||
| 90520-33134 |
YS132;GS131,LS130,MS132,133..4F,5F T=2.55,MARK 16 |
1 | ||
| 90520-33007 |
YS132;GS131,LS130,MS132,133..4F,5F T=2.97,MARK 23 |
1 | ||
| 90520-33108 |
YS132;GS131,LS130,MS132,133..4F,5F T=2.40,MARK 13 |
1 | ||
| 90520-33172 |
YS132;GS131,LS130,MS132,133..4F,5F T=2.25,MARK 5 |
1 | ||
| 90520-33003 |
YS132;GS131,LS130,MS132,133..4F,5F T=2.73,MARK 19 |
1 | ||
| 90520-33006 |
YS132;GS131,LS130,MS132,133..4F,5F T=2.91,MARK 22 |
1 | ||
| 90520-33001 |
YS132;GS131,LS130,MS132,133..4F,5F T=2.61,MARK 17 |
1 | ||
| 90520-33005 |
YS132;GS131,LS130,MS132,133..4F,5F T=2.85,MARK 21 |
1 | ||
| 90520-33107 |
YS132;GS131,LS130,MS132,133..4F,5F T=2.30-2.35,MARK 11 |
1 | ||
| 90520-33006 |
YS132;GS131,LS130,MS132,133..4F,5F T=2.91,MARK 22 |
1 | ||
| 90520-33007 |
YS132;GS131,LS130,MS132,133..4F,5F T=2.97,MARK 23 |
1 | ||
| 90520-33172 |
YS132;GS131,LS130,MS132,133..4F,5F T=2.25,MARK 5 |
1 | ||
| 90520-33132 |
YS132;GS131,LS130,MS132,133..4F,5F T=2.35-2.40,MARK 12 |
1 | ||
| 90520-33004 |
YS132;GS131,LS130,MS132,133..4F,5F T=2.79,MARK 20 |
1 | ||
| 90520-33134 |
YS132;GS131,LS130,MS132,133..4F,5F T=2.55,MARK 16 |
1 | ||
| 90520-33109 |
YS132;GS131,LS130,MS132,133..4F,5F T=2.50,MARK 15 |
1 | ||
| 90520-33108 |
YS132;GS131,LS130,MS132,133..4F,5F T=2.40,MARK 13 |
1 | ||
| 90520-33133 |
YS132;GS131,LS130,MS132,133..4F,5F T=2.45,MARK 14 |
1 | ||
| 33321X - RING, SHAFT SNAP (FOR OUTPUT SHAFT CENTER BEARING) | ||||
| 90520-33003 |
YS132;GS131,LS130,MS132,133..4F,5F T=2.73,MARK 19 |
1 | ||
| 90520-33001 |
YS132;GS131,LS130,MS132,133..4F,5F T=2.61,MARK 17 |
1 | ||
| 90520-33005 |
YS132;GS131,LS130,MS132,133..4F,5F T=2.85,MARK 21 |
1 | ||
| 90520-33002 |
YS132;GS131,LS130,MS132,133..4F,5F T=2.67,MARK 18 |
1 | ||
| 90520-33002 |
YS132;GS131,LS130,MS132,133..4F,5F T=2.67,MARK 18 |
1 | ||
| 90520-33107 |
YS132;GS131,LS130,MS132,133..4F,5F T=2.30-2.35,MARK 11 |
1 | ||
| 90520-33132 |
YS132;GS131,LS130,MS132,133..4F,5F T=2.35-2.40,MARK 12 |
1 | ||
| 90520-33109 |
YS132;GS131,LS130,MS132,133..4F,5F T=2.50,MARK 15 |
1 | ||
| 90520-33004 |
YS132;GS131,LS130,MS132,133..4F,5F T=2.79,MARK 20 |
1 | ||
| 90520-33133 |
YS132;GS131,LS130,MS132,133..4F,5F T=2.45,MARK 14 |
1 | ||
| 90520-33134 |
YS132;GS131,LS130,MS132,133..4F,5F T=2.55,MARK 16 |
1 | ||
| 90520-33007 |
YS132;GS131,LS130,MS132,133..4F,5F T=2.97,MARK 23 |
1 | ||
| 90520-33108 |
YS132;GS131,LS130,MS132,133..4F,5F T=2.40,MARK 13 |
1 | ||
| 90520-33172 |
YS132;GS131,LS130,MS132,133..4F,5F T=2.25,MARK 5 |
1 | ||
| 90520-33003 |
YS132;GS131,LS130,MS132,133..4F,5F T=2.73,MARK 19 |
1 | ||
| 90520-33006 |
YS132;GS131,LS130,MS132,133..4F,5F T=2.91,MARK 22 |
1 | ||
| 90520-33001 |
YS132;GS131,LS130,MS132,133..4F,5F T=2.61,MARK 17 |
1 | ||
| 90520-33005 |
YS132;GS131,LS130,MS132,133..4F,5F T=2.85,MARK 21 |
1 | ||
| 90520-33107 |
YS132;GS131,LS130,MS132,133..4F,5F T=2.30-2.35,MARK 11 |
1 | ||
| 90520-33006 |
YS132;GS131,LS130,MS132,133..4F,5F T=2.91,MARK 22 |
1 | ||
| 90520-33007 |
YS132;GS131,LS130,MS132,133..4F,5F T=2.97,MARK 23 |
1 | ||
| 90520-33172 |
YS132;GS131,LS130,MS132,133..4F,5F T=2.25,MARK 5 |
1 | ||
| 90520-33132 |
YS132;GS131,LS130,MS132,133..4F,5F T=2.35-2.40,MARK 12 |
1 | ||
| 90520-33004 |
YS132;GS131,LS130,MS132,133..4F,5F T=2.79,MARK 20 |
1 | ||
| 90520-33134 |
YS132;GS131,LS130,MS132,133..4F,5F T=2.55,MARK 16 |
1 | ||
| 90520-33109 |
YS132;GS131,LS130,MS132,133..4F,5F T=2.50,MARK 15 |
1 | ||
| 90520-33108 |
YS132;GS131,LS130,MS132,133..4F,5F T=2.40,MARK 13 |
1 | ||
| 90520-33133 |
YS132;GS131,LS130,MS132,133..4F,5F T=2.45,MARK 14 |
1 | ||
| 33331 - GEAR, REVERSE | ||||
| 33331-22030 |
YS132;GS131,LS130,MS132,133..4F,5F |
1 | ||
| 33332 - GEAR, 2ND | ||||
| 33033-22021 |
YS132;GS131,LS130,MS132,133..4F,5F |
1 | ||
| 33332B - BEARING, NEEDLE ROLLER (FOR 2ND GEAR) | ||||
| 90364-43004 |
YS132;GS131,LS130,MS132,133..4F,5F |
1 | ||
| 90364-43004 |
YS132;GS131,LS130,MS132,133..4F,5F |
1 | ||
| 33333 - GEAR, 3RD | ||||
| 33034-22021 |
YS132;GS131,LS130,MS132,133..4F,5F |
1 | ||
| 33335 - GEAR, 1ST | ||||
| 33032-22021 |
YS132;GS131,LS130,MS132,133..4F,5F |
1 | ||
| 33335C - BEARING, NEEDLE ROLLER(FOR 1ST GEAR) | ||||
| 90364-43004 |
YS132;GS131,LS130,MS132,133..4F,5F |
1 | ||
| 90364-43004 |
YS132;GS131,LS130,MS132,133..4F,5F |
1 | ||
| 33345 - BUSH, 1ST GEAR | ||||
| 33345-22010 |
YS132;GS131,LS130,MS132,133..4F,5F |
1 | ||
| 33345A - BALL (FOR 1ST GEAR BUSH) | ||||
| 90360-06004 |
YS132;GS131,LS130,MS132,133..4F,5F |
1 | ||
| 33361 - HUB, TRANSMISSION CLUTCH, NO.1 | ||||
| 33361-22020 |
YS132;GS131,LS130,MS132,133..4F,5F |
1 | ||
| 33362 - HUB, TRANSMISSION CLUTCH, NO.2 | ||||
| 33362-22020 |
YS132;GS131,LS130,MS132,133..4F,5F |
1 | ||
| 33362-22020 |
YS132;GS131,LS130,MS132,133..4F,5F |
1 | ||
| 33362A - RING, SHAFT SNAP (FOR CLUTCH HUB NO.2 SETTING) | ||||
| 90520-28245 |
LS130,MS132,YS132..4F,4H T=1.80-1.85,MARK D |
1 | ||
| 90520-28014 |
YS132;LS130,MS132..4F T=1.86,MARK 11 |
1 | ||
| 90520-28017 |
YS132;LS130,MS132..4F T=2.04,MARK 14 |
1 | ||
| 90520-28015 |
YS132;LS130,MS132..4F T=1.92,MARK 12 |
1 | ||
| 90520-28018 |
YS132;LS130,MS132..4F T=2.10,MARK 15 |
1 | ||
| 90520-28016 |
YS132;LS130,MS132..4F T=1.98,MARK 13 |
1 | ||
| 33363 - SLEEVE, TRANSMISSION HUB, NO.1 | ||||
| 33363-22021 |
YS132;GS131,LS130,MS132,133..4F,5F |
1 | ||
| 33364 - SLEEVE, TRANSMISSION HUB, NO.2 | ||||
| 33364-22021 |
YS132;GS131,LS130,MS132,133..4F,5F |
1 | ||
| 33365 - KEY, SYNCHROMESH SHIFTING, NO.1 | ||||
| 33366-20011 |
YS132;GS131,LS130,MS132,133..4F,5F |
3 | ||
| 33366 - KEY, SYNCHROMESH SHIFTING, NO.2 | ||||
| 33366-20011 |
YS132;GS131,LS130,MS132,133..4F,5F |
3 | ||
| 33366-20011 |
YS132;GS131,LS130,MS132,133..4F,5F |
3 | ||
| 33367 - RING, SYNCHRONIZER, NO.1 | ||||
| 33367-22021 |
YS132;GS131,LS130,MS132,133..4F,5F |
2 | ||
| 33367-22021 |
YS132;GS131,LS130,MS132,133..4F,5F |
2 | ||
| 33367 - RING, SYNCHRONIZER, NO.1 | ||||
| 33367-22021 |
YS132;GS131,LS130,MS132,133..4F,5F |
2 | ||
| 33367-22021 |
YS132;GS131,LS130,MS132,133..4F,5F |
2 | ||
| 33368 - RING, SYNCHRONIZER, NO.2 | ||||
| 33368-20013 |
YS132;GS131,LS130,MS132,133..4F,5F |
2 | ||
| 33368 - RING, SYNCHRONIZER, NO.2 | ||||
| 33368-20013 |
YS132;GS131,LS130,MS132,133..4F,5F |
2 | ||
| 33371 - SPRING, SYNCHROMESH SHIFTING KEY, NO.1 | ||||
| 33371-22033 |
YS132;GS131,LS130,MS132,133..4F,5F |
2 | ||
| 33371-22033 |
YS132;GS131,LS130,MS132,133..4F,5F |
2 | ||
| 33371 - SPRING, SYNCHROMESH SHIFTING KEY, NO.1 | ||||
| 33371-22033 |
YS132;GS131,LS130,MS132,133..4F,5F |
2 | ||
| 33371-22033 |
YS132;GS131,LS130,MS132,133..4F,5F |
2 | ||
| 33391 - SPRING, SYNCHROMESH SHIFTING KEY, NO.2 | ||||
| 33391-22030 |
YS132;GS131,LS130,MS132,133..4F,5F |
2 | ||
| 33391 - SPRING, SYNCHROMESH SHIFTING KEY, NO.2 | ||||
| 33391-22030 |
YS132;GS131,LS130,MS132,133..4F,5F |
2 | ||
| 33402 - GEAR SUB-ASSY, REVERSE IDLER | ||||
| 33402-22023 |
YS132;GS131,LS130,MS132,133..4F,5F |
1 | ||
| 33411A - BEARING OR ROLLER(FOR COUNTER GEAR FRONT) | ||||
| 90365-25014 |
YS132;GS131,LS130,MS132,133..4F,5F |
1 | ||
| 90365-25014 |
YS132;GS131,LS130,MS132,133..4F,5F |
1 | ||
| 33411P - BEARING, COUNTER SHAFT CENTER | ||||
| 33430-22010 |
YS132;GS131,LS130,MS132,133..4F,5F |
1 | ||
| 33411Q - RING, COUNTER GEAR FRONT BEARING SNAP, NO.2 | ||||
| 90520-23146 |
YS132;GS131,LS130,MS132,133..4F,5F T=2.35-2.40 |
1 | ||
| 90520-23145 |
YS132;GS131,LS130,MS132,133..4F,5F T=2.30-2.35 |
1 | ||
| 90520-23145 |
YS132;GS131,LS130,MS132,133..4F,5F T=2.30-2.35 |
1 | ||
| 90520-23146 |
YS132;GS131,LS130,MS132,133..4F,5F T=2.35-2.40 |
1 | ||
| 33421 - GEAR, COUNTER | ||||
| 33421-22031 |
YS132;LS130,MS132..4F |
1 | ||
| 33451 - SHAFT, REVERSE IDLER GEAR | ||||
| 33451-22021 |
GS131,LS130,MS132,133,YS132..4F,5F |
1 | ||
| 33451B - BUSH (FOR REVERSE IDLER GEAR SHAFT) | ||||
| 90387-17002 |
LS130,MS132,YS132..4F |
1 | ||
| 33451E - RING, E (FOR REVERSE IDLER GEAR SHAFT) | ||||
| 90523-17001 |
GS131,LS130,MS132,133,YS132..4F,5F |
1 | ||
| 33452 - STOPPER, REVERSE IDLER GEAR SHAFT | ||||
| 33452-22010 |
YS132;LS130,MS132..4F |
1 | ||
| 33481 - GEAR, SPEEDOMETER DRIVE (MTM) | ||||
| 33481-22030 |
LS130,MS132..4F;MS133,YS132..MTM N=10,MARK 10X31-33 |
1 | ||
| 33481E - CLIP (FOR SPEEDOMETER DRIVE GEAR) | ||||
| 90467-25001 |
YS132;GS131,LS130,MS132,133..4F,5F |
1 | ||
| Common parts | ||||
| 91611-41020 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
