MS132L-AEKBS (1987)

Toyota Crown

Production Sep 1987 - Oct 1991
Engine 5M
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8709- )MS132..RHD..5F ; (8709- )MS133..4FC..GCC ; (8709- )MS132,135,YS132

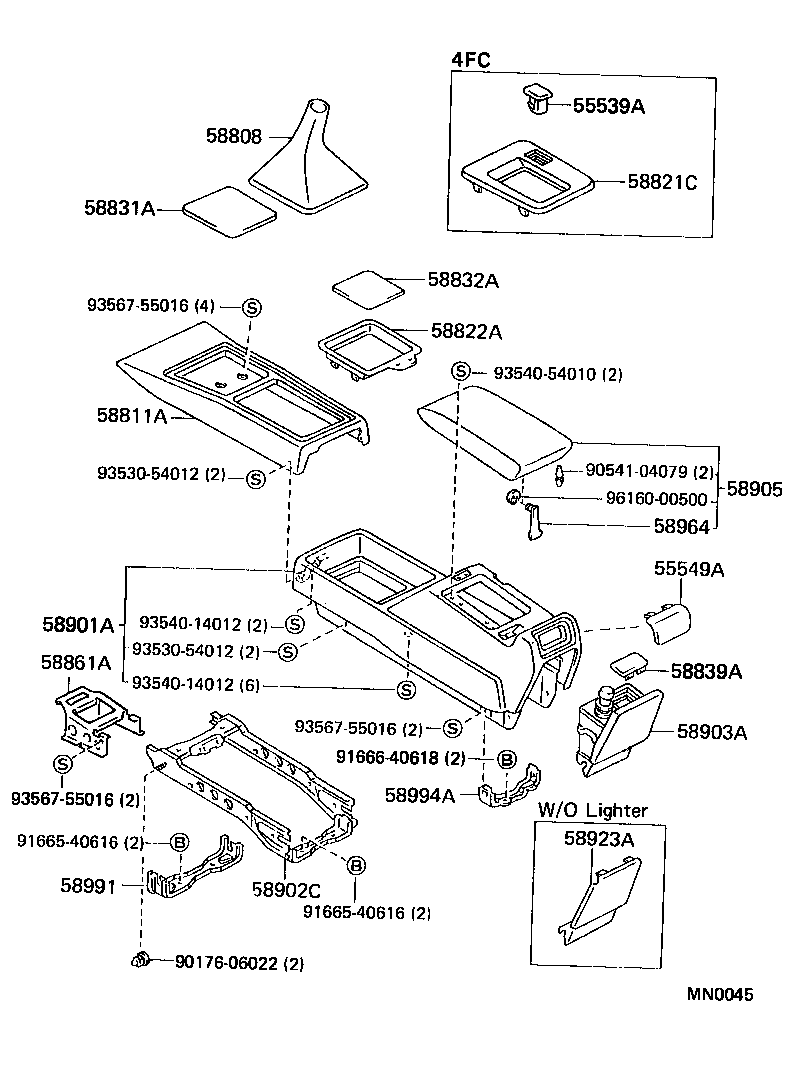

Click highlighted areas on diagram

diagram 55539A 55549A 58808 58811A 58821C 58822A 58831A 58832A 58839A 58861A 58901A 58902C 58903A 58905 58923A 58964 58991 58994A 9017606022 9054104079 9166540616 9166540616 9166640618 9353054012 9353054012 9354014012 9354014012 9354054010 9356755016 9356755016 9356755016 9616000500
Part # Description Qty Price
55549A - COVER, REAR COOLER SWITCH HOLE
55549-3009002

MS132..DLX,SAL,STD;MS133,135..4FC..GCC;MS133..5F..(SAL,SALEX);GS131,LS130,YS132..4F,5F

MAROON,TRIM3#

 1
55549-3009004

MS135..V;MS132..RHD..5F;MS135..SED..GCC;MS133..4FC..GCC;MS132..LHD..(DLX,SAL,STD);GS131,LS130,MS133,YS132..(4F,5F)..(SAL,SALEX,STD)

BLUE,TRIM8#

 1
55549-3009004

MS133,135..4FC..GCC;MS133..5F..(SAL,SALEX);GS131,LS130,MS132,YS132..(4F,4FC,5F)..(DLX,SAL,STD)

BLUE,TRIM8#

 1
55549-3009002

MS135..V;MS132..RHD..5F;MS135..SED..GCC;MS133..4FC..GCC;MS132..LHD..(DLX,SAL,STD);GS131,LS130,MS133,YS132..4F,5F

MAROON,TRIM3#

 1
55549-3009004

MS133..5F..SAL;MS133,135..SED..4FC..GCC;GS131,LS130,MS132,YS132..(4F,4FC,5F)..(DLX,SAL,STD)

BLUE,TRIM8#

 1
55549-3009002

MS133..5F..SAL;MS132..DLX,SAL,STD;GS131,LS130,YS132..4F,5F;MS133,135..SED..4FC..GCC

MAROON,TRIM3#

 1
58808 - COVER SUB-ASSY, SHIFTING HOLE
58808-3007004

GS131,LS130,MS132,133,YS132..(4F,5F)..(DLX,SAL,SALEX,STD)

BLUE,TRIM8#

 1
58808-3007002

GS131,LS130,MS132,133,YS132..4F,5F

MAROON,TRIM3#

 1
58811A - BOX, CONSOLE, FRONT
58811-3024004

MS132,135..LHD..ROY;GS131,LS130,MS132,133,YS132..(4F,4FC,5F)..(DLX,SAL,SALEX,STD)

BLUE,TRIM8#

 1
58811-3024002

MS132,135..LHD..ROY;GS131,LS130,YS132..4F,5F;MS132,133..(4F,4FC,5F)..(DLX,SAL,SALEX,STD)

MAROON,TRIM3#

 1
58822A - PANEL, CONSOLE, UPPER REAR
58822-3016004

MS132,135..LHD;MS132..RHD..5F;MS133..4FC..GCC;GS131,LS130,MS133,YS132..(4F,5F)..(SAL,SALEX,STD)

BLUE,TRIM8#

 1
58822-3016002

MS132,135..LHD;MS132..RHD..5F;MS133..4FC..GCC;GS131,LS130,MS133,YS132..4F,5F

MAROON,TRIM3#

 1
58839A - COVER, CONSOLE BOX HOLE
58839-30030

MS132..STD;GS131,LS130,YS132..(4F,4FC,5F)..(ROY,STD)

 1
58839-30030

MS132..4F;GS131,LS130,YS132..4F,4FC,5F

 1
58839-30031

MS132..STD;GS131,LS130,YS132..4F,4FC,5F

 1
58839-30031

MS132..STD;GS131,LS130,YS132..(4F,4FC,5F)..(ROY,STD)

 1
58861A - SUPPORT, CONSOLE BOX, NO.1
58861-30040

LS130,MS132,YS132..(4F,5F)..STD

 1
58861-30040

MS132..4F;MS132..RHD..(SAL,STD);LS130,MS133,YS132..(4F,4FC,5F)..GEN

 1
58901A - BOX SUB-ASSY, CONSOLE, REAR
58901-3008002

MS132,135..LHD;MS132..RHD..5F;MS133..4FC..GCC;GS131,LS130,MS133,YS132..4F,5F

MAROON,TRIM3#

 1
58901-3008004

MS132,135..LHD;MS132..RHD..5F;MS133..4FC..GCC;GS131,LS130,MS133,YS132..(4F,5F)..(SAL,SALEX,STD)

BLUE,TRIM8#

 1
58902C - BRACKET SUB-ASSY, CONSOLE BOX MOUNTING
58902-30030

GS131,LS130,MS13#,YS132..4F,4FC,5F

 1
58902-30060

MS132..STD

DELUXE PACKAGE OR W(HEATER)

 1
58902-30040

MS133..GEN;LS130,MS132,YS132..4F

 1
58902-30030

LS130,MS13#,YS132..4F,4FC,5F

 1
58902-30040

GS131,LS130,MS13#,YS132..4F,4FC,5F

 1
58903A - PANEL SUB-ASSY, CONSOLE REAR END
58903-3009002

MS132..SAL;MS132,135..LHD..(ROY,STD);LS130,MS133,YS132..4F,4FC,5F

MAROON,TRIM3#

 1
58903-3009002

MS132..SAL;LS130,MS13#,YS132..LHD..(4F,4FC,5F)..(ROY,SALEX,STD)

MAROON,TRIM3#

 1
58903-30091J1

MS133..SAL,SALEX;GS131,LS130,MS132,135,YS132..LHD..(4F,4FC,5F)..(ROY,SAL,STD)

BLUE,TRIM8#

 1
58903-3009004

MS132,133..SAL,SALEX;MS132,135..LHD..(ROY,STD);GS131,LS130,YS132..(4F,5F)..(SAL,STD)

BLUE,TRIM8#

 1
58903-30091D0

MS133..SAL,SALEX;GS131,LS130,YS132..4F,5F;MS132,135..LHD..(ROY,SAL,STD)

MAROON,TRIM3#

 1
58903-3009002

MS132,133..SAL,SALEX;GS131,LS130,YS132..4F,5F;MS132,135..LHD..(ROY,STD)

MAROON,TRIM3#

 1
58905 - DOOR SUB-ASSY, CONSOLE COMPARTMENT
58905-3015002

MS132,135..LHD;MS132..RHD..5F;MS133..4FC..GCC;GS131,LS130,MS133,YS132..4F,5F

MAROON,TRIM3#

 1
58905-3015004

MS132,135..LHD;MS132..RHD..5F;MS133..4FC..GCC;GS131,LS130,MS133,YS132..(4F,5F)..(SAL,SALEX,STD)

BLUE,TRIM8#

 1
58964 - STOPPER, CONSOLE COMPARTMENT DOOR, NO.1
58964-30050

MS132,135..LHD..ROY;GS131,LS130,YS132..4F,5F;MS132,133..DLX,SAL,SALEX,STD

 1
58964-30050

MS132,135..LHD..ROY;LS130,MS132,133,YS132..(4F,4FC,5F)..(DLX,SAL,SALEX,STD)

 1
58991 - BRACKET, CONSOLE BOX MOUNTING, UPPER
58991-30080

LS130,MS13#,YS132..4F,4FC,5F

 1
58991-30080

GS131,LS130,MS13#,YS132..4F,4FC,5F

 1
58994A - BRACKET, CONSOLE BOX MOUNTING, NO.4
58994-30020

MS132,135..LHD..ROY;GS131,LS130,YS132..4F,5F;MS132,133..DLX,SAL,SALEX,STD

 1
58994-30020

MS132,135..LHD..ROY;LS130,MS132,133,YS132..(4F,4FC,5F)..(DLX,SAL,SALEX,STD)

 1
Common parts
90176-06022
90541-04079
91665-40616
91666-40618
93530-54012
93540-14012
93540-54010
93567-55016
96160-00500
