MS132L-AEKBS (1987)
Toyota Crown
(8709-8908)STD

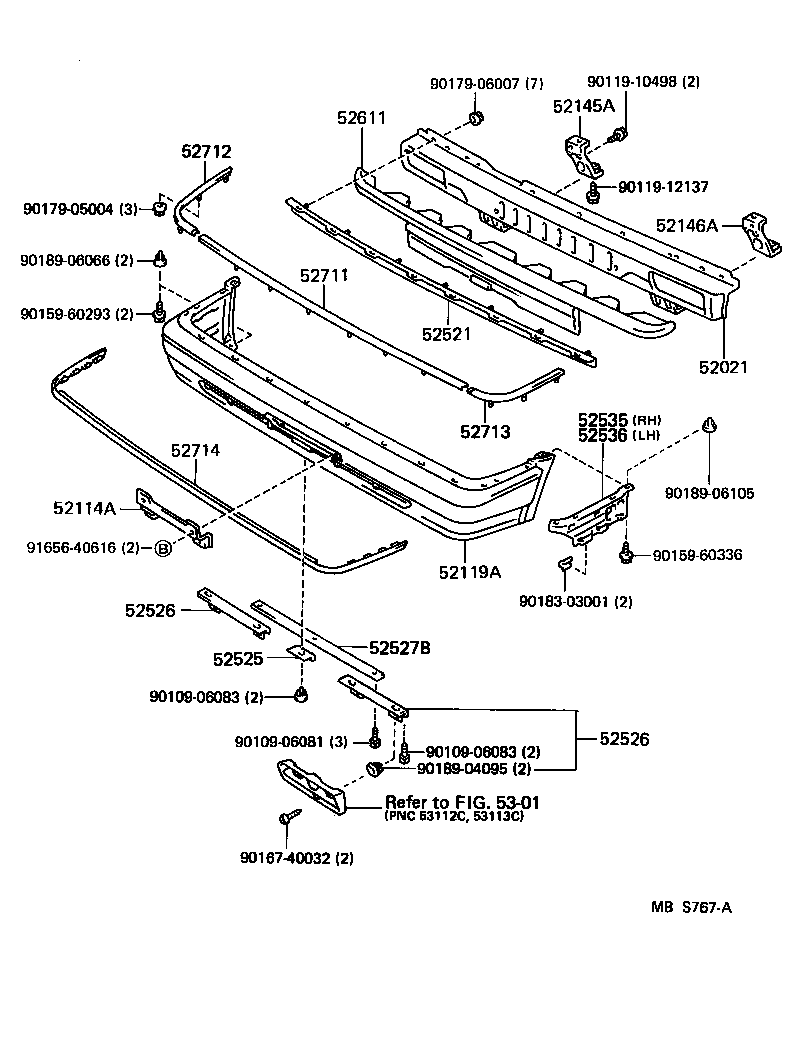

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52021 - REINFORCEMENT SUB-ASSY, FRONT BUMPER | ||||
| 52021-30090 |
MS132..WG;LS130,MS132,133,YS132..(DLX,STD)..GEN |
1 | ||
| 52114A - BRACKET, FRONT BUMPER EXTENSION MOUNTING | ||||
| 52114-30050 |
MS132..4F;GS131,LS130,MS135,YS132..GEN;MS132,133..(DLX,ROY,SAL)..GEN |
1 | ||
| 52119A - COVER, FRONT BUMPER | ||||
| 52119-30916 |
MS132..WG;LS130,MS132,YS132..(DLX,STD)..GEN |
1 | ||
| 52119-30920 |
MS132..WG;LS130,MS132,133,YS132..STD |
1 | ||
| 52145A - STAY, FRONT BUMPER, NO.2 RH | ||||
| 52145-30030 |
GS131,LS130,MS13#,YS132 |
1 | ||
| 52146A - STAY, FRONT BUMPER, NO.2 LH | ||||
| 52146-30030 |
GS131,LS130,MS13#,YS132 |
1 | ||
| 52521 - RETAINER, FRONT BUMPER, UPPER CENTER | ||||
| 52521-30050 |
MS132..WG;LS130,MS132,YS132..(DLX,STD)..GEN |
1 | ||
| 52521-30080 |
MS132..WG;LS130,MS132,133,YS132..STD |
1 | ||
| 52526A - RETAINER, FRONT BUMPER, LOWER NO.1 | ||||
| 52526-30040 |
MS132..WG;LS130,MS132,YS132..(DLX,STD)..GEN |
1 | ||
| 52527B - RETAINER, FRONT BUMPER, LOWER NO.2 | ||||
| 52527-30010 |
GS131,LS130,MS13#,YS132 |
1 | ||
| 52535 - RETAINER, FRONT BUMPER SIDE, RH | ||||
| 52535-30090 |
MS132..WG;LS130,MS132,133,YS132..STD |
1 | ||
| 52535-30060 |
MS132..WG;LS130,MS132,YS132..(DLX,STD)..GEN |
1 | ||
| 52536 - RETAINER, FRONT BUMPER SIDE, LH | ||||
| 52536-30090 |
MS132..WG;LS130,MS132,133,YS132..STD |
1 | ||
| 52536-30060 |
MS132..WG;LS130,MS132,YS132..(DLX,STD)..GEN |
1 | ||
| 52611 - ABSORBER, FRONT BUMPER ENERGY | ||||
| 52611-30040 |
MS132..WG;LS130,MS132,YS132..(DLX,STD)..GEN |
1 | ||
| 52611-30070 |
MS132..WG;LS130,MS132,133,YS132..STD |
1 | ||
| 52711 - MOULDING, FRONT BUMPER | ||||
| 52711-30030 |
MS132..WG;LS130,MS132,YS132..(DLX,STD)..GEN |
1 | ||
| 52711-30090 |
MS132..WG;LS130,MS132,133,YS132..STD |
1 | ||
| 52714 - PLUG, FRONT BUMPER MOULDING, LH | ||||
| 52714-30050 |
MS132..WG;LS130,MS132,YS132..(DLX,STD)..GEN |
1 | ||
| 52714-30080 |
MS132..WG;LS130,MS132,133,YS132..STD |
1 | ||
| 52721 - MOULDING, FRONT BUMPER EXTENSION, RH | ||||
| 52721-30020 |
MS132..WG;LS130,MS132,YS132..(DLX,STD)..GEN |
1 | ||
| 52722 - MOULDING, FRONT BUMPER EXTENSION, LH | ||||
| 52722-30020 |
MS132..WG;LS130,MS132,YS132..(DLX,STD)..GEN |
1 | ||
| Common parts | ||||
| 90109-06081 | ||||
| 90109-06083 | ||||
| 90119-10498 | ||||
| 90119-12137 | ||||
| 90159-60293 | ||||
| 90159-60336 | ||||
| 90179-05004 | ||||
| 90179-06007 | ||||
| 90189-06066 | ||||
| 90189-06105 | ||||
| 90468-04150 | ||||
| 90540-08009 | ||||
| 91656-40616 | ||||
(8709-8908)STD

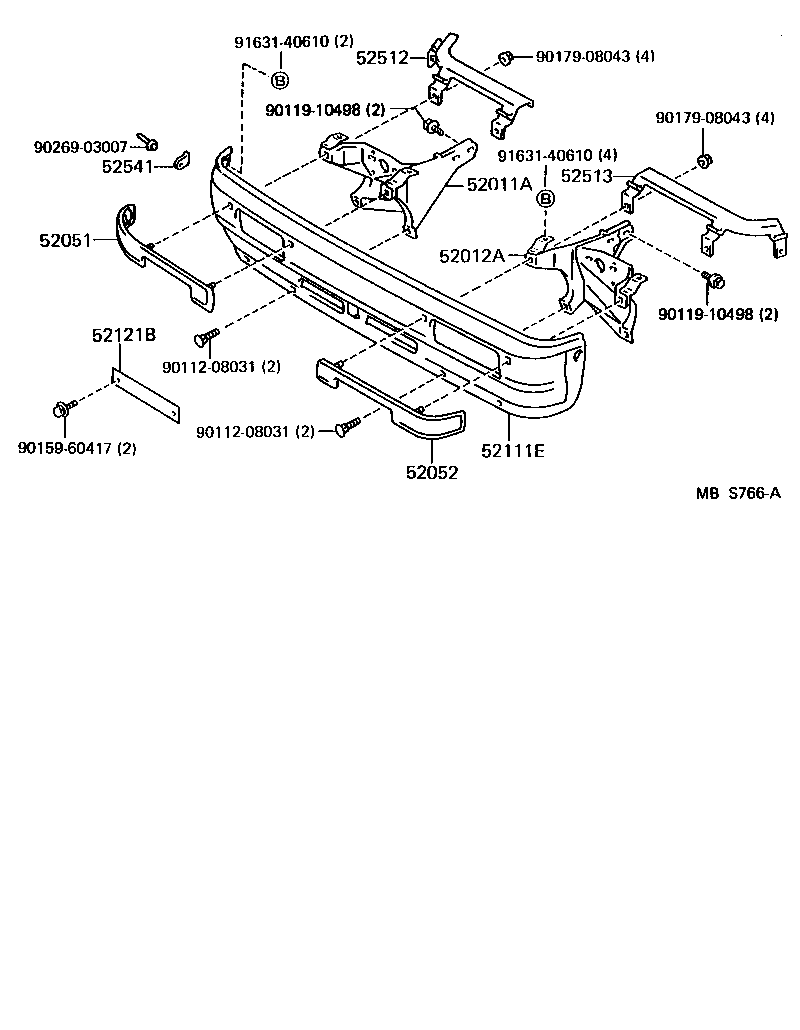

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52011A - ARM SUB-ASSY, FRONT BUMPER, RH | ||||
| 52011-30150 |
LS130,MS132,YS132..4F,4H;MS132,133..SED..(DLX,SAL)..GEN |
1 | ||
| 52011A - ARM SUB-ASSY, FRONT BUMPER, RH | ||||
| 52011-30150 |
LS130,MS132,YS132..4F,4H;MS132,133..SED..(DLX,SAL)..GEN |
1 | ||
| 52012A - ARM SUB-ASSY, FRONT BUMPER, LH | ||||
| 52012-30160 |
LS130,MS132,YS132..4F,4H;MS132,133..SED..(DLX,SAL)..GEN |
1 | ||
| 52012A - ARM SUB-ASSY, FRONT BUMPER, LH | ||||
| 52012-30160 |
LS130,MS132,YS132..4F,4H;MS132,133..SED..(DLX,SAL)..GEN |
1 | ||
| 52051 - PAD SUB-ASSY, FRONT BUMPER, RH | ||||
| 52051-30080 |
LS130,MS132,YS132..4F,4H;MS132,133..SED..(DLX,SAL)..GEN |
1 | ||
| 52052 - PAD SUB-ASSY, FRONT BUMPER, LH | ||||
| 52052-30060 |
LS130,MS132,YS132..4F,4H;MS132,133..SED..(DLX,SAL)..GEN |
1 | ||
| 52111E - BAR, FRONT BUMPER | ||||
| 52111-30180 |
LS130,MS132,YS132..4F,4H;MS132,133..SED..(DLX,SAL)..GEN |
1 | ||
| 52111E - BAR, FRONT BUMPER | ||||
| 52111-30180 |
LS130,MS132,YS132..4F,4H;MS132,133..SED..(DLX,SAL)..GEN |
1 | ||
| 52512 - FILLER, FRONT BUMPER, RH | ||||
| 52512-30030 |
LS130,MS132,YS132..4F,4H;MS132,133..SED..(DLX,SAL)..GEN |
1 | ||
| 52512 - FILLER, FRONT BUMPER, RH | ||||
| 52512-30030 |
LS130,MS132,YS132..4F,4H;MS132,133..SED..(DLX,SAL)..GEN |
1 | ||
| 52513 - FILLER, FRONT BUMPER, LH | ||||
| 52513-30030 |
LS130,MS132,YS132..4F,4H;MS132,133..SED..(DLX,SAL)..GEN |
1 | ||
| 52513 - FILLER, FRONT BUMPER, LH | ||||
| 52513-30030 |
LS130,MS132,YS132..4F,4H;MS132,133..SED..(DLX,SAL)..GEN |
1 | ||
| 52541 - PROTECTOR, FRONT BUMPER | ||||
| 52541-30030 |
LS130,MS132,YS132..4F,4H;MS132,133..SED..(DLX,SAL)..GEN |
2 | ||
| 52541 - PROTECTOR, FRONT BUMPER | ||||
| 52541-30030 |
LS130,MS132,YS132..4F,4H;MS132,133..SED..(DLX,SAL)..GEN |
2 | ||
| Common parts | ||||
| 90112-08031 | ||||
| 90119-10480 | ||||
| 90179-08043 | ||||
| 90269-03007 | ||||
| 90950-01405 | ||||
| 91631-40610 | ||||
(8908- )MS133..SAL..GEN ; (8908- )LS130,MS132,YS132..SED
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52011A - ARM SUB-ASSY, FRONT BUMPER, RH | ||||
| 52011-30150 |
LS130,MS132,YS132..4F,4H;MS132,133..SED..(DLX,SAL)..GEN |
1 | ||
| 52012A - ARM SUB-ASSY, FRONT BUMPER, LH | ||||
| 52012-30160 |
LS130,MS132,YS132..4F,4H;MS132,133..SED..(DLX,SAL)..GEN |
1 | ||
| 52051 - PAD SUB-ASSY, FRONT BUMPER, RH | ||||
| 52051-30080 |
LS130,MS132,YS132..4F,4H;MS132,133..SED..(DLX,SAL)..GEN |
1 | ||
| 52052 - PAD SUB-ASSY, FRONT BUMPER, LH | ||||
| 52052-30060 |
LS130,MS132,YS132..4F,4H;MS132,133..SED..(DLX,SAL)..GEN |
1 | ||
| 52111E - BAR, FRONT BUMPER | ||||
| 52111-30180 |
LS130,MS132,YS132..4F,4H;MS132,133..SED..(DLX,SAL)..GEN |
1 | ||
| 52121B - BRACKET, FRONT LICENCE PLATE MOUNTING | ||||
| 52121-30080 |
LS130,MS132,YS132..4F,4H;MS132,133..SED..SAL..GEN |
1 | ||
| 52512 - FILLER, FRONT BUMPER, RH | ||||
| 52512-30030 |
LS130,MS132,YS132..4F,4H;MS132,133..SED..(DLX,SAL)..GEN |
1 | ||
| 52513 - FILLER, FRONT BUMPER, LH | ||||
| 52513-30030 |
LS130,MS132,YS132..4F,4H;MS132,133..SED..(DLX,SAL)..GEN |
1 | ||
| 52541 - PROTECTOR, FRONT BUMPER | ||||
| 52541-30030 |
LS130,MS132,YS132..4F,4H;MS132,133..SED..(DLX,SAL)..GEN |
2 | ||
| Common parts | ||||
| 90112-08031 | ||||
| 90119-10498 | ||||
| 90159-60417 | ||||
| 90179-08043 | ||||
| 90269-03007 | ||||
| 91631-40610 | ||||
(8908- )WG ; (8908- )STD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52021 - REINFORCEMENT SUB-ASSY, FRONT BUMPER | ||||
| 52021-30090 |
MS132..WG;LS130,MS132,133,YS132..(DLX,STD)..GEN |
1 | ||
| 52114A - BRACKET, FRONT BUMPER EXTENSION MOUNTING | ||||
| 52114-30050 |
MS132..4F;GS131,LS130,MS135,YS132..GEN;MS132,133..(DLX,ROY,SAL)..GEN |
1 | ||
| 52119A - COVER, FRONT BUMPER | ||||
| 52119-30916 |
MS132..WG;LS130,MS132,YS132..(DLX,STD)..GEN |
1 | ||
| 52119-30920 |
MS132..WG;LS130,MS132,133,YS132..STD |
1 | ||
| 52145A - STAY, FRONT BUMPER, NO.2 RH | ||||
| 52145-30030 |
GS131,LS130,MS13#,YS132 |
1 | ||
| 52146A - STAY, FRONT BUMPER, NO.2 LH | ||||
| 52146-30030 |
GS131,LS130,MS13#,YS132 |
1 | ||
| 52521 - RETAINER, FRONT BUMPER, UPPER CENTER | ||||
| 52521-30050 |
MS132..WG;LS130,MS132,YS132..(DLX,STD)..GEN |
1 | ||
| 52521-30080 |
MS132..WG;LS130,MS132,133,YS132..STD |
1 | ||
| 52525 - RETAINER, FRONT BUMPER, LOWER CENTER | ||||
| 52525-30030 |
MS132..WG;LS130,MS132,133,YS132..STD |
1 | ||
| 52526 - RETAINER, FRONT BUMPER, LOWER SIDE | ||||
| 52526-30070 |
MS132..WG;LS130,MS132,133,YS132..STD |
2 | ||
| 52526 - RETAINER, FRONT BUMPER, LOWER SIDE | ||||
| 52526-30070 |
MS132..WG;LS130,MS132,133,YS132..STD |
2 | ||
| 52527B - RETAINER, FRONT BUMPER, LOWER NO.2 | ||||
| 52527-30010 |
GS131,LS130,MS13#,YS132 |
1 | ||
| 52535 - RETAINER, FRONT BUMPER SIDE, RH | ||||
| 52535-30090 |
MS132..WG;LS130,MS132,133,YS132..STD |
1 | ||
| 52535-30060 |
MS132..WG;LS130,MS132,YS132..(DLX,STD)..GEN |
1 | ||
| 52536 - RETAINER, FRONT BUMPER SIDE, LH | ||||
| 52536-30090 |
MS132..WG;LS130,MS132,133,YS132..STD |
1 | ||
| 52536-30060 |
MS132..WG;LS130,MS132,YS132..(DLX,STD)..GEN |
1 | ||
| 52611 - ABSORBER, FRONT BUMPER ENERGY | ||||
| 52611-30040 |
MS132..WG;LS130,MS132,YS132..(DLX,STD)..GEN |
1 | ||
| 52611-30070 |
MS132..WG;LS130,MS132,133,YS132..STD |
1 | ||
| 52711 - MOULDING, FRONT BUMPER | ||||
| 52711-30030 |
MS132..WG;LS130,MS132,YS132..(DLX,STD)..GEN |
1 | ||
| 52711-30090 |
MS132..WG;LS130,MS132,133,YS132..STD |
1 | ||
| 52712 - MOULDING, FRONT BUMPER SIDE, RH | ||||
| 52712-30050 |
MS132..WG;LS130,MS132,133,YS132..STD |
1 | ||
| 52713 - PLUG, FRONT BUMPER MOULDING | ||||
| 52713-30050 |
MS132..WG;LS130,MS132,133,YS132..STD |
1 | ||
| 52714 - PLUG, FRONT BUMPER MOULDING, LH | ||||
| 52714-30050 |
MS132..WG;LS130,MS132,YS132..(DLX,STD)..GEN |
1 | ||
| 52714-30080 |
MS132..WG;LS130,MS132,133,YS132..STD |
1 | ||
| Common parts | ||||
| 90109-06081 | ||||
| 90109-06083 | ||||
| 90119-10498 | ||||
| 90119-12137 | ||||
| 90159-60293 | ||||
| 90159-60336 | ||||
| 90167-40032 | ||||
| 90179-05004 | ||||
| 90179-06007 | ||||
| 90183-03001 | ||||
| 90189-04095 | ||||
| 90189-06066 | ||||
| 90189-06105 | ||||
| 91656-40616 | ||||
| Linked diagrams | ||||
| 5301 | ||||
