MS132L-AEKBS (1987)
Toyota Crown

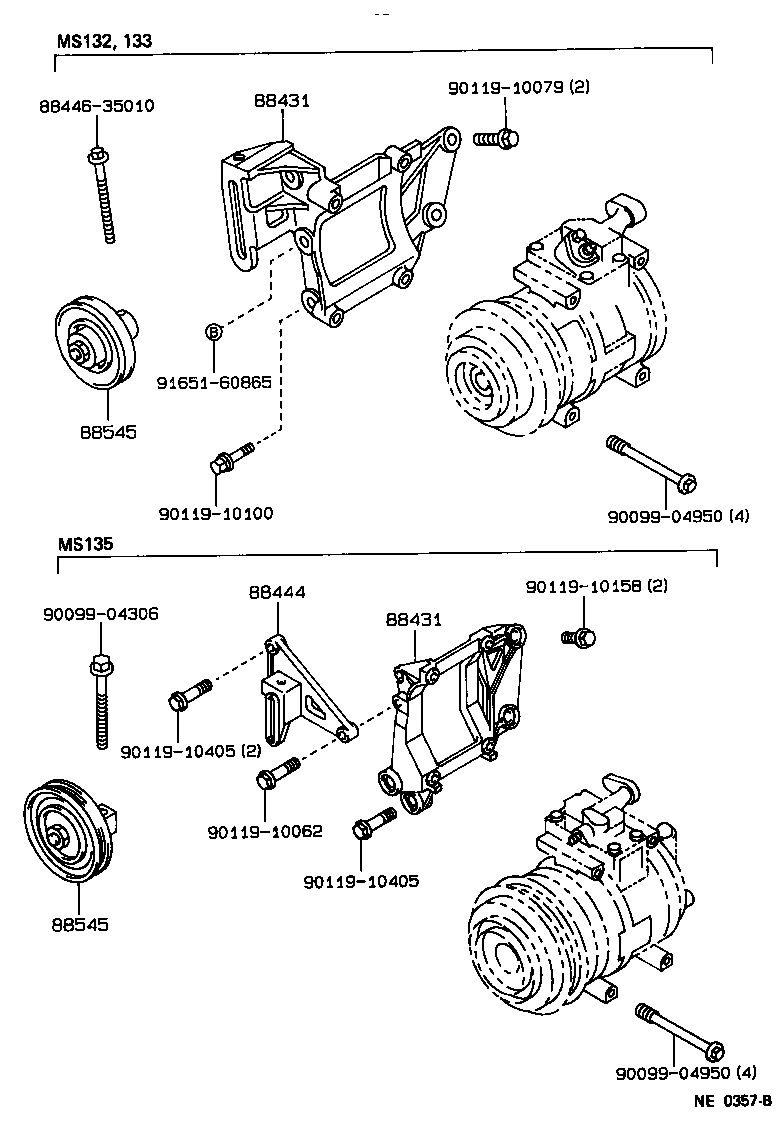

ILLUST NO. 2 OF 3(8709- )MS13#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88431 - BRACKET, COMPRESSOR MOUNTING, NO.1 | ||||
| 88431-30540 |
MS132..4F;MS132,133..DLX,ROY,SAL,SALEX |
1 | ||
| 88431 - BRACKET, COMPRESSOR MOUNTING, NO.1 | ||||
| 88431-30540 |
MS132..4F;MS132,133..DLX,ROY,SAL,SALEX |
1 | ||
| 88545 - PULLEY ASSY, IDLE | ||||
| 88440-30290 |
MS132..4F;MS132,133..DLX,ROY,SAL,SALEX |
1 | ||
| 88545 - PULLEY ASSY, IDLE | ||||
| 88440-30290 |
MS132..4F;MS132,133..DLX,ROY,SAL,SALEX |
1 | ||
| Common parts | ||||
| 88446-35010 | ||||
| 90099-04306 | ||||
| 90099-04950 | ||||
| 90119-10062 | ||||
| 90119-10079 | ||||
| 90119-10100 | ||||
| 90119-10158 | ||||
| 90119-10405 | ||||
| 91651-60865 | ||||

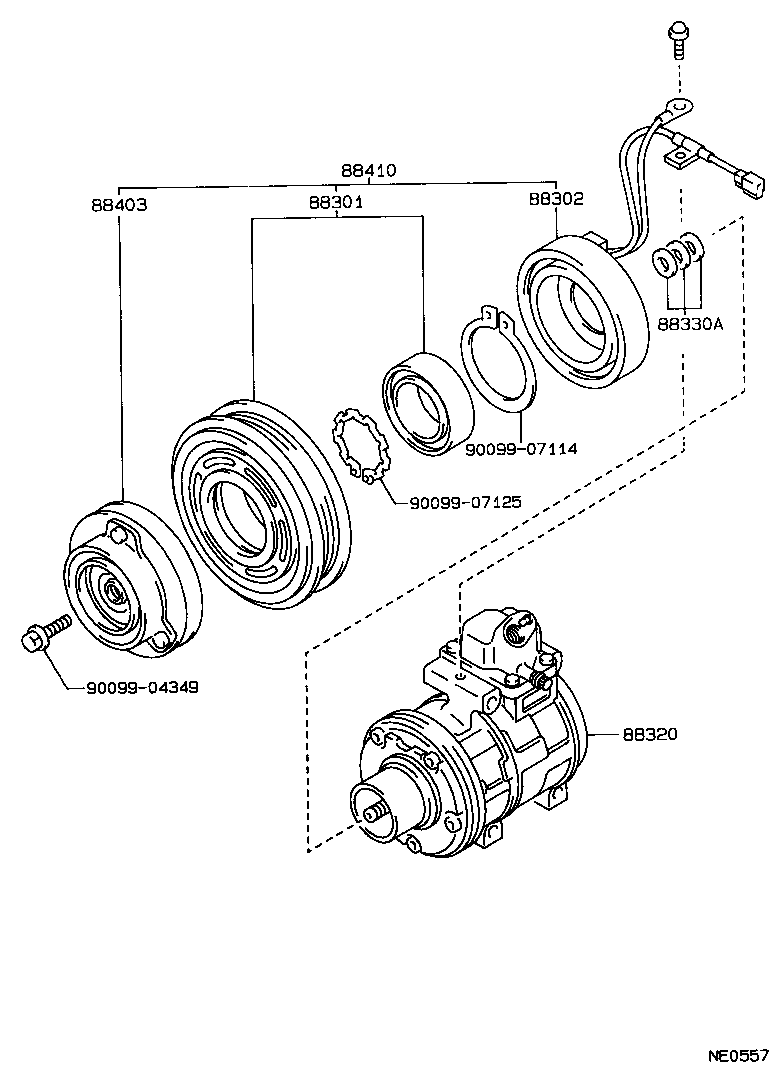

ILLUST NO. 1 OF 3(8709- )MS13#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88301 - ROTOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88412-30320 |
MS132..4F;MS132,133..DLX,ROY,SAL,SALEX |
1 | ||
| 88302 - STATOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88411-30440 |
MS132..4F;MS132,133..(DLX,ROY,SAL)..GEN |
1 | ||
| 88320 - COMPRESSOR ASSY, COOLER | ||||
| 88320-30390 |
MS132..4F;MS132,133..(DLX,ROY,SAL)..GEN |
1 | ||
| 88330A - WASHER (FOR MAGNET CLUTCH) | ||||
| 88335-14020 |
MS132..4F;MS13#..DLX,ROY,SAL,SALEX |
1 | ||
| 88403 - HUB SUB-ASSY, MAGNET CLUTCH | ||||
| 88403-16010 |
MS132..4F;MS13#..DLX,ROY,SAL,SALEX |
1 | ||
| 88403-16011 |
LS130,MS132,135;MS133..SAL,SALEX |
1 | ||
| 88403-16011 |
MS132..4F;MS13#..DLX,ROY,SAL,SALEX |
1 | ||
| 88410 - CLUTCH ASSY, MAGNET | ||||
| 88410-30510 |
MS132..4F;MS132,133..(DLX,ROY,SAL)..GEN |
1 | ||
| Common parts | ||||
| 90099-04349 | ||||
| 90099-07114 | ||||
| 90099-07125 | ||||

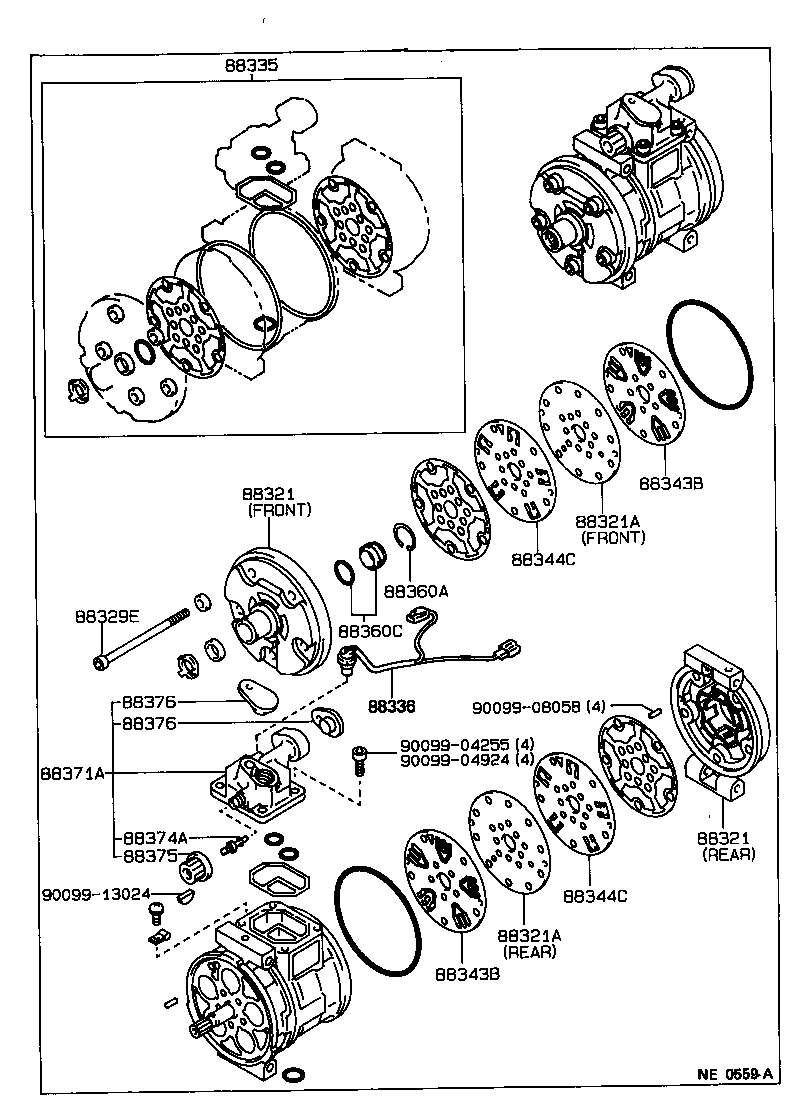

ILLUST NO. 3 OF 3(8709- )LS130,MS13#,YS132
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88321 - HEAD, COOLER COMPRESSOR CYLINDER | ||||
| 88322-30310 |
MS132..4F;MS13#..DLX,ROY,SAL,SALEX REAR |
1 | ||
| 88321-30290 |
MS132..4F;MS13#..DLX,ROY,SAL,SALEX FRONT |
1 | ||
| 88321-30290 |
MS135;MS132..GEN;MS133..SAL..GEN FRONT |
1 | ||
| 88322-30310 |
MS135;MS132..GEN;MS133..SAL..GEN REAR |
1 | ||
| 88321 - HEAD, COOLER COMPRESSOR CYLINDER | ||||
| 88322-30310 |
MS132..4F;MS13#..DLX,ROY,SAL,SALEX REAR |
1 | ||
| 88321-30290 |
MS132..4F;MS13#..DLX,ROY,SAL,SALEX FRONT |
1 | ||
| 88321-30290 |
MS135;MS132..GEN;MS133..SAL..GEN FRONT |
1 | ||
| 88322-30310 |
MS135;MS132..GEN;MS133..SAL..GEN REAR |
1 | ||
| 88321A - PLATE SUB-ASSY, VALVE | ||||
| 88341-30010 |
MS132..4F;MS13#..DLX,ROY,SAL,SALEX FRONT |
1 | ||
| 88342-30010 |
MS135;MS132..GEN;MS133..SAL..GEN REAR |
1 | ||
| 88342-30010 |
MS132..4F;MS13#..DLX,ROY,SAL,SALEX REAR |
1 | ||
| 88341-30010 |
MS135;MS132..GEN;MS133..SAL..GEN FRONT |
1 | ||
| 88321A - PLATE SUB-ASSY, VALVE | ||||
| 88341-30010 |
MS132..4F;MS13#..DLX,ROY,SAL,SALEX FRONT |
1 | ||
| 88342-30010 |
MS135;MS132..GEN;MS133..SAL..GEN REAR |
1 | ||
| 88342-30010 |
MS132..4F;MS13#..DLX,ROY,SAL,SALEX REAR |
1 | ||
| 88341-30010 |
MS135;MS132..GEN;MS133..SAL..GEN FRONT |
1 | ||
| 88329E - BOLT, COMPRESSOR, NO.1 | ||||
| 88329-30010 |
MS132..4F;MS13#..DLX,ROY,SAL,SALEX |
5 | ||
| 88329-30010 |
MS135;MS132..GEN;MS133..SAL..GEN |
5 | ||
| 88335 - GASKET KIT, OVERHAUL | ||||
| 88335-30020 |
MS135;MS132..GEN;MS133..SAL..GEN |
1 | ||
| 88335-30020 |
MS132..4F;MS13#..DLX,ROY,SAL,SALEX |
1 | ||
| 88343B - REED, SUCTION VALVE | ||||
| 88343-30280 |
MS132..4F;MS13#..DLX,ROY,SAL,SALEX |
2 | ||
| 88343-30280 |
MS135;MS132..GEN;MS133..SAL..GEN |
2 | ||
| 88343B - REED, SUCTION VALVE | ||||
| 88343-30280 |
MS132..4F;MS13#..DLX,ROY,SAL,SALEX |
2 | ||
| 88343-30280 |
MS135;MS132..GEN;MS133..SAL..GEN |
2 | ||
| 88344C - REED, DISCHARGE VALVE | ||||
| 88344-30010 |
MS132..4F;MS13#..DLX,ROY,SAL,SALEX |
2 | ||
| 88344-30010 |
MS135;MS132..GEN;MS133..SAL..GEN |
2 | ||
| 88344C - REED, DISCHARGE VALVE | ||||
| 88344-30010 |
MS132..4F;MS13#..DLX,ROY,SAL,SALEX |
2 | ||
| 88344-30010 |
MS135;MS132..GEN;MS133..SAL..GEN |
2 | ||
| 88360A - RING, COMPRESSOR SEAL PLATE SNAP | ||||
| 90096-90022 |
MS135;MS133..SAL..GEN;LS130,MS132,YS132..GEN |
1 | ||
| 90096-90022 |
MS132..4F;MS132..DLX,ROY,SAL;LS130,MS133,135,YS132 |
1 | ||
| 88360C - SEAL ASSY, SHAFT | ||||
| 88360-14030 |
MS132..4F;MS13#..DLX,ROY,SAL,SALEX |
1 | ||
| 88360-14030 |
MS135;MS133..SAL..GEN;LS130,MS132..GEN |
1 | ||
| 88371A - VALVE, SUCTION | ||||
| 88371-30370 |
MS132..4F;MS132,133..(DLX,ROY,SAL)..GEN |
1 | ||
| 88374A - VALVE, SERVICE | ||||
| 88374-12020 |
MS132..4F;MS132..DLX,ROY,SAL;LS130,MS133,135,YS132 |
1 | ||
| 88374-12020 |
MS135;MS133..SAL..GEN;LS130,MS132,YS132..GEN |
1 | ||
| 88375 - CAP, COOLER COMPRESSOR SERVICE VALVE | ||||
| 88375-30270 |
MS132..4F;LS130,MS135,YS132;MS132,133..DLX,ROY,SAL,SALEX |
1 | ||
| 88376 - CAP, BLIND | ||||
| 88376-22010 |
MS132..4F;MS132..DLX,ROY,SAL;LS130,MS133,135,YS132 DISCHARGE |
1 | ||
| 88376-22010 |
MS135;MS133..SAL..GEN;LS130,MS132,YS132..GEN DISCHARGE |
1 | ||
| 88376-22020 |
MS132..4F;MS132..DLX,ROY,SAL;LS130,MS133,135,YS132 SUCTION |
1 | ||
| 88376-22020 |
MS135;MS133..SAL..GEN;LS130,MS132,YS132..GEN SUCTION |
1 | ||
| 88376 - CAP, BLIND | ||||
| 88376-22010 |
MS132..4F;MS132..DLX,ROY,SAL;LS130,MS133,135,YS132 DISCHARGE |
1 | ||
| 88376-22010 |
MS135;MS133..SAL..GEN;LS130,MS132,YS132..GEN DISCHARGE |
1 | ||
| 88376-22020 |
MS132..4F;MS132..DLX,ROY,SAL;LS130,MS133,135,YS132 SUCTION |
1 | ||
| 88376-22020 |
MS135;MS133..SAL..GEN;LS130,MS132,YS132..GEN SUCTION |
1 | ||
| Common parts | ||||
| 90099-04255 | ||||
| 90099-04924 | ||||
| 90099-08058 | ||||
| 90099-13024 | ||||
