MS132L-AEKBS (1987)
Toyota Crown

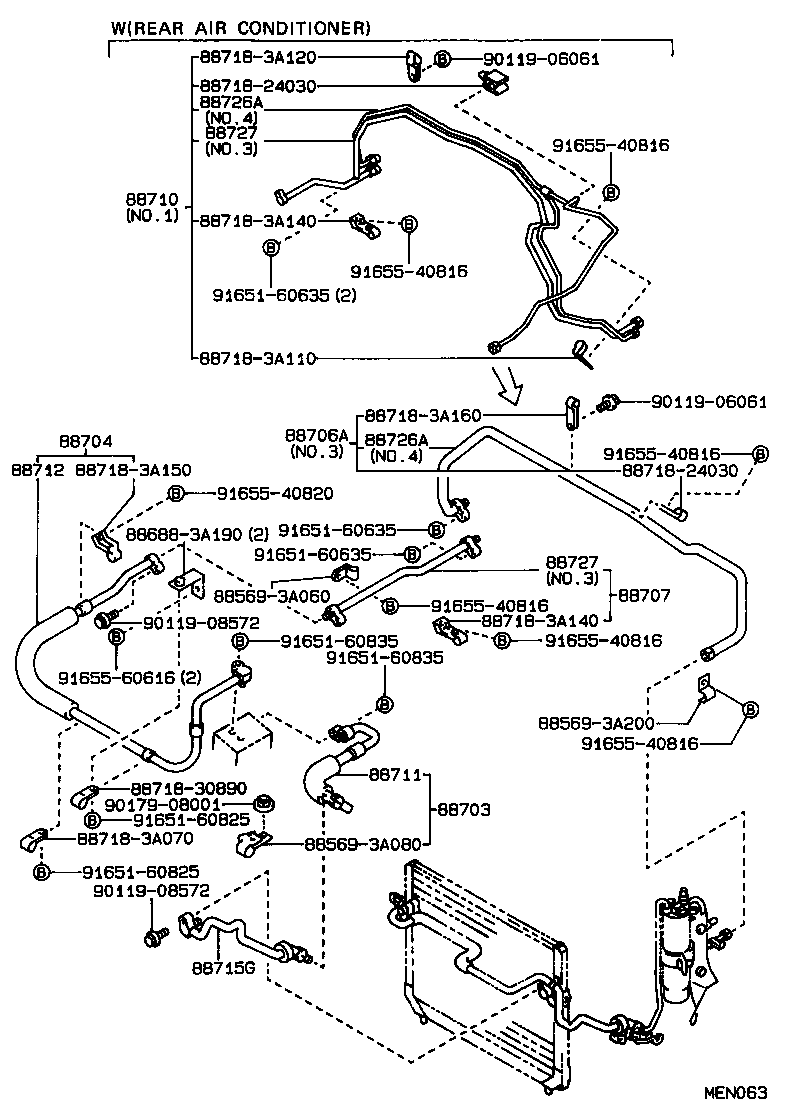

ILLUST NO. 1 OF 3(8709- )MS13#
FRONT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88375B - CAP, SERVICE VALVE, NO.1 | ||||
| 88375-20010 |
MS133..SAL,SALEX;LS130,MS132,135,YS132 |
1 | ||
| 88375-20010 |
MS132..4F;MS133,135,YS132;MS132..DLX,ROY,SAL |
1 | ||
| 88375-20010 |
MS132,YS132;MS133..SAL,SALEX;LS130,MS135..4FC,4H,4HC |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-30590 |
LS130,MS13#,YS132..LHD |
1 | ||
| 88460-30550 |
MS13#,YS132..LHD |
1 | ||
| 88470 - RECEIVER & DRYER ASSY, COOLER | ||||
| 88470-30490 |
MS132..4F;MS133,135,YS132;MS132..DLX,ROY,SAL |
1 | ||
| 88470-30490 |
YS132;MS133..SAL,SALEX;LS130,MS132,135..4F,4FC,4HC,5F |
1 | ||
| 88471 - TANK, RECEIVER AIR CONDITIONER | ||||
| 88471-30350 |
YS132;MS133..SAL,SALEX;LS130,MS132,135..4F,4FC,4HC,5F |
1 | ||
| 88645H - SWITCH, PRESSURE NO.1 | ||||
| 88645-30280 |
MS132,133..LHD |
1 | ||
| 88645-30280 |
MS132..LHD..GEN |
1 | ||
| 88645-30281 |
MS135;MS132,133..LHD |
2 | ||
| 88645-30300 |
MS132,YS132..LHD..SED |
1 | ||
| 88645-30280 |
MS133..SAL,SALEX;LS130,MS132,135,YS132 |
2 | ||
| 88645-30320 |
MS135;MS132,133..LHD |
2 | ||
| 88706A - TUBE SUB-ASSY, LIQUID, A | ||||
| 88706-30250 |
MS132..4F;MS133,135,YS132;MS132..DLX,ROY,SAL NO.1 |
1 | ||
| 88706-30300 |
MS132..DLX..GCC;MS132,YS132..LHD..(SAL,STD)..GEN NO.3 |
1 | ||
| 88706-30310 |
MS132..4F;MS133,135,YS132;MS132..DLX,ROY,SAL NO.2,PLANT NO.M22 |
1 | ||
| 88706-30250 |
MS133..SAL,SALEX;LS130,MS132,135,YS132 NO.1 |
1 | ||
| 88706-30260 |
MS133..SAL,SALEX;LS130,MS132,135,YS132 NO.2,PLANT NO.A21-26 |
1 | ||
| 88706-30260 |
MS132..4F;MS133,135,YS132;MS132..DLX,ROY,SAL NO.2,PLANT NO.A21-26 |
1 | ||
| 88706-30300 |
MS135..GCC;LS130,MS132,133,YS132..LHD..(DLX,SAL,SALEX,STD) NO.3 |
1 | ||
| 88706-30310 |
MS133..SAL,SALEX;LS130,MS132,135,YS132 NO.2,PLANT NO.M22 |
1 | ||
| 88706-30310 |
MS132,135,YS132;MS133..SAL,SALEX NO.2,PLANT NO.M22 |
1 | ||
| 88706-30260 |
MS132,135,YS132;MS133..SAL,SALEX NO.2,PLANT NO.A21-26 |
1 | ||
| 88706-30300 |
MS135..GCC;MS132,133,YS132..LHD..(DLX,SAL,SALEX,STD) NO.3 |
1 | ||
| 88706A - TUBE SUB-ASSY, LIQUID, A | ||||
| 88706-30250 |
MS132..4F;MS133,135,YS132;MS132..DLX,ROY,SAL NO.1 |
1 | ||
| 88706-30300 |
MS132..DLX..GCC;MS132,YS132..LHD..(SAL,STD)..GEN NO.3 |
1 | ||
| 88706-30310 |
MS132..4F;MS133,135,YS132;MS132..DLX,ROY,SAL NO.2,PLANT NO.M22 |
1 | ||
| 88706-30250 |
MS133..SAL,SALEX;LS130,MS132,135,YS132 NO.1 |
1 | ||
| 88706-30260 |
MS133..SAL,SALEX;LS130,MS132,135,YS132 NO.2,PLANT NO.A21-26 |
1 | ||
| 88706-30260 |
MS132..4F;MS133,135,YS132;MS132..DLX,ROY,SAL NO.2,PLANT NO.A21-26 |
1 | ||
| 88706-30300 |
MS135..GCC;LS130,MS132,133,YS132..LHD..(DLX,SAL,SALEX,STD) NO.3 |
1 | ||
| 88706-30310 |
MS133..SAL,SALEX;LS130,MS132,135,YS132 NO.2,PLANT NO.M22 |
1 | ||
| 88706-30310 |
MS132,135,YS132;MS133..SAL,SALEX NO.2,PLANT NO.M22 |
1 | ||
| 88706-30260 |
MS132,135,YS132;MS133..SAL,SALEX NO.2,PLANT NO.A21-26 |
1 | ||
| 88706-30300 |
MS135..GCC;MS132,133,YS132..LHD..(DLX,SAL,SALEX,STD) NO.3 |
1 | ||
| 88726A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88726-3A110 |
MS132..4F;MS133,135,YS132;MS132..DLX,ROY,SAL NO.3,PLANT NO.A21-26 |
1 | ||
| 88726-3A080 |
MS132..DLX..GCC;MS132,YS132..LHD..SED..(SAL,STD)..GEN NO,4 |
1 | ||
| 88726-3A100 |
MS132..4F;MS133,135,YS132;MS132..DLX,ROY,SAL NO.2 |
1 | ||
| 88726-3A250 |
MS132..4F;MS133,135,YS132;MS132..DLX,ROY,SAL NO.3,PLANT NO.M22 |
1 | ||
| 88726-3A090 |
MS132..4F;MS13#..DLX,ROY,SAL,SALEX NO.1 |
1 | ||
| 88726-3A250 |
MS133..SAL,SALEX;LS130,MS132,135,YS132 NO.3,PLANT NO.M22 |
1 | ||
| 88726-3A080 |
MS135..GCC;LS130,MS132,133,YS132..LHD..(DLX,SAL,SALEX,STD) NO.4 |
1 | ||
| 88726-3A110 |
MS133..SAL,SALEX;LS130,MS132,135,YS132 NO.3,PLANT NO.A21-26 |
1 | ||
| 88726-3A090 |
MS132,135;MS133..SAL,SALEX NO.1 |
1 | ||
| 88726-3A080 |
MS135..GCC;MS132,133,YS132..LHD..(DLX,SAL,SALEX,STD) NO.4 |
1 | ||
| 88726-3A110 |
MS132,135,YS132;MS133..SAL,SALEX NO.3,PLANT NO.A21-26 |
1 | ||
| 88726-3A250 |
MS132,135,YS132;MS133..SAL,SALEX NO.3,PLANT NO.M22 |
1 | ||
| 88726-3A100 |
MS133..SAL,SALEX;LS130,MS132,135,YS132 NO.2 |
1 | ||
| 88726A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88726-3A110 |
MS132..4F;MS133,135,YS132;MS132..DLX,ROY,SAL NO.3,PLANT NO.A21-26 |
1 | ||
| 88726-3A080 |
MS132..DLX..GCC;MS132,YS132..LHD..SED..(SAL,STD)..GEN NO,4 |
1 | ||
| 88726-3A100 |
MS132..4F;MS133,135,YS132;MS132..DLX,ROY,SAL NO.2 |
1 | ||
| 88726-3A250 |
MS132..4F;MS133,135,YS132;MS132..DLX,ROY,SAL NO.3,PLANT NO.M22 |
1 | ||
| 88726-3A090 |
MS132..4F;MS13#..DLX,ROY,SAL,SALEX NO.1 |
1 | ||
| 88726-3A250 |
MS133..SAL,SALEX;LS130,MS132,135,YS132 NO.3,PLANT NO.M22 |
1 | ||
| 88726-3A080 |
MS135..GCC;LS130,MS132,133,YS132..LHD..(DLX,SAL,SALEX,STD) NO.4 |
1 | ||
| 88726-3A110 |
MS133..SAL,SALEX;LS130,MS132,135,YS132 NO.3,PLANT NO.A21-26 |
1 | ||
| 88726-3A090 |
MS132,135;MS133..SAL,SALEX NO.1 |
1 | ||
| 88726-3A080 |
MS135..GCC;MS132,133,YS132..LHD..(DLX,SAL,SALEX,STD) NO.4 |
1 | ||
| 88726-3A110 |
MS132,135,YS132;MS133..SAL,SALEX NO.3,PLANT NO.A21-26 |
1 | ||
| 88726-3A250 |
MS132,135,YS132;MS133..SAL,SALEX NO.3,PLANT NO.M22 |
1 | ||
| 88726-3A100 |
MS133..SAL,SALEX;LS130,MS132,135,YS132 NO.2 |
1 | ||
| 88726A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88726-3A110 |
MS132..4F;MS133,135,YS132;MS132..DLX,ROY,SAL NO.3,PLANT NO.A21-26 |
1 | ||
| 88726-3A080 |
MS132..DLX..GCC;MS132,YS132..LHD..SED..(SAL,STD)..GEN NO,4 |
1 | ||
| 88726-3A100 |
MS132..4F;MS133,135,YS132;MS132..DLX,ROY,SAL NO.2 |
1 | ||
| 88726-3A250 |
MS132..4F;MS133,135,YS132;MS132..DLX,ROY,SAL NO.3,PLANT NO.M22 |
1 | ||
| 88726-3A090 |
MS132..4F;MS13#..DLX,ROY,SAL,SALEX NO.1 |
1 | ||
| 88726-3A250 |
MS133..SAL,SALEX;LS130,MS132,135,YS132 NO.3,PLANT NO.M22 |
1 | ||
| 88726-3A080 |
MS135..GCC;LS130,MS132,133,YS132..LHD..(DLX,SAL,SALEX,STD) NO.4 |
1 | ||
| 88726-3A110 |
MS133..SAL,SALEX;LS130,MS132,135,YS132 NO.3,PLANT NO.A21-26 |
1 | ||
| 88726-3A090 |
MS132,135;MS133..SAL,SALEX NO.1 |
1 | ||
| 88726-3A080 |
MS135..GCC;MS132,133,YS132..LHD..(DLX,SAL,SALEX,STD) NO.4 |
1 | ||
| 88726-3A110 |
MS132,135,YS132;MS133..SAL,SALEX NO.3,PLANT NO.A21-26 |
1 | ||
| 88726-3A250 |
MS132,135,YS132;MS133..SAL,SALEX NO.3,PLANT NO.M22 |
1 | ||
| 88726-3A100 |
MS133..SAL,SALEX;LS130,MS132,135,YS132 NO.2 |
1 | ||
| Common parts | ||||
| 88467-40030 | ||||
| 88569-3A070 | ||||
| 88569-3A110 | ||||
| 88688-3A100 | ||||
| 88688-3A110 | ||||
| 88688-3A120 | ||||
| 88688-3A140 | ||||
| 88718-30880 | ||||
| 88895-89102 | ||||
| 88897-30690 | ||||
| 90099-32100 | ||||
| 90099-32128 | ||||
| 90119-06013 | ||||
| 90119-06336 | ||||
| 90119-06553 | ||||
| 90119-08572 | ||||
| 90179-08001 | ||||
| 90179-08123 | ||||
| 91655-40816 | ||||
| 91656-40816 | ||||
| 93540-55010 | ||||
ILLUST NO. 2 OF 3(8709- )MS13#..LHD
FRONT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88703 - HOSE SUB-ASSY, DISCHARGE | ||||
| 88703-30260 |
MS132..4F;MS132,133..DLX,ROY,SAL,SALEX |
1 | ||
| 88703-30260 |
MS132..4F;MS132,133..(DLX,ROY,SAL)..GEN |
1 | ||
| 88704 - HOSE SUB-ASSY, SUCTION | ||||
| 88704-30290 |
MS13#..LHD |
1 | ||
| 88706A - TUBE SUB-ASSY, LIQUID, A | ||||
| 88706-30250 |
MS132..4F;MS133,135,YS132;MS132..DLX,ROY,SAL NO.1 |
1 | ||
| 88706-30300 |
MS132..DLX..GCC;MS132,YS132..LHD..(SAL,STD)..GEN NO.3 |
1 | ||
| 88706-30310 |
MS132..4F;MS133,135,YS132;MS132..DLX,ROY,SAL NO.2,PLANT NO.M22 |
1 | ||
| 88706-30250 |
MS133..SAL,SALEX;LS130,MS132,135,YS132 NO.1 |
1 | ||
| 88706-30260 |
MS133..SAL,SALEX;LS130,MS132,135,YS132 NO.2,PLANT NO.A21-26 |
1 | ||
| 88706-30260 |
MS132..4F;MS133,135,YS132;MS132..DLX,ROY,SAL NO.2,PLANT NO.A21-26 |
1 | ||
| 88706-30300 |
MS135..GCC;LS130,MS132,133,YS132..LHD..(DLX,SAL,SALEX,STD) NO.3 |
1 | ||
| 88706-30310 |
MS133..SAL,SALEX;LS130,MS132,135,YS132 NO.2,PLANT NO.M22 |
1 | ||
| 88706-30310 |
MS132,135,YS132;MS133..SAL,SALEX NO.2,PLANT NO.M22 |
1 | ||
| 88706-30260 |
MS132,135,YS132;MS133..SAL,SALEX NO.2,PLANT NO.A21-26 |
1 | ||
| 88706-30300 |
MS135..GCC;MS132,133,YS132..LHD..(DLX,SAL,SALEX,STD) NO.3 |
1 | ||
| 88707 - PIPE SUB-ASSY, SUCTION | ||||
| 88707-30250 |
MS132..DLX..GCC;MS132,YS132..LHD..(SAL,STD)..GEN |
1 | ||
| 88707-30250 |
MS135..GCC;LS130,MS132,133,YS132..LHD..(DLX,SAL,SALEX,STD) |
1 | ||
| 88707-30250 |
MS135..GCC;MS132,133,YS132..LHD..(DLX,SAL,SALEX,STD) |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-30640 |
MS132..4F;MS132,133..DLX,ROY,SAL,SALEX |
1 | ||
| 88711-30640 |
MS132..4F;MS132,133..(DLX,ROY,SAL)..GEN |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-3A010 |
MS13#..LHD |
1 | ||
| 88715G - TUBE, DISCHARGE, G | ||||
| 88715-30350 |
MS132..4F;MS13#..DLX,ROY,SAL,SALEX |
1 | ||
| 88726A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88726-3A110 |
MS132..4F;MS133,135,YS132;MS132..DLX,ROY,SAL NO.3,PLANT NO.A21-26 |
1 | ||
| 88726-3A080 |
MS132..DLX..GCC;MS132,YS132..LHD..SED..(SAL,STD)..GEN NO,4 |
1 | ||
| 88726-3A100 |
MS132..4F;MS133,135,YS132;MS132..DLX,ROY,SAL NO.2 |
1 | ||
| 88726-3A250 |
MS132..4F;MS133,135,YS132;MS132..DLX,ROY,SAL NO.3,PLANT NO.M22 |
1 | ||
| 88726-3A090 |
MS132..4F;MS13#..DLX,ROY,SAL,SALEX NO.1 |
1 | ||
| 88726-3A250 |
MS133..SAL,SALEX;LS130,MS132,135,YS132 NO.3,PLANT NO.M22 |
1 | ||
| 88726-3A080 |
MS135..GCC;LS130,MS132,133,YS132..LHD..(DLX,SAL,SALEX,STD) NO.4 |
1 | ||
| 88726-3A110 |
MS133..SAL,SALEX;LS130,MS132,135,YS132 NO.3,PLANT NO.A21-26 |
1 | ||
| 88726-3A090 |
MS132,135;MS133..SAL,SALEX NO.1 |
1 | ||
| 88726-3A080 |
MS135..GCC;MS132,133,YS132..LHD..(DLX,SAL,SALEX,STD) NO.4 |
1 | ||
| 88726-3A110 |
MS132,135,YS132;MS133..SAL,SALEX NO.3,PLANT NO.A21-26 |
1 | ||
| 88726-3A250 |
MS132,135,YS132;MS133..SAL,SALEX NO.3,PLANT NO.M22 |
1 | ||
| 88726-3A100 |
MS133..SAL,SALEX;LS130,MS132,135,YS132 NO.2 |
1 | ||
| 88726A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88726-3A110 |
MS132..4F;MS133,135,YS132;MS132..DLX,ROY,SAL NO.3,PLANT NO.A21-26 |
1 | ||
| 88726-3A080 |
MS132..DLX..GCC;MS132,YS132..LHD..SED..(SAL,STD)..GEN NO,4 |
1 | ||
| 88726-3A100 |
MS132..4F;MS133,135,YS132;MS132..DLX,ROY,SAL NO.2 |
1 | ||
| 88726-3A250 |
MS132..4F;MS133,135,YS132;MS132..DLX,ROY,SAL NO.3,PLANT NO.M22 |
1 | ||
| 88726-3A090 |
MS132..4F;MS13#..DLX,ROY,SAL,SALEX NO.1 |
1 | ||
| 88726-3A250 |
MS133..SAL,SALEX;LS130,MS132,135,YS132 NO.3,PLANT NO.M22 |
1 | ||
| 88726-3A080 |
MS135..GCC;LS130,MS132,133,YS132..LHD..(DLX,SAL,SALEX,STD) NO.4 |
1 | ||
| 88726-3A110 |
MS133..SAL,SALEX;LS130,MS132,135,YS132 NO.3,PLANT NO.A21-26 |
1 | ||
| 88726-3A090 |
MS132,135;MS133..SAL,SALEX NO.1 |
1 | ||
| 88726-3A080 |
MS135..GCC;MS132,133,YS132..LHD..(DLX,SAL,SALEX,STD) NO.4 |
1 | ||
| 88726-3A110 |
MS132,135,YS132;MS133..SAL,SALEX NO.3,PLANT NO.A21-26 |
1 | ||
| 88726-3A250 |
MS132,135,YS132;MS133..SAL,SALEX NO.3,PLANT NO.M22 |
1 | ||
| 88726-3A100 |
MS133..SAL,SALEX;LS130,MS132,135,YS132 NO.2 |
1 | ||
| 88727 - TUBE, SUCTION, NO.2 | ||||
| 88727-30780 |
MS135..GCC;LS130,MS132,133,YS132..LHD..(DLX,SAL,SALEX,STD) NO.3 |
1 | ||
| 88727-30780 |
MS132..DLX..GCC;MS132,YS132..LHD..SED..(SAL,STD)..GEN NO.3 |
1 | ||
| 88727-30780 |
MS135..GCC;MS132,133,YS132..LHD..(DLX,SAL,SALEX,STD) NO.3 |
1 | ||
| 88727 - TUBE, SUCTION, NO.2 | ||||
| 88727-30780 |
MS135..GCC;LS130,MS132,133,YS132..LHD..(DLX,SAL,SALEX,STD) NO.3 |
1 | ||
| 88727-30780 |
MS132..DLX..GCC;MS132,YS132..LHD..SED..(SAL,STD)..GEN NO.3 |
1 | ||
| 88727-30780 |
MS135..GCC;MS132,133,YS132..LHD..(DLX,SAL,SALEX,STD) NO.3 |
1 | ||
| Common parts | ||||
| 88569-3A060 | ||||
| 88569-3A080 | ||||
| 88569-3A200 | ||||
| 88688-3A190 | ||||
| 88718-24030 | ||||
| 88718-30890 | ||||
| 88718-3A070 | ||||
| 88718-3A110 | ||||
| 88718-3A120 | ||||
| 88718-3A140 | ||||
| 88718-3A150 | ||||
| 88718-3A160 | ||||
| 90119-06061 | ||||
| 90119-08572 | ||||
| 90179-08001 | ||||
| 91651-60635 | ||||
| 91651-60825 | ||||
| 91651-60835 | ||||
| 91655-40816 | ||||
| 91655-40820 | ||||
| 91655-60616 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
