MS132L-AEKBS (1987)
Toyota Crown

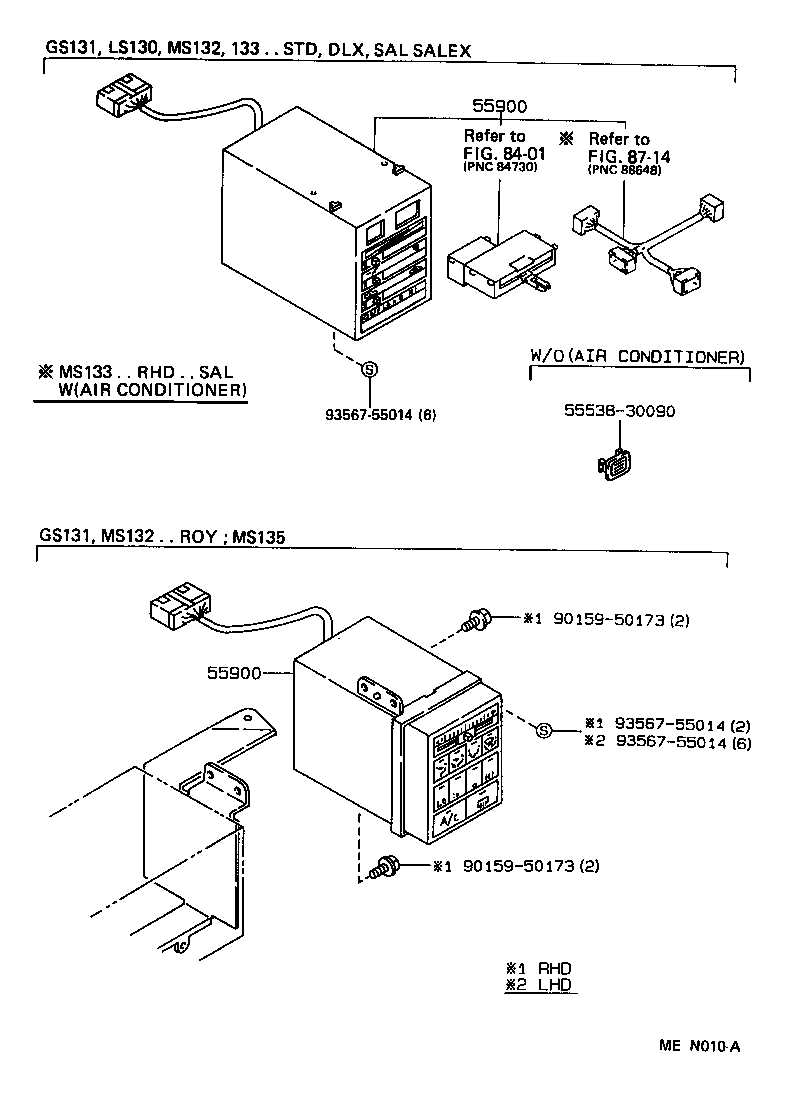

ILLUST NO. 1 OF 4(8709- )
HEATER CONTROL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55900 - CONTROL ASSY, AIR CONDITIONER | ||||
| 55900-30430 |
LS130,MS132,YS132..LHD..(SAL,STD)..GEN W(HEATER) |
1 | ||
| 55900-30440 |
LS130,MS132,YS132..LHD..(SAL,STD)..GEN |
1 | ||
| 55900-30600 |
LS130,MS132,YS132..LHD..(SAL,STD)..GEN W(HEATER) |
1 | ||
| 55900-30450 |
MS132,YS132..LHD..(SAL,STD)..GEN W(AIR CONDITIONER & BOOST VENTILATOR) |
1 | ||
| 55900-30620 |
MS132..(SAL,STD)..GEN |
1 | ||
| 55900 - CONTROL ASSY, AIR CONDITIONER | ||||
| 55900-30430 |
LS130,MS132,YS132..LHD..(SAL,STD)..GEN W(HEATER) |
1 | ||
| 55900-30440 |
LS130,MS132,YS132..LHD..(SAL,STD)..GEN |
1 | ||
| 55900-30600 |
LS130,MS132,YS132..LHD..(SAL,STD)..GEN W(HEATER) |
1 | ||
| 55900-30450 |
MS132,YS132..LHD..(SAL,STD)..GEN W(AIR CONDITIONER & BOOST VENTILATOR) |
1 | ||
| 55900-30620 |
MS132..(SAL,STD)..GEN |
1 | ||
| Common parts | ||||
| 55538-30090 | ||||
| 90159-50173 | ||||
| 93567-55014 | ||||
| Linked diagrams | ||||
| 8401 | ||||
| 8714 | ||||

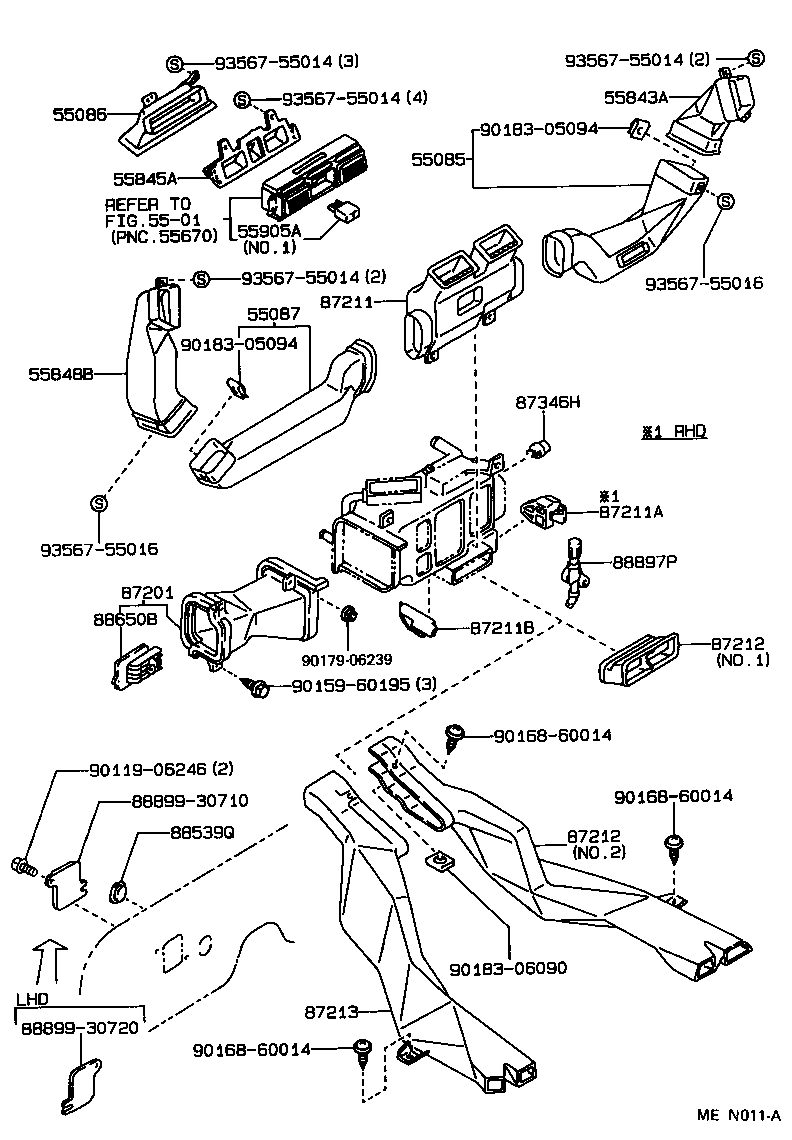

ILLUST NO. 2 OF 4(8709- )
FRONT DUCT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55085 - DUCT SUB-ASSY, HEATER TO REGISTER, NO.2 | ||||
| 55085-30090 |
GS131,LS130,MS13#,YS132..LHD |
1 | ||
| 55087 - DUCT SUB-ASSY, HEATER TO REGISTER, NO.4 | ||||
| 55087-30080 |
GS131,LS130,MS13#,YS132..LHD |
1 | ||
| 55843A - DUCT, HEATER TO REGISTER, NO.1 | ||||
| 55843-30120 |
GS131,LS130,MS13#,YS132..LHD |
1 | ||
| 55845A - DUCT, HEATER TO REGISTER, NO.3 | ||||
| 55845-30130 |
GS131,LS130,MS13#,YS132..LHD |
1 | ||
| 55848B - DUCT, HEATER TO REGISTER, NO.6 | ||||
| 55848-30050 |
GS131,LS130,MS13#,YS132..LHD |
1 | ||
| 87201 - DUCT SUB-ASSY, AIR, NO.1 | ||||
| 87201-30490 |
MS133..SALEX;GS131,LS130,MS132,YS132..LHD..(DLX,SAL,STD) |
1 | ||
| 87211 - DUCT, AIR, NO.1 | ||||
| 87201-30500 |
GS131,LS130,MS13#,YS132..LHD |
1 | ||
| 87211B - DUCT, AIR, NO.3 | ||||
| 87211-30180 |
LS130,MS13#,YS132..LHD |
1 | ||
| 87212 - DUCT, AIR, REAR NO.1 | ||||
| 87212-30340 |
GS131,MS135,YS132;LS130,MS132..LHD..STD;MS132..(DLX,ROY,SAL)..GEN NO.2 |
1 | ||
| 87212-30330 |
MS133..SALEX,STD;MS133,135..(ROY,SAL)..GCC;GS131,LS130,MS132,YS132..DLX,SAL,STD NO.1 |
1 | ||
| 87212-30330 |
MS135..V;MS135..SED..GCC;GS131,LS130,MS132,133,YS132..DLX,SAL,SALEX,STD NO.1 |
1 | ||
| 87212-30341 |
MS133..SAL..GEN;MS132,YS132..GEN;GS131,LS130,MS135..(4F,4FC,4HC,5F)..(ROY,STD)..GEN NO.2 |
1 | ||
| 87212 - DUCT, AIR, REAR NO.1 | ||||
| 87212-30340 |
GS131,MS135,YS132;LS130,MS132..LHD..STD;MS132..(DLX,ROY,SAL)..GEN NO.2 |
1 | ||
| 87212-30330 |
MS133..SALEX,STD;MS133,135..(ROY,SAL)..GCC;GS131,LS130,MS132,YS132..DLX,SAL,STD NO.1 |
1 | ||
| 87212-30330 |
MS135..V;MS135..SED..GCC;GS131,LS130,MS132,133,YS132..DLX,SAL,SALEX,STD NO.1 |
1 | ||
| 87212-30341 |
MS133..SAL..GEN;MS132,YS132..GEN;GS131,LS130,MS135..(4F,4FC,4HC,5F)..(ROY,STD)..GEN NO.2 |
1 | ||
| 87213 - DUCT, AIR, REAR NO.2 | ||||
| 87213-30260 |
LS130,MS132,YS132..LHD..GEN |
1 | ||
| 88539Q - PLUG, HOLE (FOR DRAIN HOSE HOLE) | ||||
| 90950-01587 |
MS132..DLX,SAL,STD;GS131,LS130,MS133,YS132 |
1 | ||
| Common parts | ||||
| 88899-30710 | ||||
| 88899-30720 | ||||
| 90119-06246 | ||||
| 90159-60195 | ||||
| 90168-60014 | ||||
| 90179-06239 | ||||
| 90183-05094 | ||||
| 90183-06090 | ||||
| 93567-55014 | ||||
| 93567-55016 | ||||
| Linked diagrams | ||||
| 5501 | ||||

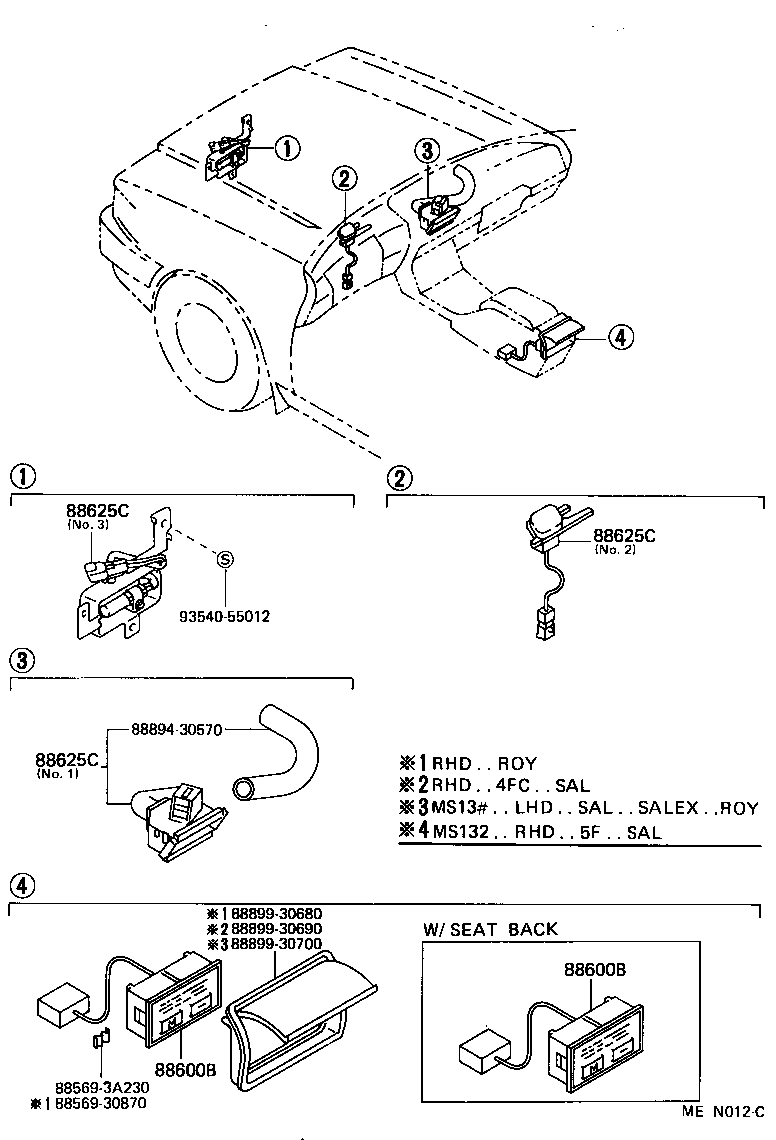

ILLUST NO. 3 OF 4(8709- )
SENSOR & SWITCH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 88569-30870 | ||||
| 88569-3A230 | ||||
| 88894-30570 | ||||
| 88899-30680 | ||||
| 88899-30700 | ||||
| 88899-39690 | ||||
| 93540-55012 | ||||

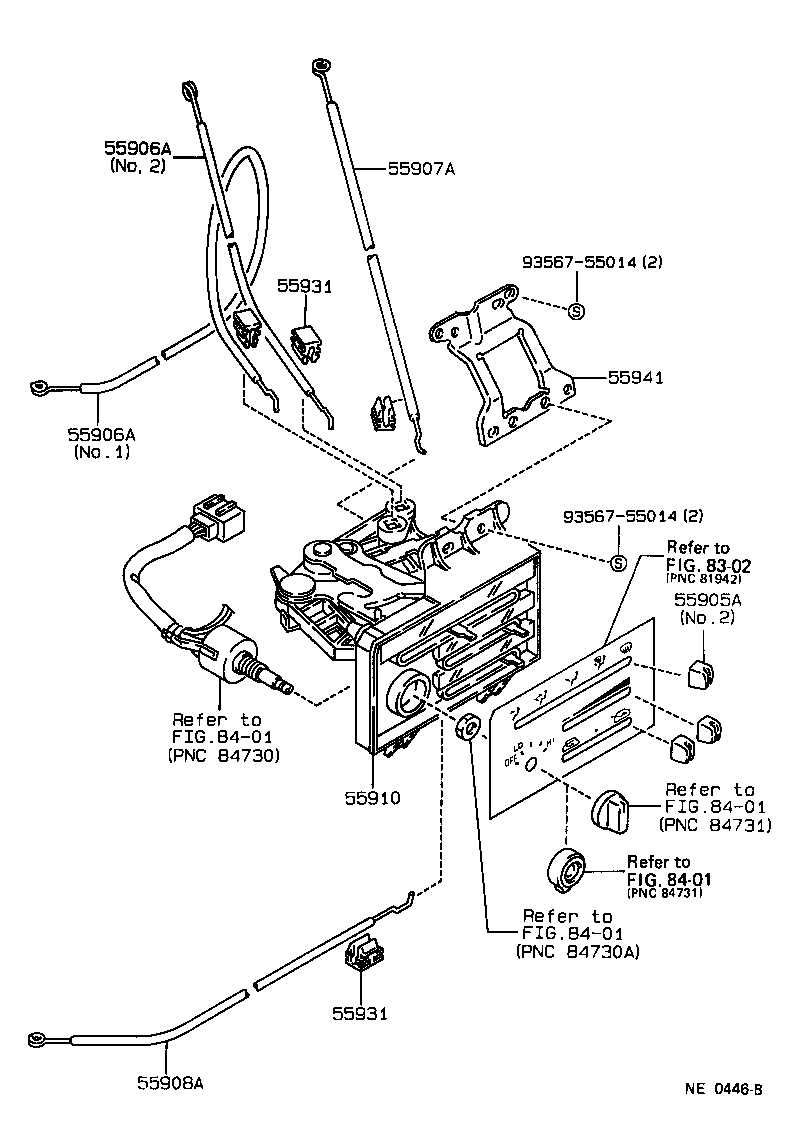

ILLUST NO. 1 OF 4(8709- )
HEATER CONTROL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 93567-55014 | ||||
| Linked diagrams | ||||
| 8302 | ||||
| 8401 | ||||

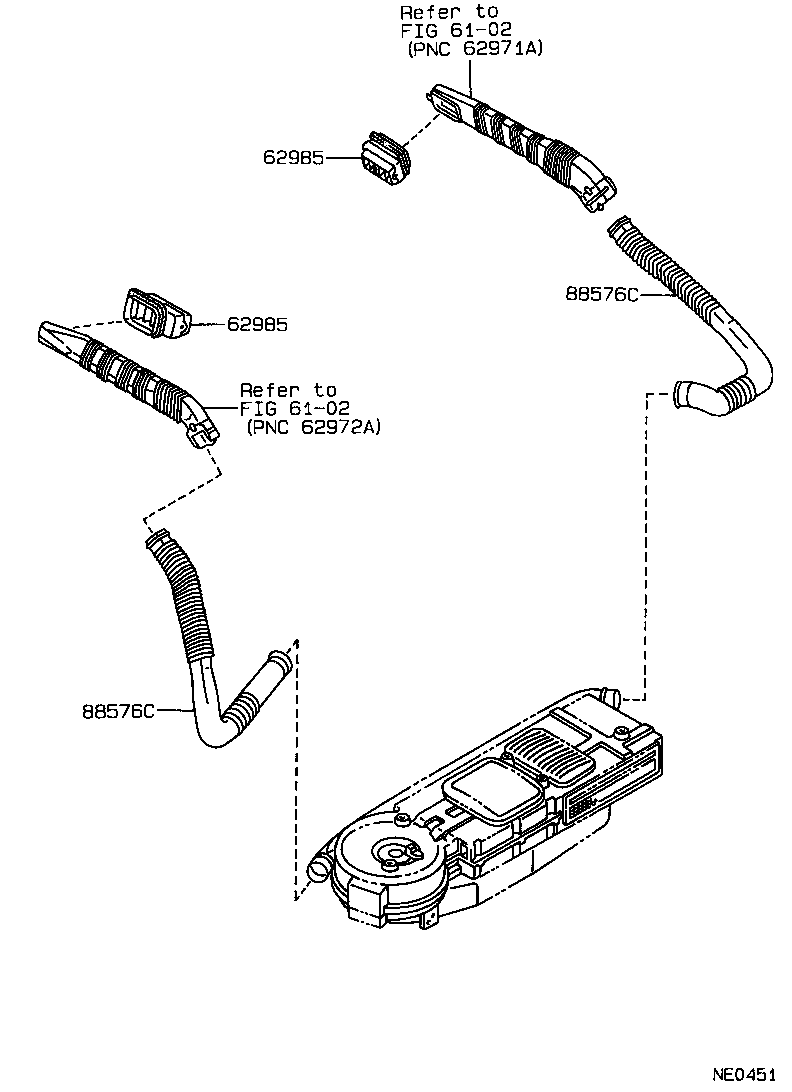

ILLUST NO. 4 OF 4(8709- )
REAR DUCT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Linked diagrams | ||||
| 6102 | ||||
