MS132L-AEKBS (1987)

Toyota Crown

Production Sep 1987 - Oct 1991
Engine 5M
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8709- )

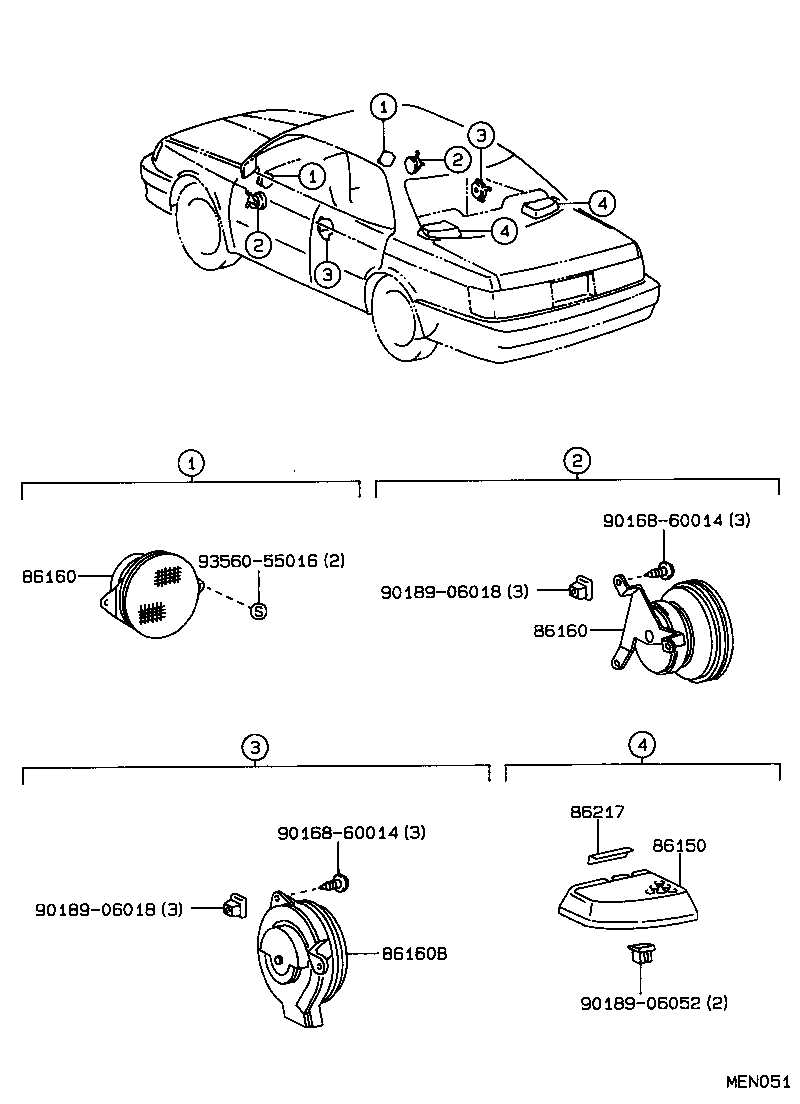

Click highlighted areas on diagram

diagram 86150 86160 86160 86160B 86217 9016860014 9016860014 9018906018 9018906018 9018906052 9356055016
Part # Description Qty Price
86160 - SPEAKER ASSY, FRONT NO.1
86160-30240

LS130,MS132,133,YS132..DLX,STD

INSTRUMENT PANEL,RH

 1
86160-30450

LS130,MS132,133,YS132..DLX,STD

INSTRUMENT PANEL,LH

 1
86160 - SPEAKER ASSY, FRONT NO.1
86160-30240

LS130,MS132,133,YS132..DLX,STD

INSTRUMENT PANEL,RH

 1
86160-30450

LS130,MS132,133,YS132..DLX,STD

INSTRUMENT PANEL,LH

 1
Common parts
90168-60014
90189-06018
90189-06052
93560-55016
